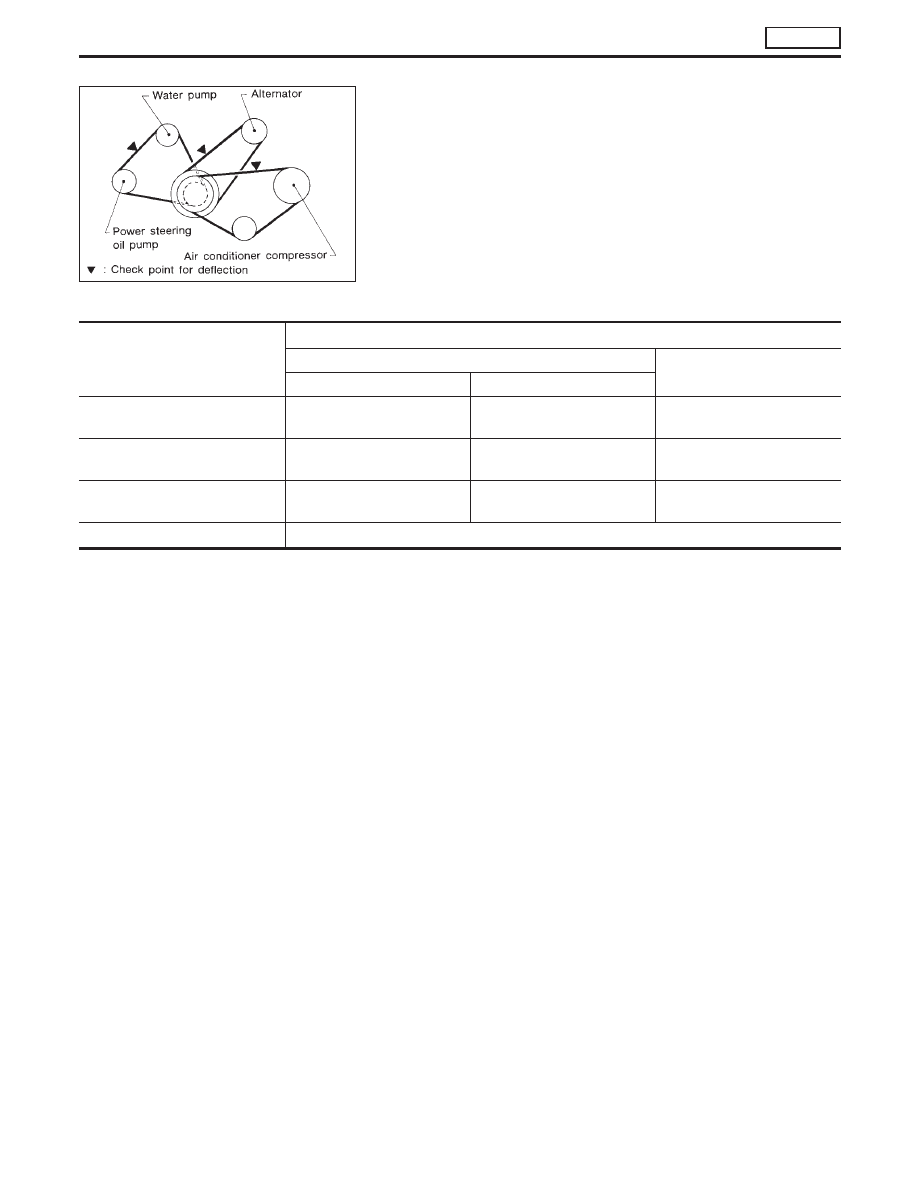

Checking Drive Belts

1. Inspect belt for cracks, fraying, wear and oil. If necessary,

replace.

2. Inspect drive belt deflection or tension at a point on the belt

midway between pulleys.

Inspect drive belt deflection or tension when engine is
cold.

Adjust if belt deflection exceeds the limit or if belt ten-
sion is not within specifications.

Turn crankshaft two revolutions and recheck drive belt
deflection or tension.

Deflection adjustment

Unit: mm (in)

Used belt

New belt

Limit

After adjustment

Generator

17 (0.67)

10.5 - 12.5

(0.413 - 0.492)

8.5 - 10.5

(0.335 - 0.413)

Air conditioner compressor

17 (0.67)

11.5 - 13.5

(0.453 - 0.531)

9.5 - 11.5

(0.374 - 0.453)

Power steering oil pump

8 (0.31)

5 - 7

(0.20 - 0.28)

4 - 6

(0.16 - 0.24)

Applied pushing force

98 N (10 kg, 22 lb)

SMA880C

ENGINE MAINTENANCE

CD20T

MA-39

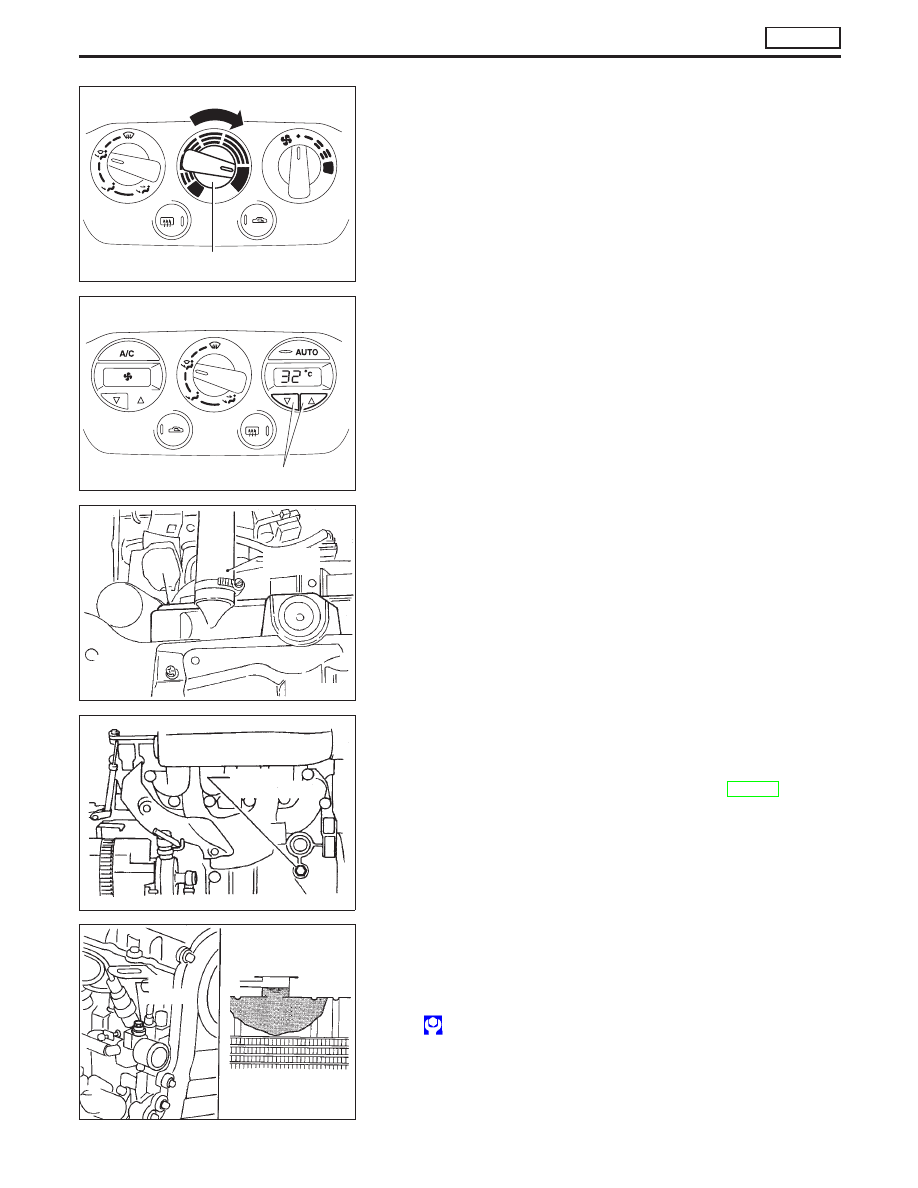

Changing Engine Coolant

WARNING:

To avoid being scalded, never change the coolant when the
engine is hot.

— DRAINING ENGINE COOLANT —

Heater
1. Set heater system as follows to prevent coolant from remain-

ing in the system.

Move temperature control dial all the way to “HOT”.

Semi-automatic air conditioning
1. Set air conditioning system as follows to prevent coolant from

remaining in the system.

a. Turn ignition switch “ON” and enter a temperature of 32°C on

the heater control.

b. Wait 30 seconds before turning ignition switch “OFF”.

2. Disconnect lower radiator hose and remove radiator cap.
3. Remove reservoir tank, drain coolant, then clean reservoir

tank.
Install it temporarily.

Be careful not to allow coolant to contact drive belts.

4. Remove cylinder block drain plug and air relief plug.
5. Check drained coolant for contaminants such as rust, corro-

sion or discoloration.
If contaminated, flush engine cooling system.
Refer to “FLUSHING COOLING SYSTEM”, MA-41.

— REFILLING ENGINE COOLANT —

6. Install lower radiator hose, reservoir tank and tighten cylinder

block drain plug securely.

Apply sealant to the thread of the cylinder block drain
plug.

: 55 - 75 N·m (5.7 - 7.6 kg-m, 41 - 55 ft-lb)

7. Fill up radiator with coolant at the speed of less than 3



(2-5/8

Imp qt)/min.

If coolant spills from the air relief hole without bubbles, install
the plug and then pour coolant in again.

NMA104

Turn to HOT

Temperature control dial

NMA103

Temperature control

.

NLC040

.

Radiator
lower hose

NLC041

Drain plug
(cylinder block)

SMA353C

Air
bleeder

ENGINE MAINTENANCE

CD20T

MA-40

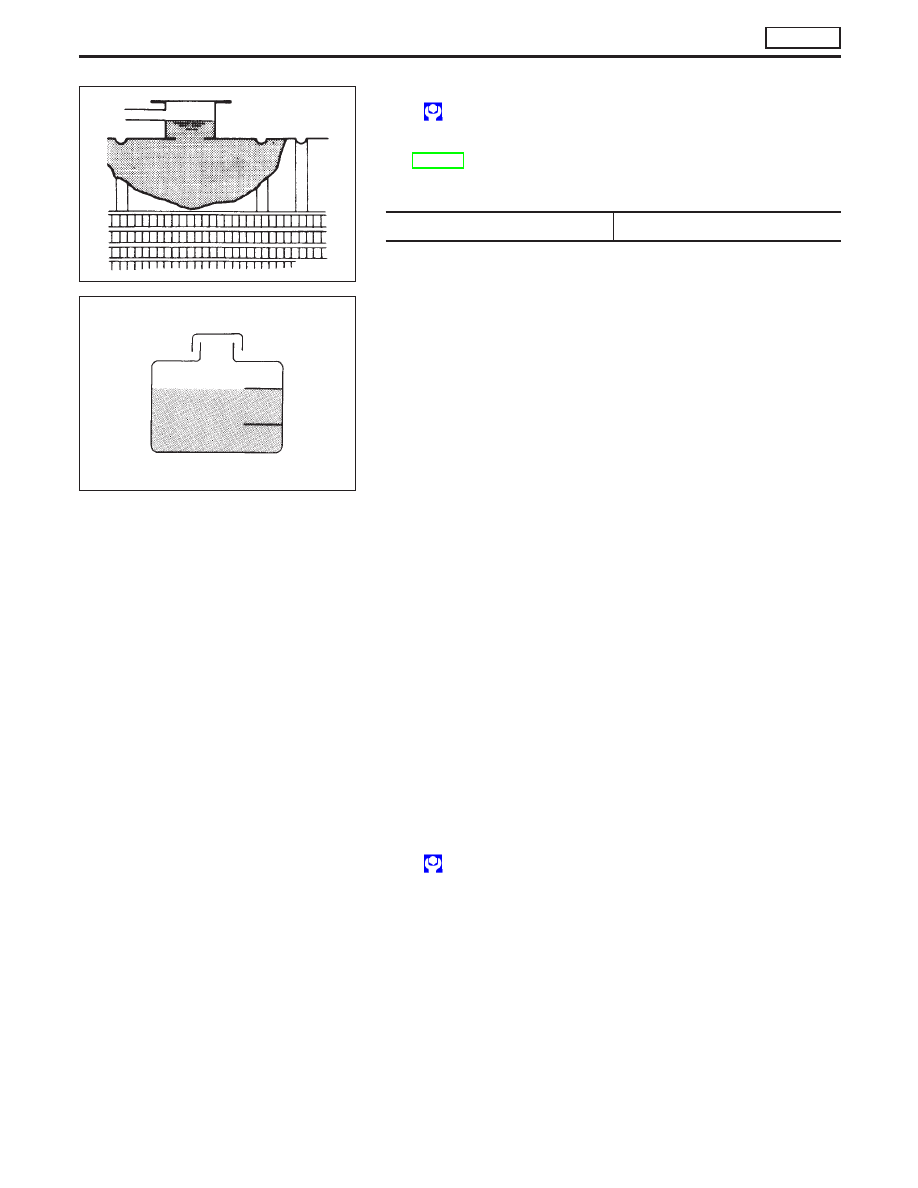

Air relief plug:

: 8 - 9 N·m (0.8 - 0.9 kg-m, 5.9 - 6.6 ft-lb)

Use genuine NISSAN Anti-Freeze Coolant or equivalent.
Refer to “RECOMMENDED FLUIDS AND LUBRICANTS”,
MA-16.

Coolant capacity (With reservoir tank):

Unit:



(Imp qt)

CD20T

6.1 (5-3/8)

8. Fill radiator and reservoir tank to specified level.
9. Start engine without installing radiator cap and warm it up at

2,000 rpm until radiator lower hose becomes hot.

If coolant level becomes low, refill coolant until coolant level
does not change.

If coolant overflows radiator filler hole, install filler cap.

10. Run engine at 2,500 prm for 10 seconds and return to idle

speed.

Repeat 2 or 3 times.

Watch coolant temperature gauge so as not to overheat the
engine.
11. Stop engine and wait until it cools down.

If necessary, refill radiator up to filler neck.

12. Refill reservoir tank to Max line with coolant.
13. Repeat steps 9 through 12 two or more times with radiator

cap installed until coolant level no longer drops.

14. Check cooling system for leaks with engine running.
15. Warm up engine, and check for sound of coolant flow while

running engine from idle up to 3,000 rpm with heater tem-
perature control lever set at several positions between COOL
and HOT.

Sound may be noticeable at heater water cock.

16. If the sound is heard, bleed air from cooling system by

repeating steps 9 through 12 until coolant level no longer
drops.

— FLUSHING COOLING SYSTEM —

1. Open air relief plug.
2. Fill radiator with water until water spills from the air relief

hole, then close air relief plug.

Air relief plug

: 7 - 8 N·m (0.7 - 0.8 kg-m, 5.1 - 5.8 ft-lb)

Fill radiator and reservoir tank with water and reinstall radia-
tor cap.

3. Run engine and warm it up sufficiently.
4. Rev engine 2 or 3 times under no-load.

Make sure that blower is “OFF”.

5. Stop engine and wait until it cools down.
6. Drain water.
7. Repeat steps 1 through 6 until clear water begins to drain

from radiator.

SMA182B

Radiator

SMA412B

MAX.

MIN.

ENGINE MAINTENANCE

CD20T

Changing Engine Coolant (Cont’d)

MA-41

Checking Cooling System

CHECKING HOSES

Check hoses for proper attachment and for leaks, cracks,
damage, loose connections, chafing and deterioration.

CHECKING RADIATOR

Check radiator for mud or clogging. If necessary, clean radiator
as follows.

Be careful not to bend or damage the radiator fins.

When radiator is cleaned without removal, remove all sur-
rounding parts such as cooling fan, radiator shroud and
horns. Then tape the harness and connectors to prevent
water from entering.

1. Apply water by hose to the back side of the radiator core

vertically downward.

2. Apply water again to all radiator core surfaces once per

minute.

3. Stop washing if any stains no longer flow out from the radia-

tor.

4. Blow air into the back side of radiator core vertically down-

ward.

Use compressed air lower than 5 kg/cm

2

and keep distance

more than 30 cm (11.8 in).

5. Blow air again into all the radiator core surfaces once per

minute until no water sprays out.

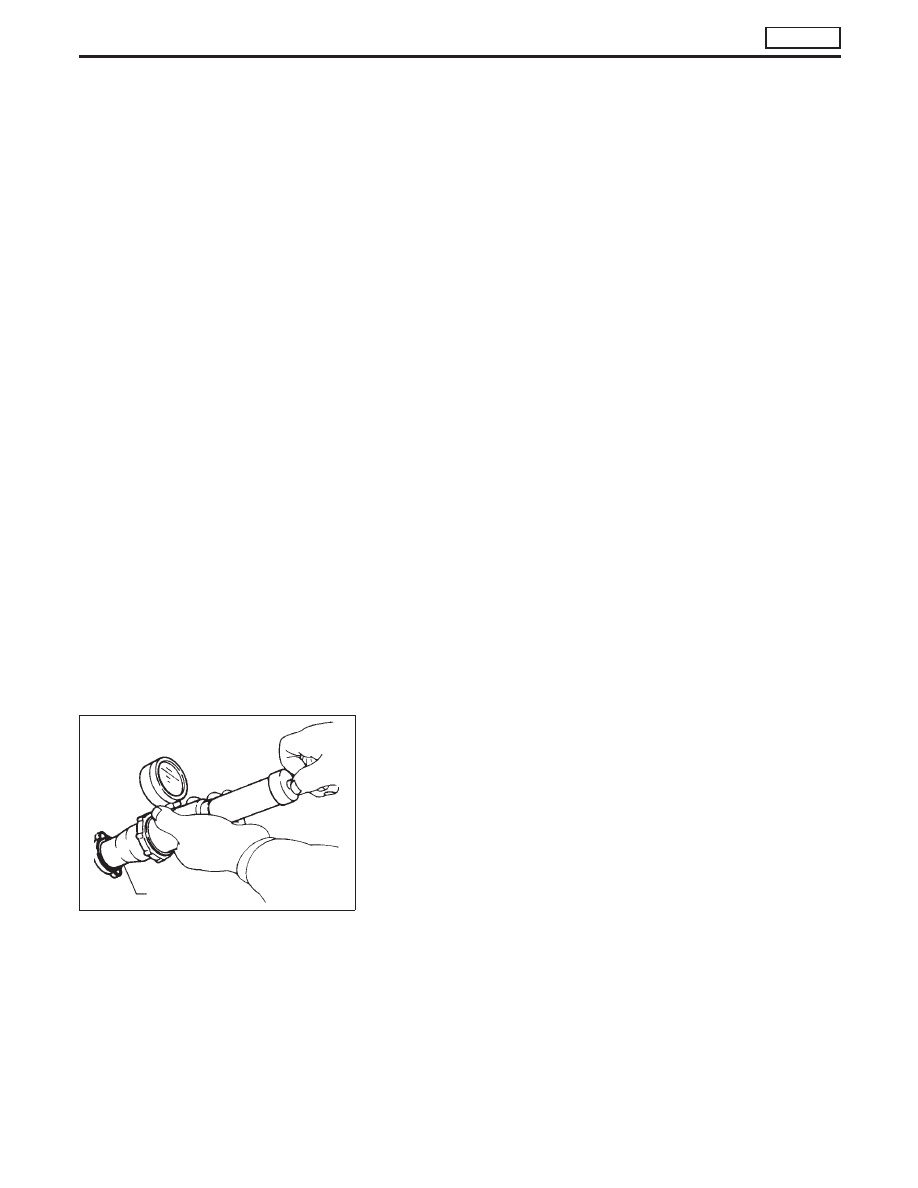

CHECKING RADIATOR CAP

Apply pressure to radiator cap with cap tester to see if it is sat-
isfactory.

Radiator cap relief pressure:

Standard

98 - 118 kPa
(0.98 - 1.18 bar, 1.0 - 1.2 kg/cm

2

, 14 - 17 psi)

Limit

59 - 118 kPa
(0.59 - 1.18 bar, 0.6 - 1.2 kg/cm

2

, 9 - 17 psi)

When installing radiator cap to the tester, apply water or
coolant to the radiator cap seal.

SLC613

EG17650301

ENGINE MAINTENANCE

CD20T

MA-42
