Pull the negative-pressure valve to open it. Check that it closes
completely when released.

CHECKING COOLING SYSTEM FOR LEAKS

Apply pressure to the cooling system with cap tester to check for
leakage.

Testing pressure:

157 kPa (1.57 bar, 1.6 kg/cm

2

, 23 psi)

CAUTION:

Higher pressure than the specified value may cause damage
to radiator.

Checking Fuel Lines

Inspect fuel lines and tank for improper attachment and for leaks,
cracks, damage, loose connections, chafing and deterioration.
If necessary, repair or replace faulty parts.

Checking and Replacing Fuel Filter and
Draining Water

CHECKING FUEL FILTER

Check fuel filter for fuel leakage, damage and other abnormal
signs.

REPLACING FUEL FILTER

1. Disconnect fuel filter sensor connector and drain fuel.

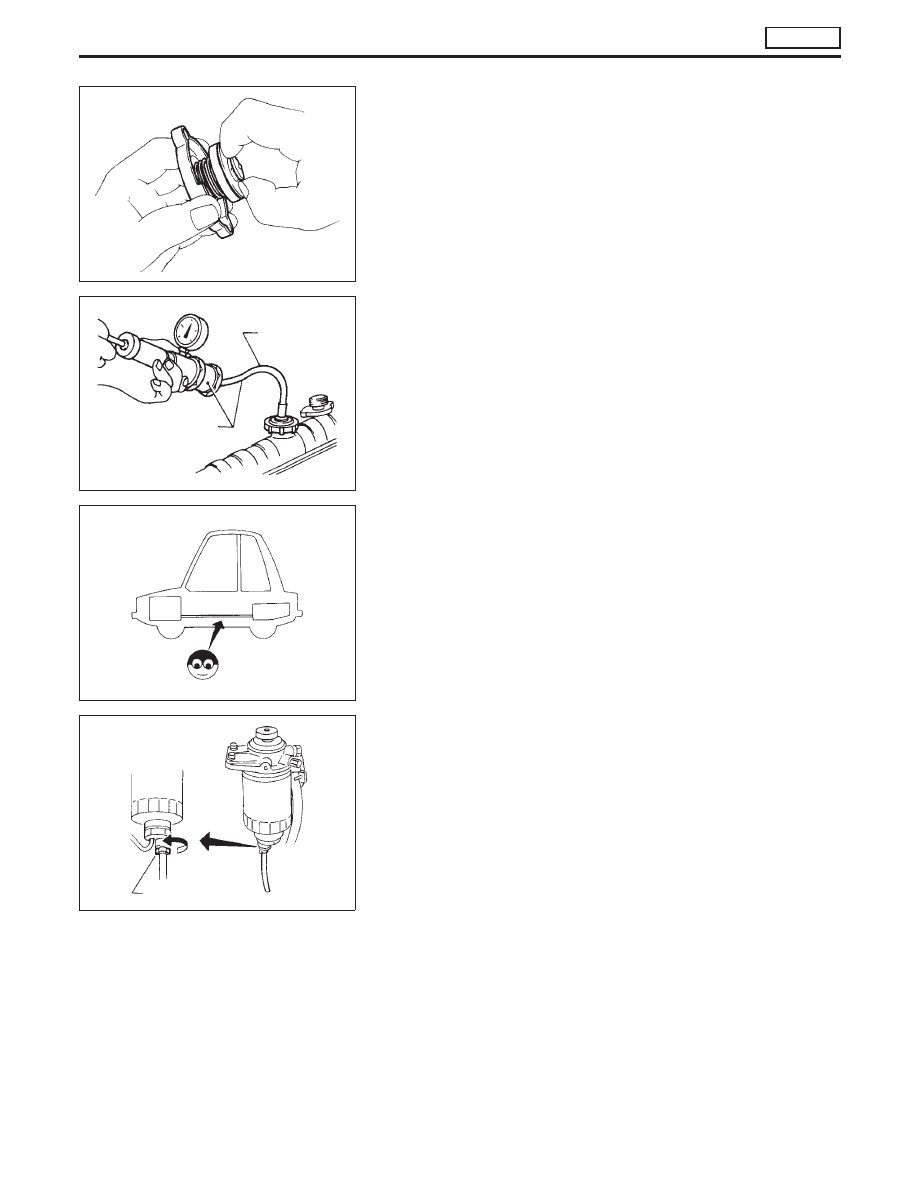

SMA871B

SMA990A

Hose adapter

EG17650301

SMA803A

Engine

Fuel line

Fuel tank

SMA794C

Loosen

Drain valve

ENGINE MAINTENANCE

CD20T

Checking Cooling System (Cont’d)

MA-43

2. Remove fuel filter, using a suitable tool.

3. Wipe clean fuel filter mounting surface on fuel filter bracket

and smear a little fuel on rubber seal of fuel filter.

4. Screw fuel filter on until O-ring touches mounting surface,

then tighten an additional 2/3 turn. Follow instructions on fuel
filter.

5. Install fuel filter sensor to new fuel filter.
6. Bleed air from fuel line.
7. Start engine and check for leaks.

DRAINING WATER

1. Set a container under fuel filter.
2. Loosen drain cock and drain water.
Loosening drain cock 4 to 5 turns causes water to start
draining. Do not remove drain cock by loosening it exces-
sively.
If water does not drain properly, move the priming pump up and
down.
3. Bleed air.

FUEL SYSTEM AIR BLEEDING

1. Move priming pump up and down until there is suddenly

more resistance in the movement. Then stop this action and
start the engine.

2. If engine does not operate smoothly after being started, rev

it two or three times.

When refilling empty fuel tank, bleed air out of fuel system.

Changing Air Cleaner Filter

Unfasten clamps to change air cleaner filter.
The viscous paper type filter does not need cleaning.

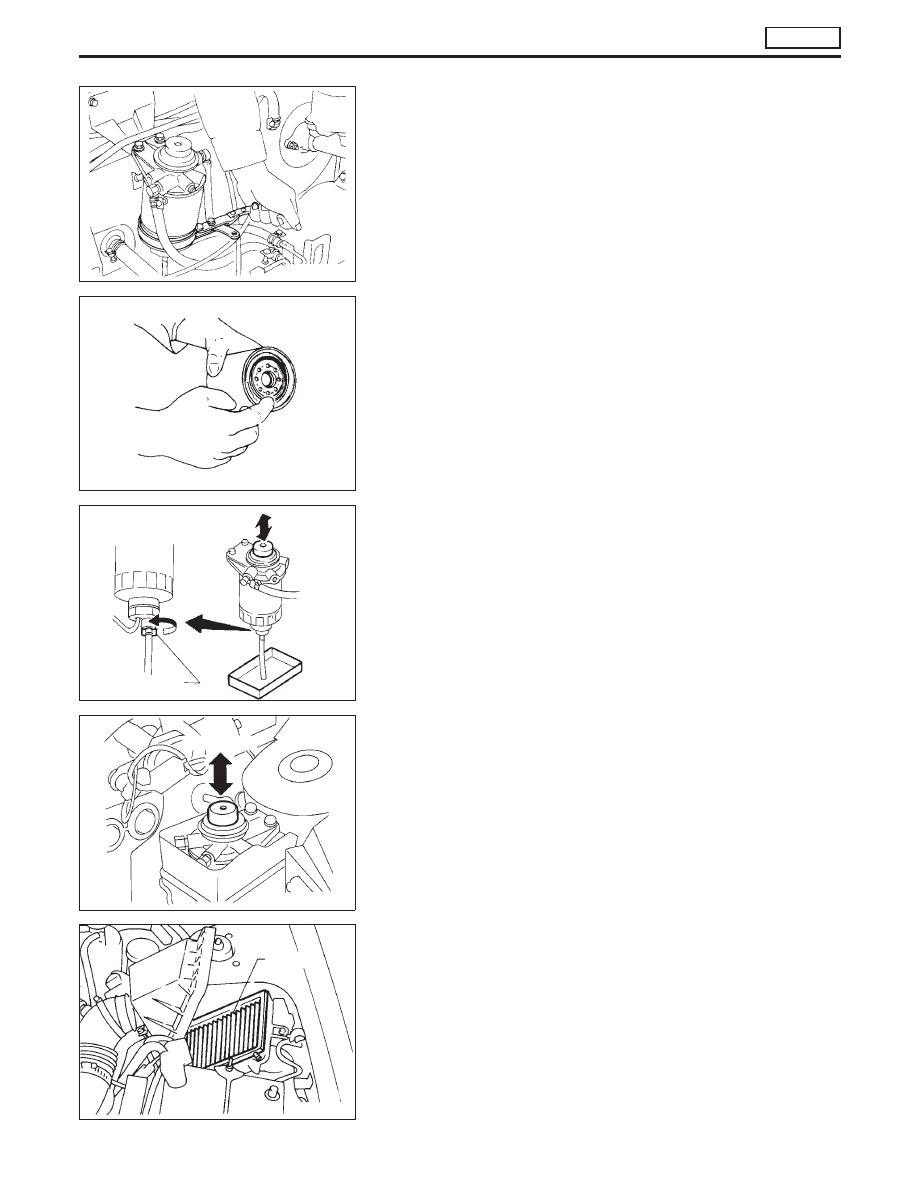

SMA896A

SMA010

MMA105A

Loosen

Drain valve

Up and
down

SMA795C

Up and down

.

SMA668B

Air filter

ENGINE MAINTENANCE

CD20T

Checking and Replacing Fuel Filter and
Draining Water (Cont’d)

MA-44

Changing Engine Oil

WARNING:

Be careful not to burn yourself, as the engine oil is hot.

Prolonged and repeated contact with used engine oil
may cause skin cancer; try to avoid direct skin contact
with used oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.

1. Warm up engine, and check for oil leakage from engine com-

ponents.

2. Stop engine.
3. Remove drain plug and oil filler cap.
4. Drain oil and refill with new engine oil.
Oil specification and viscosity:

ACEA B2-96 (CCMC-PD2)

See “RECOMMENDED FLUIDS AND LUBRICANTS”,
MA-16.

Oil capacity (Approximately):

Unit:



(Imp pts)

Drain and refill

With oil filter change

5.0

Without oil filter change

4.5

Dry engine (engine overhaul)

5.1

CAUTION:

Be sure to clean drain plug and install with new washer.

Drain plug:

: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)

The refill capacity depends on the oil temperature and
drain time. Use these specifications for reference only.
Always use the dipstick to determine when the proper
amount of oil is in the engine.

5. Warm up engine, and check area around drain plug and oil

filter for oil leakage.

6. Stop engine.
7. Check oil level.

Changing Engine Oil Filter

1. Remove oil filter with Tool.

WARNING:

Be careful not to burn yourself, as engine and engine oil are
hot.

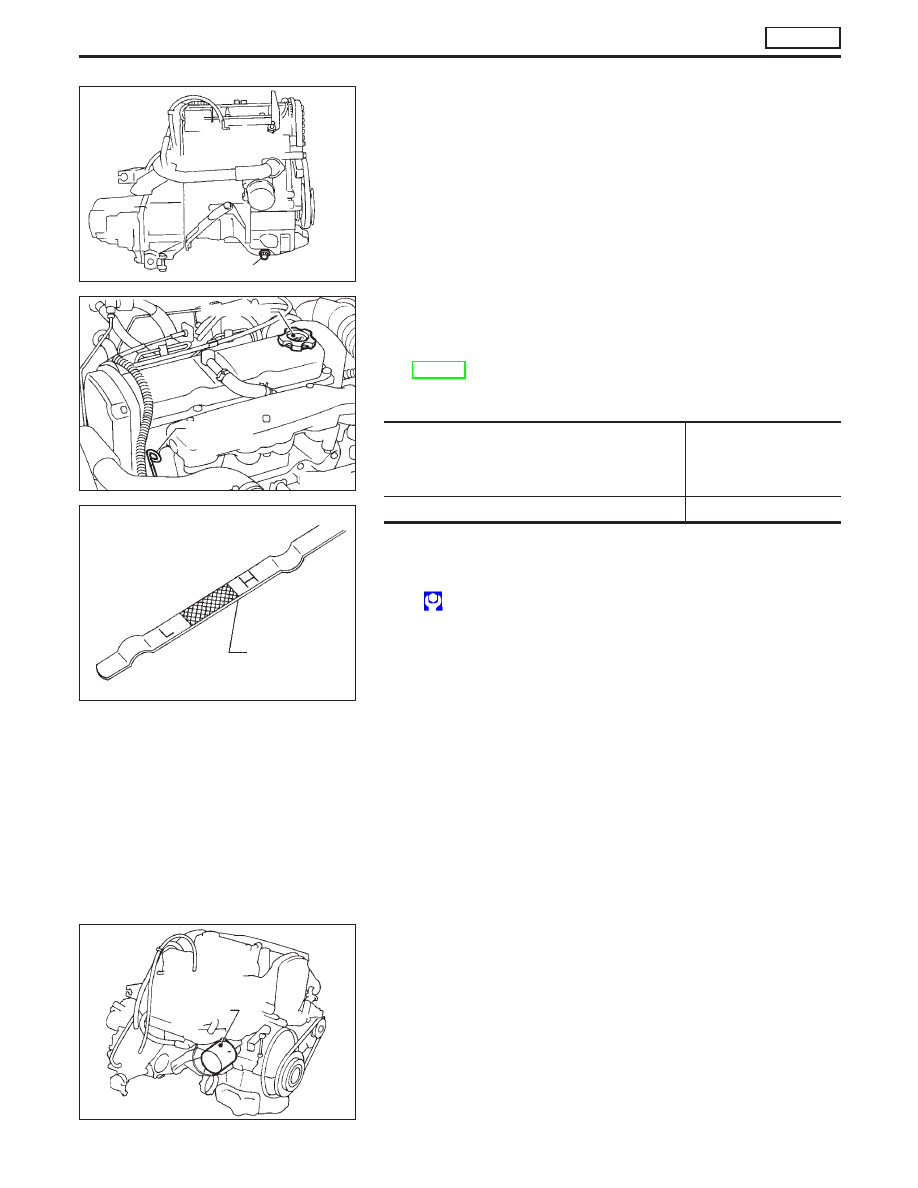

SMA418C

Engine oil drain plug

.

SMA411C

Oil filter cap

Engine oil
level gauge

SMA822C

Refill oil to this “H”
level.
Do not overfill.

SMA412C

Engine oil
filter

ENGINE MAINTENANCE

CD20T

MA-45

2. Clean the oil filter mounting surface on cylinder block. Coat

the rubber seal of the new oil filter with engine oil.

3. Screw in the oil filter until a slight resistance is felt, then

tighten an additional 2/3 turn.

4. Add engine oil.
Refer to “Changing Engine Oil”, MA-45.

Clean excess oil from engine.

Checking Injection Nozzles

1. Remove injection delivery tubes and fuel spill tube.
2. Remove nozzle assembly with S.S.T. KV119E0030.
No. 1 cylinder nozzle assembly should not be disassembled
as it is provided with a needle lift sensor.

WARNING:

When using nozzle tester, be careful not to allow diesel fuel
sprayed from nozzle to come into contact with your hand or
body, and make sure that your eyes are properly protected.
3. Clean and check nozzles.
4. Install nozzle to injection nozzle tester and bleed air from

flare nut.

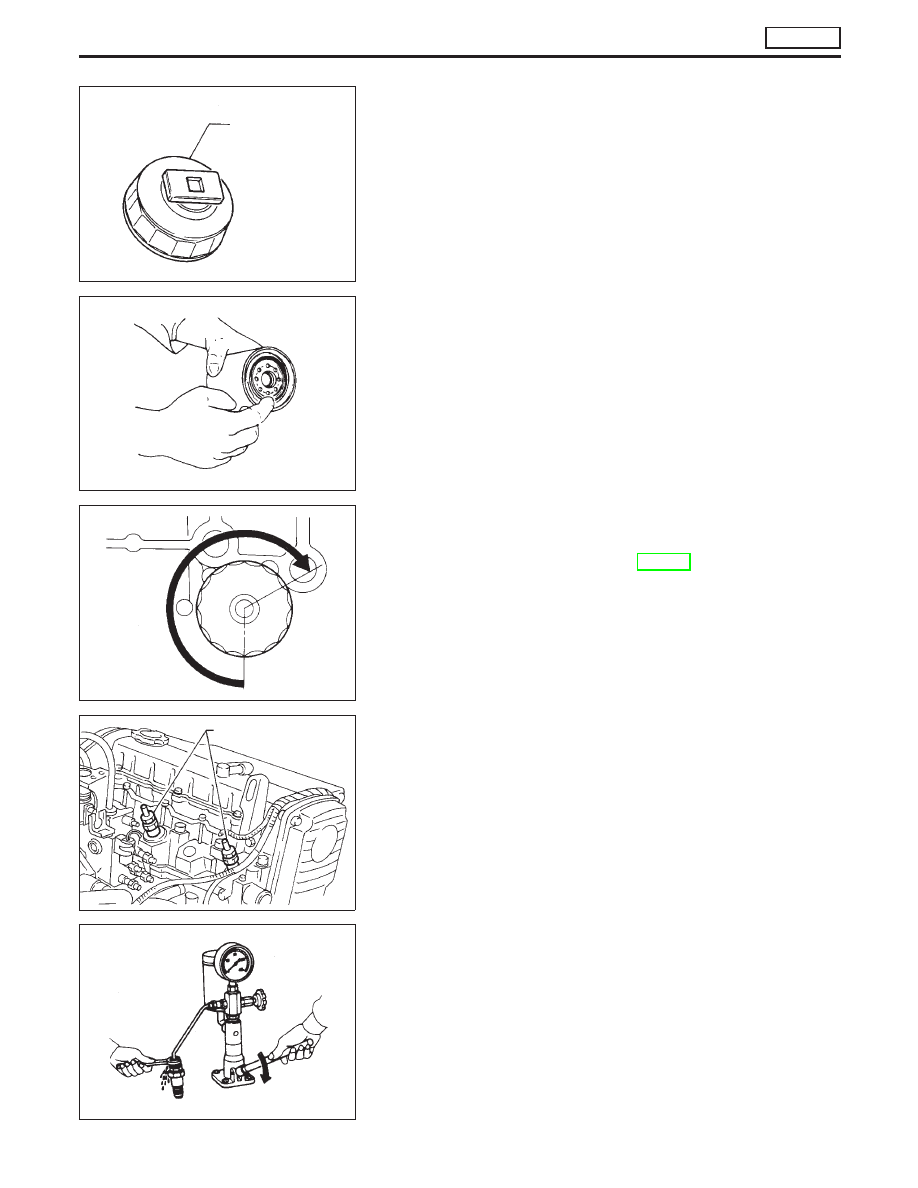

NMA037

.

99545R2500
(KV101060S0)

SMA010

SMA229B

2/3 turn

SMA419C

Injection nozzle assembly

EF791A

ENGINE MAINTENANCE

CD20T

Changing Engine Oil Filter (Cont’d)

MA-46
