Nissan Primera P11. Manual - part 490





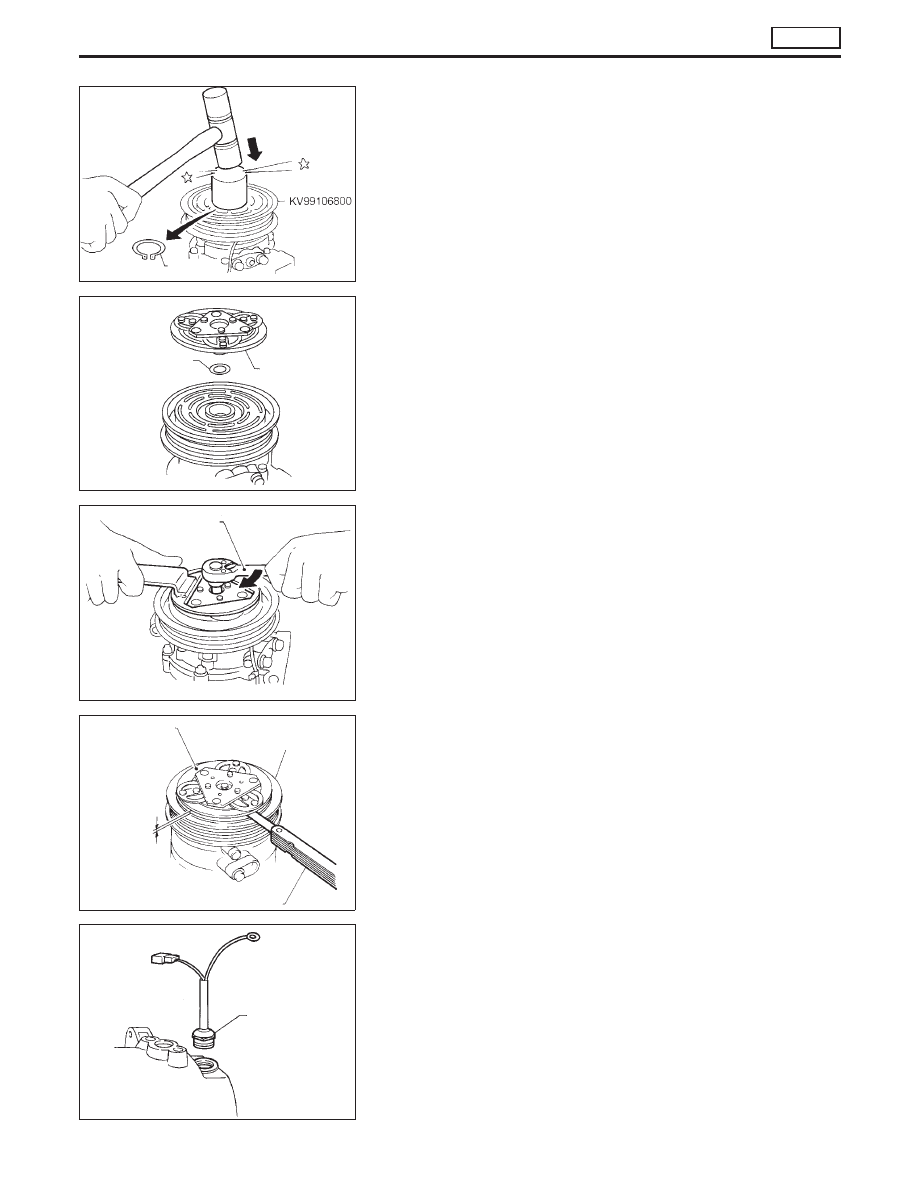

Position and install pulley assembly securely by using plas-
tic hammer.

Install snap ring (which secures rotor pulley) by using exter-
nal snap ring pliers.

Install the clutch disc on the drive shaft, together with the
original shim(s). Press the disc down by hand.

Using the clutch wrench disc to prevent clutch disc rotation,
tighten the bolt to 12 to 15 N·m (1.2 to 1.5 kg-m, 9 to 11 ft-lb)
torque.

After tightening the bolt, check that the pulley rotates
smoothly.

Check clearance around the entire periphery of clutch disc.

Disc-to-pulley clearance:

0.3 - 0.6 mm (0.012 - 0.024 in)

If the specified clearance is not obtained, replace adjusting
spacer and readjust.

BREAK-IN OPERATION

When replacing compressor clutch assembly, do not forget
break-in operation, accomplished by engaging and disengaging
the clutch about thirty times. Break-in operation raises the level
of transmitted torque.

Thermal Protector

INSPECTION

When servicing, do not allow foreign matter to get into com-
pressor.

Check continuity between two terminals.

RHA321EA

Snap ring

RHA322E

Shim

Clutch disc

RHA323E

Torque wrench

RHA087E

Clutch disc

Pulley assembly

0.3 - 0.6 mm
(0.012 - 0.024 in)

Feeler gauge

SHA055B

Thermal protector

SERVICE PROCEDURES

AUTO

Compressor Clutch (Cont’d)

HA-113

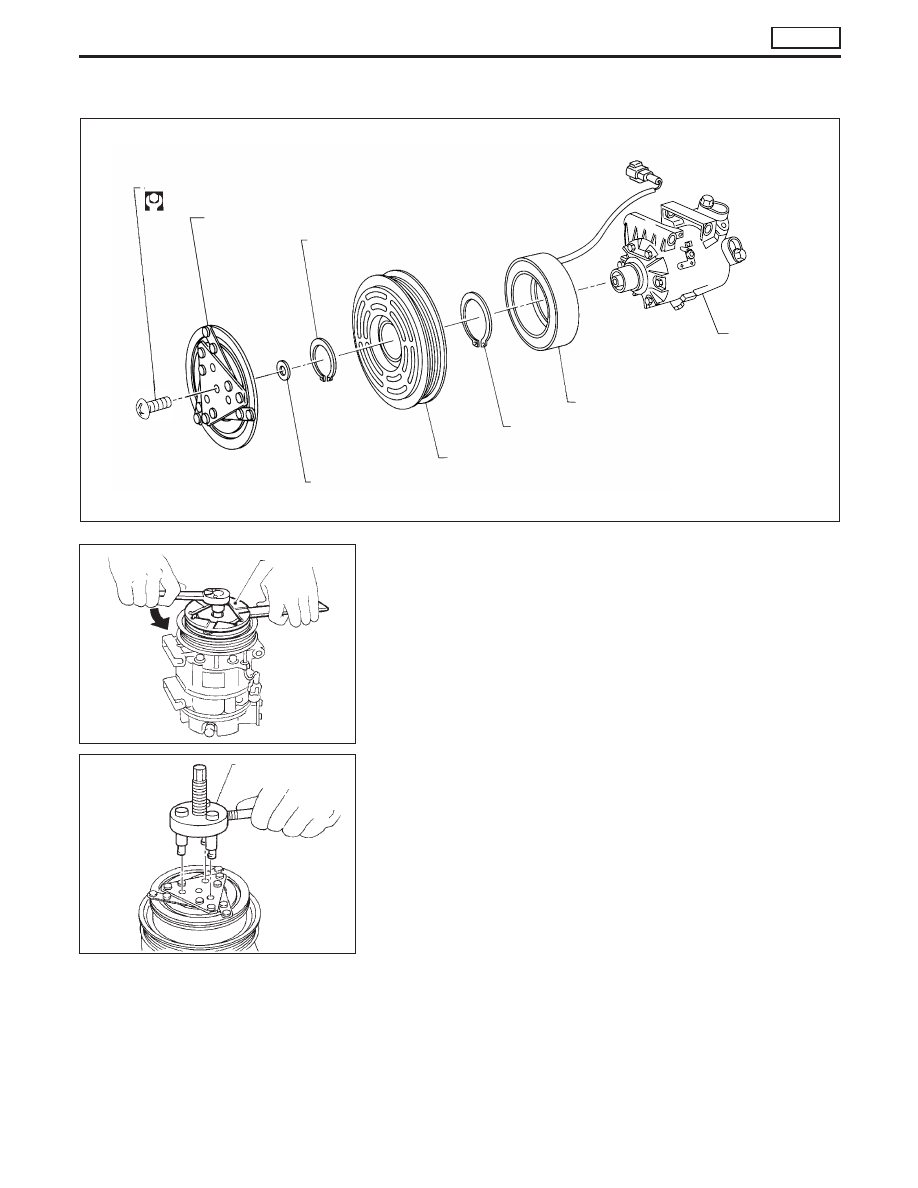

CSV613 Compressor

Compressor Clutch

REMOVAL

When removing center bolt, hold clutch disc with clutch disc
wrench.

KHA114

Field coil

Snap ring

Pulley assembly

Snap ring

Shim

Clutch disc

Center bolt

14 N·m (1.4 kg-m, 10 ft-lb)

Compressor
unit

RHA136E

KV99106100

RHA399FA

KV99232340

SERVICE PROCEDURES

AUTO

HA-114

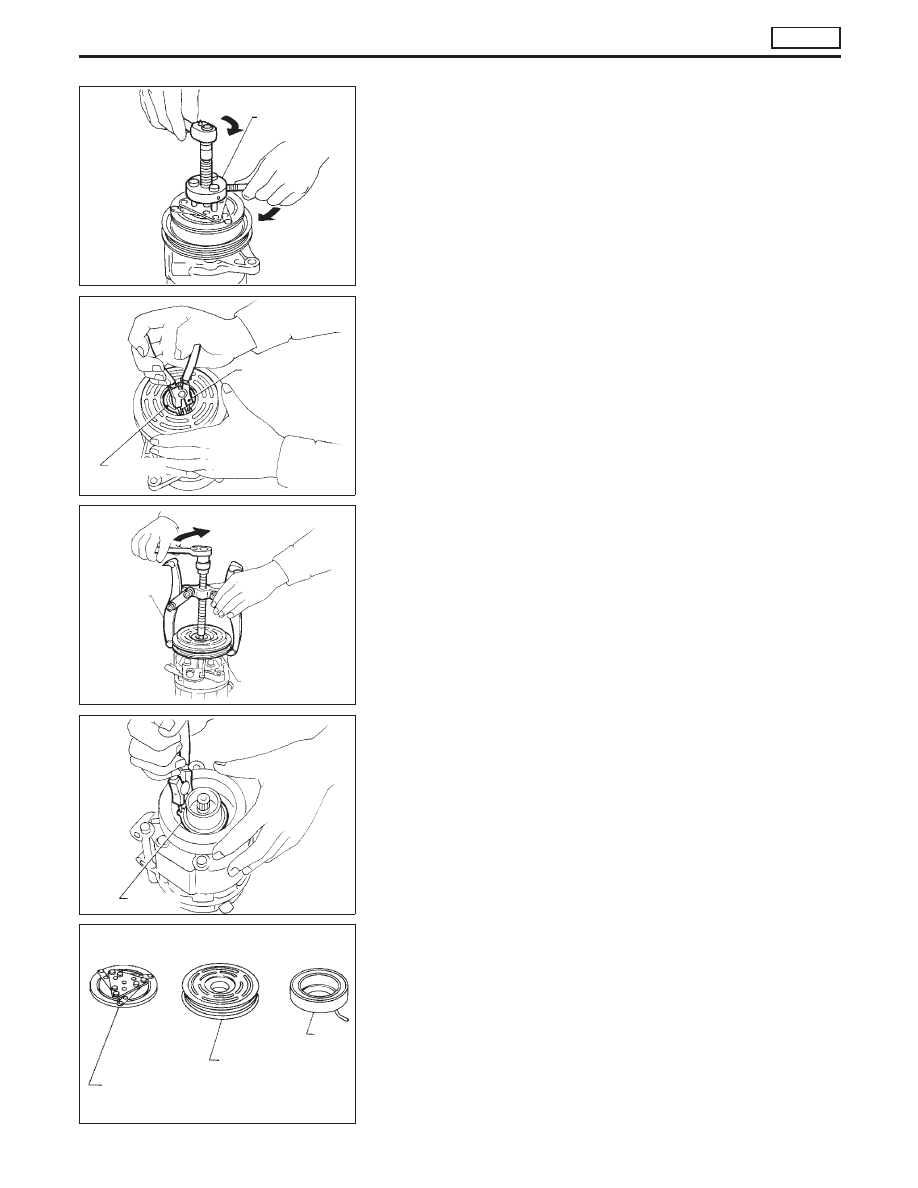

Remove the clutch disc using the clutch disc puller.
Insert the holder’s three pins into the holes in the clutch disc.
Rotate the holder clockwise to hook it onto the plate. Then,
tighten the center bolt to remove the clutch disc.
After removing the clutch disc, remove the shims from either
the drive shaft or the clutch disc.

Remove the snap ring using external snap ring pliers.

Pulley removal
Position the center pulley puller on the end of the drive shaft,
and remove the pulley assembly using any commercially
available pulley puller.
To prevent the pulley groove from being deformed, the
puller claws should be positioned onto the edge of the
pulley assembly.

Remove the field coil harness clip.

Remove the snap ring using external snap ring pliers.

INSPECTION

Clutch disc

If the contact surface shows signs of damage due to excessive
heat, replace clutch disc and pulley.

Pulley

Check the appearance of the pulley assembly. Check if the con-
tact surface of the pulley shows sign of excessive grooving,
replace clutch disc and pulley. The contact surfaces of the pul-
ley assembly should be cleaned with a suitable solvent before
reinstallation.

RHA124FA

KV99106100

RHA138E

External snap
ring pliers

Snap ring

RHA139E

Pulley puller

Pulley assembly

RHA145E

Snap ring

RHA126F

Clutch disc

Pulley

Coil

SERVICE PROCEDURES

AUTO

Compressor Clutch (Cont’d)

HA-115

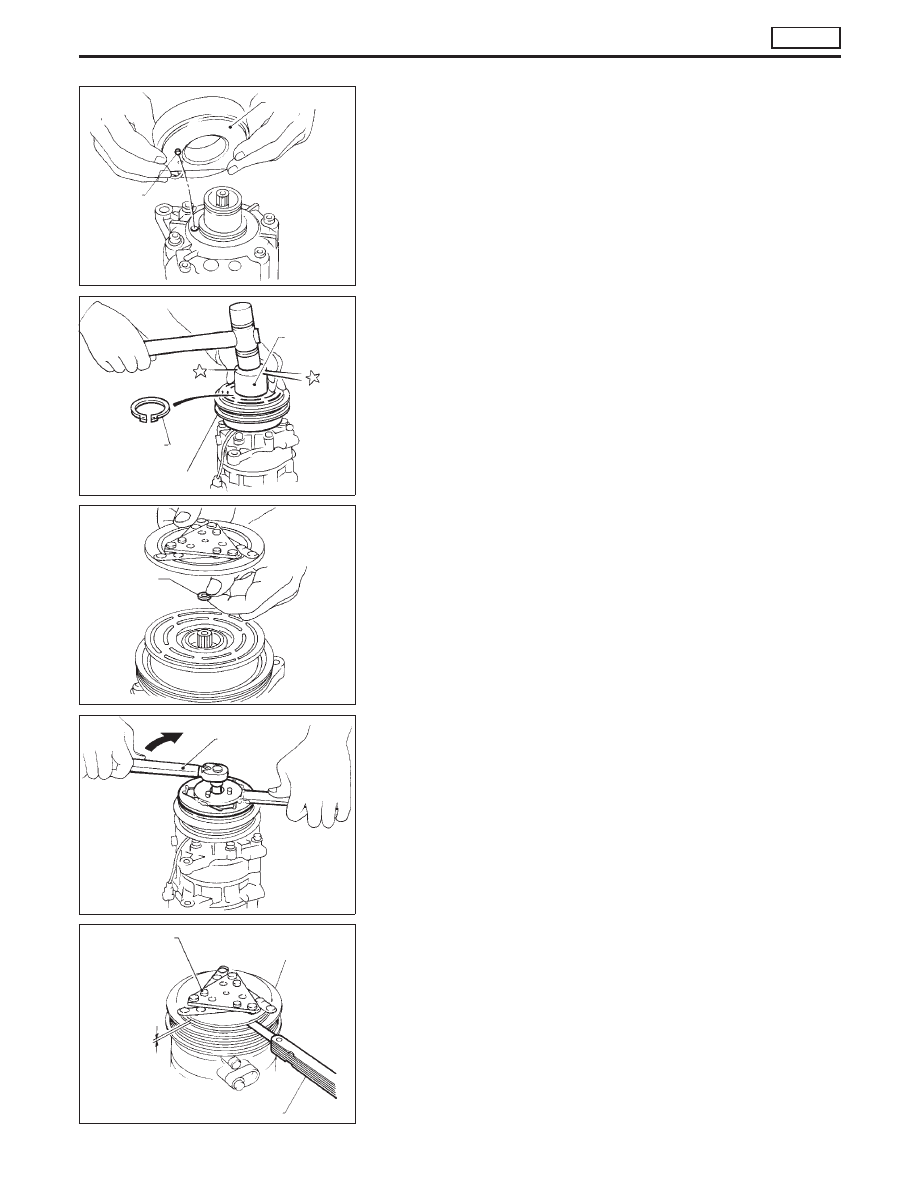

Coil

Check coil for loose connection or cracked insulation.

INSTALLATION

Install the field coil.

Be sure to align the coil’s pin with the hole in the compres-
sor’s front head.

Install the field coil harness clip using a screwdriver.

Install the pulley assembly using the installer and a hand
press, and then install the snap ring using snap ring pliers.

Install the clutch disc on the drive shaft, together with the
original shim(s). Press the clutch disc down by hand.

Using the holder to prevent clutch disc rotation, tighten the
bolt to 14 N·m (1.4 kg-m, 10 ft-lb) torque.

After tightening the bolt, check that the pulley rotates
smoothly.

Check clearance around the entire periphery of clutch disc.

Disc-to-pulley clearance:

0.3 - 0.6 mm (0.012 - 0.024 in)

If the specified clearance is not obtained, replace adjusting
spacer and readjust.

RHA142E

Pin

Field coil

RHA143E

Snap ring

KV99106200

Pulley assembly

RHA127F

Shim

RHA086E

Torque wrench

NHA310

Clutch disc

Pulley assembly

0.3 - 0.6 mm
(0.012 - 0.024 in)

Feeler gauge

SERVICE PROCEDURES

AUTO

Compressor Clutch (Cont’d)

HA-116
