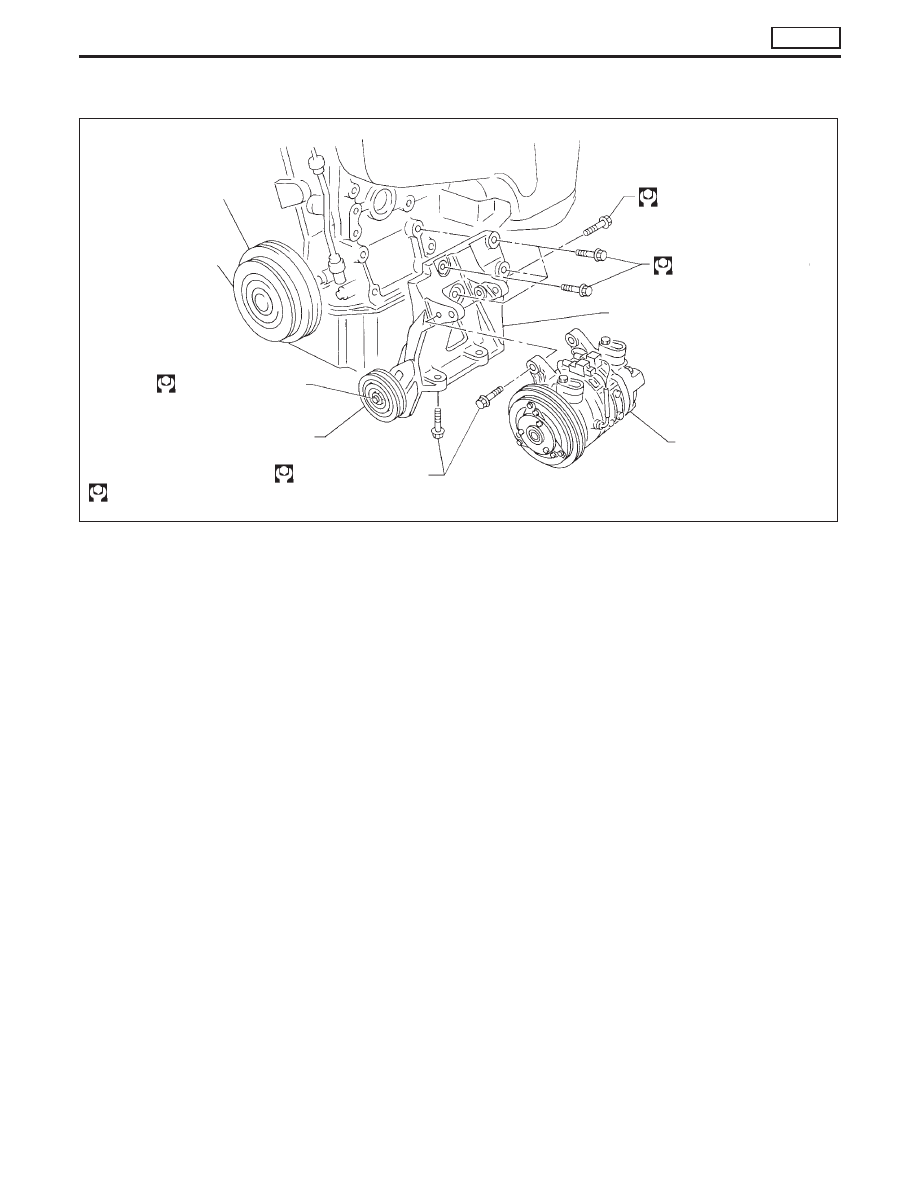

Compressor Mounting

KHA056

CD engine models

27 - 35 (2.8 - 3.6, 20 - 26)

Idler pulley

.

: N·m (kg-m, ft-lb)

37 - 50 (3.8 - 5.1, 27 - 37)

Compressor

Bracket

45 - 60 (4.6 - 6.1, 33 - 44)

37 - 50 (3.8 - 5.1, 27 - 37)

SEC. 274

275

SERVICE PROCEDURES

AUTO

HA-109

KHA057

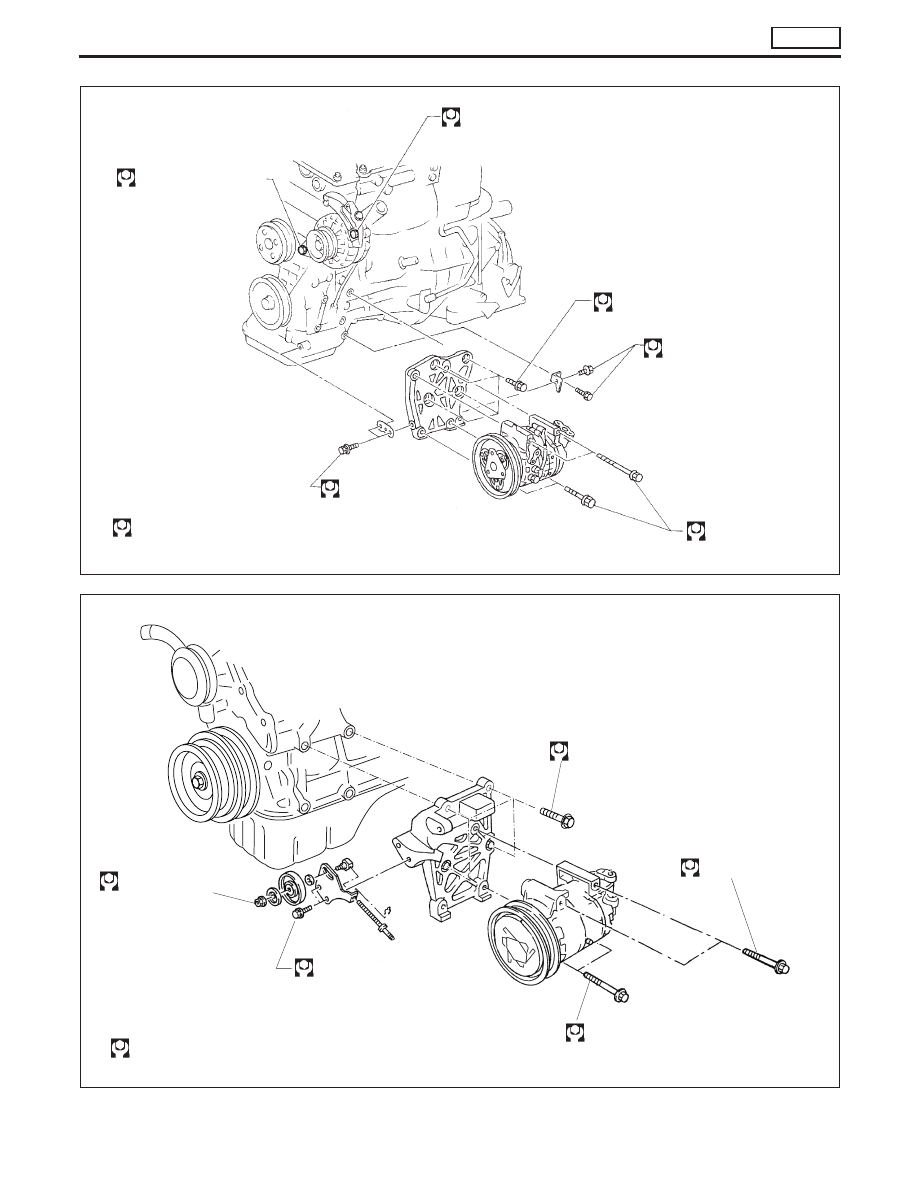

SR engine models

45 - 60 (4.6 - 6.1, 33 - 44)

16 - 19 (1.6 - 1.9, 12 - 14)

45 - 60 (4.6 - 6.1, 33 - 44)

16 - 19
(1.6 - 1.9, 12 - 14)

45 - 60
(4.6 - 6.1, 33 - 44)

: N·m (kg-m, ft-lb)

16 - 19
(1.6 - 1.9, 12 - 14)

SEC. 274

275

NHA316

QG engine models
SEC.274

275

25 - 31
(2.4 - 3.2, 18 - 23)

34 - 46 (3.4 - 4.6, 25 - 33)

: N·m (kg-m, ft-lb)

31 - 40 (3.1 - 4.1, 23 - 29)

31 - 40 (3.1 - 4.1, 23 - 29)

45 - 60 (4.6 - 6.1, 33 - 44)

SERVICE PROCEDURES

AUTO

Compressor Mounting (Cont’d)

HA-110

Belt tension

Refer to MA section.

Fast Idle Control Device (FICD)

refer to EC section.

Compressor — Model CR-14 (Calsonic make)

Compressor Clutch

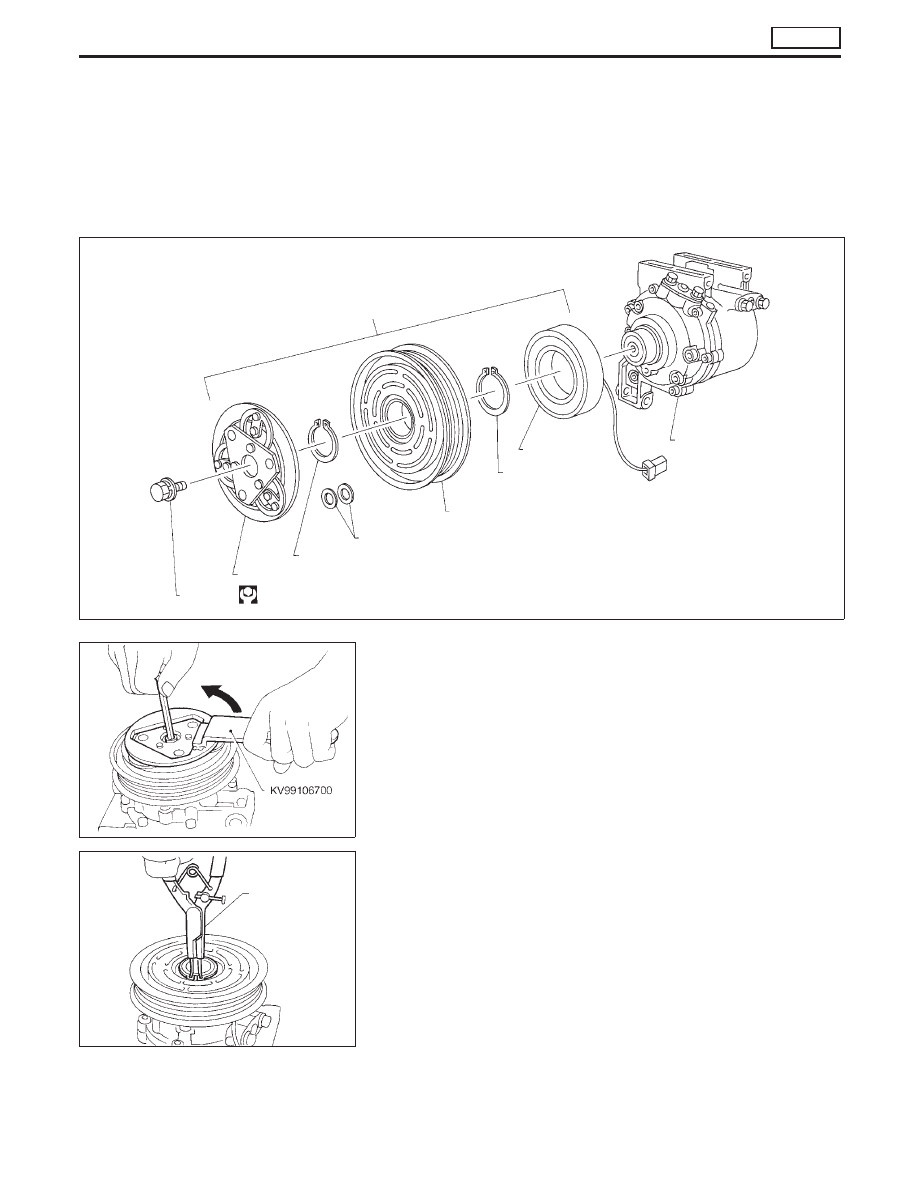

REMOVAL

When removing center bolt, hold clutch disc with clutch disc
wrench.

Take off clutch disc.

Remove snap ring (which secures rotor pulley) by using
external snap ring pliers.

RHA314E

Magnet clutch assembly

Compressor

Field coil

Snap ring

Pulley assembly

Clutch disc

Shim

Snap ring

Center bolt

12 - 15 N·m (1.2 - 1.5 kg-m, 9 - 11ft-lb)

SEC. 274

RHA315EA

RHA316E

Snap ring pliers

SERVICE PROCEDURES

AUTO

Compressor Mounting (Cont’d)

HA-111

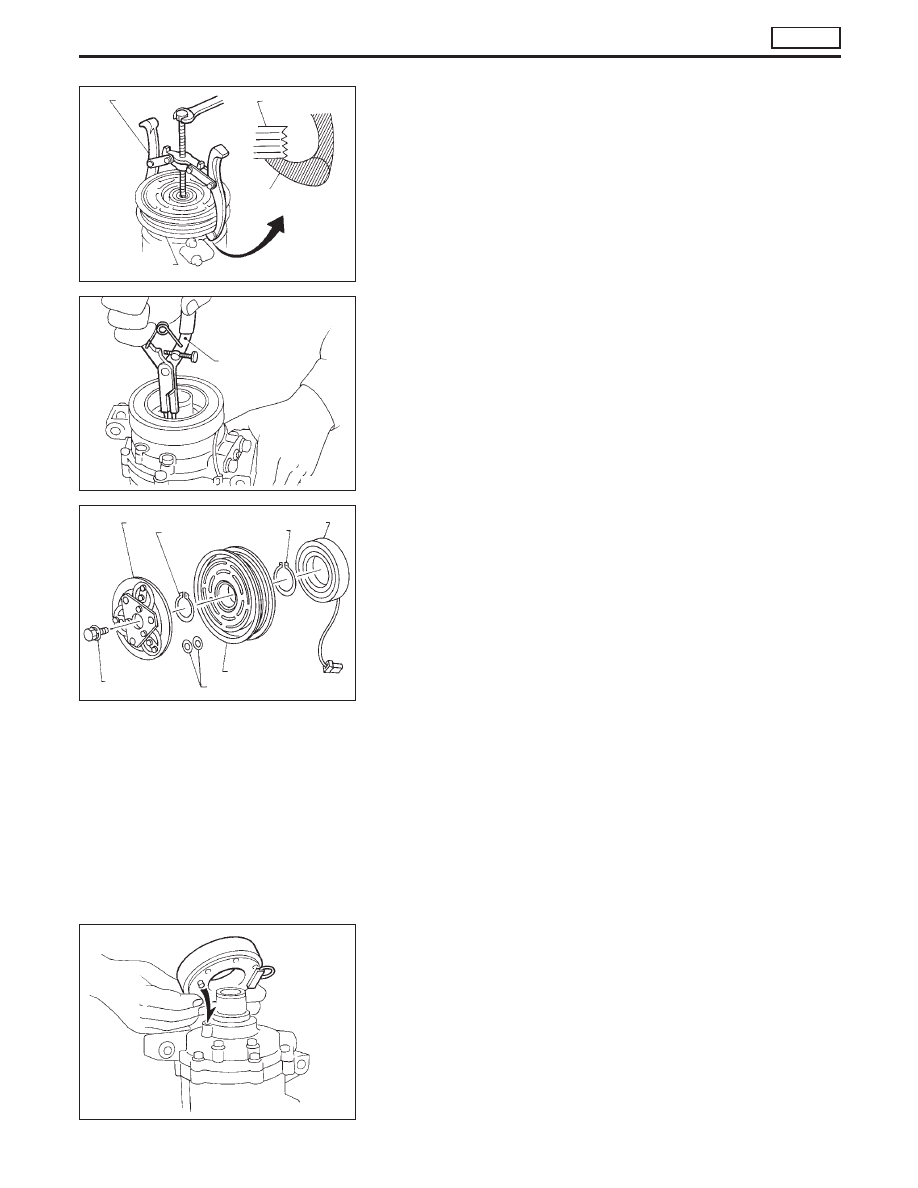

Pulley removal
Position the center pulley puller on the end of the drive shaft,
and remove the pulley assembly using any commercially
available pulley puller.
To prevent the pulley groove from being deformed, the
puller claws should be positioned onto the edge of the
pulley assembly.

Remove snap ring (which secures field coil) by using exter-
nal snap ring pliers.

INSPECTION

Clutch disc

If the contact surface shows signs of damage due to excessive
heat, the clutch disc and pulley should be replaced.

Pulley

Check the appearance of the pulley assembly. If the contact
surface of the pulley shows signs of excessive grooving due to
slippage, both the pulley and clutch disc should be replaced. The
contact surfaces of the pulley assembly should be cleaned with
a suitable solvent before reinstallation.

Coil

Check coil for loose connection or cracked insulation.

INSTALLATION

Position the field coil.

Be sure to align the coil’s pin with the hole in compressor’s
front head.

Install snap ring (which secures field coil) by using external
snap ring pliers.

RHA317E

Gear puller

Rotor pulley

Pulley puller
claws

Pulley assembly

.

RHA318E

External snap
ring pliers

RHA319E

Clutch disc

Snap ring

Snap ring

Field coil

Center bolt

Shim

Pulley assembly

RHA320E

SERVICE PROCEDURES

AUTO

Compressor Clutch (Cont’d)

HA-112
