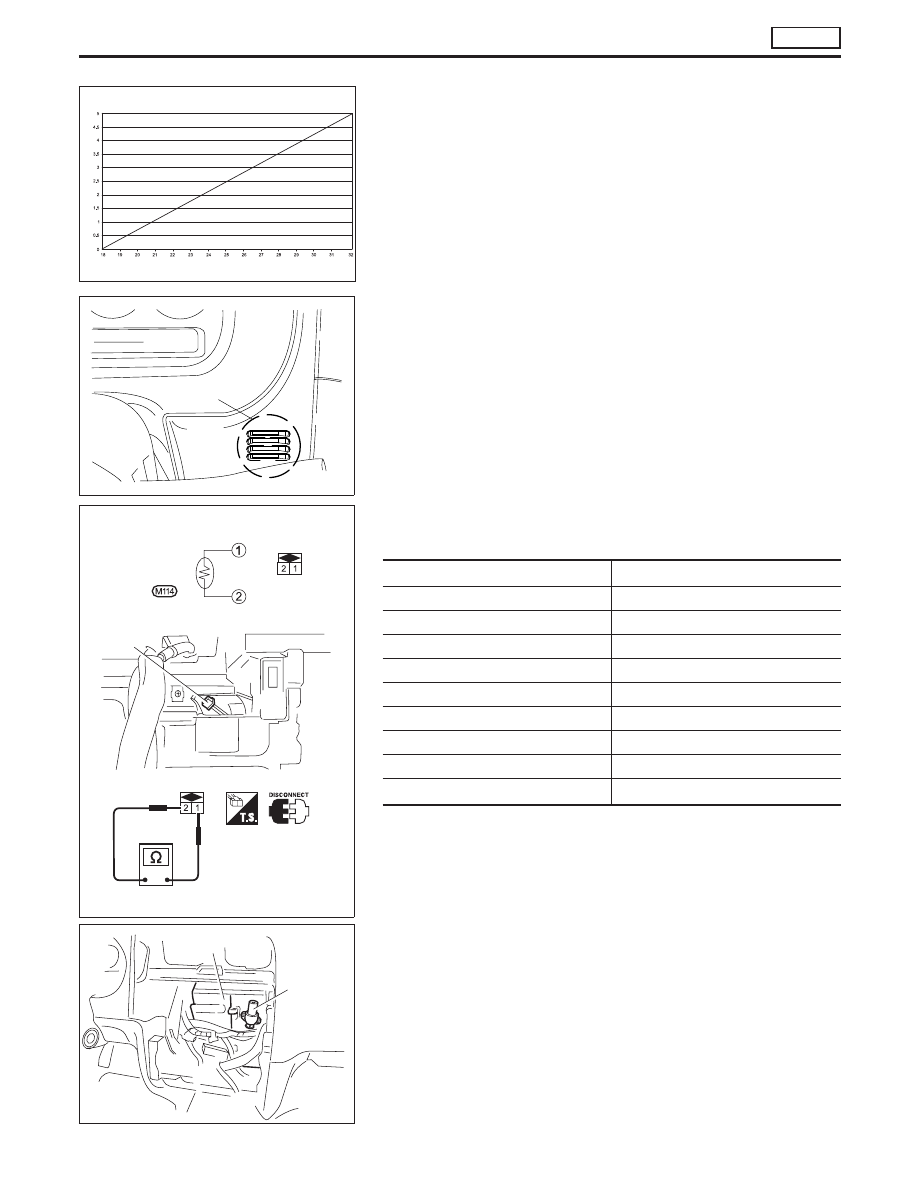

IN-VEHICLE SENSOR

The in-vehicle sensor is attached to the right side of the control
unit. It converts variations in the temperature of the compartment
air drawn in by the aspirator into a resistance value, which is then
input into the auto amplifier.

After disconnecting in-vehicle sensor harness connector, mea-
sure resistance between terminals

p

1

and

p

2

at sensor har-

ness side, using the table below.

Temperature °C (°F)

Resistance k

0 (32)

6.0

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

Aspirator

The aspirator is located in front of heater unit. It produces
vacuum pressure due to air discharged from the heater unit,
continuously taking compartment air in the aspirator.

KHA128

PTC Output voltage

Set temperature

(°C)

Output

voltage

NHA295

In-vehicle
sensor

NHA287

In-vehicle
sensor

In-vehicle
sensor

NHA312

Aspirator
duct

Aspirator

SYSTEM DESCRIPTION

AUTO

Control System Input Components (Cont’d)

HA-85

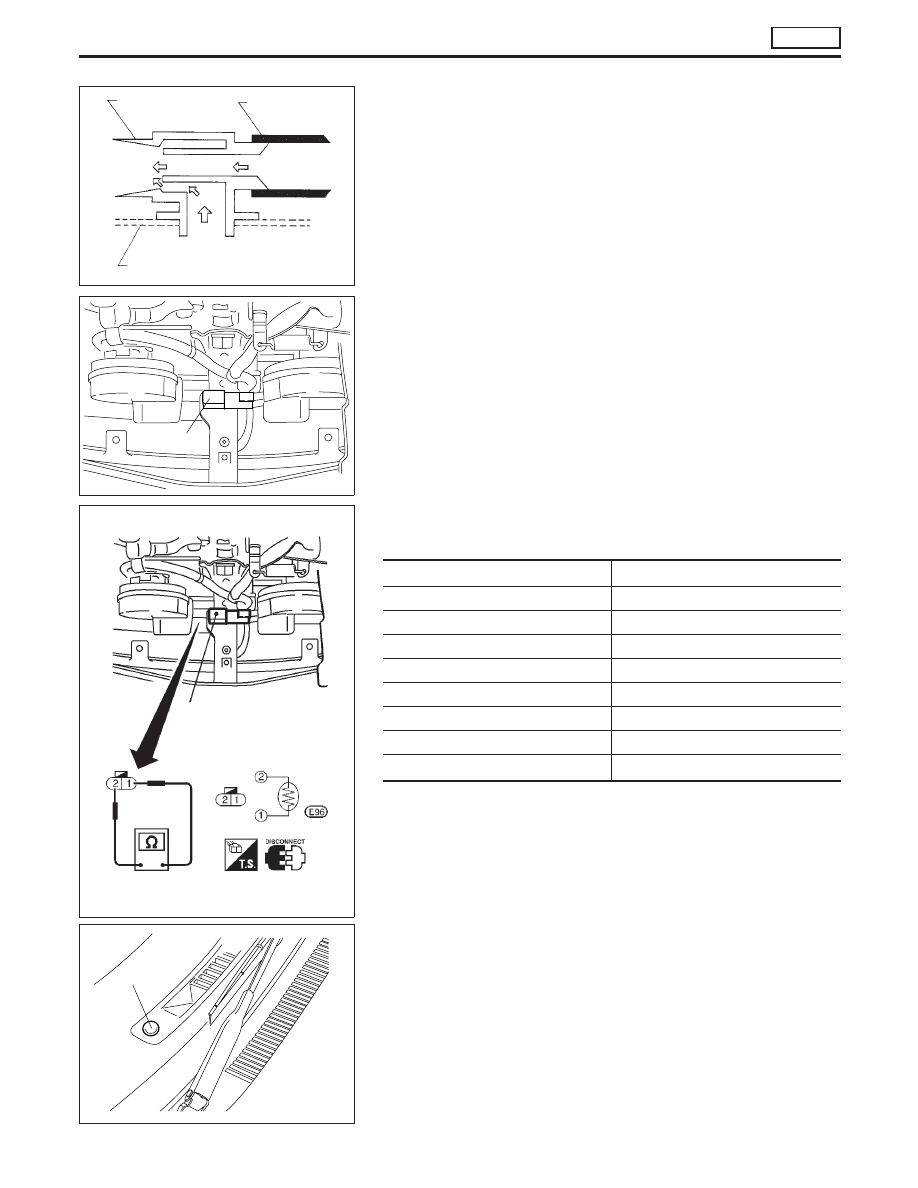

AMBIENT SENSOR

The ambient sensor is located on the hood lock stay. It detects
the ambient temperature and converts it into a resistance value,
which is then input into the auto amplifier.

After disconnecting ambient sensor harness connector, measure
resistance between terminals

p

1

and

p

2

at sensor harness

side, using the table below.

Temperature °C (°F)

Resistance k

−20 (−4)

9.98

−10 (14)

5.57

0 (32)

3.26

10 (50)

1.98

20 (68)

1.25

25 (77)

1.00

30 (86)

0.81

40 (104)

0.54

SUNLOAD SENSOR

The sunload sensor is located on the center defroster grille. It
detects sunload entering through the windshield by means of a
photo diode and converts it into a current value which is then
input to the auto amplifier.

RHA979G

Aspirator

Aspirator duct

Heater unit case

NHA313

Ambient sen-
sor

NHA288

Ambient sensor
harness connector

Ambient
sensor

NHA314

Sunload
sensor

SYSTEM DESCRIPTION

AUTO

Control System Input Components (Cont’d)

HA-86

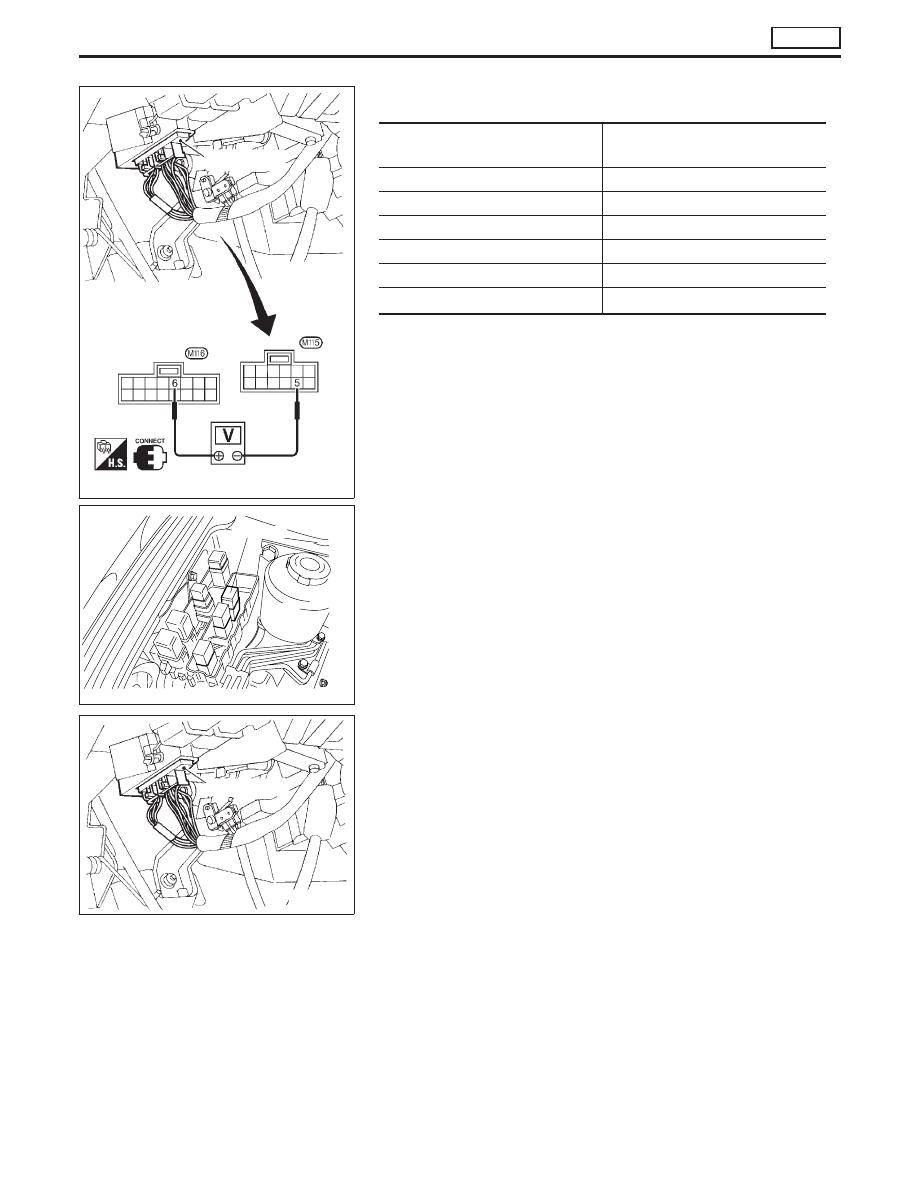

Measure voltage between terminals

p

5

and

p

6

at auto air con-

ditioner harness side, using the table below.

Input current

mA

Output voltage

V

0

5.00

0.1

4.09

0.2

3.18

0.3

2.27

0.4

1.36

0.5

0.45

When checking sunload sensor, select a place where
sun shines directly on it.

A/C RELAY

The A/C relay is located on the left side of the engine room.
When the A/C remain and fan switch are ON, the A/C relay
operates and transmits A/C operation signals to ECM.

Control System Auto Amplifier (Auto amp.)

The auto amplifier has a built-in microcomputer which processes
the information sent from the various sensors needed for air
conditioner operation. The air mix door motor and blower motor
are then controlled.
Signals from the various switches and the Potentio Temperature
Control (PTC) are directly entered into the auto amplifier.

SUNLOAD INPUT PROCESS

The auto amp. also includes a processing circuit which “aver-
ages” the variations in detected sunload over a period of time.
This prevents drastic swings in the ATC system operation due to
small or quick variations in detected sunload.
For example, consider driving along a road bordered by an occa-
sional group of large trees. The sunload detected by the sunload
sensor will vary whenever the trees obstruct the sunlight. The
processing circuit averages the detected sunload over a period
of time, so that the (insignificant) effect of the trees momentarily
obstructing the sunlight does not cause any change in the ATC

NHA289

Auto amplifier

Auto amp.
connector

Auto amp.
connector

NHA298

.

A/C Relay

RHA024H

Auto amplifier

SYSTEM DESCRIPTION

AUTO

Control System Input Components (Cont’d)

HA-87

system operation. On the other hand, shortly after entering a
long tunnel, the system will recognize the change in sunload, and
the system will react accordingly.

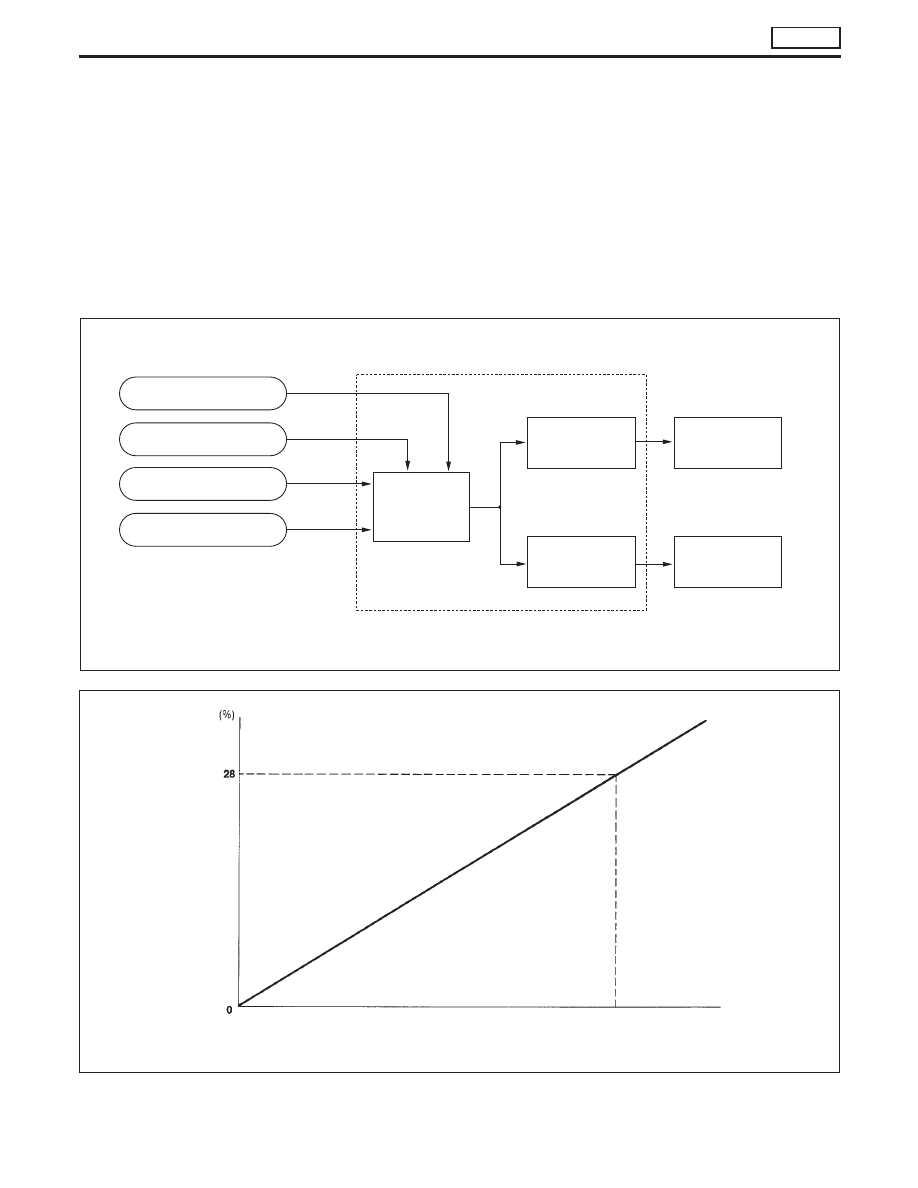

SUNLOAD COMPENSATION

The auto amplifier compensates for sunload by altering the air
mix door position and air flow volume according to the amount
of sunload detected by the sunload sensor. When the amount of
sunload is great, the air mix door is moved toward the “COLD”
side. Along with this air mix door movement, air flow volume will
also be changed.

YHA296

A/C control panel PTC

In-vehicle sensor

Ambient sensor

Sunload sensor

Sunload com-
pensation

Auto amplifier

Air mix door posi-
tion arithmetic cir-
cuit

Air flow volume
arithmetic circuit

Air mix door motor

LOW, MED, HIGH
and AUTO relays

SHA493CA

Air

mix

door

position

compensation

amount

Sunload kW (kcal/h, BTU/h)/m

2

[kW (kcal/h,BTU/h)/sq ft]

Sunload compensation specifications

0.768 (660, 2,619)
[0.0713 (61.31, 243.3)]

SYSTEM DESCRIPTION

AUTO

Control System Auto Amplifier (Auto amp.)

(Cont’d)

HA-88
