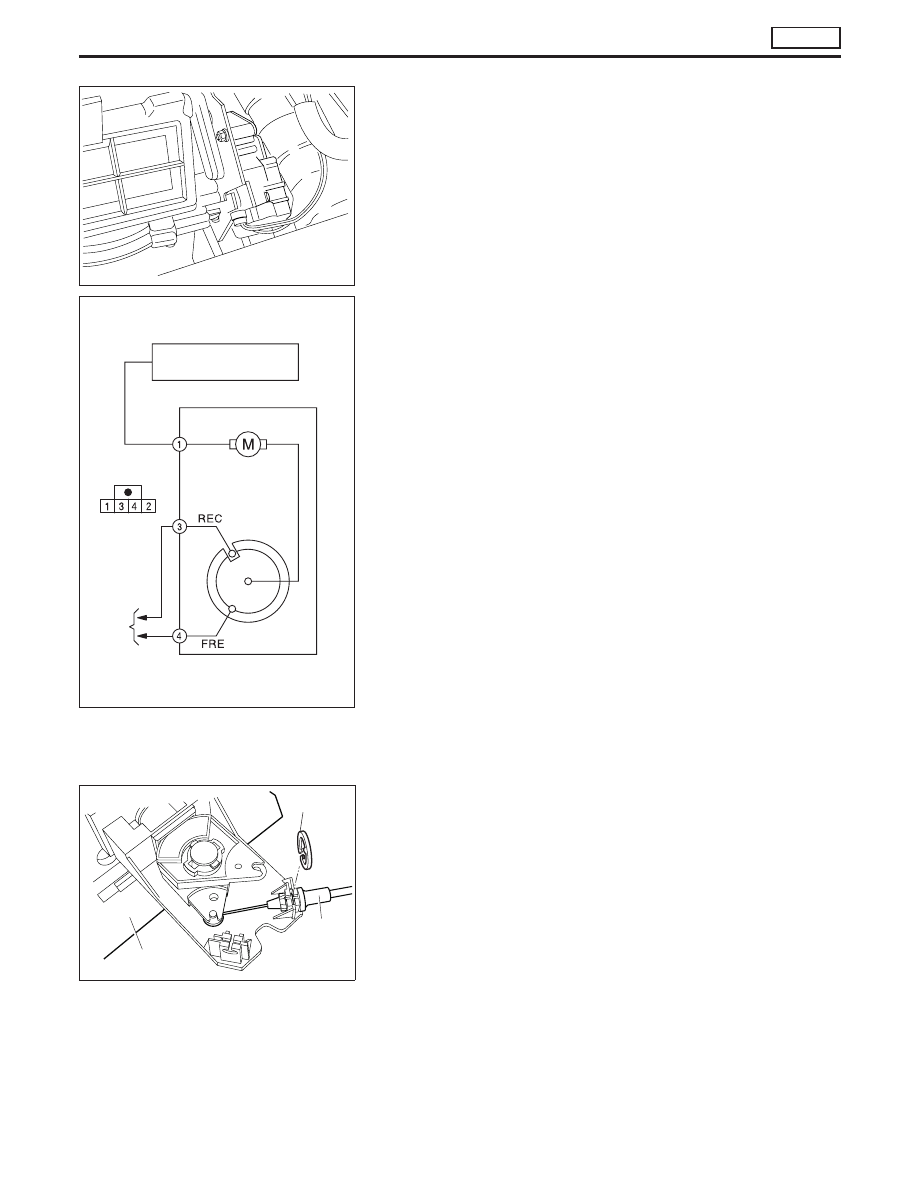

INTAKE DOOR MOTOR

The intake door motor is installed on the intake unit. When the
door position is determined by pushing the “REC” switch on the
control panel, the motor rotates and the air inlet is changed.

Removal and Installation

Refer to “INSTRUMENT PANEL” in BT section for details.

NOTE:
When removing the control panel, the Mode control cable should
be disconnected from the control panel rather than from the
heater.
Removal of the mode cable will result in breakage of the ferrule
retaining clips. On reassembly, the cable is retained by a snap
ring (Part number: 9-22504-1) which is pushed into a slot in the
control base plate which aligns with a groove in the cable sleeve.

NHA293

YHA294

Ignition switch

ON

Intake
door
motor

To A/C
control

KHA125

Snap ring

Control panel

Mode
cable

TROUBLE DIAGNOSES

AUTO

Control Panel System (Cont’d)

HA-81

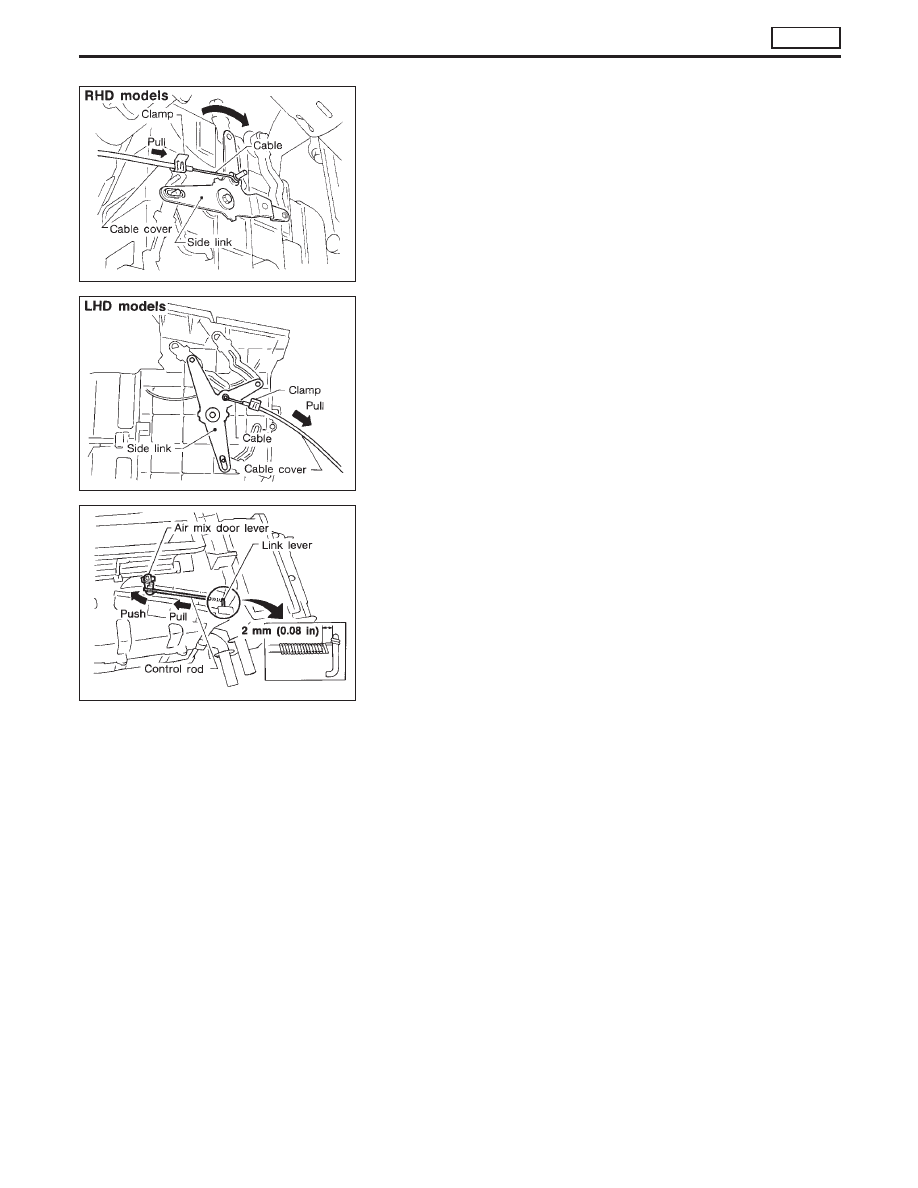

Control Linkage Adjustment

MODE CONTROL CABLE

1. For RHD models, turn the mode control knob to the VENT

position.
For LHD models, turn the mode control knob to the DEF
position.

2. For RHD models, set the side link in the VENT position by

hand.
For LHD models, set the side link in the DEF position by
hand.

3. Pull on the cable cover in the direction of the arrow, then

clamp it.

After positioning control cable, check that it operates cor-
rectly.

WATER COCK CONTROL ROD

When adjusting water cock control rod, first disconnect
temperature control cable from air mix door lever and
then adjust control rod. Reconnect temperature control
cable and readjust it. (Refer to TEMPERATURE CON-
TROL CABLE.)

1. Push air mix door lever in direction of arrow.
2. Pull control rod of water cock in direction of arrow so as to

make clearance of about 2 mm (0.08 in) between ends of rod
and link lever and connect the rod to door lever.

After connecting control rod, check it operates correctly.

ZHA176A

.

ZHA176A

RHA630E

SHA522E

TROUBLE DIAGNOSES

AUTO

HA-82

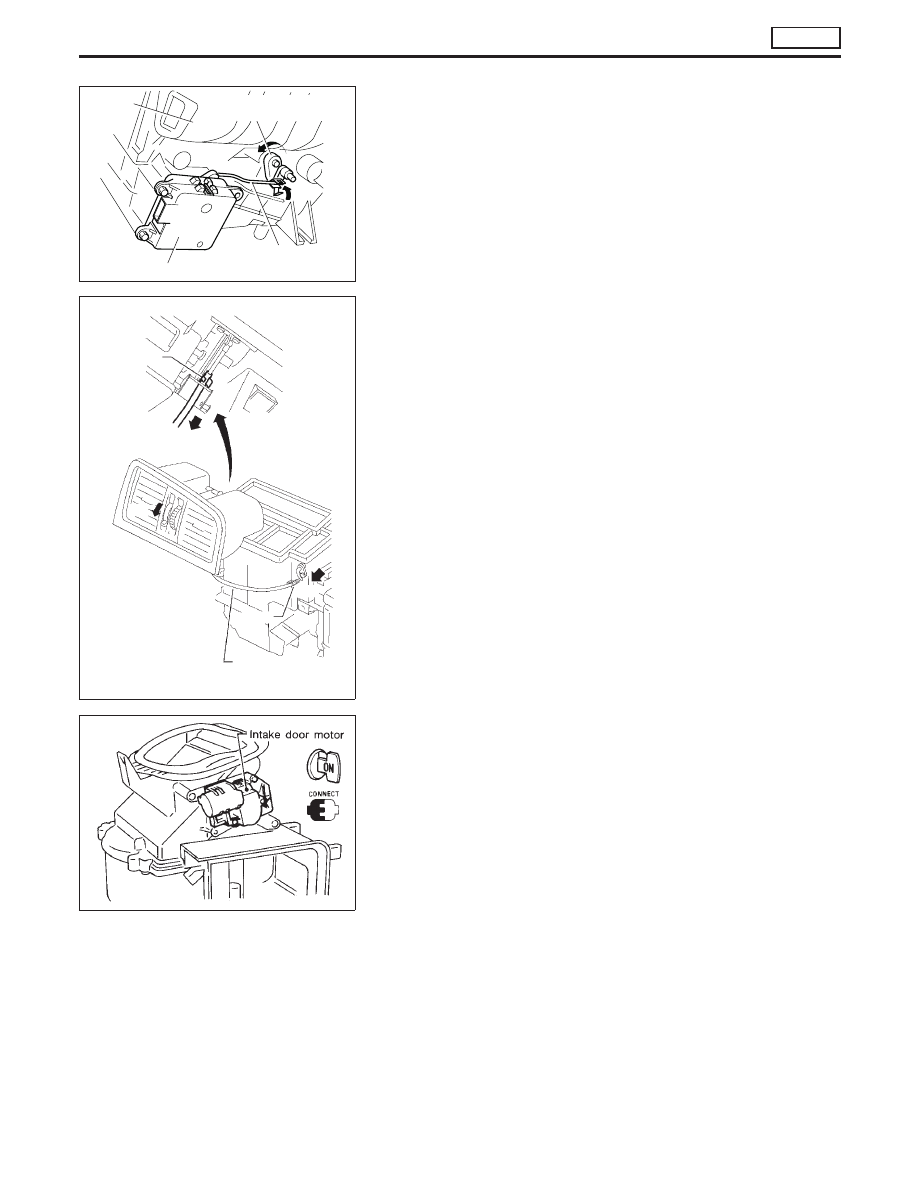

AIR MIX DOOR

1. Install air mix door motor on heater unit.

Ensure that the air mix door motor lever is fitted into slit por-
tion of air mix door link.

2. Connect the air mix door motor harness connector.
3. Turn ignition switch to “ON” position.
4. Check that air mix door operates properly when PTC is

moved from 18 to 32°C (64 to 90°F).

After positioning control cable, check that it operates cor-
rectly.

FRESH VENT CONTROL CABLE

1. Turn the fresh vent control knob to the shut position.
2. Set the fresh vent door lever in shut position.
3. Adjust the position of the cable cover for proper operation,

then secure to the clamps.

After positioning control cables, check that it operates
correctly.

INTAKE DOOR MOTOR

1. Install intake door motor on intake unit.

Ensure that the intake door motor lever is fitted into the slit
portion of intake door link.

2. Connect the intake door motor harness connector.
3. Turn ignition switch to “ON” position.
4. Check that intake door operates properly when REC switch

is turned ON and OFF.

KHA127

Air mix door link

Air mix door lever

Air mix door motor

Heater unit

KHA126

Clamp

Pull

Clamp

Cable cover

ZHA178A

TROUBLE DIAGNOSES

AUTO

Control Linkage Adjustment (Cont’d)

HA-83

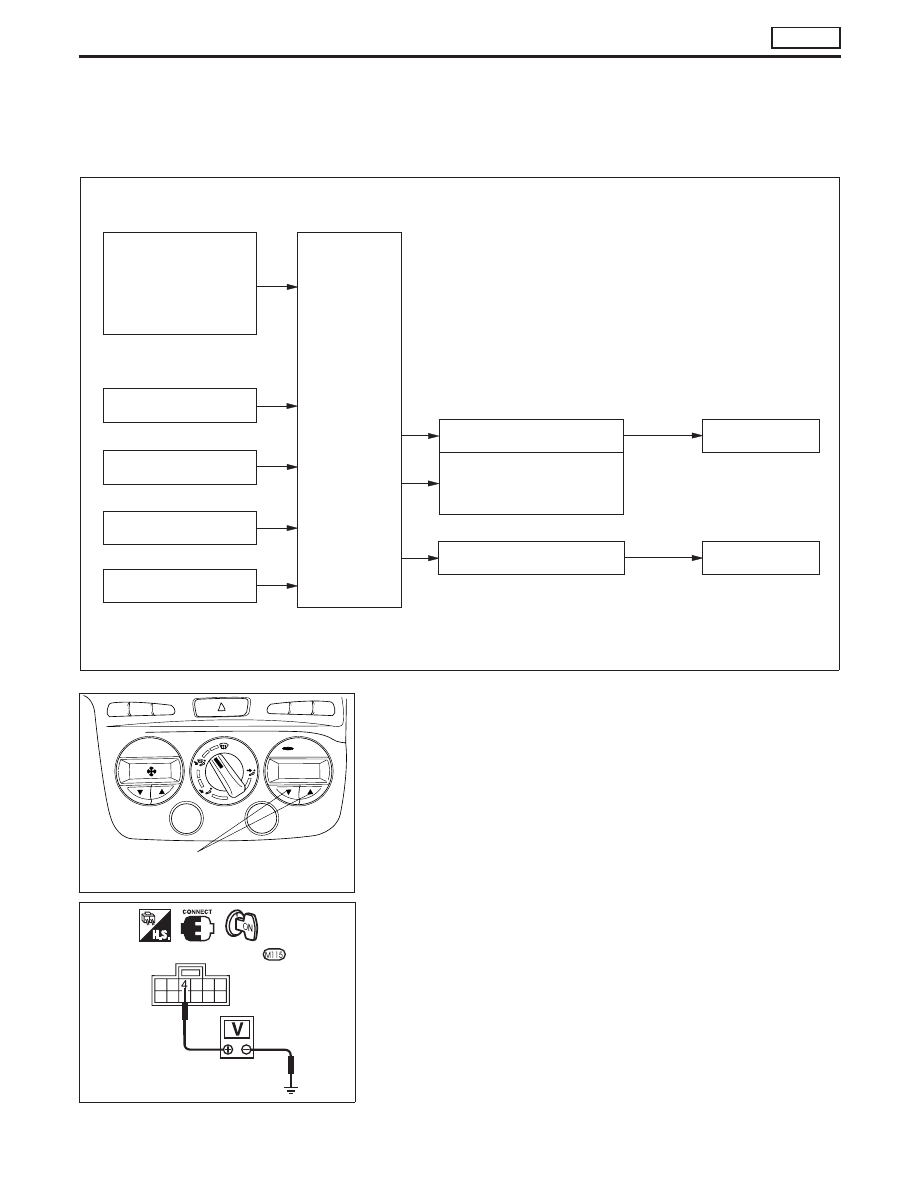

Overview of Control System

The control system consists of a) input sensors and switches, b)
the automatic amplifier (microcomputer), and c) outputs. The
relationship of these components is shown in the diagram below.

Control System Input Components

POTENTIO TEMPERATURE CONTROL (PTC)

The PTC is built into the control panel. It can be set at an inter-
val of 1°C in the 18°C to 32°C temperature range by pushing the
temperature button. The set temperature is digitally displayed.

Measure voltage between auto amp. terminal

p

4

and body

ground.

YHA295

A/C control panel

PTC
(Potentio temperature Con-
trol)
A/C switch
Autoswitch
Fan switch

Ambient sensor

In-vehicle sensor

sunload sensor

Thermal transmitter

Automatic ampli-
fier
(Micro-computer)

Air mix door motor

PBR (Potentio Balance Resistor-
)built-into air mix door motor

LOW, MED, HIGH and AUTO

Air mix door

Blower motor

NHA294

Temperature
button

NHA315

Auto amp. connector

SYSTEM DESCRIPTION

AUTO

HA-84
