Wheel side

Install drive shaft into knuckle.

Tighten upper knuckle nut and wheel bearing lock nut. Refer
to “FRONT AXLE”, “Wheel Hub and Knuckle”, FA-11.

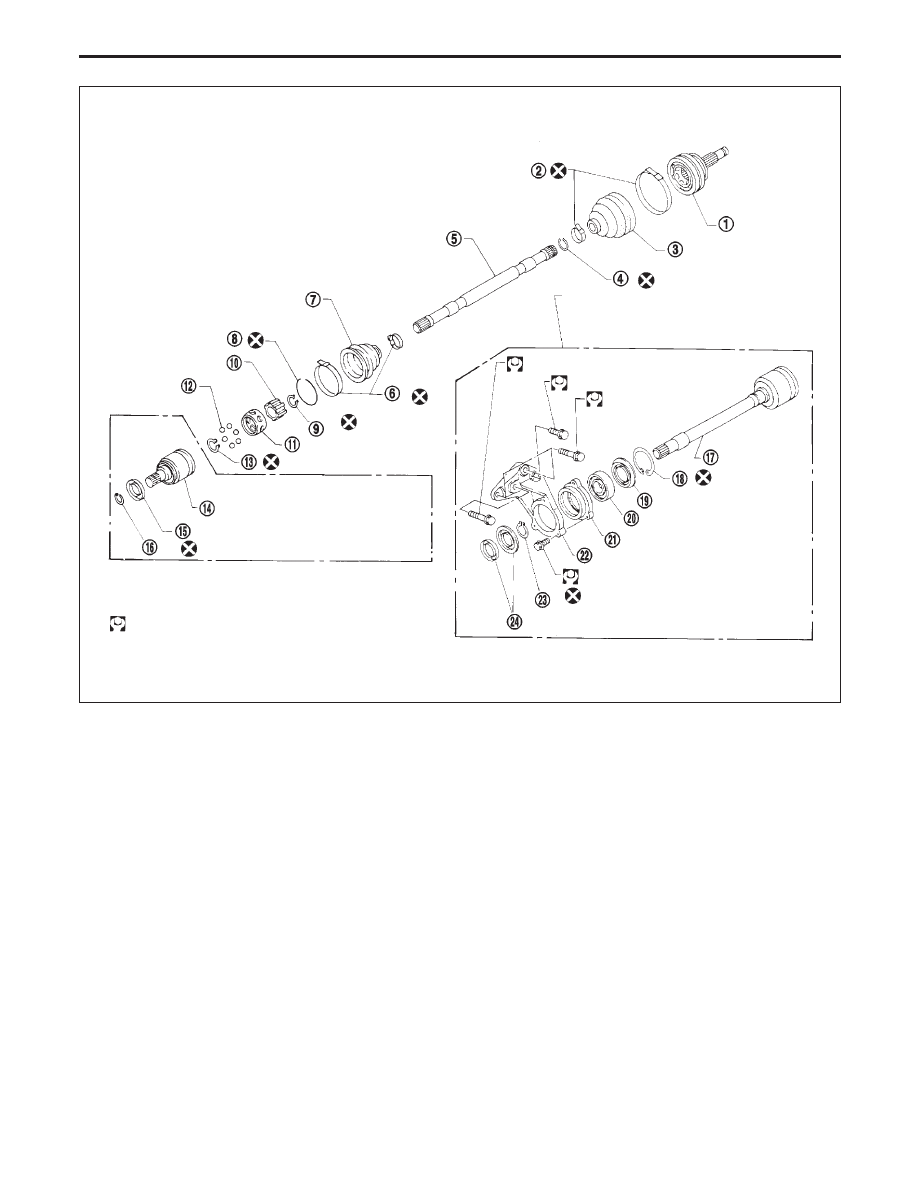

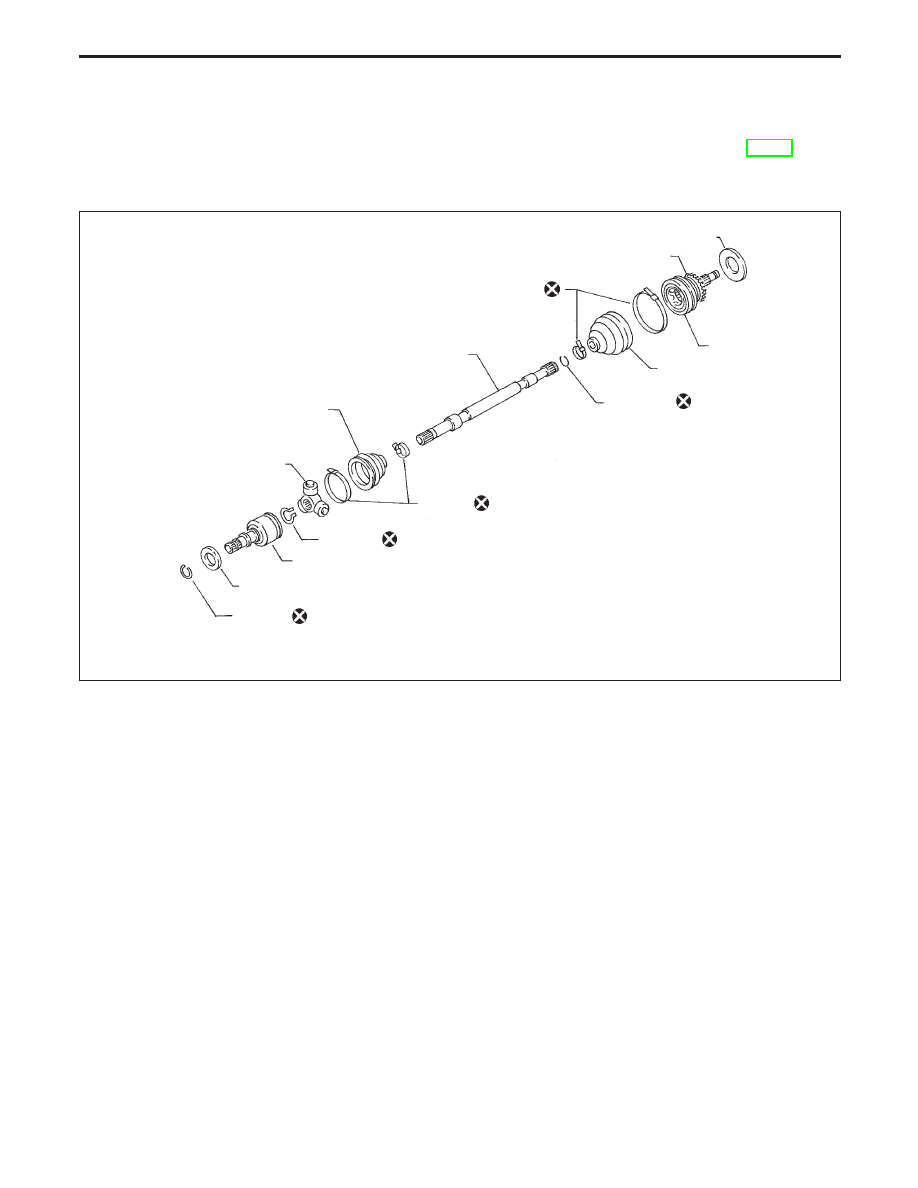

COMPONENTS

NFA054

Wheel side
(90AC type and 98AC type)

Spacer ring

ABS rotor

Boot band

Drive shaft

Boot

Spider assembly

Circulair clip:
Make sure circular clip is properly meshed with side gear
(transaxle side) and joint assembly (wheel side), and will
not come out.

Be careful not to damage boots. Use suitable protector
or cloth during removal and installation.

All M/T models

Joint assembly

Boot

Circular clip B

Boot band

Snap ring C

Side joint housing

Dust shield

Circular clip

Transaxle side
(GI69 type and GI82 type)

SEC. 391

FRONT AXLE

Drive shaft (Cont’d)

FA-17

p

1

Joint assembly

p

2

Boot band

p

3

Boot

p

4

Circular clip B

p

5

Drive shaft

p

6

Boot band

p

7

Boot

p

8

Snap ring A

p

9

Snap ring B

p

10

Inner race

p

11

Cage

p

12

Ball

p

13

Snap ring C

p

14

Slide joint housing

p

15

Dust shield

p

16

Circular clip A

p

17

Slide joint housing with

extention shaft

p

18

Snap ring E

p

19

Dust shield

p

20

Support bearing

p

21

Support bearing retainer

p

22

Bracket

p

23

Snap ring D

p

24

Dust shield

NFA055

For type with support bearing

Circular clip:

Make sure circular clip is properly meshed with side gear (transaxle
side) and joint assembly (wheel side), and will not come out.

Wheel side (B86 type)

Right drive shaft

Transaxle side (D83/T83 type)

25 - 35 (2.6 - 3.6, 19 - 26)

25 - 35 (2.6 - 3.6, 19 - 26)

43 - 58
(4.4 - 5.9, 32 - 43)

13 - 19 (1.3 - 1.9, 9 - 14)

: N·m (kg-m, ft-lb)

Left drive shaft

All CVT models

Be careful not to damage boots. Use suitable protector
or cloth during removal and installation.

FRONT AXLE

Drive shaft (Cont’d)

FA-18

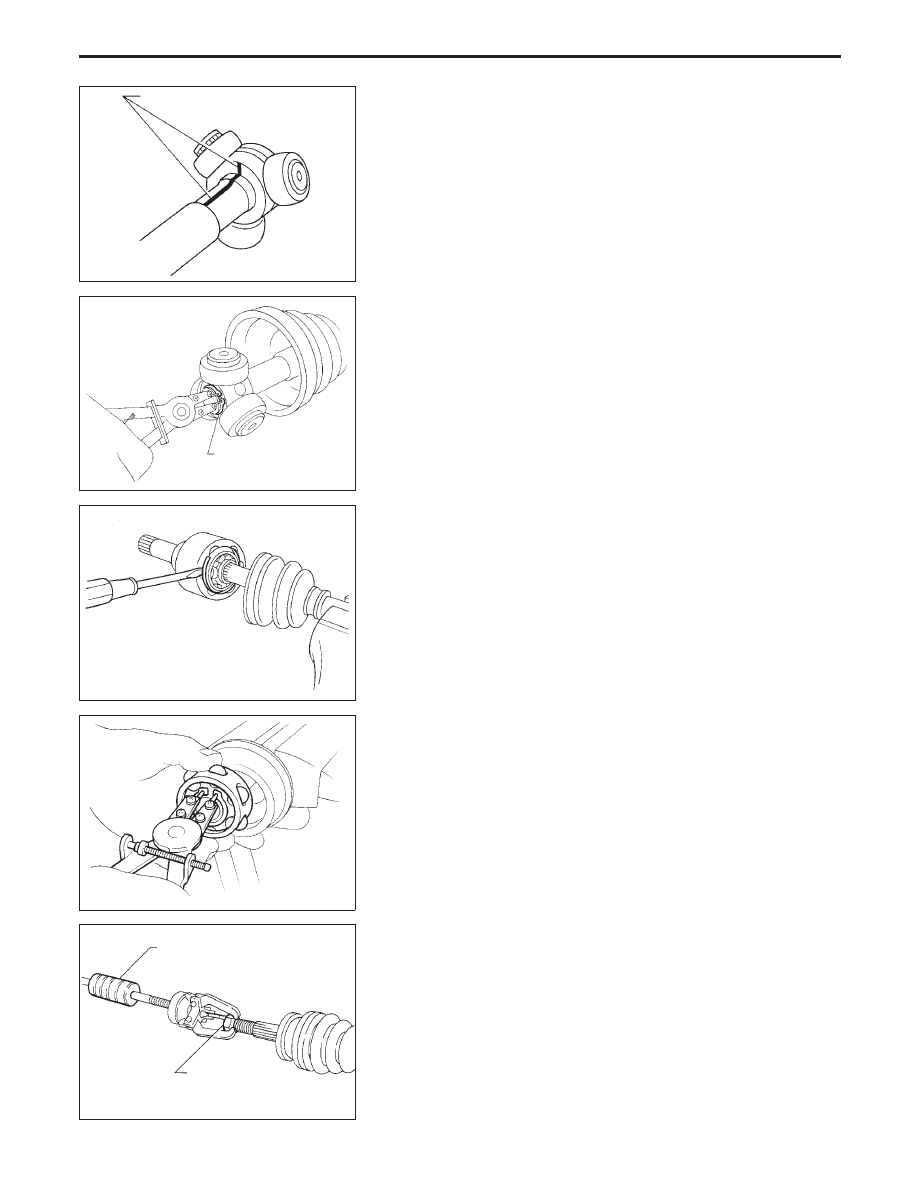

DISASSEMBLY

TRANSAXLE SIDE (GI69 type and GI82 type)

1. Remove boot bands.
2. Put matching marks on slide joint housing and drive shaft

before separating joint assembly.

3. Put matching marks on spider assembly and drive shaft.

4. Pry off snap ring, then remove spider assembly.

CAUTION:

Do not disassemble spider assembly.
5. Draw out boot.
Cover drive shaft serration with tape to prevent damage to
the boot.

TRANSAXLE SIDE (D83/T83 type)

1. Remove boot bands.
2. Put matchmarks on slide joint housing and inner race, before

separating joint assembly.

3. Remove snap ring “A” with a screwdriver, and pull out slide

joint housing.

4. Put matchmarks on inner race and drive shaft.
5. Remove snap ring “C”, then remove ball cage, inner race and

balls as a unit.

6. Remove snap ring “B”.
7. Draw out boot.
Cover drive shaft serrations with tape so as not to damage
the boot.

WHEEL SIDE (90AC, 98AC and B86 type)

CAUTION:

The joint on the wheel side cannot be disassembled.

Before separating joint assembly, put matching marks on
drive shaft and joint assembly.

Separate joint assembly with a suitable tool.

Be careful not to damage threads on drive shaft.

Remove boot bands and draw out boot.

SFA963

Matching mark

SFA612

Snap ring

SFA476

SFA514A

SFA092A

Suitable tool
(Sliding hammer)

Wheel bearing
lock nut

FRONT AXLE

Drive shaft (Cont’d)

FA-19

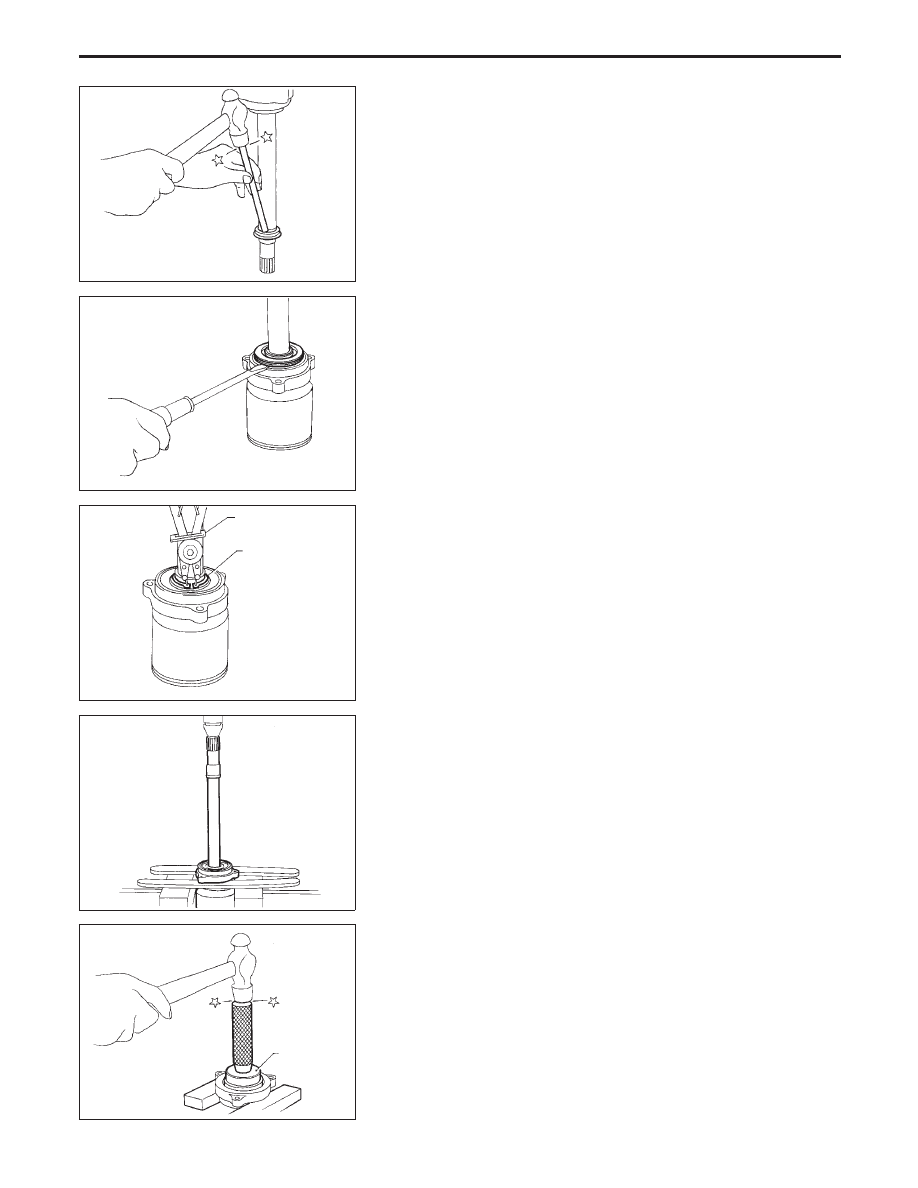

SUPPORT BEARING

Remove outer dust shield.

Remove inner dust shield.

Pry off snap ring.

Press support bearing assembly out of drive shaft.

Press support bearing out of retainer.

SFA613

SFA691

SFA692

Suitable tool

Snap ring

SFA693

SFA617

Suitable tool

FRONT AXLE

Drive shaft (Cont’d)

FA-20
