Nissan Primera P11. Manual - part 425





2.

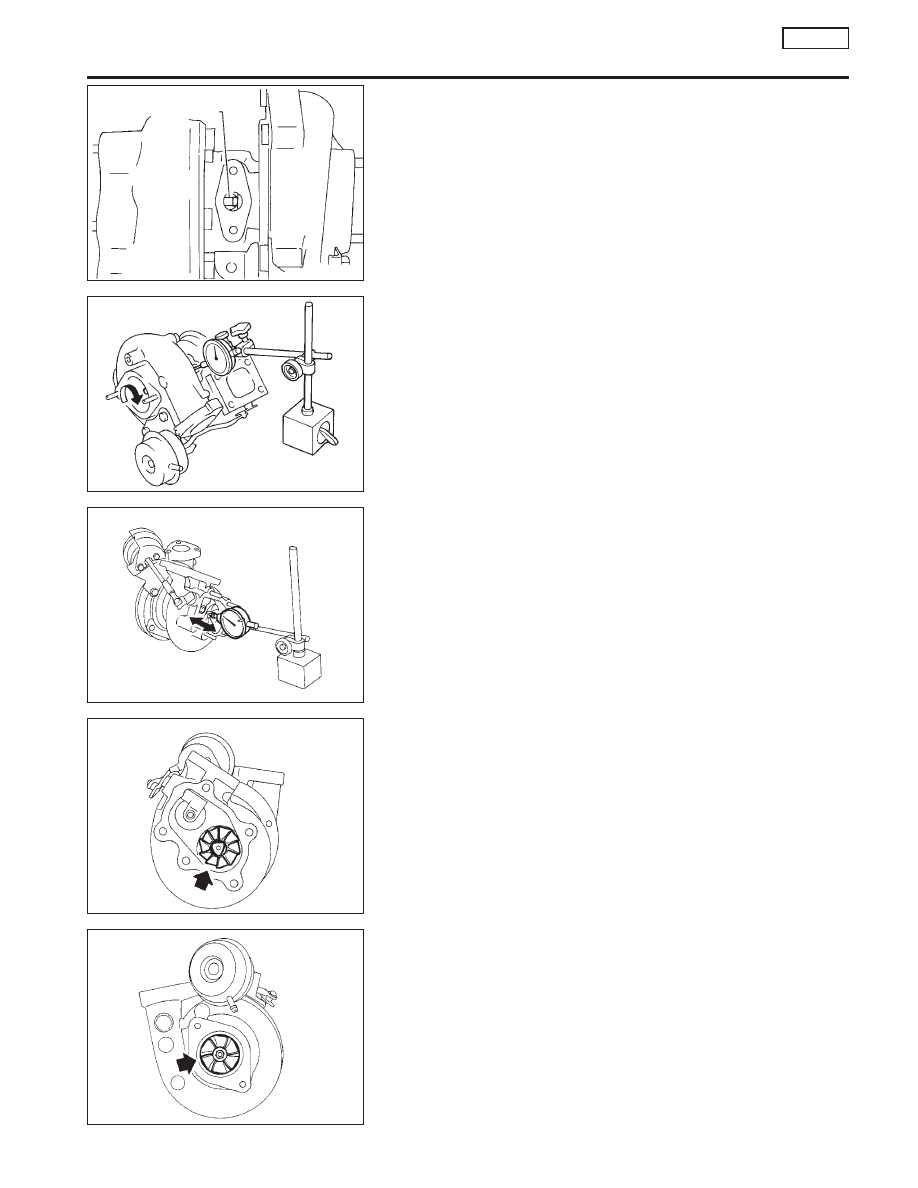

Check rotor shaft for carbon deposits.

3.

Measure rotor shaft runout.

Runout (Total indicator reading):

Standard

0.056 - 0.127 mm (0.0022 - 0.0050 in)

4.

Measure rotor shaft end play.

End play:

Standard

0.013 - 0.097 mm (0.0005 - 0.0038 in)

I

Do not allow wheels to turn when axial play is being mea-
sured.

TURBINE WHEEL

Check turbine wheel for the following:

I

Oil

I

Carbon deposits

I

Deformed fins

I

Contact with turbine housing

COMPRESSOR WHEEL

Check compressor wheel for the following:

I

Oil

I

Deformed fins

I

Contact with compressor housing

.

SEM031F

Rotor shaft

SEM032F

SEM827D

SEM828D

SEM829D

TURBOCHARGER

CD20T

Inspection (Cont’d)

EM-159

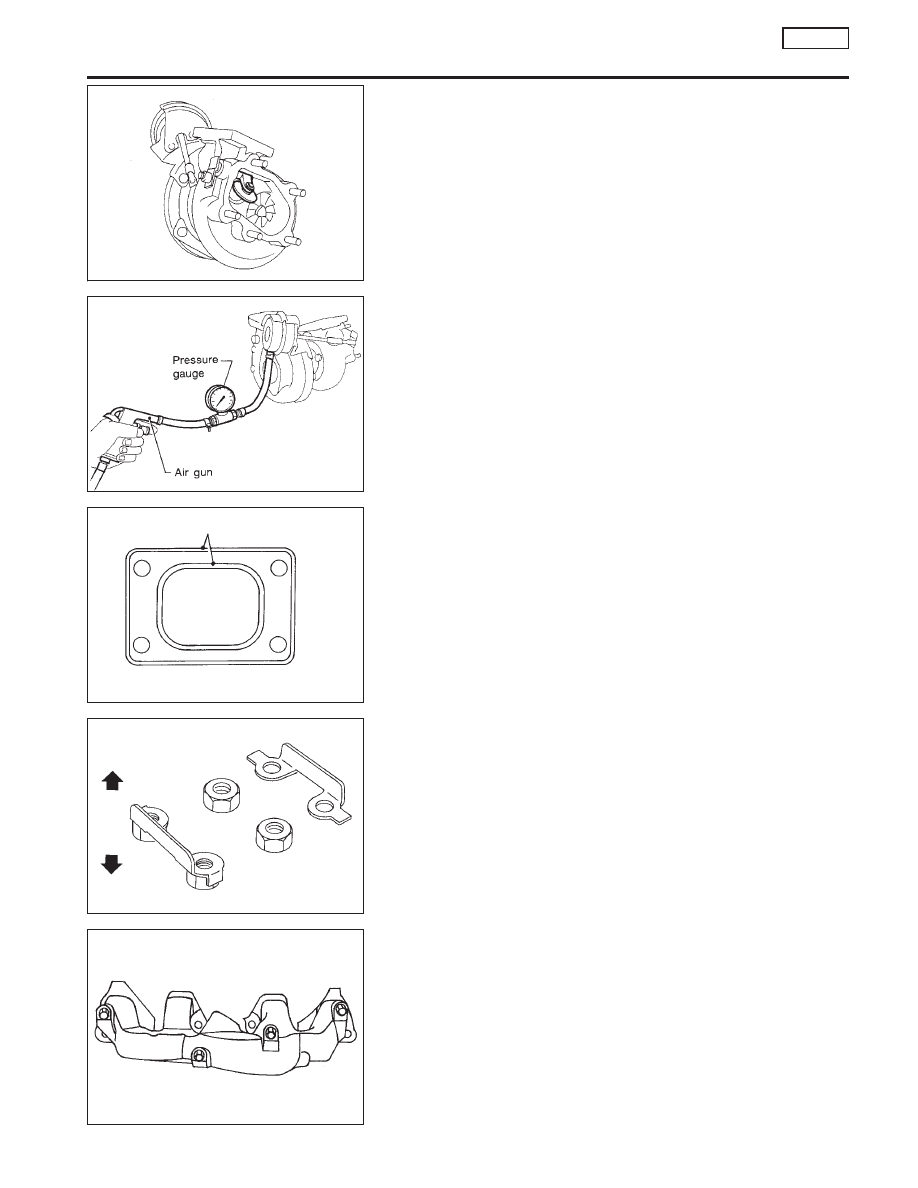

WASTEGATE VALVE

Remove rod pin and check wastegate valve for cracks, deforma-
tion and smooth movement. Check valve seat surface for smooth-
ness.

WASTEGATE VALVE ACTUATOR

Apply compressed air to wastegate valve actuator and check it for
smooth movement.

I

Do not apply compressed air to the actuator continuously.

I

The air pressure should be in the range of 73.3 to 101.3
kPa (733 to 1,013 mbar, 550 to 760 mmHg, 21.65 to 29.92
inHg).

Assembly

Assembly is the reverse order of disassembly.

I

Install gasket between exhaust manifold and turbocharger with
small hanging flap side facing exhaust manifold.

I

Bend locking plates along the side of turbocharger fastening
nuts.
Always use new locking plates.

Installation

1.

Install exhaust manifold fixing nuts.

SEM830D

SEM831D

NEM228

Small hanging flap

SEM367F

Exhaust manifold side

Turbocharger side

NEM209

Tighten in numerical order

p

4

p

2

p

1

p

3

TURBOCHARGER

CD20T

Inspection (Cont’d)

EM-160

2.

Installation is the reverse order of removal.

I

Install oil tubes and water tubes in the following order, aligning
the mating marks.
a. Oil feed tube
b. Water return tube
c. Water feed tube
d. Oil return tube

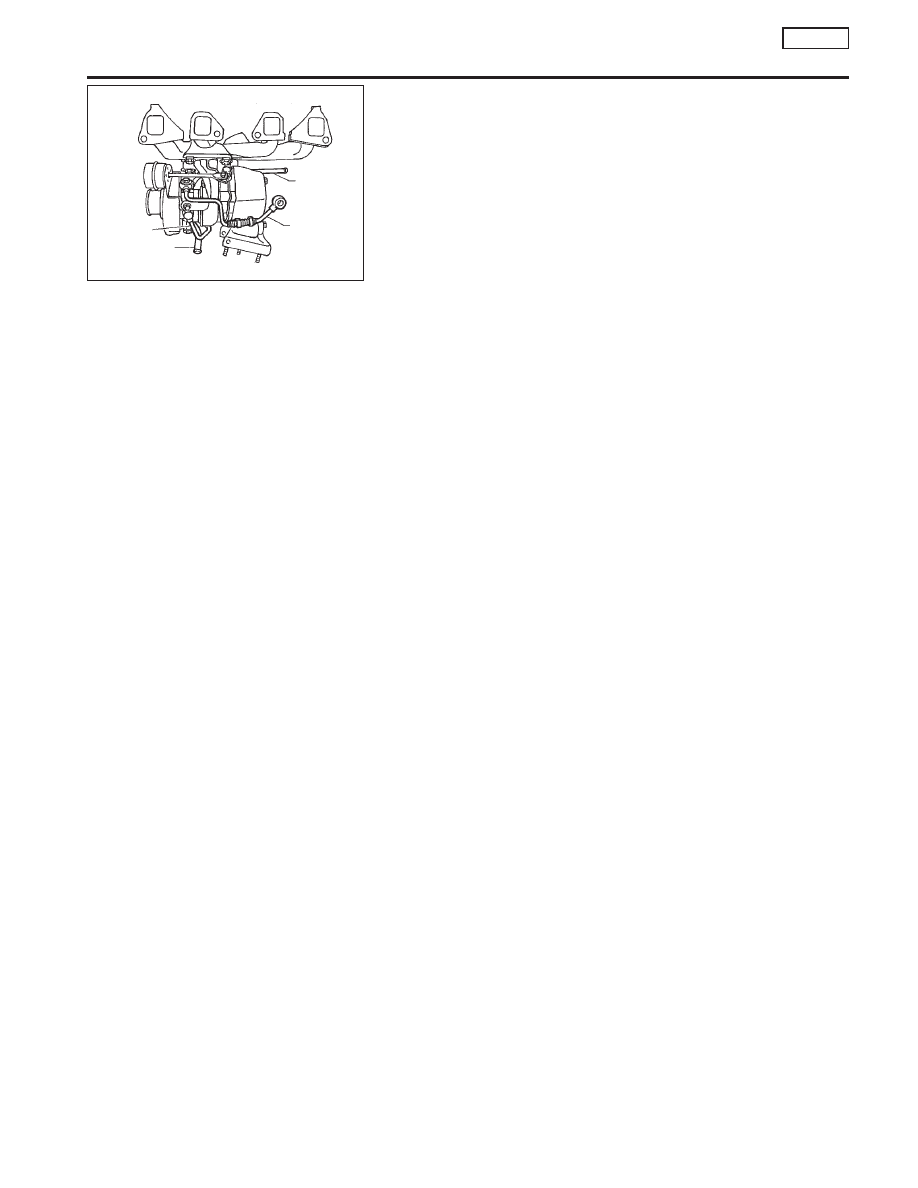

NEM207

Turbocharger
water return
tube

Turbocharger
oil feed tube

Turbo-
charger
water
feed tube

Turbocharger
oil return tube

TURBOCHARGER

CD20T

Installation (Cont’d)

EM-161

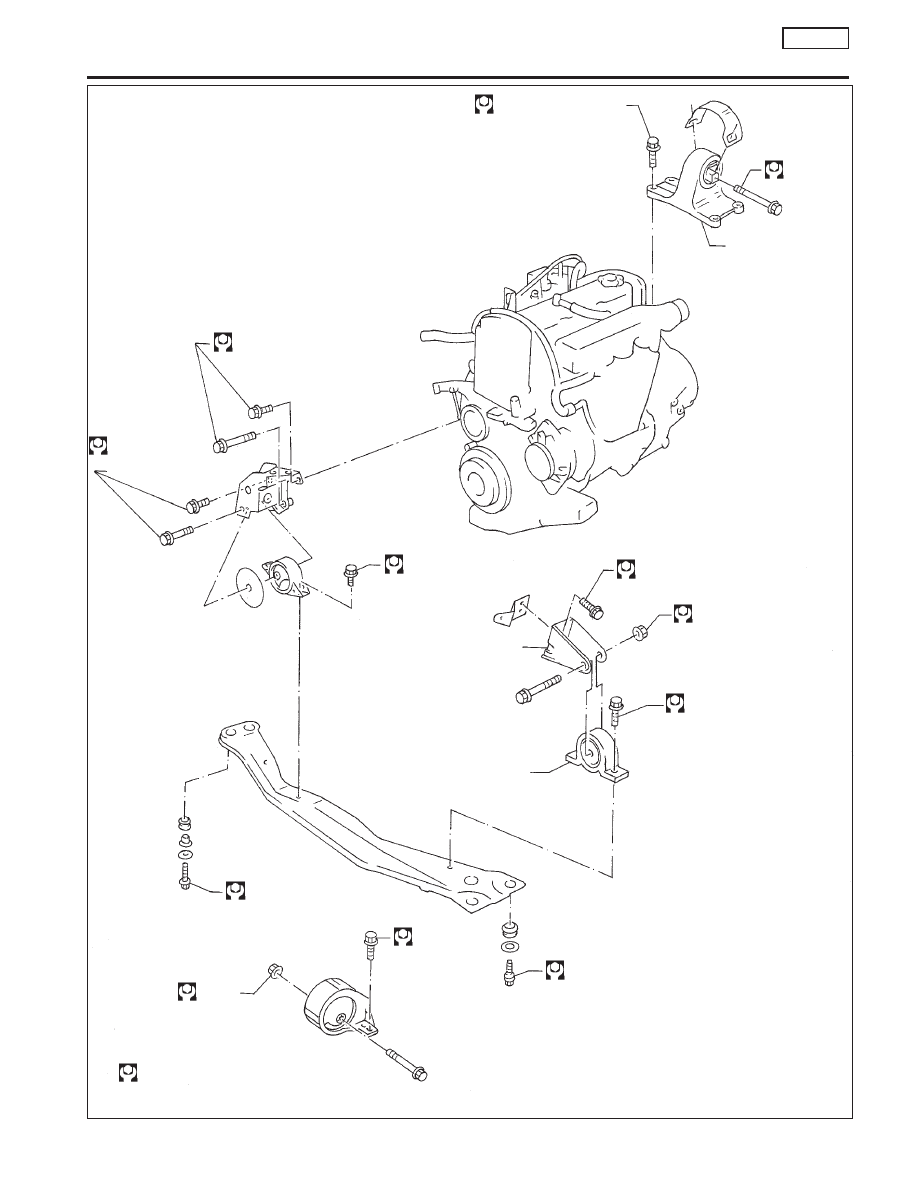

NEM226

43 - 55
(4.4 - 5.6,
32 - 41)

Rear engine
mounting

43 - 55 (4.4 - 5.6, 32 - 41)

64 - 74 (6.5 - 7.5, 47 - 54)

64 - 74
(6.5 - 7.5,
47 - 54)

49 - 59 (5.0 - 6.0, 36 - 44)

43 - 55 (4.4 - 5.6, 32 - 41)

62 - 78 (6.3 - 8.0, 46 - 58)

Front mounting
bracket

49 - 59 (5.0 - 6.0, 36 - 44)

77 - 98 (7.9 - 100, 57 - 72)

49 - 59
(5.0 - 6.0,
36 - 44)

Insulator

77 - 98 (7.9 - 100, 57 - 72)

43 - 55
(4.4 - 5.6,
32 - 41)

: N·m (kg-m, ft-lb)

SEC. 112

ENGINE REMOVAL

CD20T

EM-162
