Nissan Primera P11. Manual - part 397





Power Steering Fluid and Lines”, “CHASSIS AND BODY
MAINTENANCE”).

21. Drive belts.

For adjusting drive belt deflection, refer to MA section (“Check-
ing Drive Belts”, “ENGINE MAINTENANCE”).

22. Reinstall parts in reverse order of removal.

CYLINDER HEAD

QG

Installation (Cont’d)

EM-47

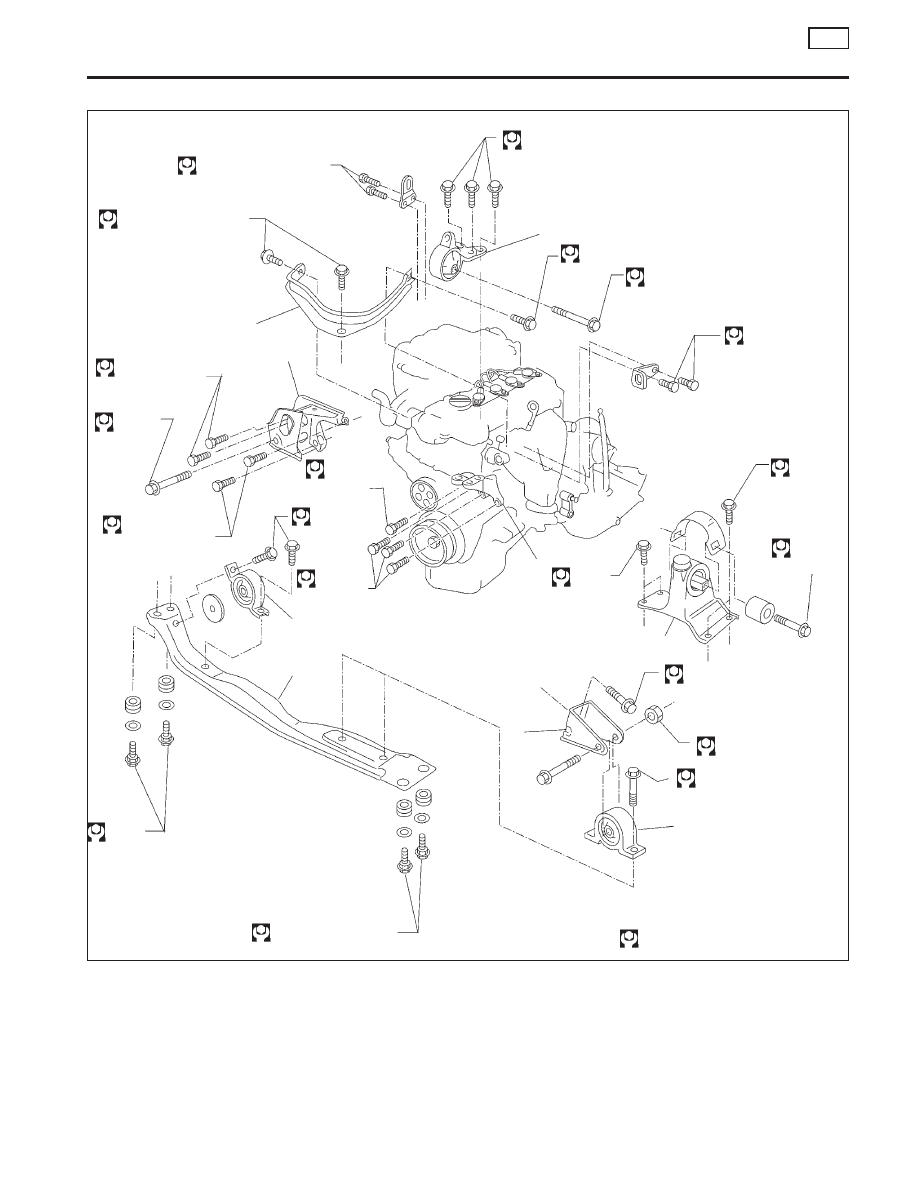

Removal and Installation

NCEM0022

1.

Engine front mounting

2.

Cylinder head front mouting
bracket

3.

Engine front mouting bracket

4.

LH engine mounting

5.

Engine rear mounting bracket

6.

Engine rear mounting

7.

Center member

8.

Front mounting bracket

9.

Front mounting

NEM372

SEC. 112

16 - 21 (1.7 - 2.1, 12 - 15)

43 - 55 (4.4 - 5.6, 32 - 41)

p

2

62 - 78
(6.4 - 7.9,
46 - 57)

64 - 74
(6.6 - 7.5, 48 - 54)

p

5

64 - 74
(6.6 - 7.5, 48 - 54)

60 - 70
(6.2 - 7.1,
45 - 51)

22 - 28
(2.3 - 2.8,
17 - 20)

43 - 55
(4.4 - 5.6,
32 - 41)

p

6

p

7

p

8

77 - 98
(7.9 - 9.9,
57 - 72)

77 - 98 (7.9 - 9.9, 57 - 72)

49 - 59 (5.0 - 6.0, 37 - 43)

43 - 55 (4.4 - 5.6, 32 - 41)

43 - 55 (4.4 - 5.6, 32 - 40)

30 - 40
(3.1 - 4.0, 23 - 29)

.

43 - 55
(4.4 - 5.6,
32 - 40)

64 - 74
(6.6 - 7.5,
48 - 54)

.

p

3

43 - 55
(4.4 - 5.6,
32 - 40)

p

4

43 - 55 (4.4 - 5.6, 32 - 40)

62 - 78
(6.4 - 7.9, 46 - 57)

60 - 70
(6.2 - 7.1, 45 - 51)

p

9

p

1

: N·m (kg-m, ft-lb)

ENGINE REMOVAL

QG

Removal and Installation

EM-48

WARNING:

I

Position vehicle on a flat and solid surface.

I

Place chocks at front and back of rear wheels.

I

Do not remove engine until exhaust system has com-
pletely cooled off, otherwise, you may burn yourself
and/or fire may break out in fuel line.

I

Before disconnecting fuel hose, release pressure.
Refer to EC section (“Fuel Pressure Release”, “BASIC
SERVICE PROCEDURE”).

I

Be sure to lift engine and transaxle in a safe manner.

I

For engines not equipped with engine slingers, attach
proper slingers and bolts described in PARTS CATALOG.

CAUTION:

I

When lifting engine, be sure to clear surrounding parts.
Use special care near accelerator wire casing, brake lines
and brake master cylinder.

I

When lifting the engine, always use engine slingers in a
safe manner.

I

When removing drive shaft, be careful not to damage
grease seal of transaxle.

I

Before separating engine and transaxle, remove crank-
shaft position sensor (POS) from the cylinder block
assembly.

I

Always be extra careful not to damage edge of crankshaft
position sensor (POS), or signal plate teeth.

Engine cannot be removed separately from transaxle. Remove
engine with transaxle as an assembly.

REMOVAL

NCEM0022S01

1.

Drain coolant from radiator and cylinder block. Refer to (LC)
section (“Changing Engine Coolant”, “ENGINE MAINTE-
NANCE”).

2.

Drain engine oil.

3.

Remove battery.

4.

Remove coolant reservoir tank and bracket.

5.

Remove drive belts.

6.

Remove generator and air conditioner compressor from
engine.

7.

Remove power steering oil pump from engine and position
aside.

Power steering oil pump does not need to be disconnected
from power steering tubes.

ENGINE REMOVAL

QG

Removal and Installation (Cont’d)

EM-49

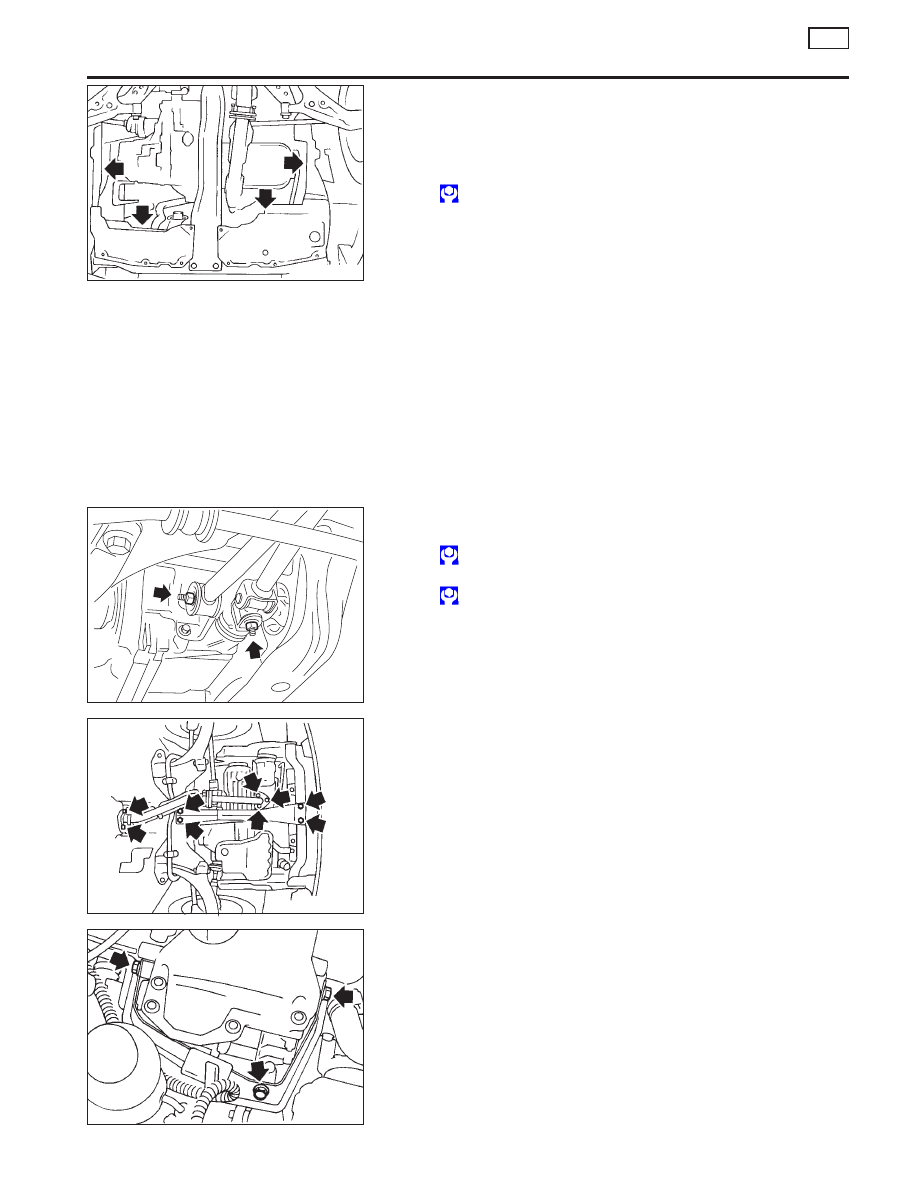

8.

Remove the following parts:

I

RH and LH front tires

I

Undercovers

I

Splash covers

I

RH and LH brake caliper assemblies

: 54 - 64 N

m (5.5 - 6.5 kg-m, 40 - 47 ft-lb)

Brake hose does not need to be disconnected from brake
caliper assembly. Never depress brake pedal.

I

RH & LH drive shaft. Refer to FA section (“Drive Shaft”,
“FRONT AXLE”).
When removing drive shaft, be careful not to damage tran-
saxle side grease seal.

I

Disconnect control rod and support rod from transaxle.

Control rod:

: 14 - 18 N

m (1.4 - 1.8 kg-m, 10 - 13 ft-lb)

Support rod:

: 35 - 47 N

m (3.6 - 4.8 kg-m, 26 - 35 ft-lb)

I

Center member

I

Front exhaust tube

I

Stabilizer bar

I

Cooling fan

I

Radiator

I

Cylinder head front mounting bracket

I

Remove air duct and disconnect wires, harness, pipes, hoses
and so on.

9.

Lift up engine slightly and disconnect or remove all engine
mountings.

When lifting engine, be sure to clear surrounding parts. Use
special care near brake tubes and brake master cylinder.
10. Remove engine with transaxle as shown.

SEM174D

NEM330

.

SEM875DA

SEM419D

ENGINE REMOVAL

QG

Removal and Installation (Cont’d)

EM-50
