3.

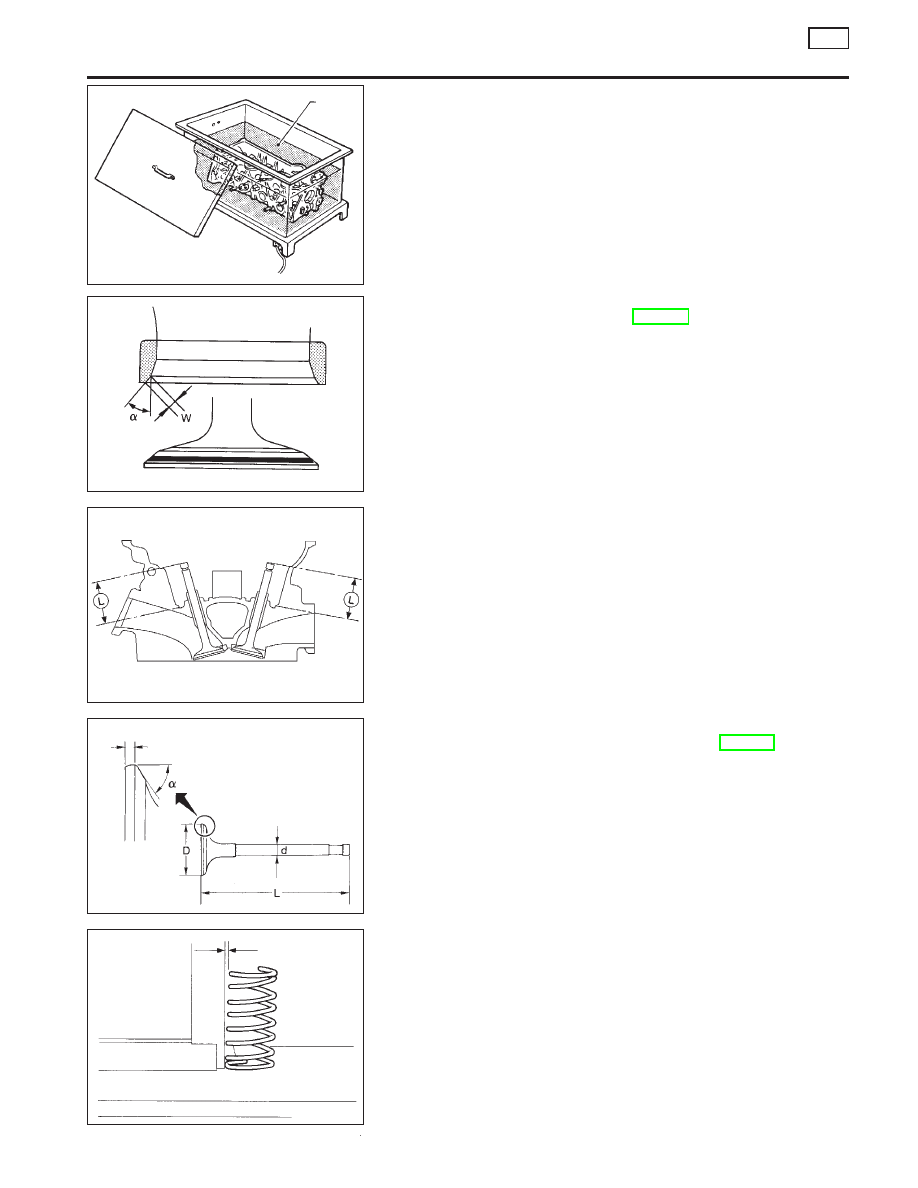

Heat cylinder head to 110 to 130°C (230 to 266°F).

4.

Press fit valve seat until it seats on the bottom.

5.

Cut or grind valve seat using suitable tool to the specified
dimensions as shown in SDS, EM-179.

6.

After cutting, lap valve seat with abrasive compound.

7.

Check valve seating condition.

Seat face angle “

α

”:

45°15

- 45°45

Contacting width “W”:

Intake

1.06 - 1.34 mm (0.0417 - 0.0528 in)

Exhaust

1.20 - 1.68 mm (0.0472 - 0.0661 in)

8.

Use a depth gauge to measure the distance “L” between the
mounting surface of the cylinder head spring seat and the
valve stem end. If the distance is shorter than specified, repeat
step 5 above to correct it. If the distance is longer, replace the
valve seat.

Valve seat resurface limit:

Intake

35.95 - 36.55 mm (1.4154 - 1.4390 in)

Exhaust

35.92 - 36.52 mm (1.4142 - 1.4378 in)

VALVE DIMENSIONS

NCEM0019S12

Check dimensions of each valve. Refer to SDS, EM-182 for dimen-
sions.
When valve head has been worn down to 0.5 mm (0.020 in) in
margin thickness, replace valve.

Grinding allowance for valve stem tip is 0.2 mm (0.008 in) or
less.

VALVE SPRING

NCEM0019S13

Squareness

NCEM0019S1301

1.

Measure dimension “S”.

Out-of-square “S”:

Less than 1.75 mm (0.0689 in)

2.

If it exceeds the limit, replace spring.

SEM008A

Oil

SEM892B

AEM343

SEM188A

T (Margin thickness)

SEM288A

S (Out-of-square)

CYLINDER HEAD

QG

Inspection (Cont’d)

EM-39

Pressure

NCEM0019S1302

Check valve spring pressure at specified spring height.

Pressure:

Standard

370.0 N (37.73 kg, 83.19 lb) at 23.64 mm
(0.9307 in)

Limit

More than 347.8 N (35.46 kg, 78.19 lb) at
23.64 mm (0.9307 in)

If it exceeds the limit, replace spring.

VALVE LIFTER AND VALVE SHIM

NCEM0019S16

1.

Check contact and sliding surfaces for wear or scratches.

2.

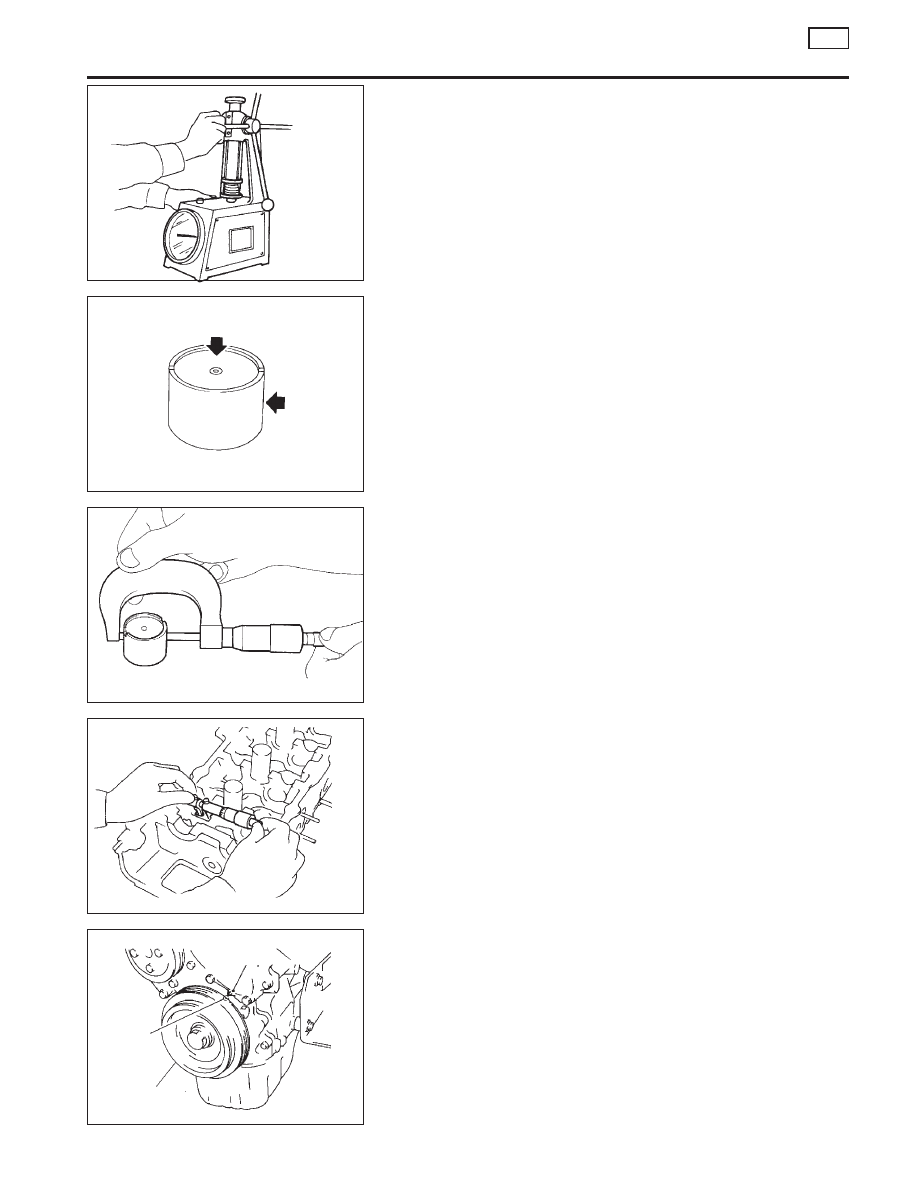

Check diameter of valve lifter and valve lifter guide bore.

Valve lifter outside diameter:

29.960 - 29.975 mm (1.1795 - 1.1801 in)

Lifter guide inside diameter:

30.000 - 30.021 mm (1.1811 - 1.1819 in)

Clearance between valve lifter and valve lifter guide:

0.025 - 0.065 mm (0.0010 - 0.0024 in)

If it exceeds the limit, replace valve lifter or cylinder head which
exceeds the standard diameter tolerance.

Valve Clearance

NCEM0041

CHECKING

NCEM0041S01

Check valve clearance while engine is warm and not running.
1.

Remove rocker cover.

2.

Remove all spark plugs.

3.

Set No. 1 cylinder at TDC on its compression stroke.

I

Align pointer with TDC mark on crankshaft pulley.

I

Check that valve lifters on No. 1 cylinder are loose and valve
lifters on No. 4 are tight.

EM113

SEM160D

SEM161D

SEM920F

SEM921F

Pointer

Timing
mark

Crankshaft pulley

CYLINDER HEAD

QG

Inspection (Cont’d)

EM-40

I

If not, turn crankshaft one revolution (360°) and align as
described above.

4.

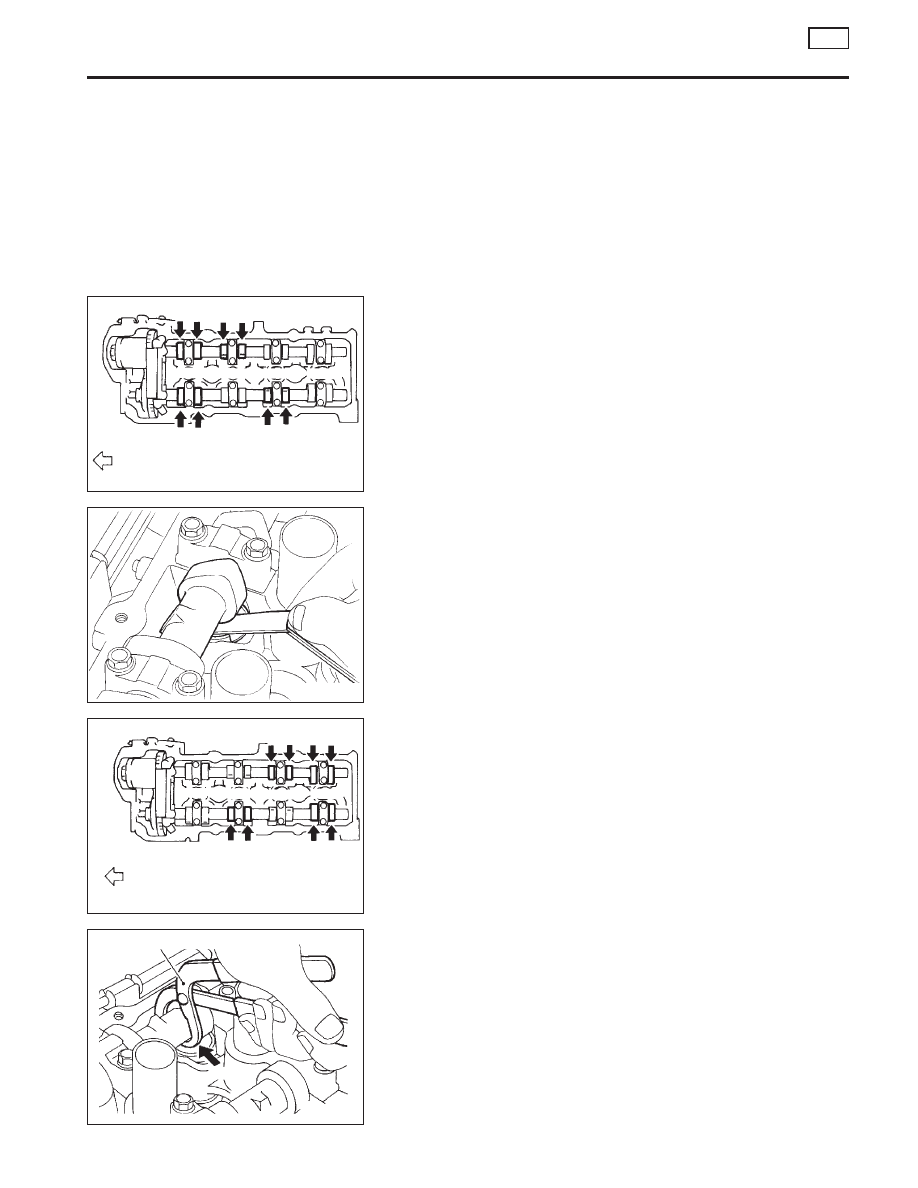

Check only those valves shown in the figure.

I

Using a feeler gauge, measure clearance between valve lifter
and camshaft.

I

Record any valve clearance measurements which are out of
specification. They will be used later to determine the required
replacement adjusting shim.

Valve clearance for checking (Hot):

Intake

0.21 - 0.49 mm (0.008 - 0.019 in)

Exhaust

0.30 - 0.58 mm (0.012 - 0.023 in)

5.

Turn crankshaft one revolution (360°) and align mark on crank-
shaft pulley with pointer.

6.

Check only those valves shown in the figure.

I

Use the same procedure as mentioned in step 4.

7.

If all valve clearances are within specification, install the fol-
lowing parts:

I

Rocker cover

I

All spark plugs

ADJUSTING

NCEM0041S02

Adjust valve clearance while engine is cold.
1.

Turn crankshaft. Position cam lobe upward on camshaft for
valve that must be adjusted.

2.

Place Tool (A) around camshaft as shown in figure.

Before placing Tool (A), rotate notch toward center of cylinder
head. (See figure.) This will simplify shim removal later.

CAUTION:

Be careful not to damage cam surface with Tool (A).

SEM922F

INT

EXH

Engine front

No. 4

No. 3

No. 2

No. 1

.

SEM139D

SEM923F

INT

EXH

Engine front

No. 1

No. 2

No. 3

No. 4

SEM941F

Tool (A) KV10115110

Notch

CYLINDER HEAD

QG

Valve Clearance (Cont’d)

EM-41

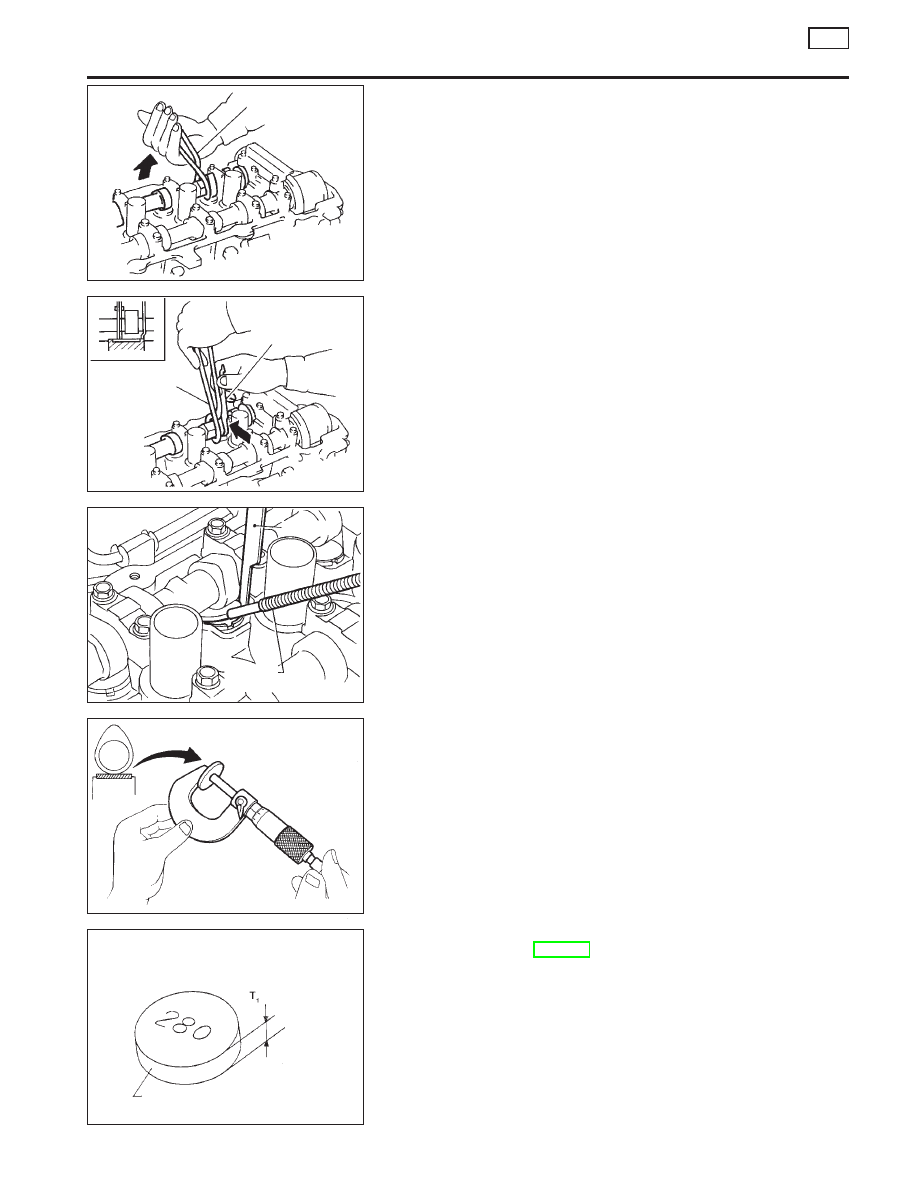

3.

Rotate Tool (A) so that valve lifter is pushed down.

4.

Place Tool (B) between camshaft and valve lifter to retain valve
lifter.

CAUTION:

I

Tool (B) must be placed as close to camshaft bracket as
possible.

I

Be careful not to damage cam surface with Tool (B).

5.

Remove Tool (A).

6.

Remove adjusting shim using a small screwdriver and a mag-
netic finger.

7.

Determine replacement adjusting shim size using the following
formula.

I

Use a micrometer to determine thickness of removed shim.

I

Calculate thickness of new adjusting shim so valve clearance
comes within specified values.
R = Thickness of removed shim
N = Thickness of new shim
M = Measured valve clearance

Intake:

N = R + [M − 0.37 mm (0.0146 in)]

Exhaust:

N = R + [M − 0.40 mm (0.0157 in)]

Shims are available in 50 sizes from 2.00 mm (0.0787 in) to 2.98
mm (0.1173 in), in steps of 0.02 mm (0.0008 in).

I

Select the closest size shim to the calculated thickness. Refer
to chart in SDS, EM-180.

SEM924F

Tool (A)
KV10115110

SEM925F

Tool (B)
KV10115120

Tool (A)

SEM144D

Magnetic
finger

.

Tool (B)

SEM145D

AEM236

Indicate
T

1

= 2.800 mm

(0.1102 in)

Shim

CYLINDER HEAD

QG

Valve Clearance (Cont’d)

EM-42
