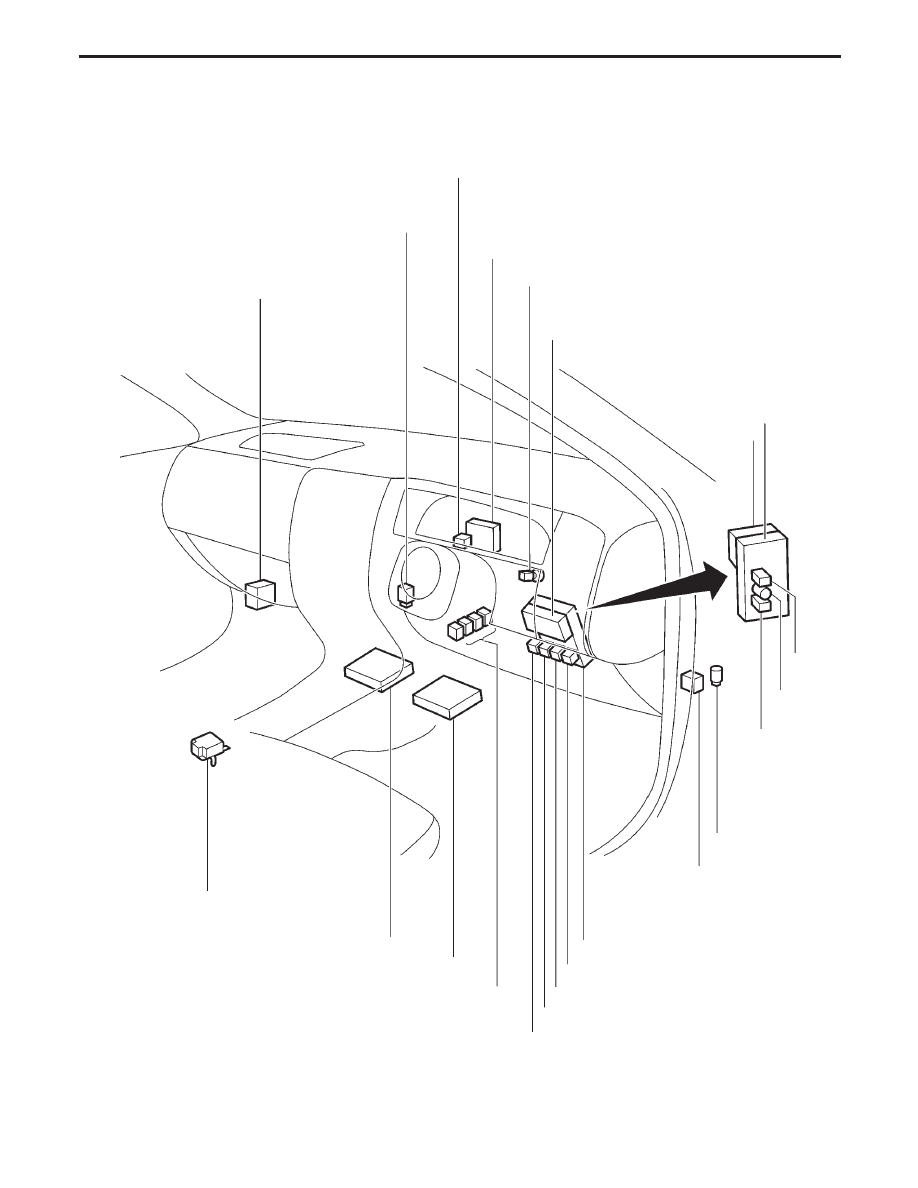

RHD MODELS

YEL236C

NATS IMMU

Auto level control unit

Headlamp washer timer

Stop lamp switch

A/C LOW relay. A/C MED-LOW relay. A/C MED-HIGH relay. A/C HIGH relay

Fuse block (J/B)

Power window relay

Air bag diagnosis sensor unit

ECM

Front fog lamp relay

TCM (Transmission control module)

Fuel pump relay

Indicator control unit

Time control unit

Fuse block (J/B)

Time control unit

Ignition
relay

Circuit
breaker-1

Blower relay

Circuit breaker-2

Theft warning horn relay

Rear window defogger relay

LOCATION OF ELECTRICAL UNITS

Passenger Compartment (Cont’d)

EL-367

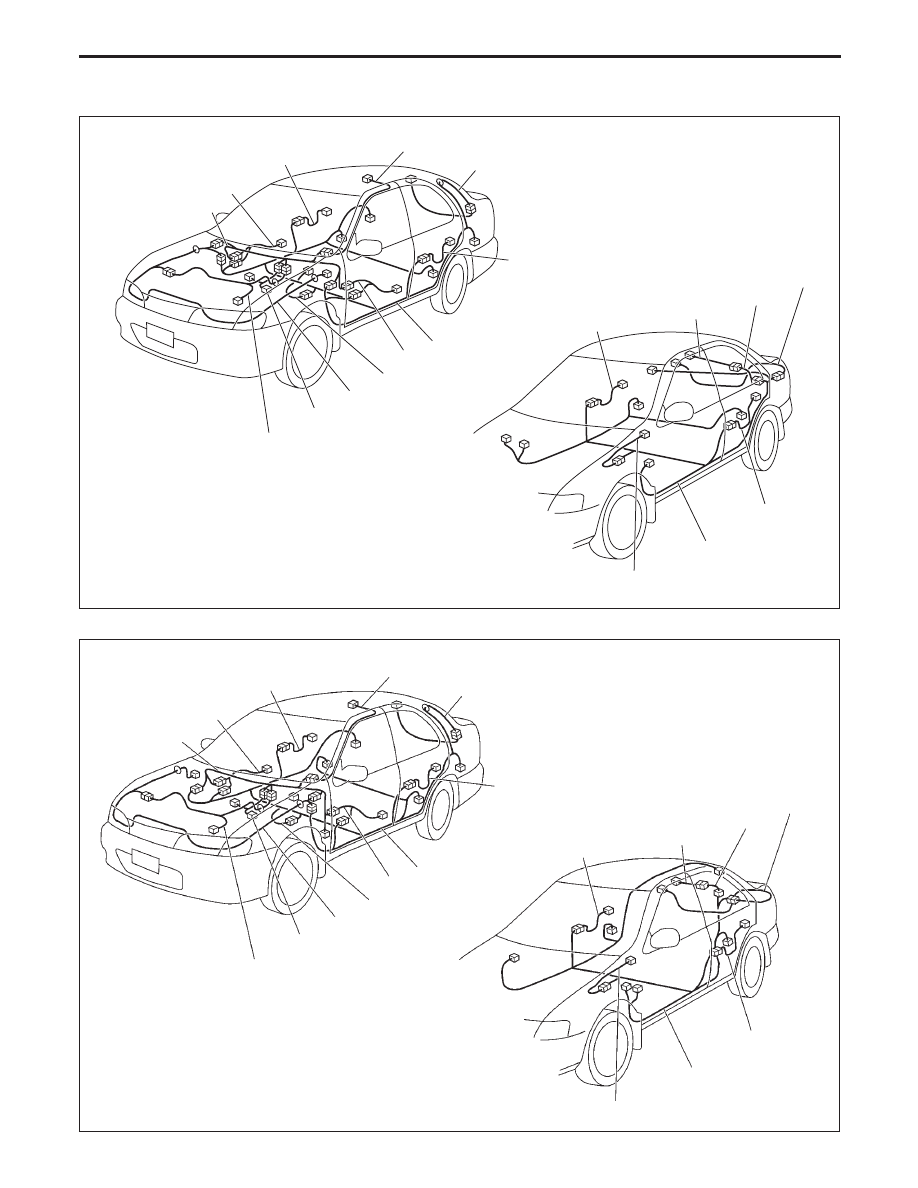

Outline

LHD MODELS

RHD MODELS

YEL367B

Rear door harness RH
(5-door Hatchback and Wagon)

Front door harness RH

Room lamp harness

Back door harness

Hatchback and Wagon

Rear door harness LH
(5-door Hatchback and Wagon)

Body harness

Front door harness LH

Main harness

Engine room harness

Engine control harness

Sedan

Tail sub harness

Tail harness

Rear door harness RH

Rear door har-
ness LH

Body harness

Tail harness No. 2

Console harness

Air conditioner harness

Console harness

YEL237C

Rear door harness RH
(5-door Hatchback and Wagon)

Main harness

Front door
harness RH

Room lamp harness

Back door harness

Hatchback and Wagon

Rear door harness LH
(5-door Hatchback and Wagon)

Body harness

Front door harness LH

Engine room harness

Engine control harness

Sedan

Tail harness

Rear door harness RH

Rear door
harness LH

Body harness

Tail sub harness

Tail harness No. 2

Console harness

Air conditioner harness

Console harness

HARNESS LAYOUT

EL-368

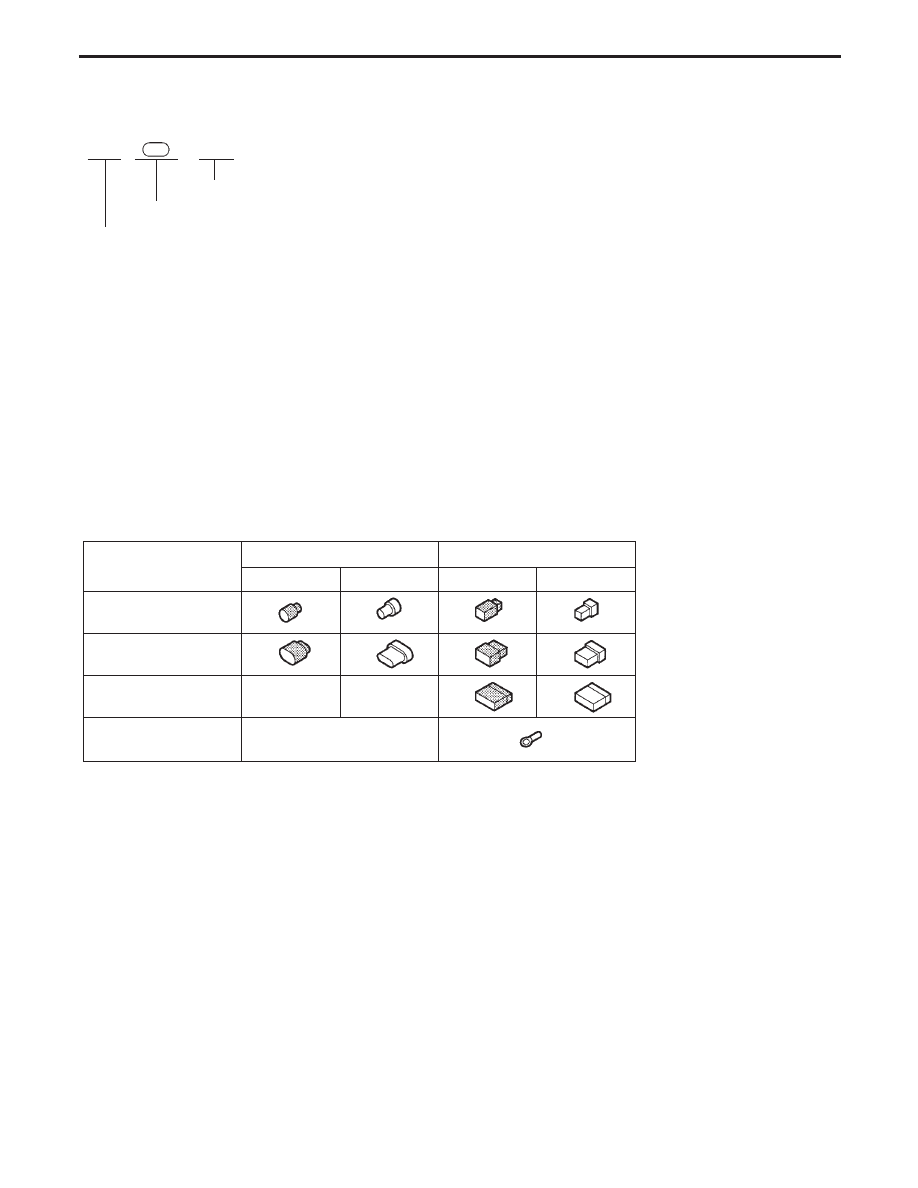

How to Read Harness Layout

Example:

G2

E1

B/6

: ASCD ACTUATOR

Connector color / Cavity

Connector number

Grid reference

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

Engine Room Harness (Engine Compartment)

Main Harness

Body Harness

To use the grid reference
1) Find the desired connector number on the connector list.
2) Find the grid reference.
3) On the drawing, find the crossing of the grid reference letter column and number row.
4) Find the connector number in the crossing zone.
5) Follow the line (if used) to the connector.

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.

Connector type

Water proof type

Standard type

Male

Female

Male

Female

Cavity: Less than 4

Relay connector

Cavity: From 5 to 8

Cavity: More than 9

Ground terminal etc.

HARNESS LAYOUT

EL-369

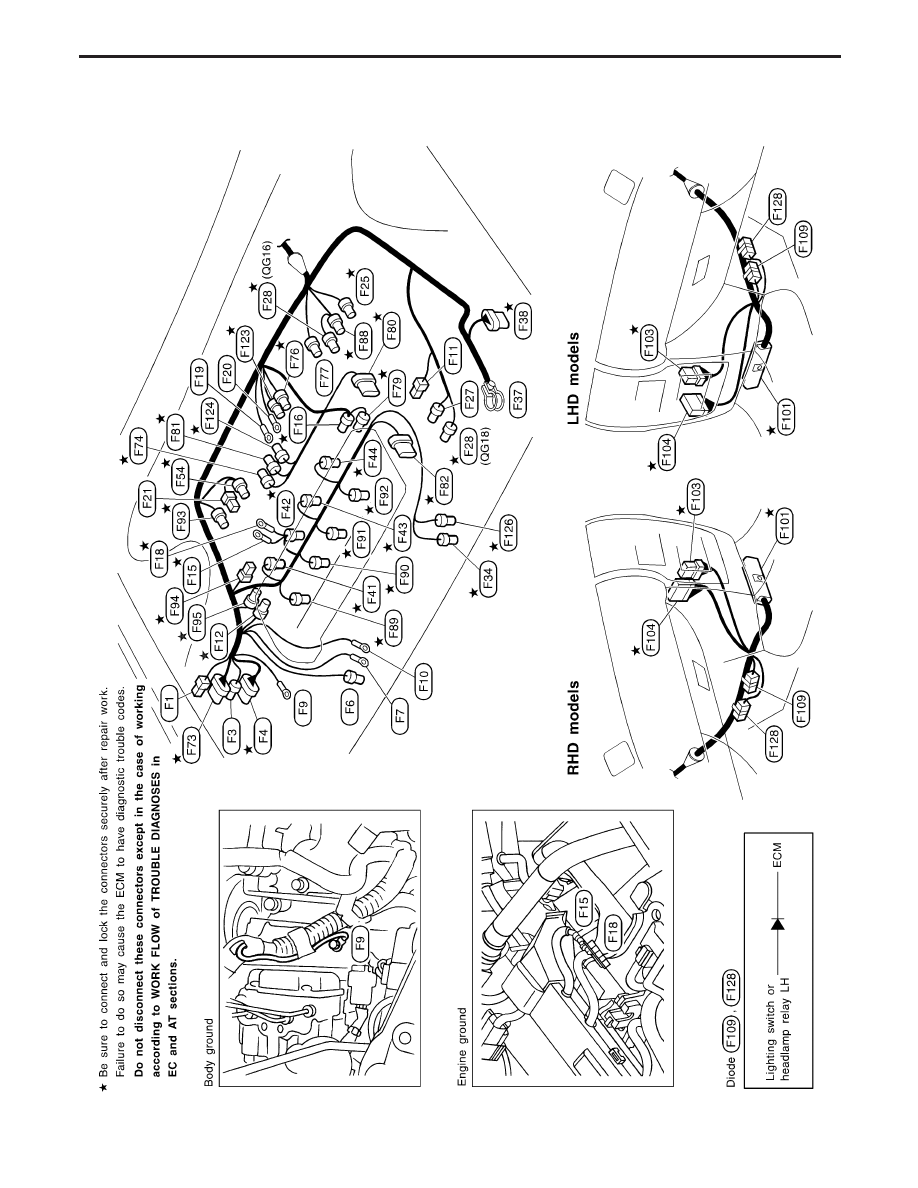

Engine Control Harness

QG ENGINE

YEL957C

HARNESS LAYOUT

EL-370
