Nissan Primera P11. Manual - part 323

Trouble Diagnoses (Models after VIN -
P11U0548750)

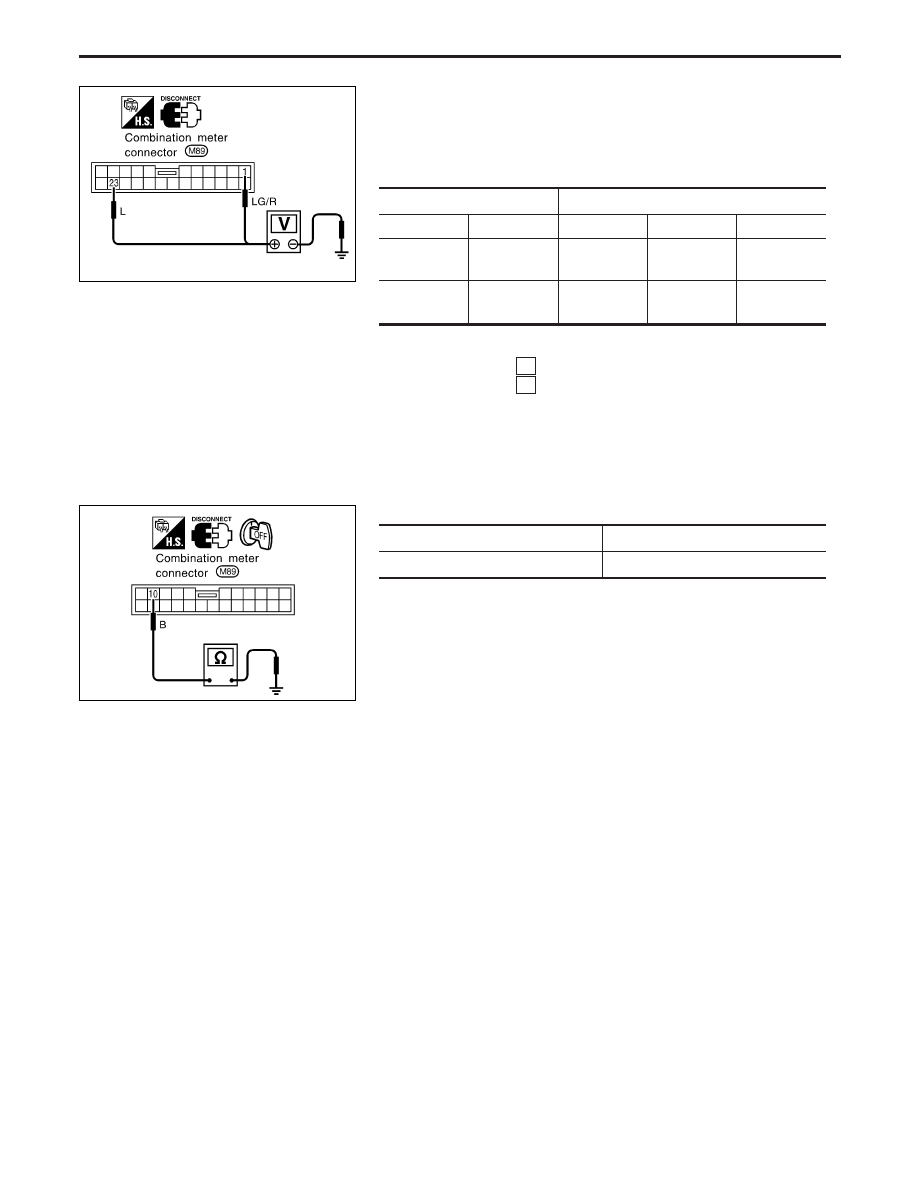

POWER SUPPLY AND GROUND CIRCUIT CHECK

Power supply circuit check

Terminals

Ignition switch position

䊝

䊞

OFF

ACC

ON

쑗

23

Ground

Battery
voltage

Battery
voltage

Battery
voltage

쑗

1

Ground

0V

0V

Battery
voltage

If NG, check the following,

●

10A fuse [No. 16 , located in fuse block (J/B)]

●

10A fuse [No. 12 , located in fuse block (J/B)]

●

Harness for open or short between fuse and combination
meter

Ground circuit check

Terminals

Continuity

쑗

10

- Ground

Yes

YEL007D

YEL008D

METER AND GAUGES

EL-159

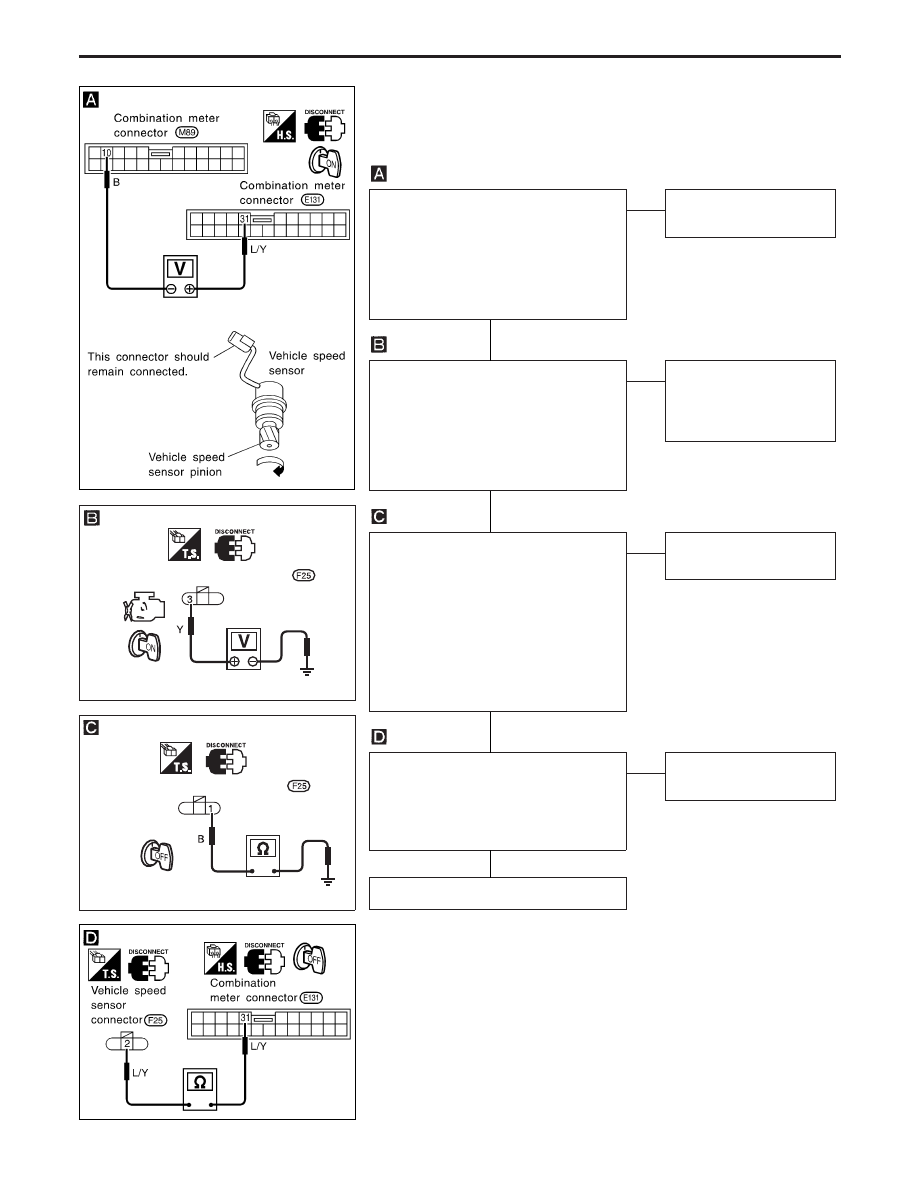

INSPECTION/VEHICLE SPEED SENSOR

(MT models without ABS, and CVT models)

CHECK VEHICLE SPEED SENSOR
OUTPUT.
1) Remove vehicle speed sensor from

transmission.

2) Check voltage between combination

meter terminals

쑗

10

and

쑗

31

while

quickly turning speed sensor pinion.

OK

왘

NG

Vehicle speed sensor is
OK.

CHECK POWER SOURCE.

●

Re-install vehicle speed sensor.

●

Turn ignition switch to “ON” position.

Check voltage between vehicle speed
sensor connector terminal

쑗

3

and

ground.

Battery voltage should exist.

OK

왘

NG

Check harness for open
or short between speed-
ometer and vehicle
speed sensor.

CHECK GROUND CIRCUIT OF
VEHICLE SPEED SENSOR

●

Turn ignition switch to the “LOCK”
position.

Disconnect vehicle speed sensor con-
nector.
Check continuity between vehicle
speed sensor harness connector termi-
nal

쑗

1

and body ground.

Continuity should exist.

OK

왘

NG

Repair harness or con-
nector

Check continuity between speedometer
harness connector terminal

쑗

31

and

vehicle speed sensor connector termi-
nal

쑗

2

.

Continuity should exist.

OK

왘

NG

Repair harness and con-
nector.

Replace vehicle speed sensor.

YEL009D

YEL493B

Combination meter connector

YEL494B

Vehicle speed sensor connectors

YEL011D

왔

왔

왔

왔

METER AND GAUGES

Trouble Diagnoses (Models after VIN -
P11U0548750) (Cont’d)

EL-160

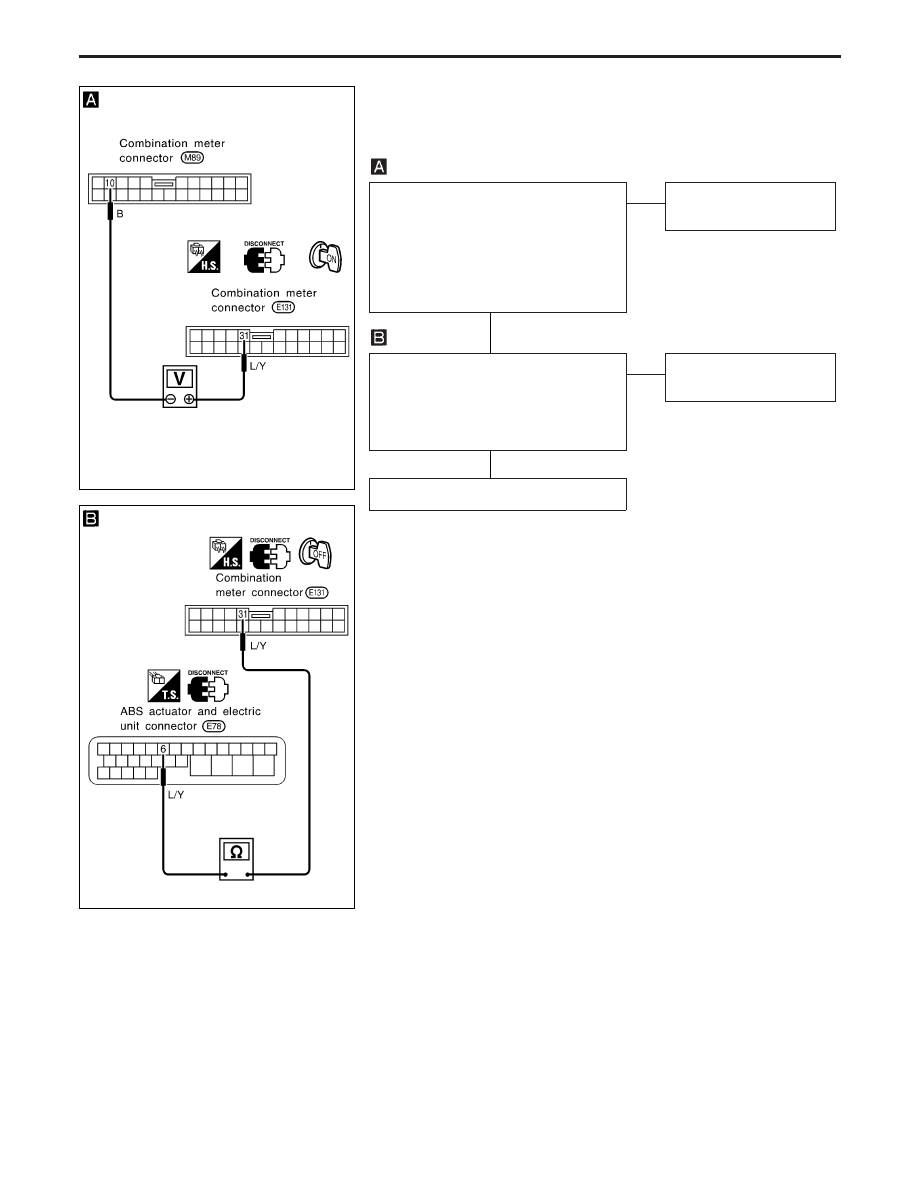

INSPECTION/VEHICLE SPEED SENSOR

(MT models with ABS)

CHECK VEHICLE SPEED SENSOR
OUTPUT.
1) Jack up the front wheels.
2) Turn ignition switch “ON”.
3) Check voltage between combination

meter terminals

쑗

3

and

쑗

1

while

turning front wheels.

OK

왘

NG

Vehicle speed sensor is
OK.

Check continuity between speedometer
harness connector terminal

쑗

31

and

ABS actuator and electric unit connec-
tor terminal

쑗

6

.

Continuity should exist.

OK

왘

NG

Repair harness and con-
nector.

Replace vehicle speed sensor.

YEL010D

YEL012D

왔

왔

METER AND GAUGES

Trouble Diagnoses (Models after VIN -
P11U0548750) (Cont’d)

EL-161

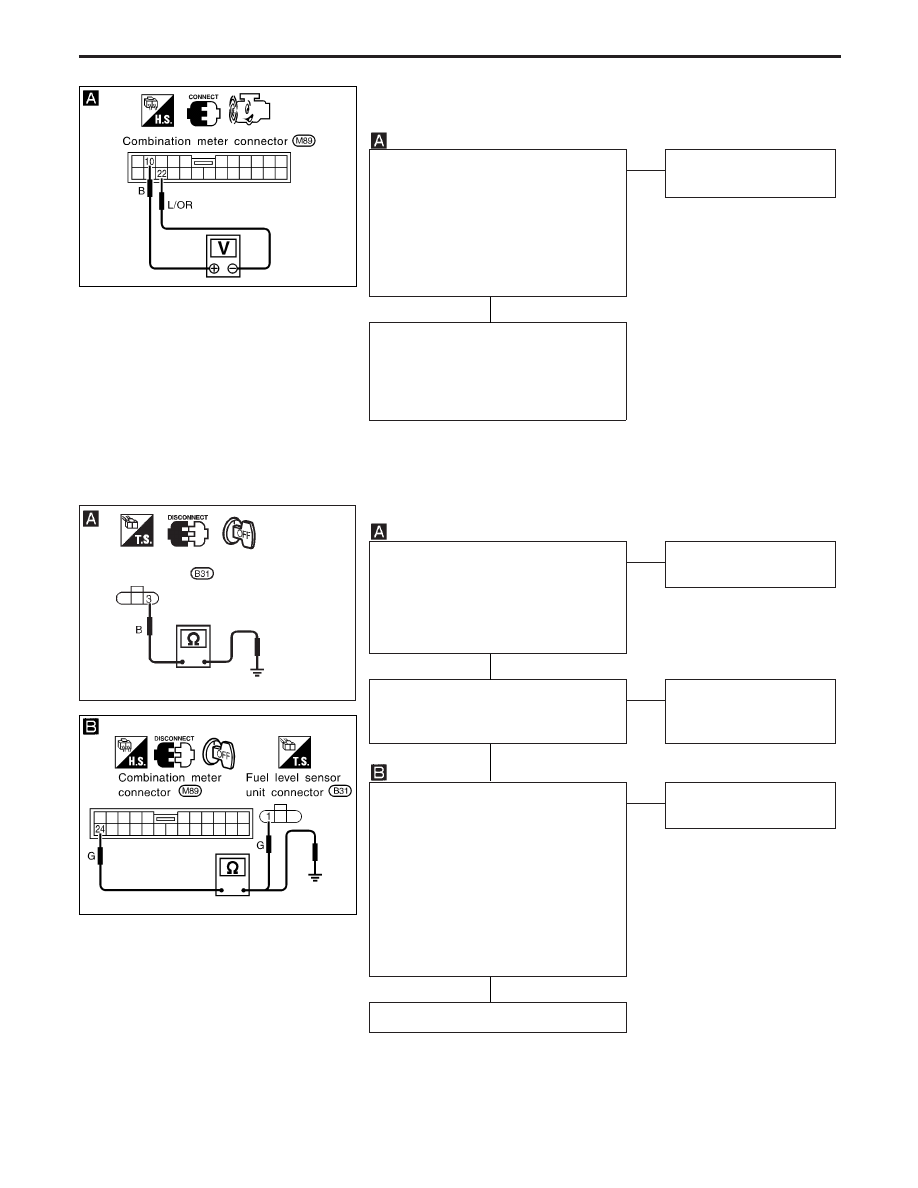

INSPECTION/ENGINE REVOLUTION SIGNAL

CHECK ECM OUTPUT.
1. Start engine.
2. Check voltage between combination

meter terminals

쑗

10

and

쑗

22

at idle

and 2,000 rpm.

Higher rpm = Higher voltage
Lower rpm = Lower voltage
Voltage should change with rpm.

NG

왘

OK

Engine revolution signal
is OK.

Check the following

●

Combination meter terminal

쑗

1

ground circuit

●

Harness for open or short between
ECM and combination meter

INSPECTION/FUEL LEVEL SENSOR

CHECK GROUND CIRCUIT FOR
FUEL LEVEL SENSOR UNIT.
Check harness continuity between fuel
level sensor unit terminal

쑗

3

and

ground.

Continuity should exist.

OK

왘

NG

Repair harness or con-
nector.

CHECK GAUGE UNITS.
Refer to “FUEL LEVEL SENSOR UNIT
CHECK”.

OK

왘

NG

Repair or replace.
Refer to FE section in
Service Manual.

CHECK HARNESS FOR OPEN OR
SHORT
1. Disconnect combination connector

and fuel level sensor unit connector.

2. Check continuity between combina-

tion meter terminal

쑗

24

and fuel

level sensor unit terminal

쑗

1

.

Continuity should exist.

3. Check continuity between combina-

tion meter

쑗

24

and ground.

Continuity should exist.

OK

왘

NG

Repair harness or con-
nector.

Fuel level sensor is OK.

YEL013D

NEL764

Fuel level sensor
unit connector

YEL014D

왔

왔

왔

왔

METER AND GAUGES

Trouble Diagnoses (Models after VIN -
P11U0548750) (Cont’d)

EL-162
