POWER SUPPLY ROUTING

Schematic (Cont’d)

EL-11

Wiring Diagram — POWER —

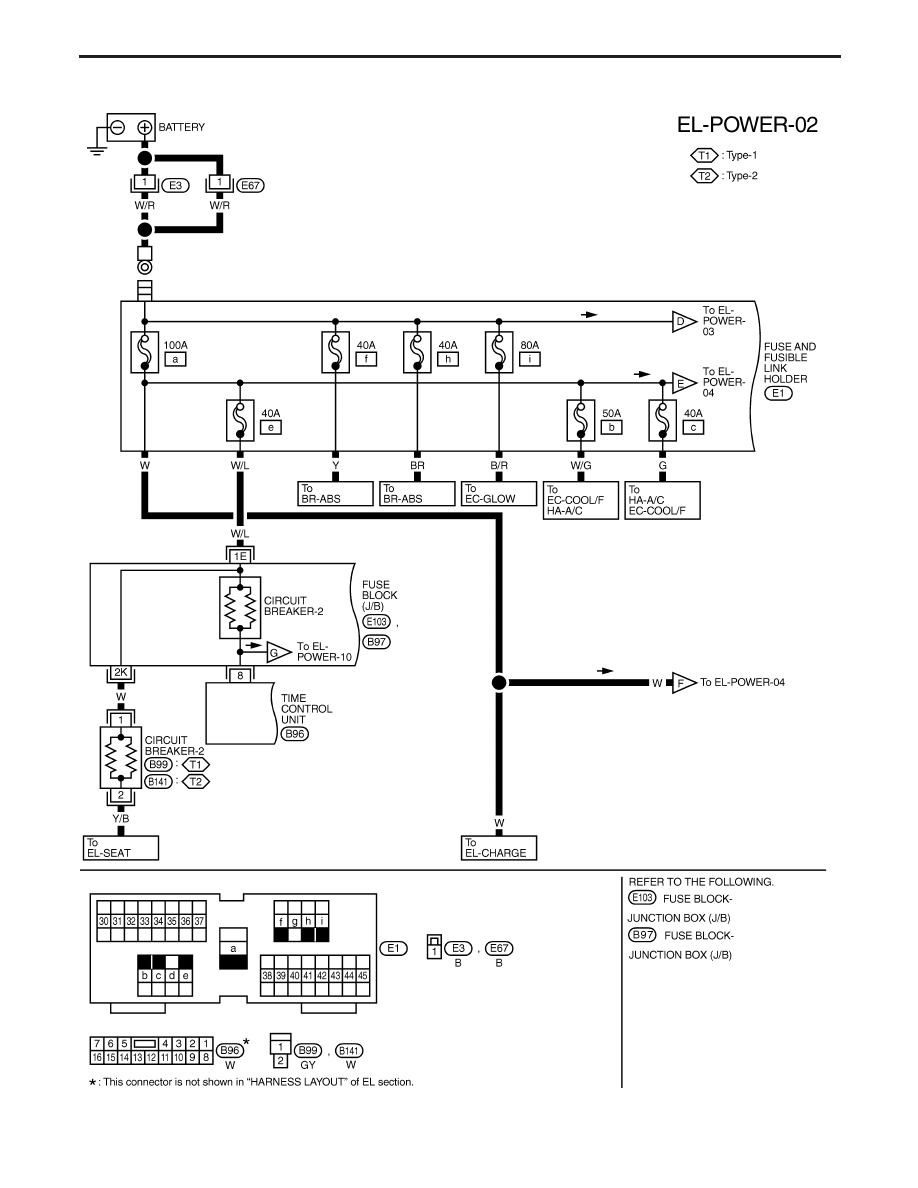

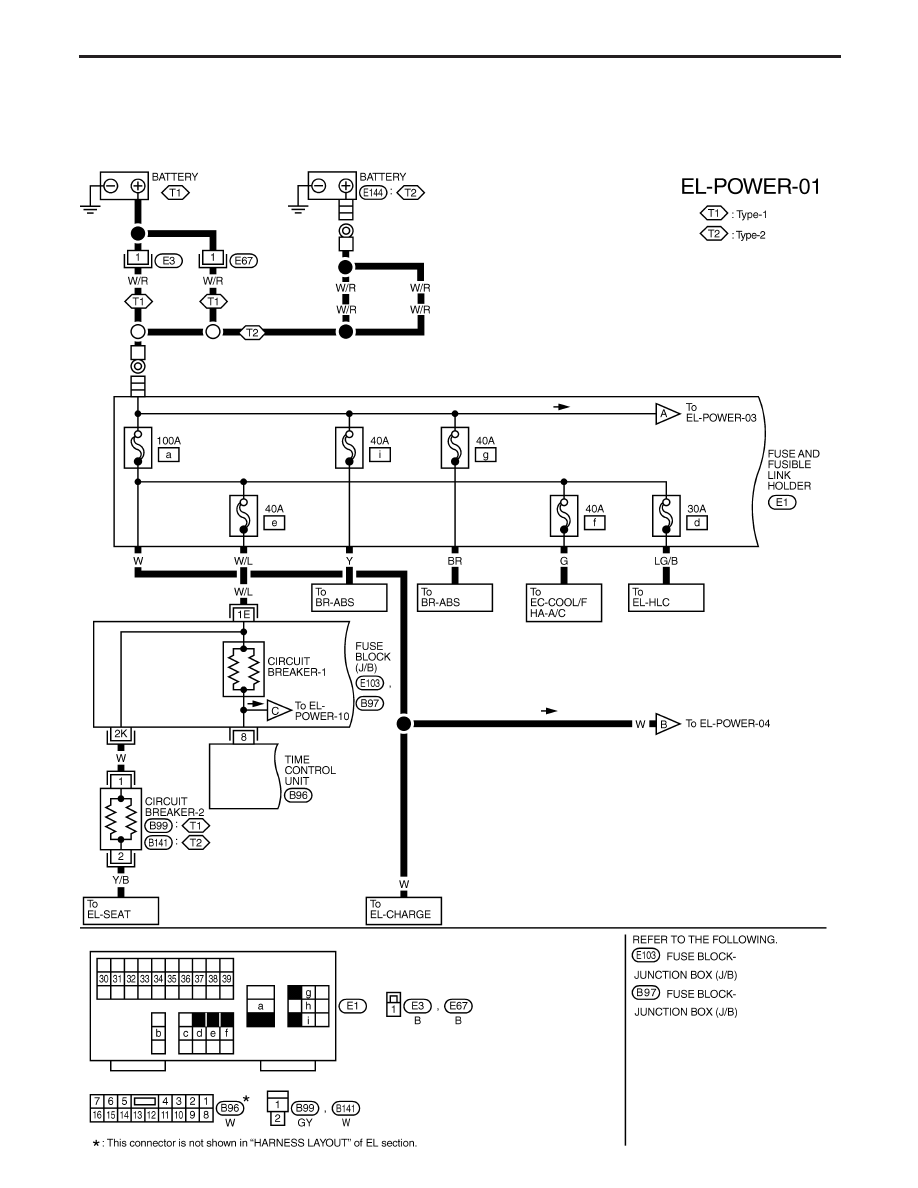

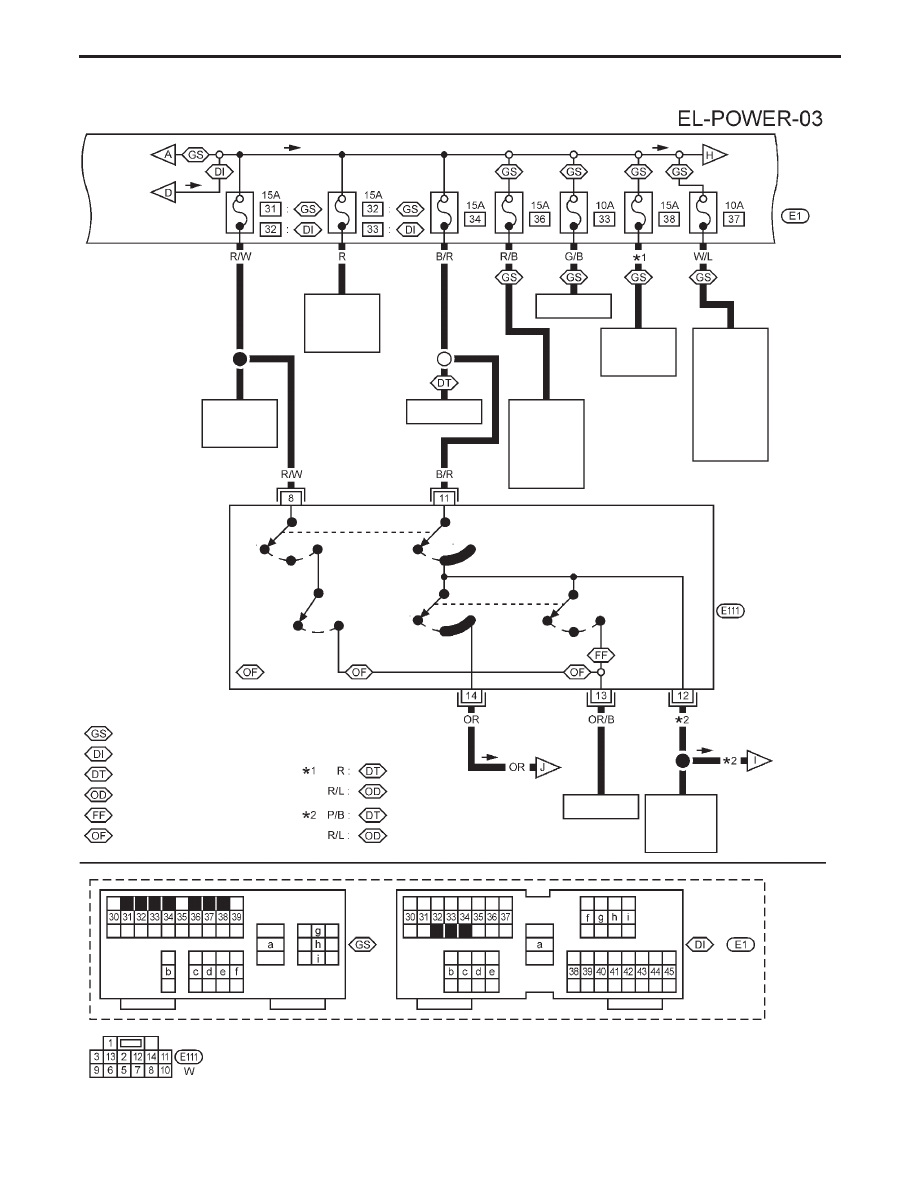

BATTERY POWER SUPPLY — IGNITION SWITCH IN ANY POSITION

Gasoline engine models

YEL949C

POWER SUPPLY ROUTING

EL-12

Diesel engine models

YEL950C

POWER SUPPLY ROUTING

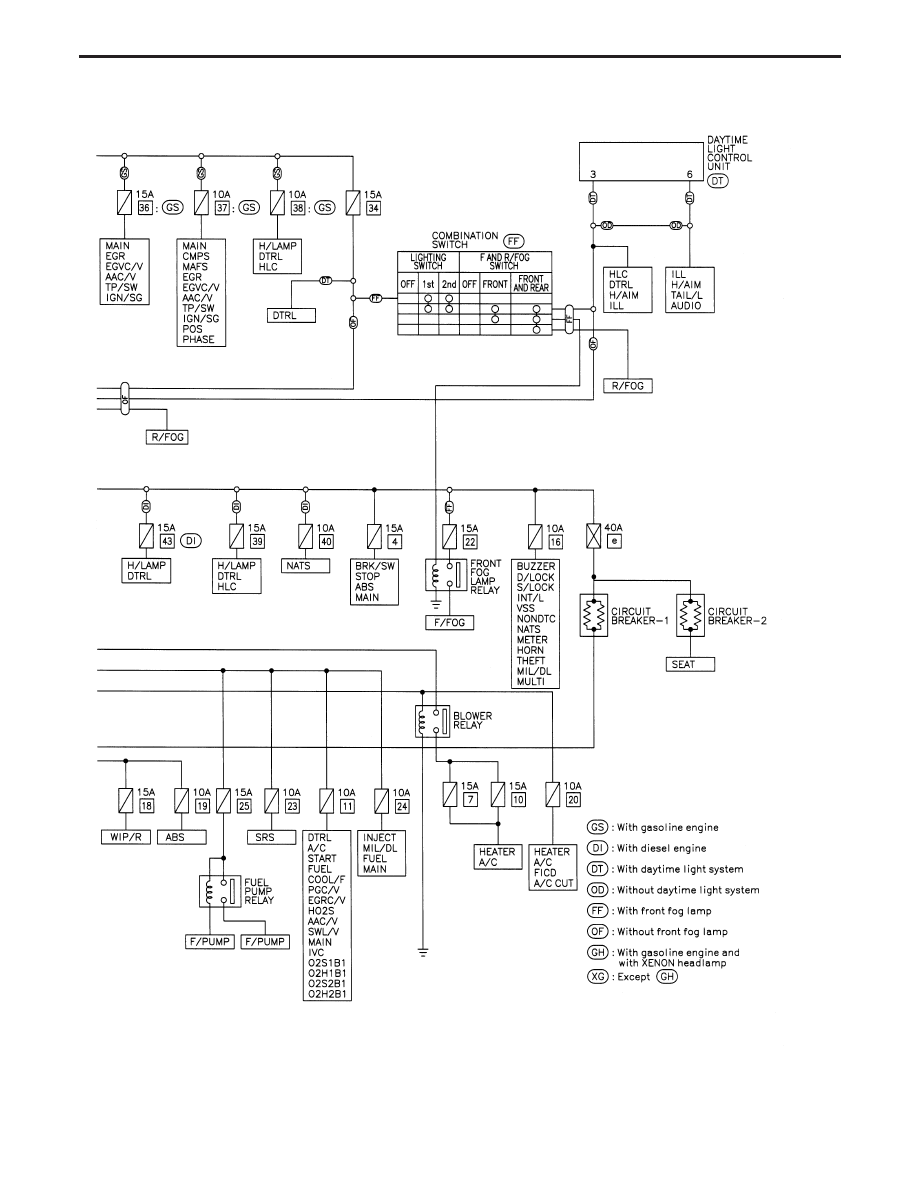

Wiring Diagram — POWER — (Cont’d)

EL-13

YEL222C

To EL-
POWER-01

To EL-
POWER-02

To EL-
POWER-05

FUSE AND
FUSIBLE
LINK BOX

To
EL-H/LAMP
EL-DTRL
EL-H/AIM

To
EL-H/LAMP
EL-DTRL
EL-HLC
EL-H/AIM

To
EL-HORN

To
EL-H/LAMP
EL-DTRL
EL-HLC

To
EL-DTRL

To
EC-MAIN
EC-EGR
EC-EGVC/V
EC-AAC/V
EC-TP/SW
EC-IGN/SG
AT-MAIN

To
EC-MAIN
EC-CMPS
EC-MAFS
EC-EGR
EC-EGVC/V
EC-AAC/V
EC-TP/SW
EC-IGN/SG
EC-POS
EC-PHASE
AT-MAIN

: With gasoline engine

: With diesel engine

: With daytime light system

: Without daytime light system

: With front fog lamp

: Without front fog lamp

OFF

1ST

2ND

OFF

1ST

2ND

LIGHTING
SWITCH

REAR FOG
LAMP
SWITCH

OFF

ON

OFF

FRONT

FRONT
AND
REAR

OFF

FRONT

FRONT
AND
REAR

FRONT AND
REAR FOG
LAMP
SWITCH

COMBINATION
SWITCH

Next
page

To
EL-R/FOG

To
EL-HLC
EL-DTRL
EL-H/AIM
EL-ILL

To EL-
POWER-06

POWER SUPPLY ROUTING

Wiring Diagram — POWER — (Cont’d)

EL-14
