HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
●
A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
●
The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.
●
The slide-locking type connectors are disconnected by pushing or lifting the slider. Refer to the illustra-
tion below.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
Be careful not to damage the connector support bracket when disconnecting the connector.

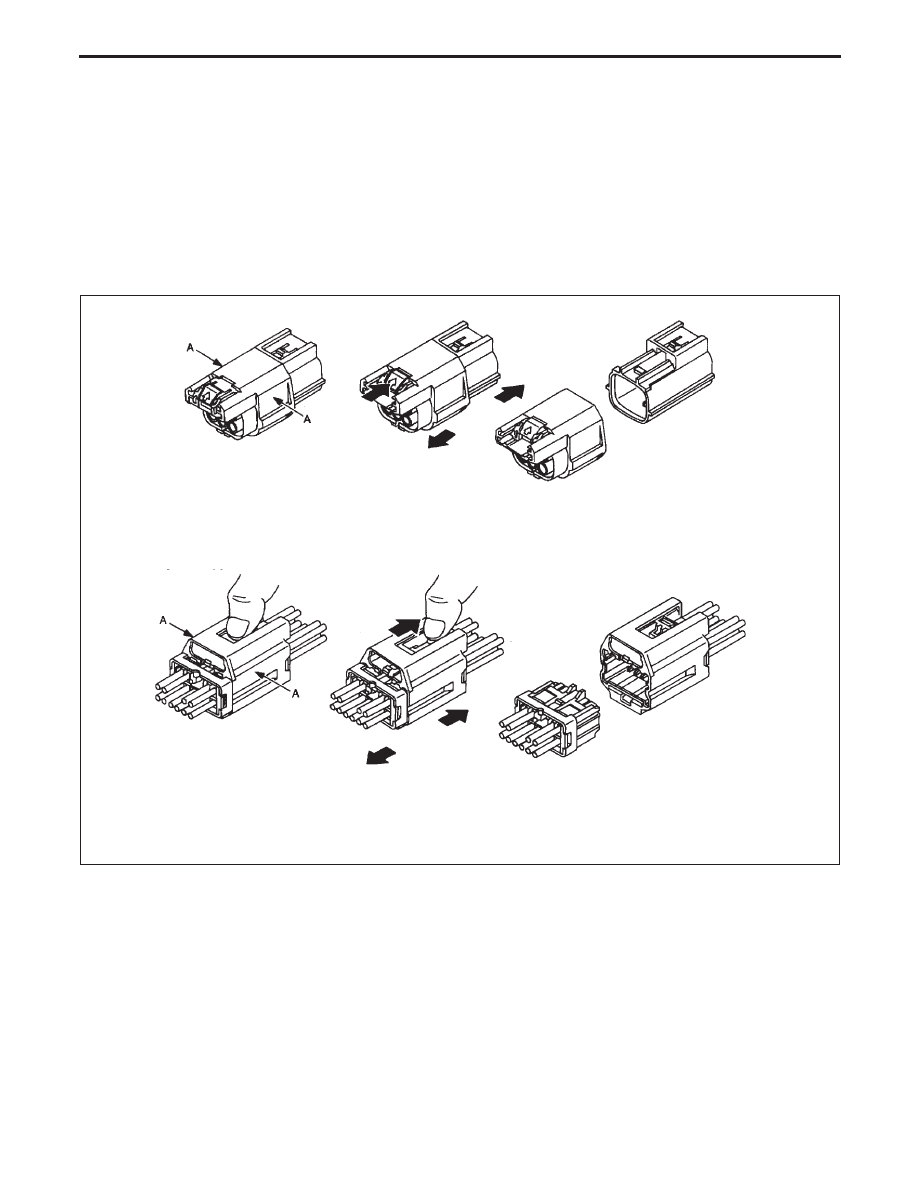

[Example]
SEL769V
Waterproof type
쑗
1
Firmly grasp shell of con-
nector housing at A.
쑗
2
Push slider until
connector pops or
snaps apart.
쑗
3
Disconnect harness
connector.
Non-waterproof type
쑗
1
Firmly grasp shell
of connector hous-
ing at A.
쑗
2
Pull back on the slider
while pulling apart
male and female
halves of connector.
쑗
3
Disconnect harness
connector.
