Nissan Primera P11. Manual - part 284





Heated Seat/Wiring Diagram - HSEAT - ............... 234

POWER WINDOW

..................................................... 236

System Description................................................ 236
Schematic .............................................................. 239
Wiring Diagram - WINDOW - ................................ 240
Trouble Diagnoses................................................. 243

POWER DOOR LOCK

............................................... 245

System Description/Door Lock for LHD Models.... 245
Schematic .............................................................. 246
Wiring Diagram - D/LOCK -................................... 248
Trouble Diagnoses................................................. 256

POWER DOOR LOCK - SUPER LOCK -

................. 265

Component Parts Location .................................... 265
System Description/Super Lock for RHD Models . 266
Schematic .............................................................. 268
Wiring Diagram - S/LOCK -................................... 270
Trouble Diagnoses................................................. 283

MULTI-REMOTE CONTROL SYSTEM

..................... 296

System Description................................................ 296
Schematic .............................................................. 297
Wiring Diagram - MULTI - ..................................... 298
Trouble Diagnoses................................................. 303
ID Code Entry Procedure ...................................... 305

TIME CONTROL UNIT (TCU)

................................... 306

System Description................................................ 306
Trouble Diagnosis .................................................. 309

THEFT WARNING SYSTEM

......................................311

Components Parts and Harness Connector
Location
..................................................................311

System Description................................................ 312
Schematic .............................................................. 315
Wiring Diagram - THEFT -..................................... 316
Trouble Diagnoses................................................. 328

NATS (NISSAN ANTI-THEFT SYSTEM)

................... 342

Component Parts Location .................................... 342
Wiring Diagram - NATS -....................................... 343

NATS (NISSAN ANTI-THEFT SYSTEM)

................... 345

System Description................................................ 345
System Composition.............................................. 346
CONSULT-II ........................................................... 347
Trouble Diagnoses................................................. 349
How to Replace NATS IMMU................................ 363

LOCATION OF ELECTRICAL UNITS

....................... 365

Engine Compartment............................................. 365
Passenger Compartment....................................... 366

HARNESS LAYOUT

.................................................. 368

Outline.................................................................... 368
How to Read Harness Layout ............................... 369
Engine Control Harness ........................................ 370
Engine Room Harness .......................................... 376
Main Harness......................................................... 382
Body Harness ........................................................ 386
Air Conditioner Harness ........................................ 402
Room Lamp Harness............................................. 403
Back Door Harness ............................................... 404
Front Door Harness (LH side) ............................... 406
Front Door Harness (RH side) .............................. 407
Rear Door Harness................................................ 408

WIRING DIAGRAM REFERENCE CHART

ECCS (Ignition system) .......................................................................................................................... EC SECTION
AUTOMATIC TRANSAXLE CONTROL SYSTEM ................................................................................... AT SECTION
ANTI-LOCK BRAKE SYSTEM ................................................................................................................ BR SECTION
SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ........................................................................ RS SECTION
HEATER AND AIR CONDITIONER ......................................................................................................... HA SECTION

EL-3

NOTE

EL-4

Precautions

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

The Supplemental Restraint System “Air Bag” and “Seat Belt Pre-tensioner”, used along with a seat belt,
help to reduce the risk or severity of injury to the driver and front passenger in a frontal collision. The
Supplemental Restraint System consists of an air bag module (located in the center of the steering wheel
and on the instrument panel on the passenger side, where fitted), seat belt pre-tensioners, a diagnosis sen-
sor unit, warning lamp, wiring harness and spiral cable.
In addition to the supplemental air bag modules for a frontal collision, the supplemental side air bag used
along with the seat belt help to reduce the risk or severity of injury to the driver and front passenger in a
side collision. The supplemental side air bag consists of air bag modules (located in the outer side of front
seats), satellite sensor, diagnosis sensor unit (one of components of supplemental air bags for a frontal
collision), wiring harness, warning lamp (one of components of supplemental air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative (which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation), all maintenance must be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses (except “SEAT BELT-TENSIONER” connector) can be
identified with yellow harness connector (and with yellow harness protector or yellow insulation
tape before the harness connectors). Not use electrical test equipment on any circuit related to
the SRS.

PRECAUTIONS AND PREPARATION

EL-5

Description

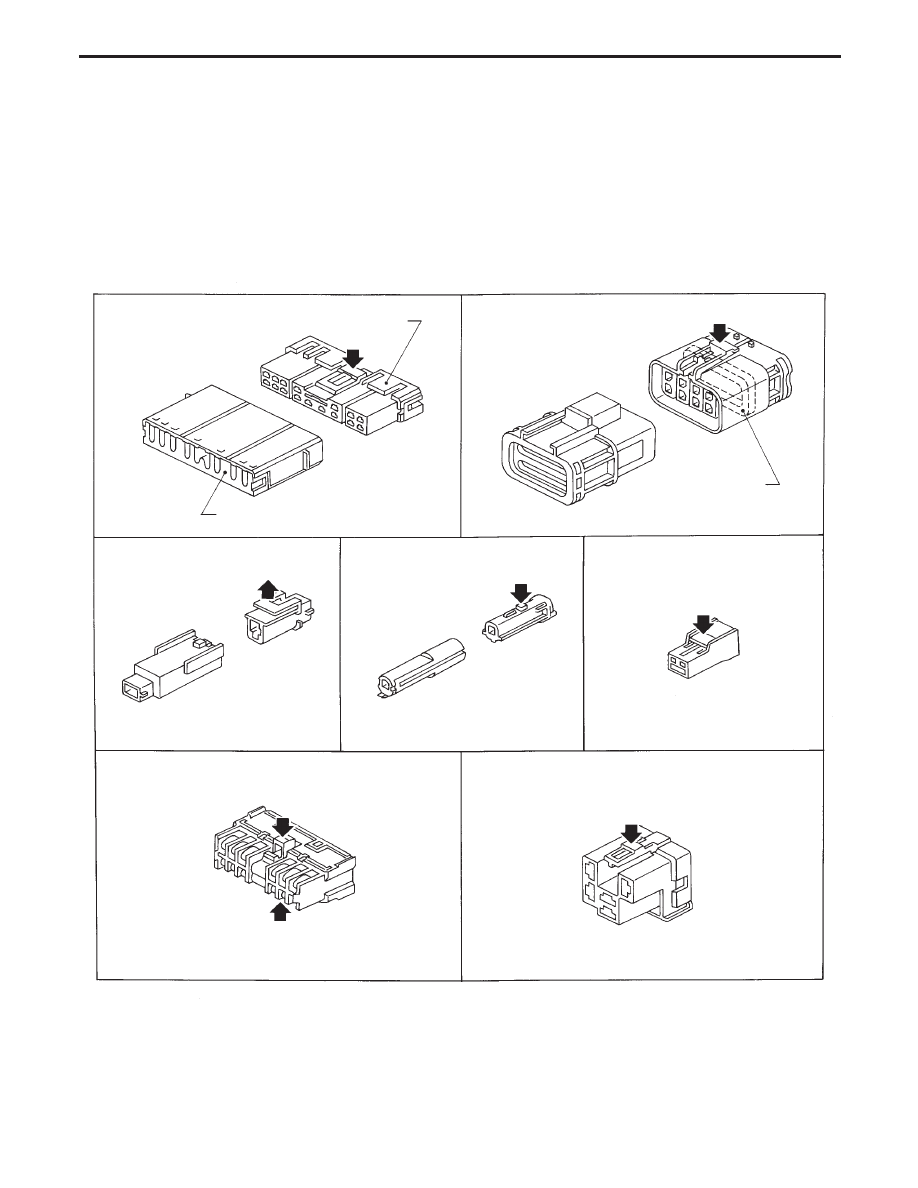

HARNESS CONNECTOR (TAB-LOCKING TYPE)

The tab-locking type connectors help prevent accidental looseness or disconnection.

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.
[Example]

SEL769D

Terminal retainer

PUSH

Connector housing

PUSH

Packing
(Water-proof type)

LIFT

PUSH

PUSH

PUSH

PUSH

(For combination meter)

PUSH

(For relay)

HARNESS CONNECTOR

EL-6
