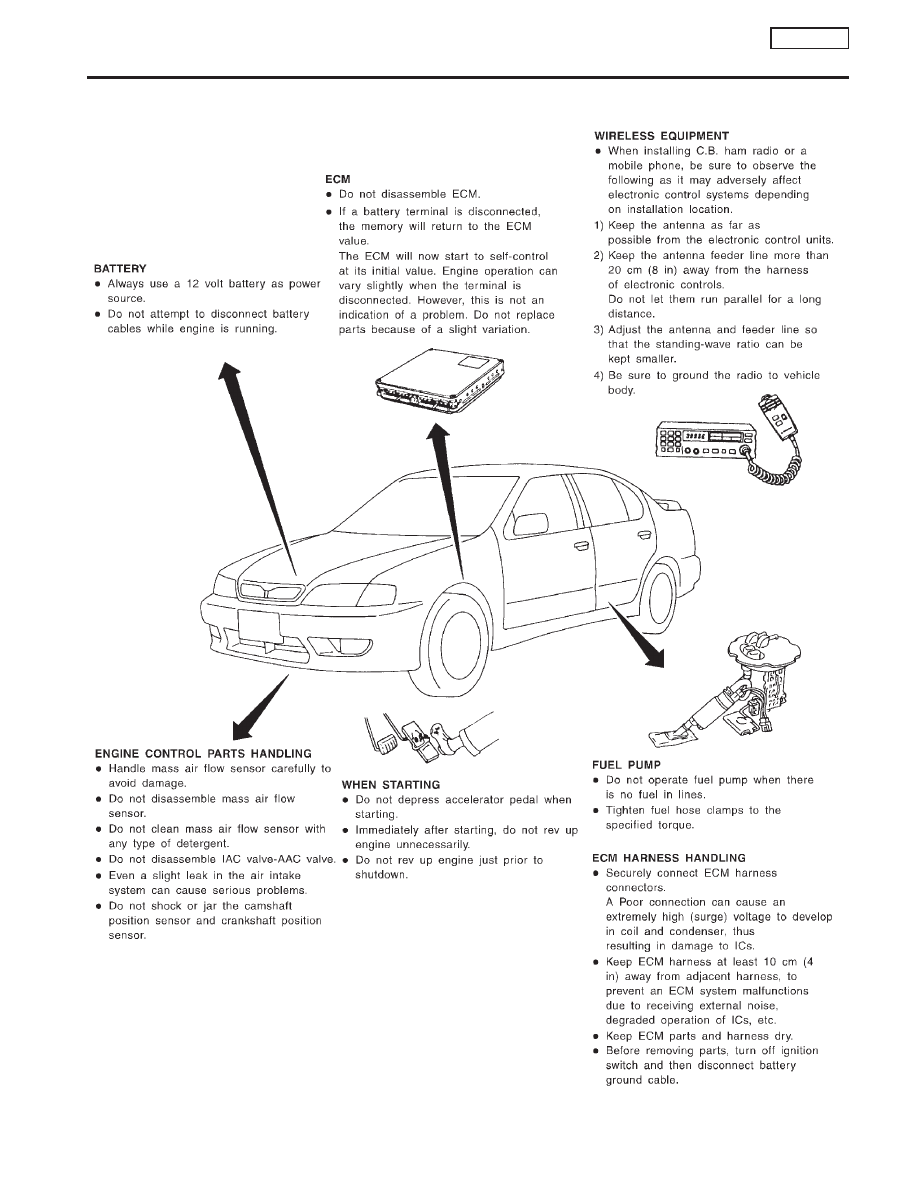

Engine Fuel & Emission Control System

NCEC0004

SEF331WB

PRECAUTIONS

SR20DE

Engine Fuel & Emission Control System

EC-11

Precautions

NCEC0005

I

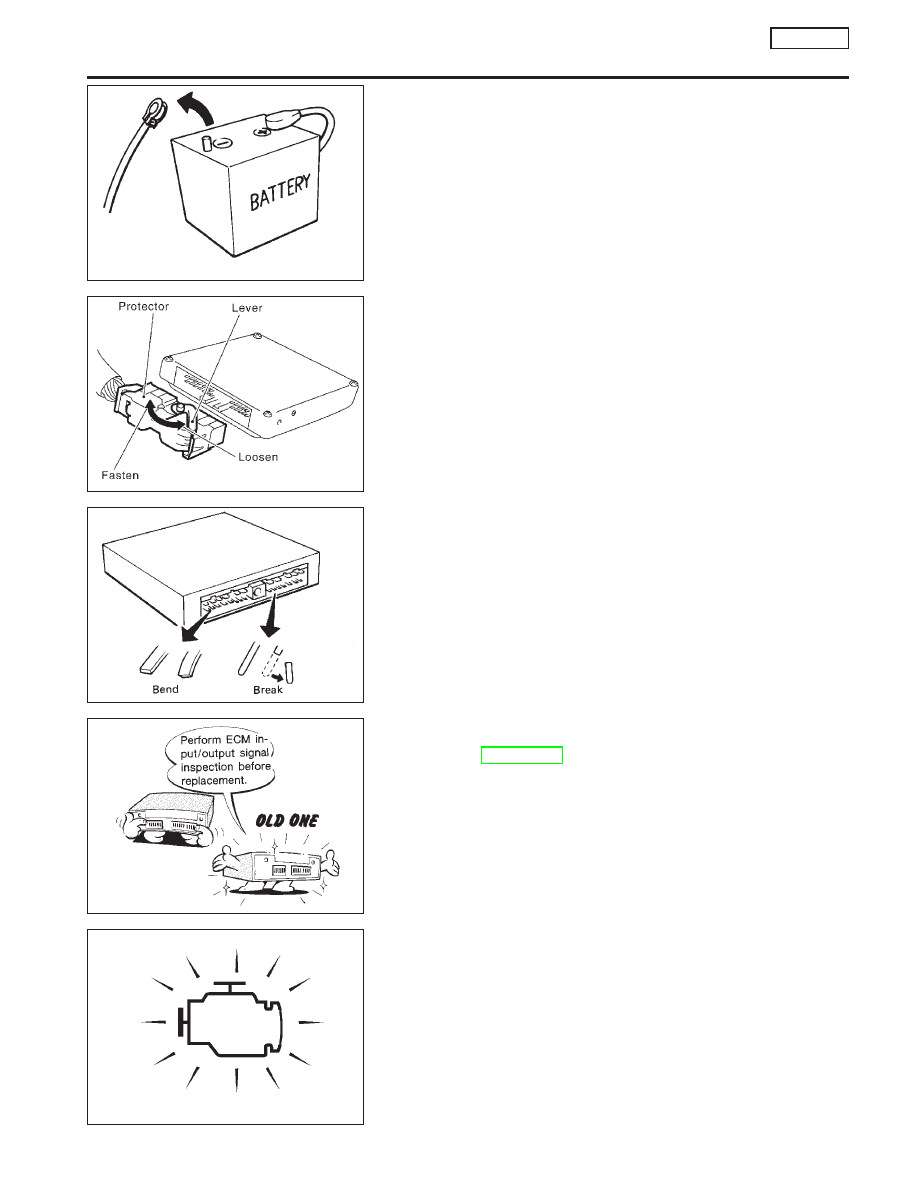

Before connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the
ECM because battery voltage is applied to ECM even if
ignition switch is turned off.

I

When

connecting

or

disconnecting

ECM

harness

connector, use lever as shown.
When connecting, fasten connector securely with lever
moved until it stops.

I

When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminals when connecting pin connectors.

I

Before replacing ECM, perform Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer to EC-SR-103.

I

After performing each TROUBLE DIAGNOSIS, perform
“Overall Function Check” or “DTC Confirmation Proce-
dure”.
The DTC should not be displayed in the “DTC Confirma-
tion Procedure” if the repair is completed. The “Overall
Function Check” should be a good result if the repair is
completed.

SEF289H

SEF908W

SEF291H

MEF040D

SAT652J

PRECAUTIONS

SR20DE

Precautions

EC-12

I

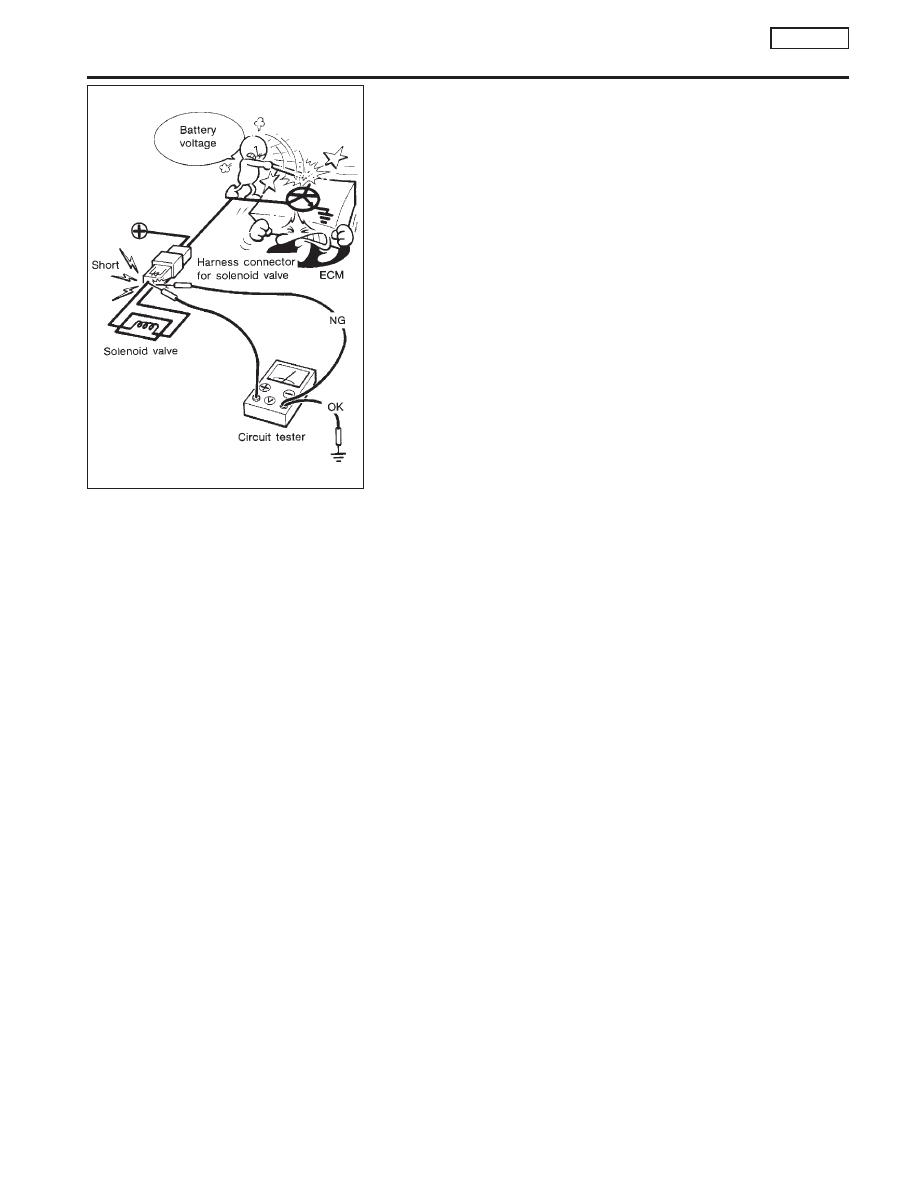

When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

Wiring Diagrams and Trouble Diagnosis

NCEC0006

When you read Wiring diagrams, refer to the followings:

I

“HOW TO READ WIRING DIAGRAMS” in GI section

I

“POWER SUPPLY ROUTING” for power distribution circuit in
EL section

When you perform trouble diagnosis, refer to the followings:

I

“HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNO-
SIS” in GI section

I

“HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN
ELECTRICAL INCIDENT” in GI section

SEF348N

PRECAUTIONS

SR20DE

Precautions (Cont’d)

EC-13

Special Service Tools

NCEC0007

Tool number
Tool name

Description

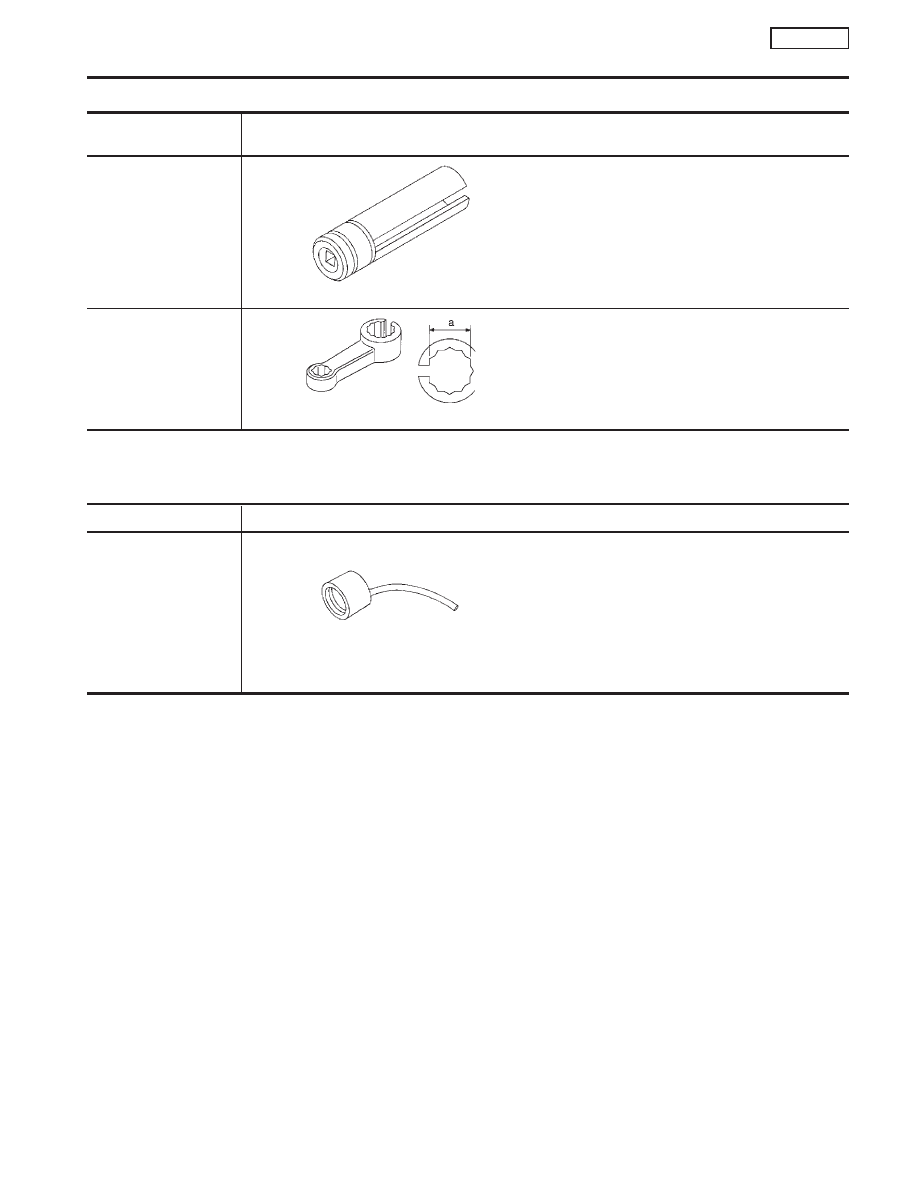

KV10117100
Heated oxygen sensor
wrench

NT379

Loosening or tightening heated oxygen sensor 1
(front) with 22 mm (0.87 in) hexagon nut

KV10114400
Heated oxygen sensor
wrench

NT636

Loosening or tightening heated oxygen sensor 2
(rear)
a: 22 mm (0.87 in)

Commercial Service Tool

NCEC0008

Tool name

Description

Fuel filler cap adapter

NT653

Checking fuel tank vacuum relief valve opening
pressure

PREPARATION

SR20DE

Special Service Tools

EC-14
