Nissan Primera P11. Manual - part 196





8

CHECK FUEL PUMP RELAY

Refer to “Component Inspection”, EC-QG-341.

OK or NG

OK

©

GO TO 9.

NG

©

Replace fuel pump relay.

9

CHECK FUEL PUMP

Refer to “Component Inspection”, EC-QG-341.

OK or NG

OK

©

GO TO 10.

NG

©

Replace fuel pump.

10

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-QG-102.

©

INSPECTION END

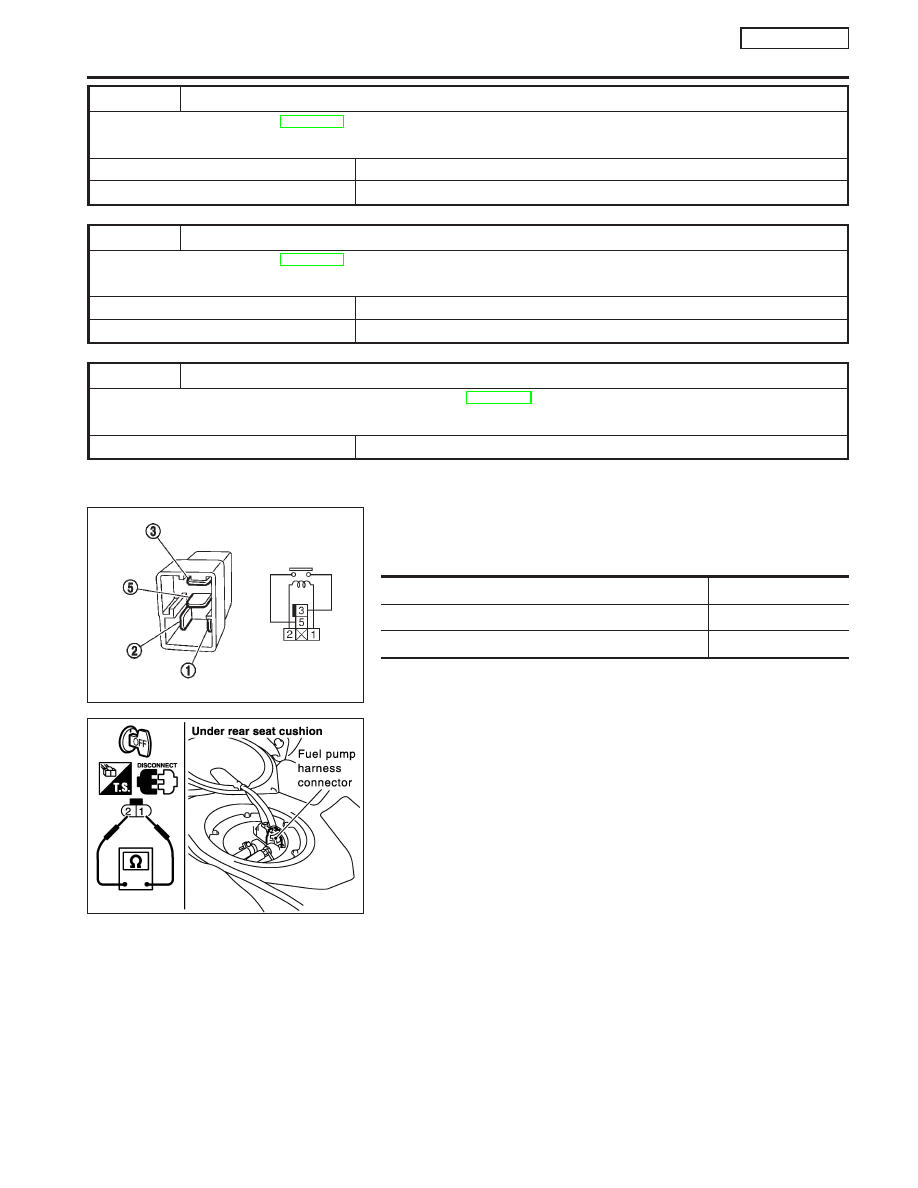

Component Inspection

NCEC0449

FUEL PUMP RELAY

NCEC0449S01

Check continuity between terminals 3 and 5.

Conditions

Continuity

12V direct current supply between terminals 1 and 2

Yes

No current supply

No

If NG, replace relay.

FUEL PUMP

NCEC0449S02

1.

Disconnect fuel pump harness connector.

2.

Check resistance between terminals 1 and 2.

Resistance: 0.2 - 5.0

[at 25°C (77°F)]

If NG, replace fuel pump.

SEF145X

SEF326W

FUEL PUMP

QG16

I

18DE

Diagnostic Procedure (Cont’d)

EC-341

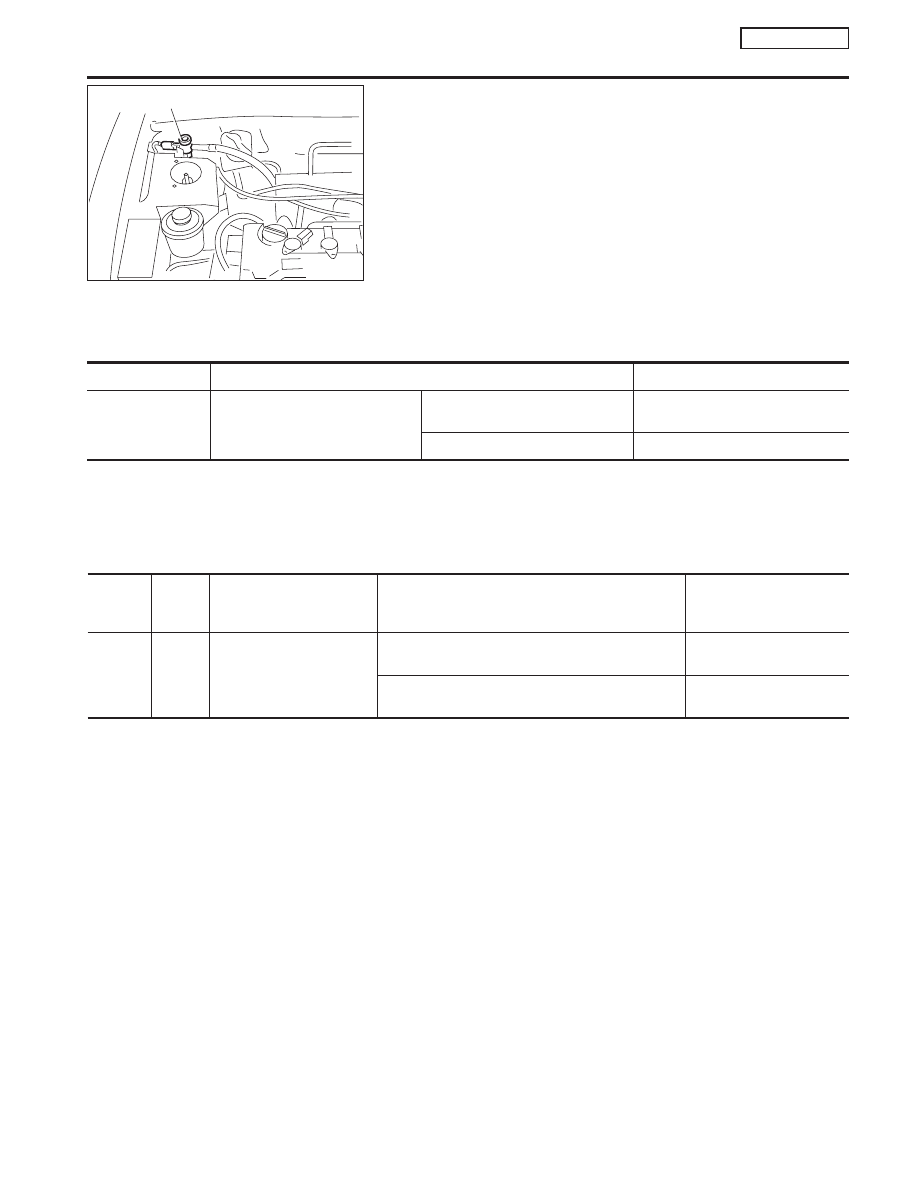

Component Description

NCEC0451

The power steering oil pressure switch is attached to the power
steering high-pressure tube and detects a power steering load.
When a power steering load is detected, it signals the ECM. The
ECM adjusts the IACV-AAC valve to increase the idle speed and
adjust for the increased load.

CONSULT-II Reference Value in Data Monitor
Mode

NCEC0452

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

PW/ST SIGNAL

I

Engine: After warming up, idle
the engine

Steering wheel in neutral position
(forward direction)

OFF

The steering wheel is fully turned

ON

ECM Terminals and Reference Value

NCEC0453

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

46

PU/W

Power steering oil pressure
switch

[Engine is running]

I

Steering wheel is fully turned

Approximately 0V

[Engine is running]

I

Steering wheel is not turned

Approximately 5V

NEF124A

Power steering oil pressure switch

POWER STEERING OIL PRESSURE SWITCH

QG16

I

18DE

Component Description

EC-342

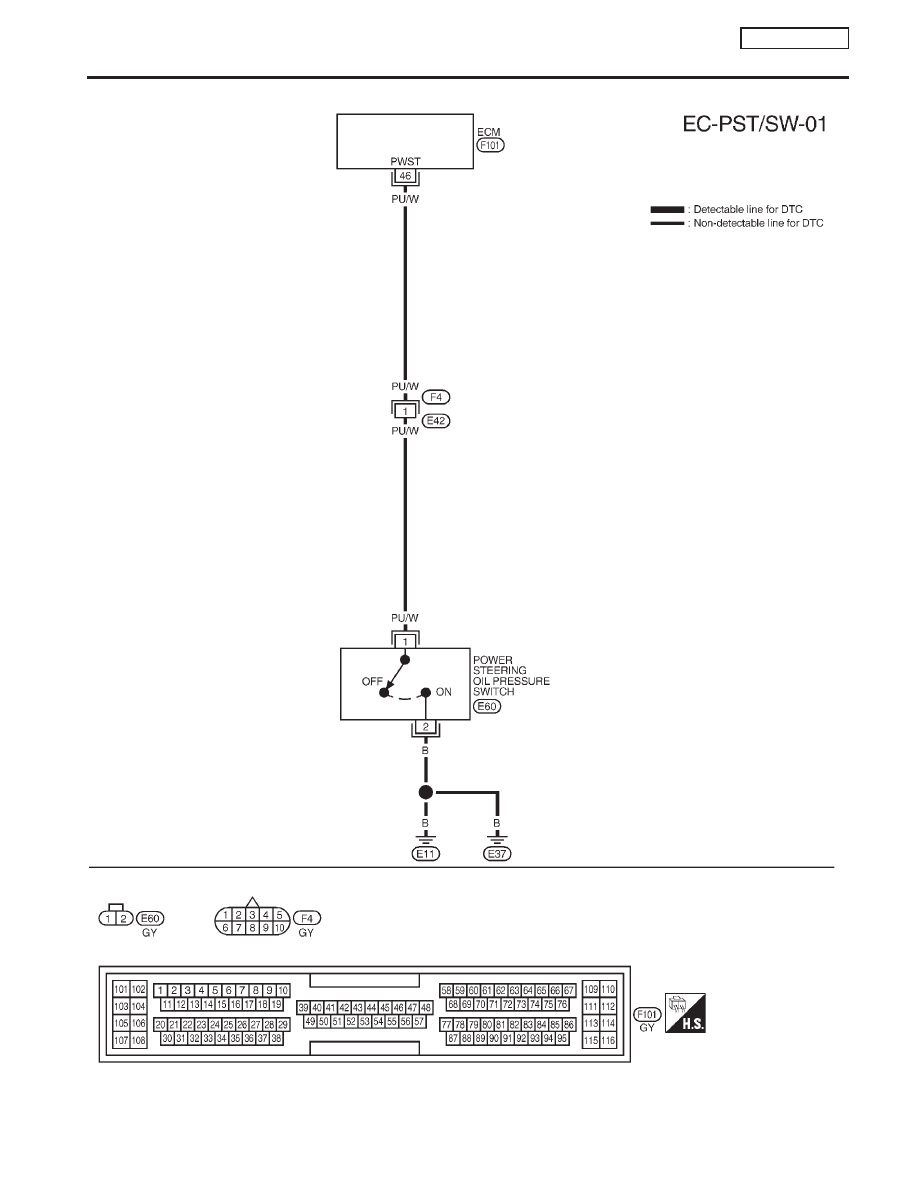

Wiring Diagram

NCEC0450

YEC254

POWER STEERING OIL PRESSURE SWITCH

QG16

I

18DE

Wiring Diagram

EC-343

Diagnostic Procedure

=NCEC0454

1

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 3.

2

CHECK OVERALL FUNCTION

With CONSULT-II

1. Start engine.
2. Check “PW/ST SIGNAL” in “DATA MONITOR” mode with CONSULT-II under the following conditions.

PEF591I

MTBL0141

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 4.

Steering is in neutral position

OFF

Steering is turned

ON

POWER STEERING OIL PRESSURE SWITCH

QG16

I

18DE

Diagnostic Procedure

EC-344
