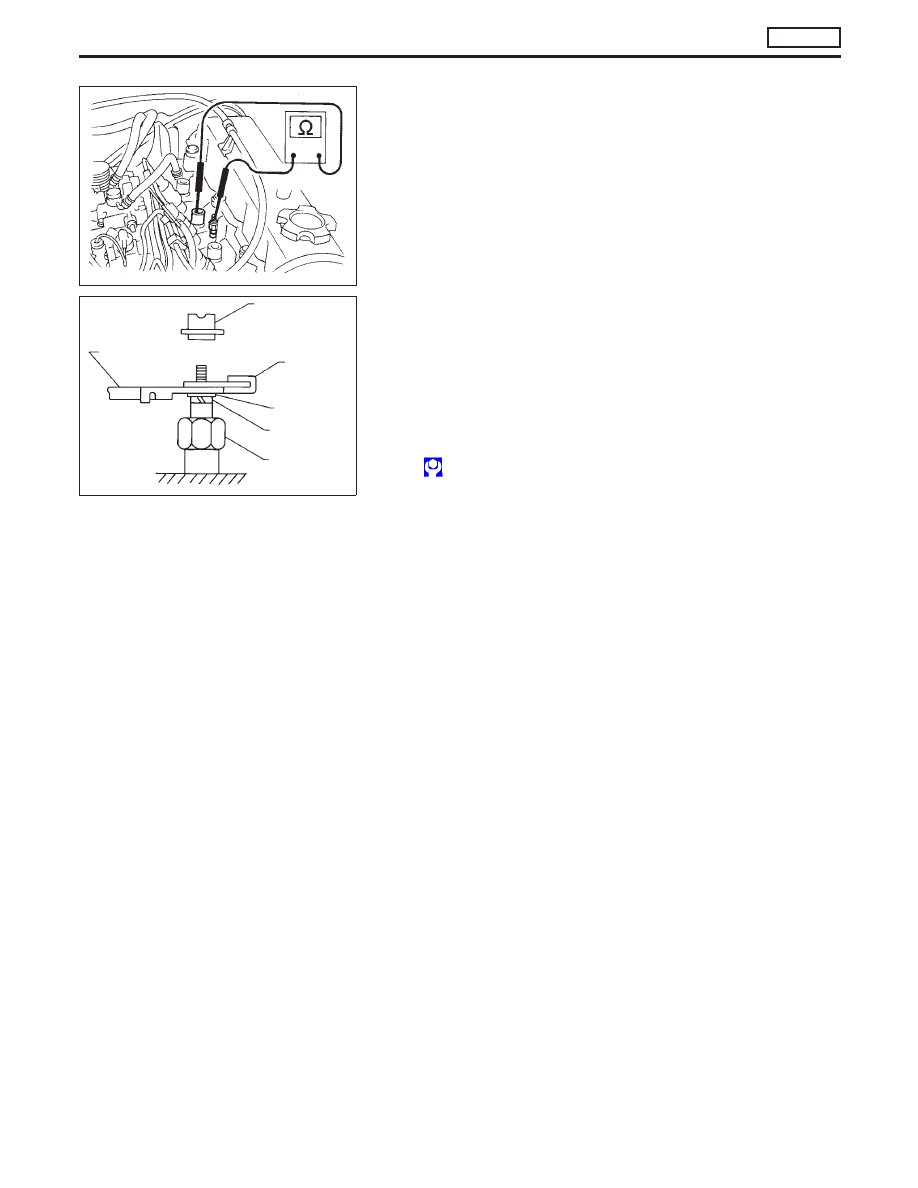

Glow plug

1. Remove glow plug connecting plate.
2. Check each glow plug for continuity.

Continuity should exist:

Approximately 0.5

[at 25°C (77°F)]

If NG, replace glow plug.

3. Install glow plug connecting plate securely.

Do not bump glow plug heating element. If it is bumped,
replace glow plug with new one. (If glow plug is dropped
from a height of 0.1 m (3.94 in) or greater, replace with
new one.)

If glow plug installation hole is contaminated with
carbon, remove using a reamer or suitable tool.

Hand-tighten glow plug by turning it 2 to 3 times, then
tighten using a tool to specified torque.

: 15 - 20 N·m (1.5 - 2.0 kg-m, 11 - 14 ft-lb)

SEF630K

Ohmmeter

SEC565B

Glow nut

Glow harness

Connecting
plate

Washer

Spring washer

Glow plug

TROUBLE DIAGNOSES 14

CD20T

Glow Control System (Cont’d)

EC-125

Air Conditioner Cut Control

The Air Conditioner relay is controlled by the ECM. During the
following conditions, the ECM will cut the power supply towards
the air conditioner relay:

Starting engine

Quick acceleration from low speed

Undershooting of idle speed

High engine coolant temperature [above 107°C (225°F)].

Malfunctioning of engine speed sensor, accelerator position
sensor or vehicle speed sensor when engine speed is below
2,100 rpm.

Malfunction is detected when ....

Check Items

(Possible cause)

Air conditioner relay signal circuit is shorted.

Harness or connectors
(The air conditioner relay signal circuit is shorted).

Air conditioner relay

DIAGNOSTIC TROUBLE CONFIRMATION
PROCEDURE

1)

Turn ignition switch and air conditioner switch to the
“ON” position.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Wait at least 2 seconds.

TROUBLE DIAGNOSES 15

CD20T

EC-126

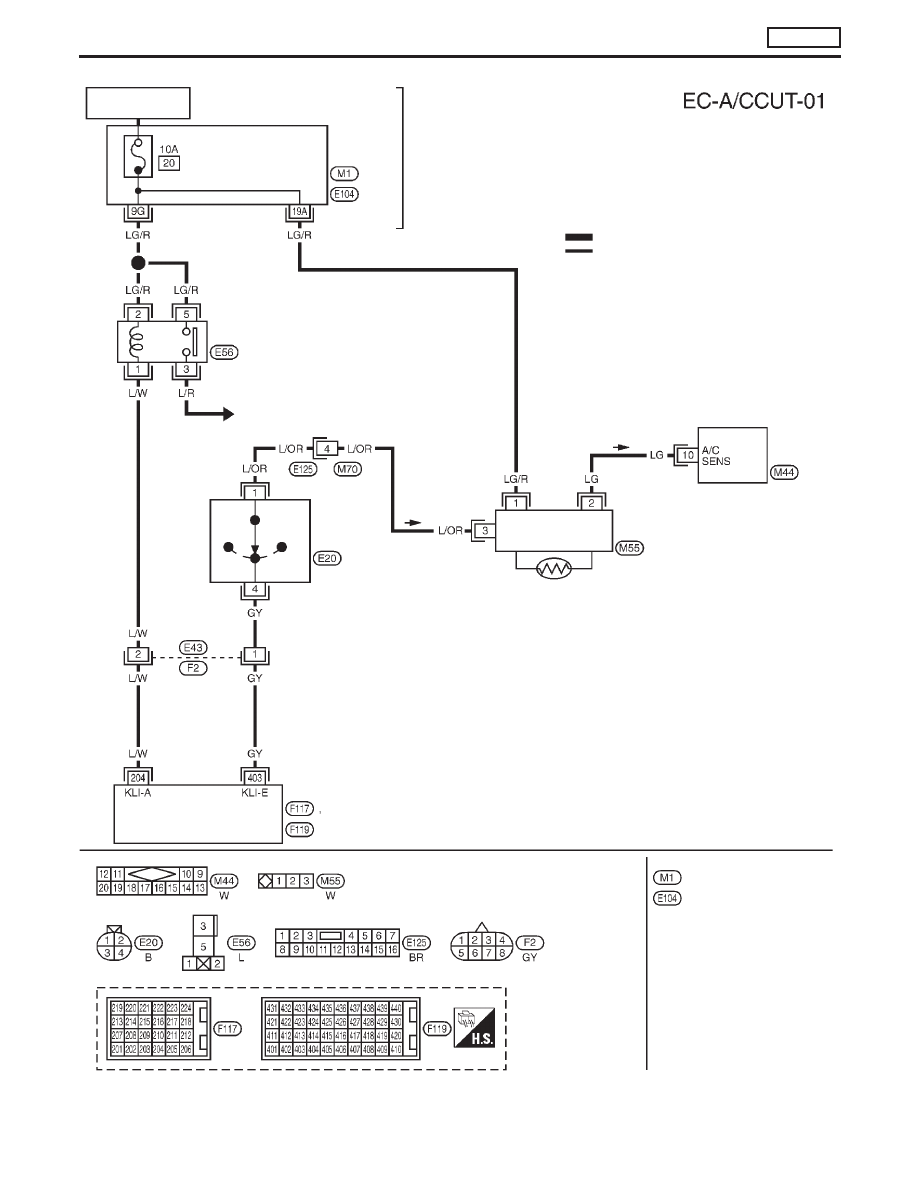

YEC813

IGNITION SWITCH

ON or START

FUSE
BLOCK
(J/B)

Refer to EL-POWER.

: Detectable line for DTC
: Non-detectable line for DTC

AIR CONDITIONER
RELAY

To compressor
(Refer to HA-A/C.)

A/C
CONTROL
PANEL

LOW

HIGH

NORMAL

TRIPLE-
PRESSURE
SWITCH

THERMISTOR

THERMO
CONTROL
AMP.

ECM

REFER TO THE FOLLOWING

FUSE BLOCK - Junction Box (J/B)

FUSE BLOCK - Junction Box (J/B)

TROUBLE DIAGNOSES 15

CD20T

Air Conditioner Cut Control (Cont’d)

EC-127

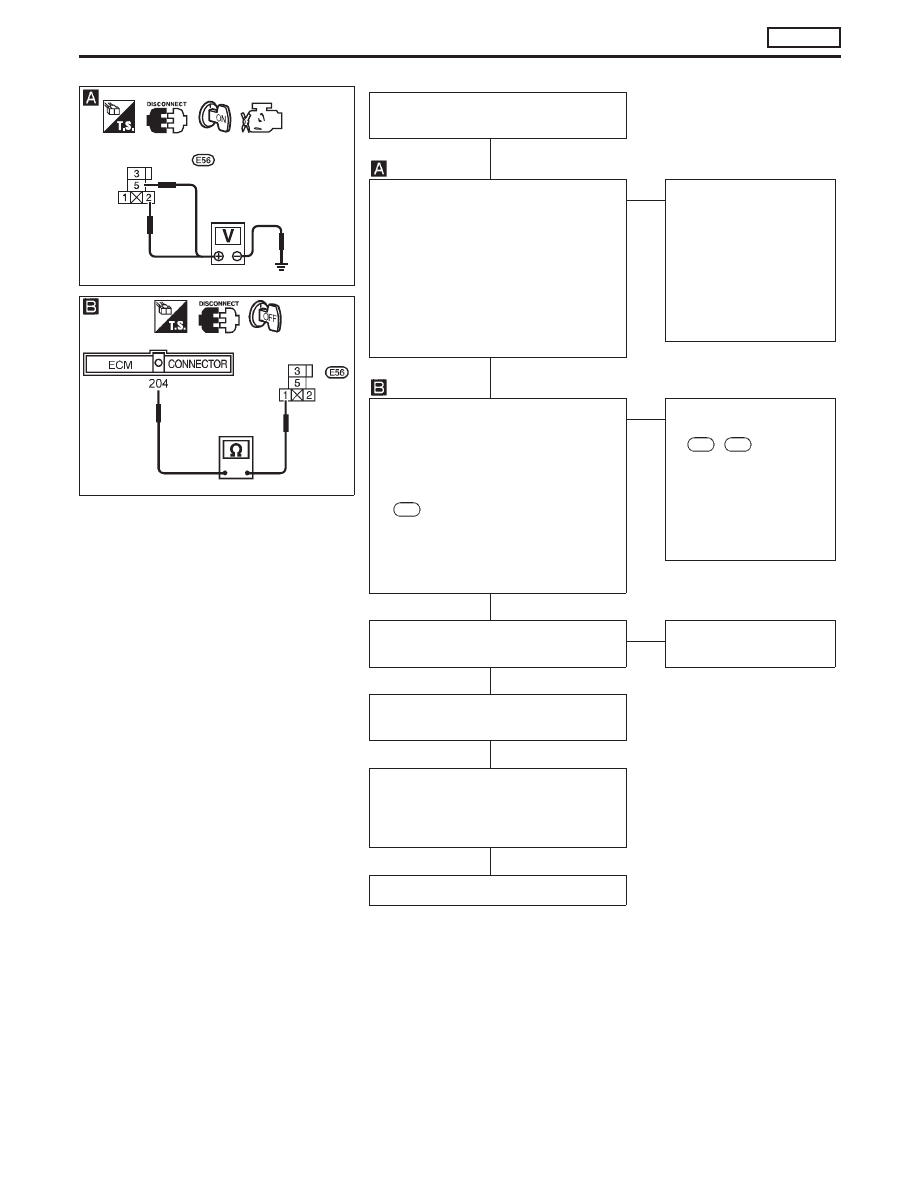

INSPECTION START

(Air conditioner relay signal circuit)

CHECK POWER SUPPLY.
1. Turn ignition switch to “LOCK” posi-

tion.

2. Disconnect air conditioner relay har-

ness connector.

3. Turn ignition switch to “ON” position.
4. Check voltage between air condi-

tioner relay connector terminals

p

2

,

p

5

and engine ground.

Voltage: Battery voltage

OK

E

NG

Check the following:

Harness and connec-
tors for open or short-
circuit between ignition
switch and air condi-
tioner relay.

10A fuse

If NG, replace or repair
the parts affected.

CHECK GROUND CIRCUIT.
1. Turn ignition switch to “LOCK” posi-

tion.

2. Disconnect ECM harness connector.
3. Check harness continuity between

ECM harness connector terminal

204

and air conditioner relay har-

ness connector terminal

p

1

.

Continuity should exist.

If OK, check harness for short-cir-
cuit.

OK

E

NG

Check the following:

Harness connectors

E43

,

F2

Harness for open or
short-circuit between
ECM and air condi-
tioner relay.

If NG, repair harness or
connectors.

CHECK AIR CONDITIONER RELAY.
Refer to HA section for inspection.

OK

E

NG

Replace air conditioner
relay.

Disconnect and reconnect harness
connectors in the circuit. Then retest.

Trouble is not fixed

Check ECM pin terminals for damage
and check the connection of ECM har-
ness connector. Reconnect ECM har-
ness connector and retest.

INSPECTION END

YEC375

Air conditioner relay
harness connector

Air conditioner relay
harness connector

NEF218A

H

H

H

H

H

H

TROUBLE DIAGNOSES 15

CD20T

Air Conditioner Cut Control (Cont’d)

EC-128
