Nissan Primera P11. Manual - part 64

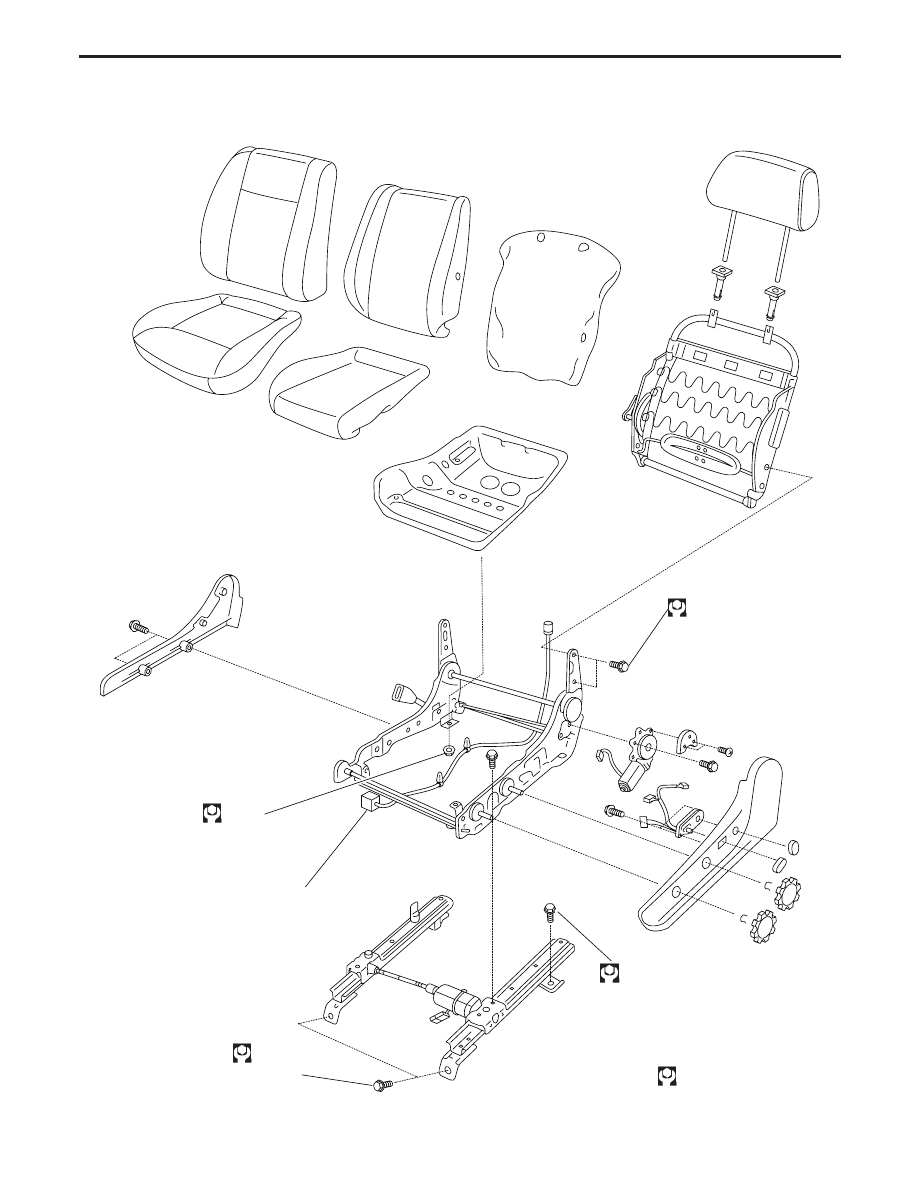

Power Seat

NBF266

18 - 24
(1.9 - 2.4, 14 - 17)

18 - 24
(1.9 - 2.4, 14 - 17)

18 - 24
(1.9 - 2.4, 14 - 17)

: N·m (kg-m, ft-lb)

21 - 26
(2.1 - 2.7, 15.5 - 19.2)

Side airbag sub
harness connector

SEAT

Front Seat (Cont’d)

BT-41

Heated Seat

●

When handling seat, be extremely careful not to scratch heating unit.

●

To replace heating unit, seat trim and pad should be separated.

●

Do not use any organic solvent, such as thinner, benzene, alcohol, gasoline, etc. to clean trims.

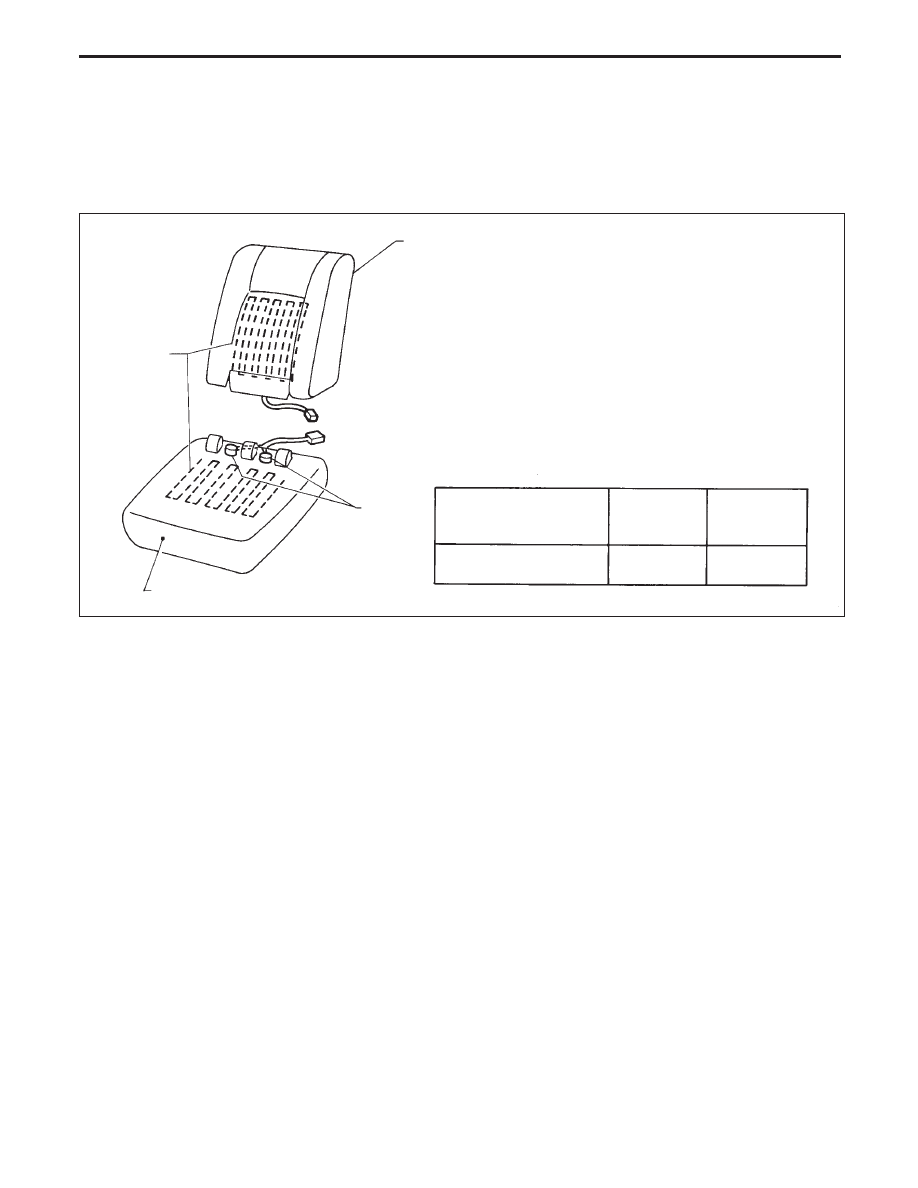

Seatback heating unit removal & installation

★

For Wiring Diagram, refer to “HEATED SEAT” in EL section.

SBF424H

Seatback trim

Heating
unit

Thermostat

Seat cushion trim

Trim temperature

°C (°F)

Thermostat

operation

Increasing to

35 - 45

(95 - 113)

OFF

Decreasing to

15 - 25

(59 - 77)

ON

SEAT

BT-42

●

When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

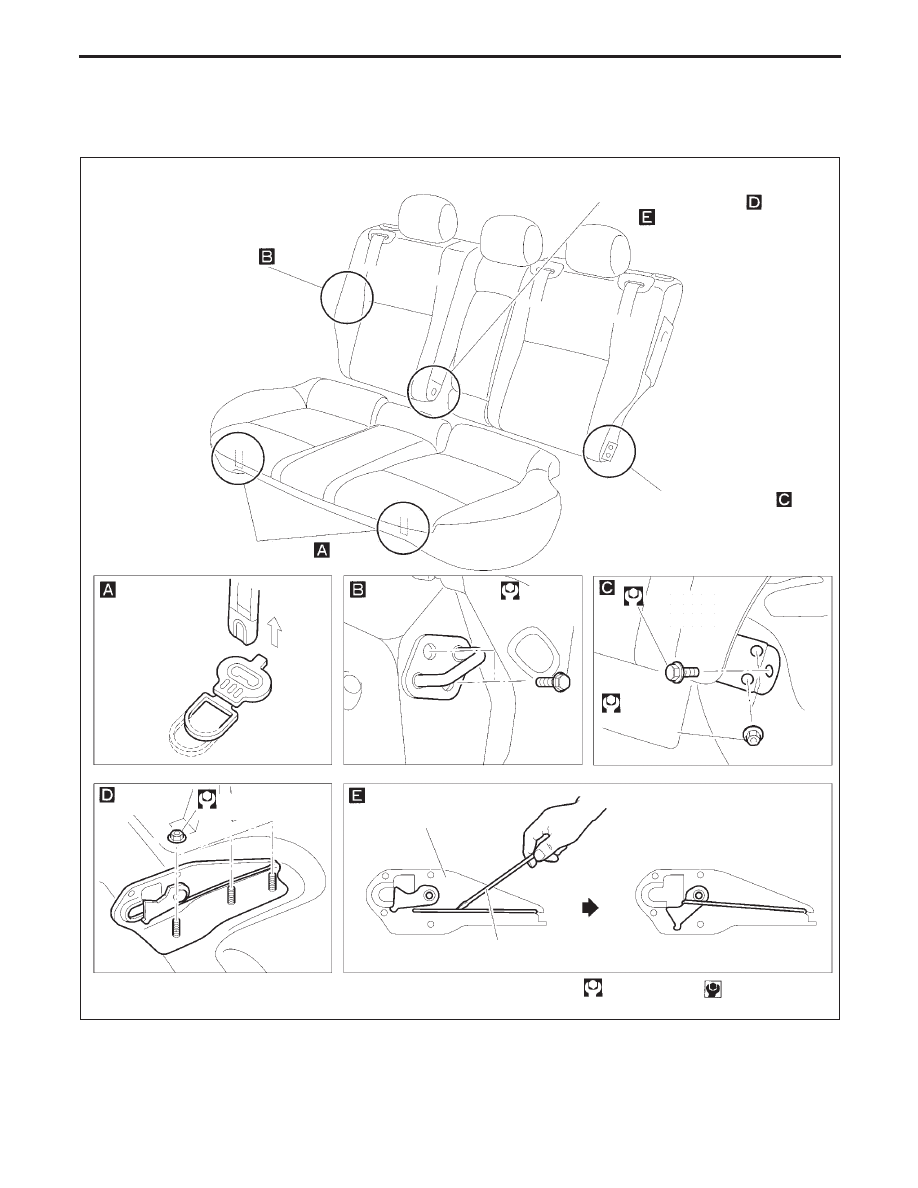

Rear Seat

NBF285

Rear seat back striker (RH)

Rear seat back hinge (center)
& hook

Rear seat back hinge (LH)

Rear seat hook

Rear seat back hinge
(center)

12.7 - 15.7
(1.3 - 1.6,
9.4 - 11.6)

.

23.0 - 28.0
(2.4 - 2.9, 16.9 - 20.6)

.

43.1 - 54.9
(4.4 - 5.6,
31.8 - 40.5)

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

Suitable tool

20.6 - 26.5
(2.1 - 2.7,
15.2 - 19.5)

SEAT

BT-43

YBT054

Type 1
SEC. 880

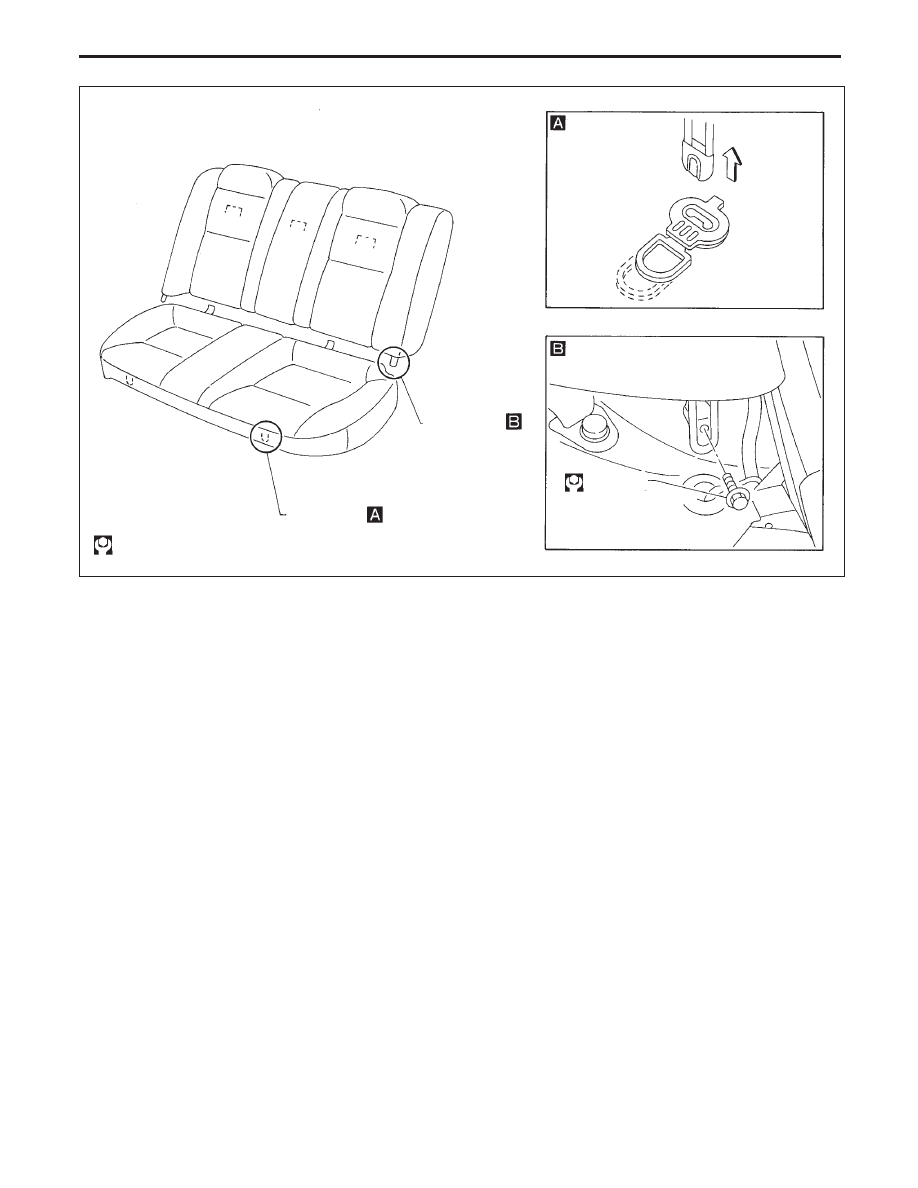

Rear seat hinge

Rear seat hook

: N·m (kg-m, ft-lb)

12.7 - 15.7
(1.3 - 1.6, 9.4 - 11.6)

SEAT

Rear Seat (Cont’d)
