INTERIOR TRIM

Side and Floor Trim (Cont’d)

BT-21

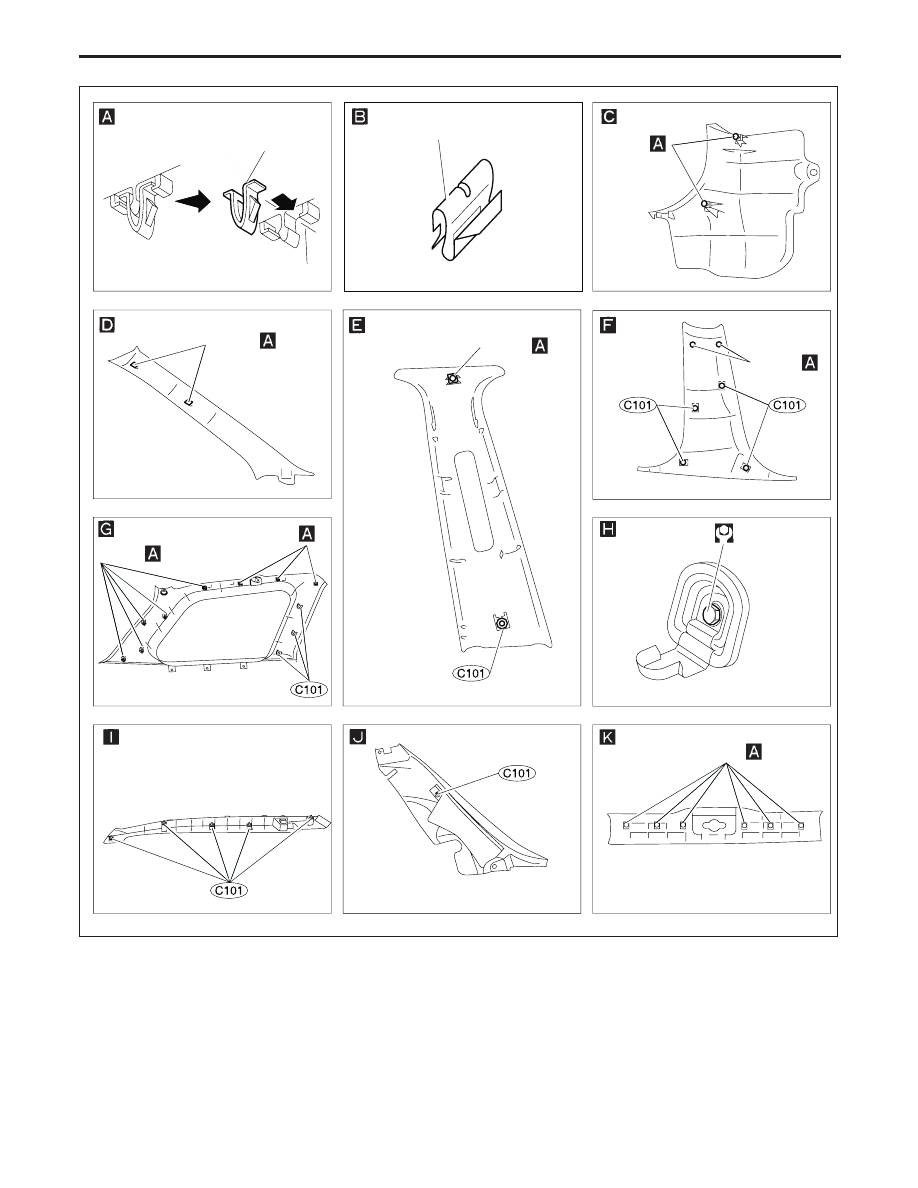

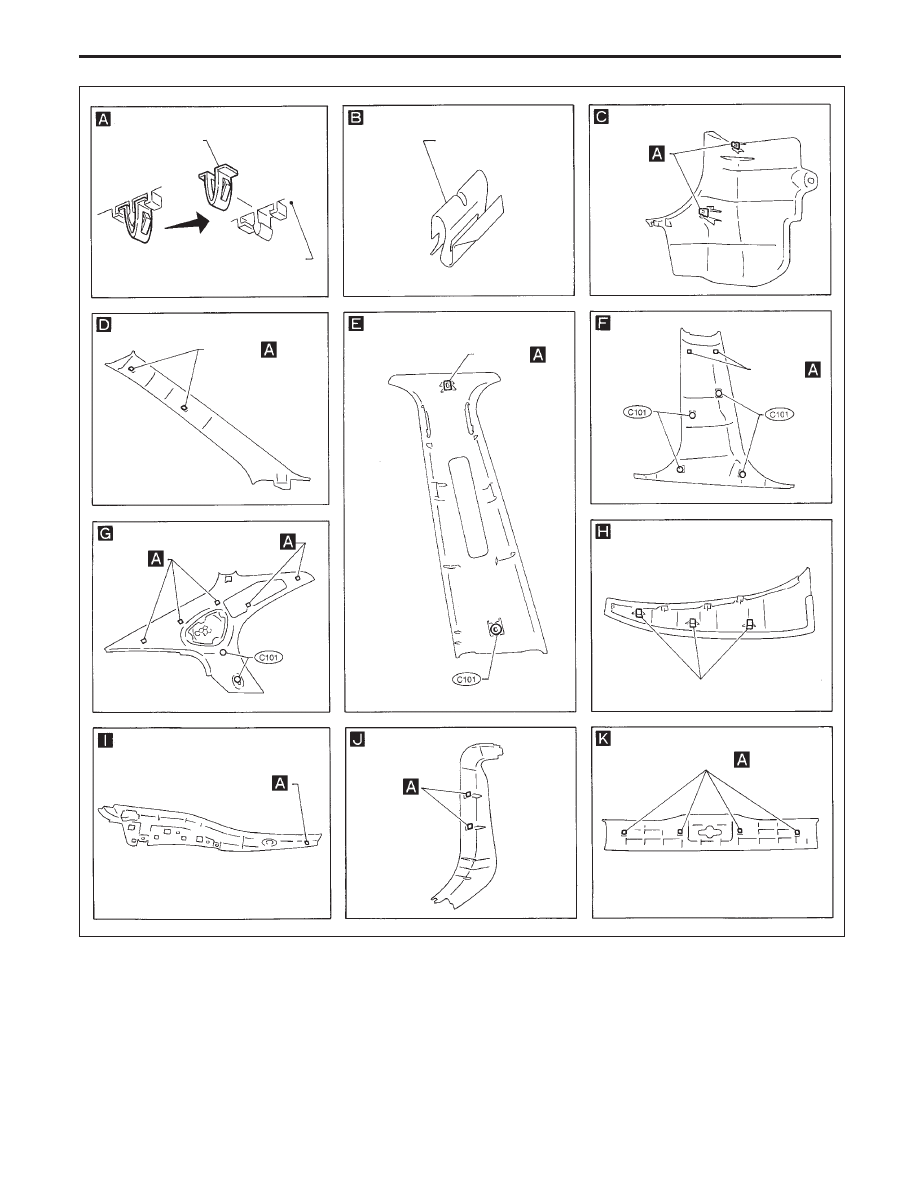

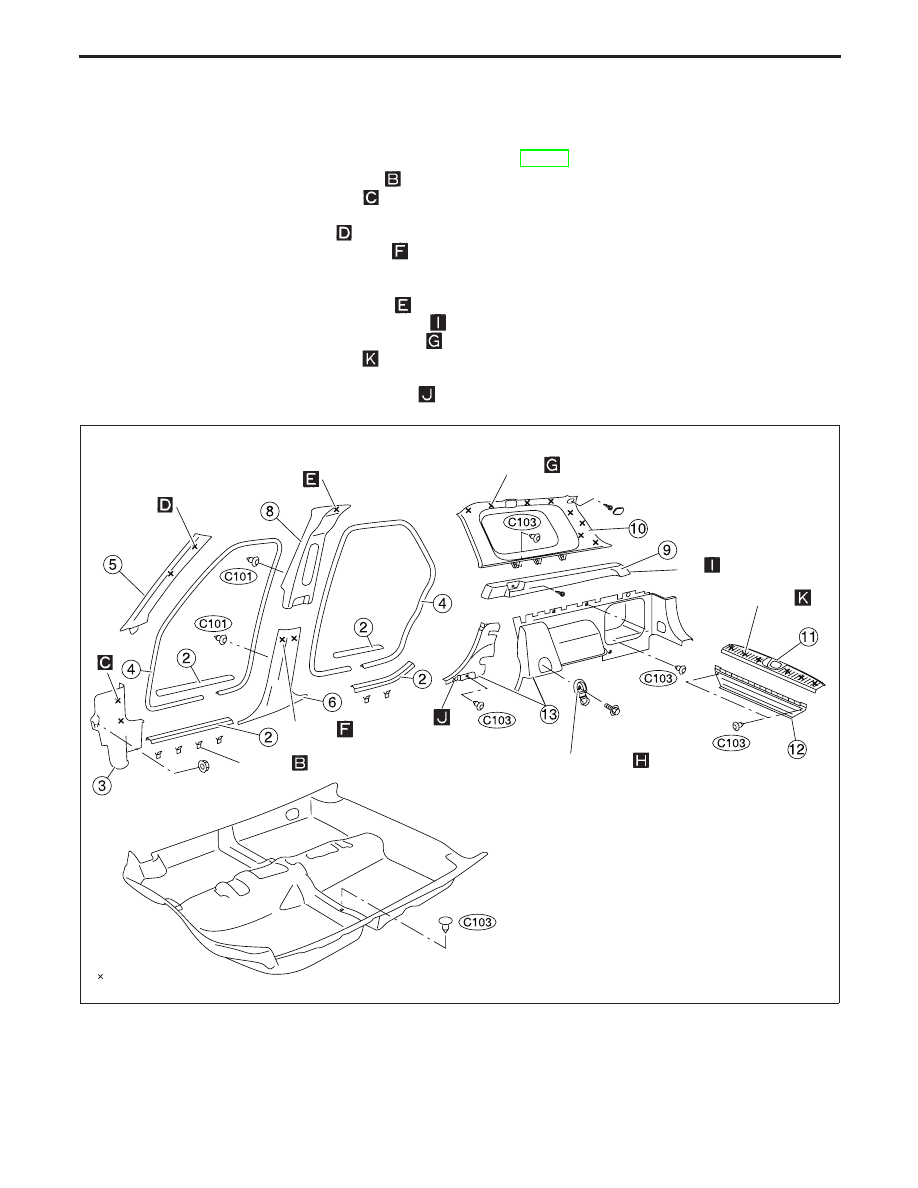

REMOVAL — Body side trim

Wagon

●

Remove parcel shelf before removing body side trim.

Remove front and rear seats. Refer to “SEAT” for details, BT-40.

Remove front and rear kicking plates.

Remove dash side lower finishers.

Remove front and rear body side welts.

Remove front pillar garnishes.

Remove center pillar lower garnishes.

Remove front seat belt shoulder adjustment anchor bolt covers and anchor bolts (Refer to “SEAT BELTS”
in RS section for anchor bolt details).

Remove center pillar upper garnishes.

Remove luggage room side center finisher.

Remove luggage room side upper finisher.

Remove luggage room rear plate.

Remove luggage room rear finisher.

Remove luggage room side lower finisher.

NBF273

Metal clip

Metal clips

Metal clip

Guard net hook

Metal clip

Clip

: Metal clips

INTERIOR TRIM

Side and Floor Trim (Cont’d)

BT-22

NBF272

Metal clip

Garnish

Metal clip

12.7 - 15.7 N·m
(1.30 - 1.60 kg-m,
9.4 - 11.6 ft-lb)

INTERIOR TRIM

Side and Floor Trim (Cont’d)

BT-23

Door Trim

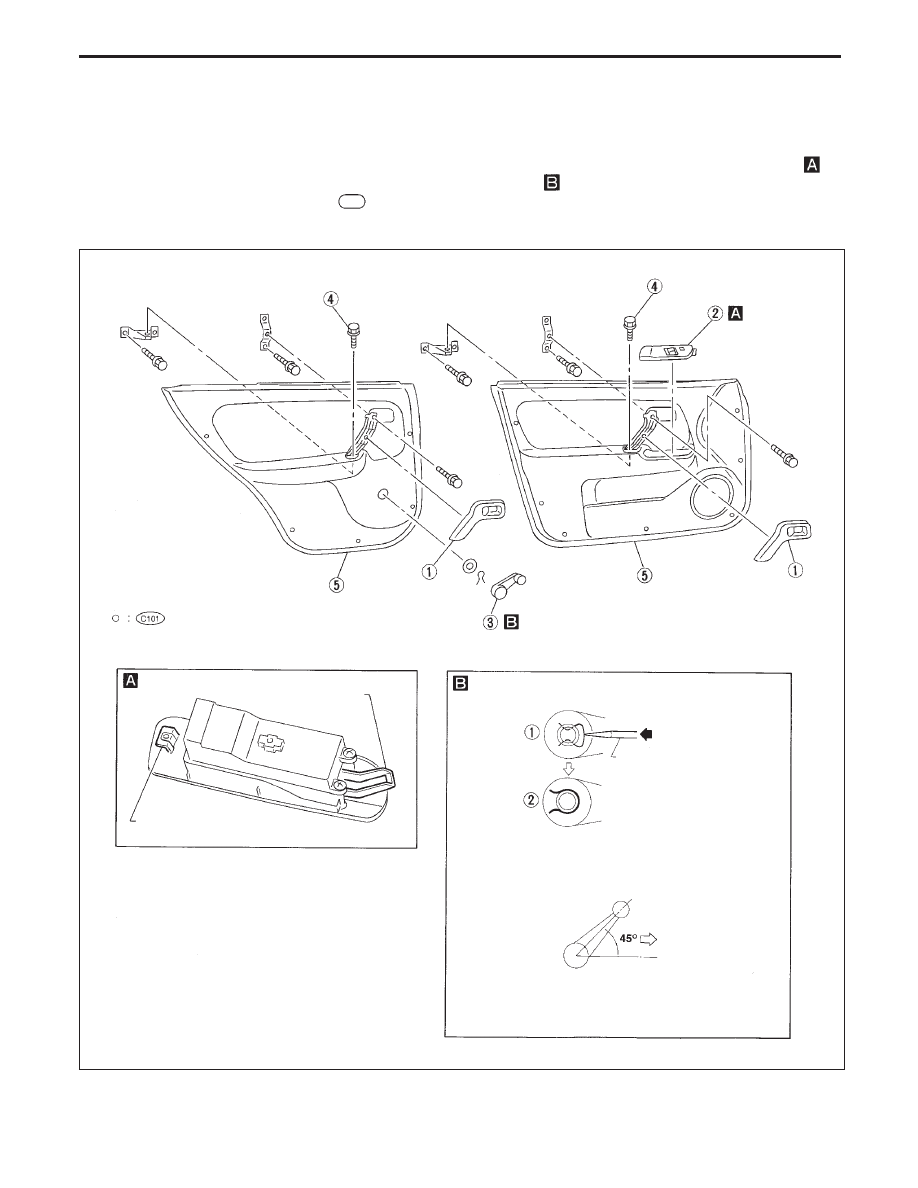

REMOVAL — Door trim

Remove pull handle.

Remove power window switch assembly and disconnect the connector (Power window models).

Remove window regulator handle (Manual window models).

Remove bolts, screws and clips

C101

securing door finisher.

Lift out door finisher.

YBT015

clips

Metal clip

Hook

Manual window regulator handle

Removal

Push

Flat-bladed
screwdriver

Squeeze the regulator handle clip in place with a screwdriver
and remove the regulator handle from the regulator shaft.
Set the regulator handle clip as shown in figure

Installation

Front

Push the regulator handle to install it into the regulator shaft.
Install the regulator handle in place as shown in the figure with
the window completely closed.

SEC. 251

⋅

267

⋅

809

⋅

828

INTERIOR TRIM

BT-24
