Front Door

●

For removal of door trim, refer to “Door Trim” in “INTERIOR TRIM” for details, BT-24.

●

After adjusting door or door lock, check door lock operation.

NBT038

SEC. 800

⋅

803

⋅

805

5.1 - 6.37
(0.52 - 0.65, 45.1 - 56.4)

5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)

6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)

6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)

6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)

6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)

20.6 - 26.5
(2.1 - 2.7,
15 - 20)

5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)

2.93 - 3.82
(0.30 - 0.39,
25.9 - 33.8)

Door-hinge adjustment

20.6 - 26.5 (2.1 - 2.7, 15 - 20)

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply grease

Striker adjustment

13 - 16
(1.3 - 1.6,
9 - 12)

Door-hinge
adjustment

DOOR

BT-13

Rear Door

NBT039

SEC. 820

⋅

823

⋅

825

1.47- 1.86
(0.15 - 0.19,
13.0 - 16.5)

5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)

5.1 - 6.37
(0.52 -0.65,
45.1 - 56.4)

Door-hinge adjustment

20.6 - 26.5
(2.1 - 2.7,
15 - 20)

Striker adjustment

13 - 16
(1.3 - 1.6,
9 - 12)

20.6 - 26.5
(2.1 - 2.7,
15 - 20)

5.1 - 6.37
(0.52 - 0.65,
45.1 - 56.4)

Door-hinge adjustment

6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply grease

6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)

6.08 - 7.75
(0.62 - 0.79,
53.8 - 68.6)

DOOR

BT-14

CAUTION:

●

Disconnect both battery cables in advance.

●

Disconnect air bag system line in advance.

●

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

●

Be careful not to scratch pad and other parts.

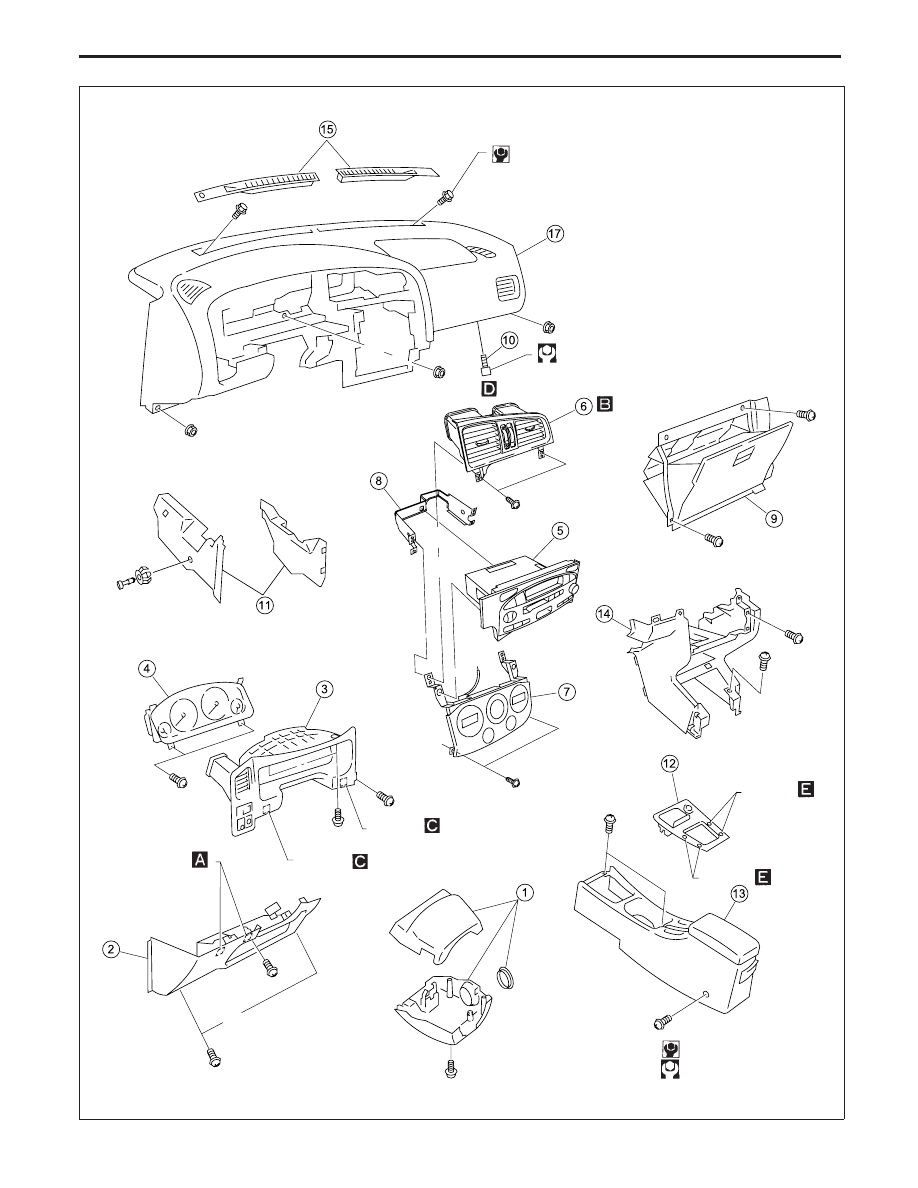

REMOVAL — Instrument panel assembly

Instrument panel assembly

Combination meter

Audio & A/C control

Console box

Remove air bag module (driver’s) and steering wheel.
Refer to “SUPPLEMENTAL RESTRAINT SYSTEM” in RS section for details.

p

1

Steering column cover and combination switch

●

Remove screws.

p

2

Instrument lower panel on driver side

●

Remove screws.

p

3

Cluster lid A

●

Remove screws.

p

4

Combination meter

●

Remove screws and disconnect harness connectors.

p

5

Audio

p

6

Center ventilator

●

Remove screws.

●

Pull out with a miniature flat-bladed screwdriver.

p

7

A/C or heated control

●

Remove screws.

p

8

Audio bracket

p

9

Glove box assembly

●

Remove glove box pin.

●

Then disconnect passenger air bag module connector.

p

10

Passenger air bag module

●

Refer to “SUPPLEMENTAL RESTRAINT SYSTEM” in RS section for
details.

p

11

Lower cover

●

Remove clip

p

12

AT finisher or MT shift lever boot

p

13

Rear console box

●

Remove console mask and screws.

p

14

Front console box

●

Remove screws and bolts.

p

15

Front defroster grill

●

Disconnect harness connector.

p

16

Front pillar garnish

●

Refer to “Side and Floor Trim” in “INTERIOR TRIM” for details, BT-18.

p

17

Instrument panel and pads

●

Remove nuts and bolts.

●

Remove door mirror switch and disconnect the connector.

INSTRUMENT PANEL

BT-15

NBT040

SEC. 248

⋅

251

⋅

272

⋅

487

⋅

680

⋅

685

⋅

969

2.8 - 4.8 (0.29 - 0.49, 24.8 - 42.5)

14.7 - 24.5
(1.50 - 2.5,
10.8 - 18.1)

Metal clip

Metal clip

Metal clip

Metal clip

Metal clip

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

★

: Instrument panel assembly mounting bolts & nuts.

★

★

★

★

★

★

INSTRUMENT PANEL

BT-16
