Nissan Primera P11. Manual - part 40

Pin and Pin Boot

Check for wear, cracks or other damage.
Replace if any of the above conditions are observed.

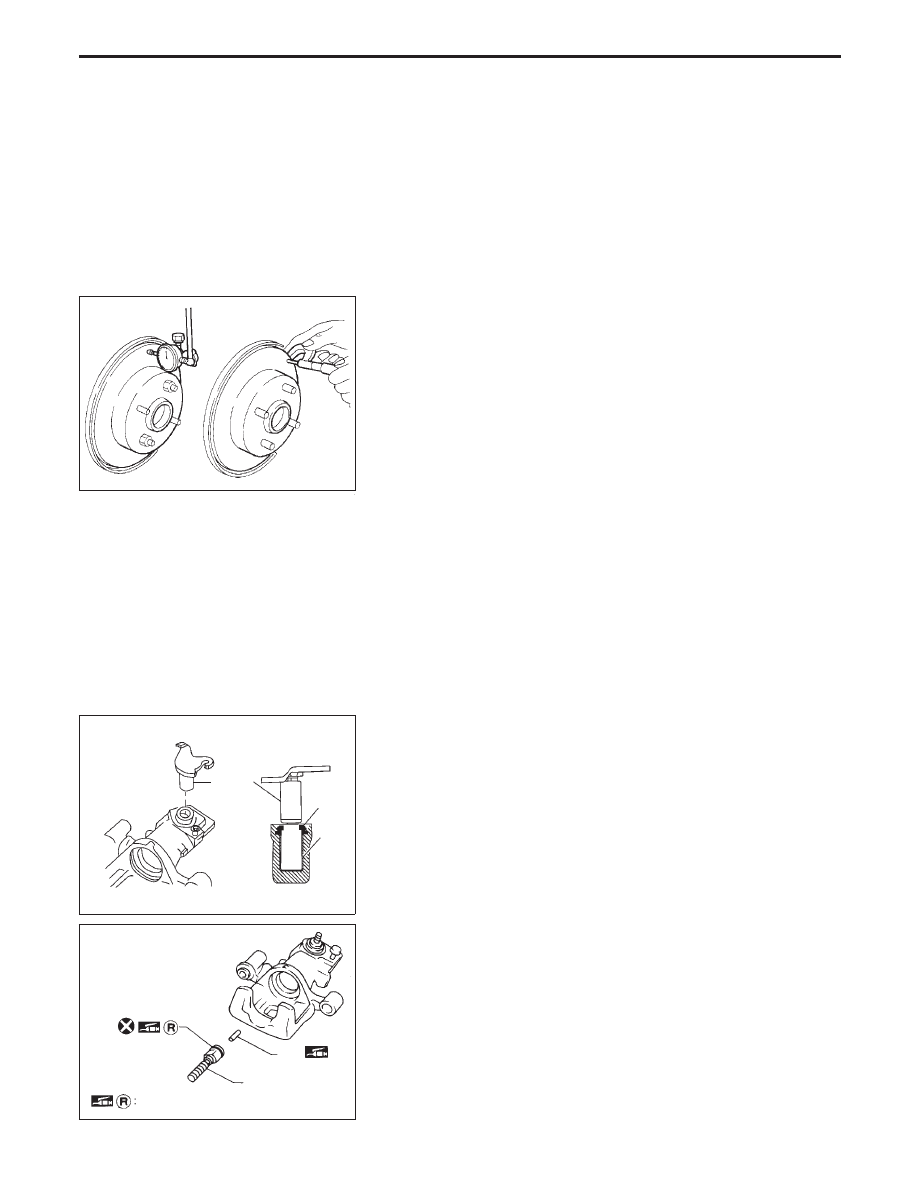

Rotor
Rubbing Surface

Check rotor for roughness, cracks or chips.

Runout

1. Secure rotor to wheel hub with two nuts (M12 x 1.25).
2. Check runout using a dial indicator.
Make sure that axial end play is within the specifications
before measuring. Refer to RA section (“REAR WHEEL
BEARING”, “On-vehicle Service”).
3. Change relative positions of rotor and wheel hub so that

runout is minimized.

Maximum runout:

0.07 mm (0.0028 in)

Thickness

Rotor repair limit:

Standard thickness

10 mm (0.39 in)

Minimum thickness

9 mm (0.35 in)

Thickness variation (At least 8 portions)

Maximum 0.02 mm (0.0008 in)

Assembly

1. Insert cam with depression facing towards open end of cyl-

inder.

2. Generously apply rubber grease to strut and push rod to

make insertion easy.

SBR219C

NBR367

Sleeve

Seal

Cam

O-ring

Strut

Push rod

Rubber grease

SBR248B

REAR DISC BRAKE TYPE 1

Inspection (Cont’d)

BR-37

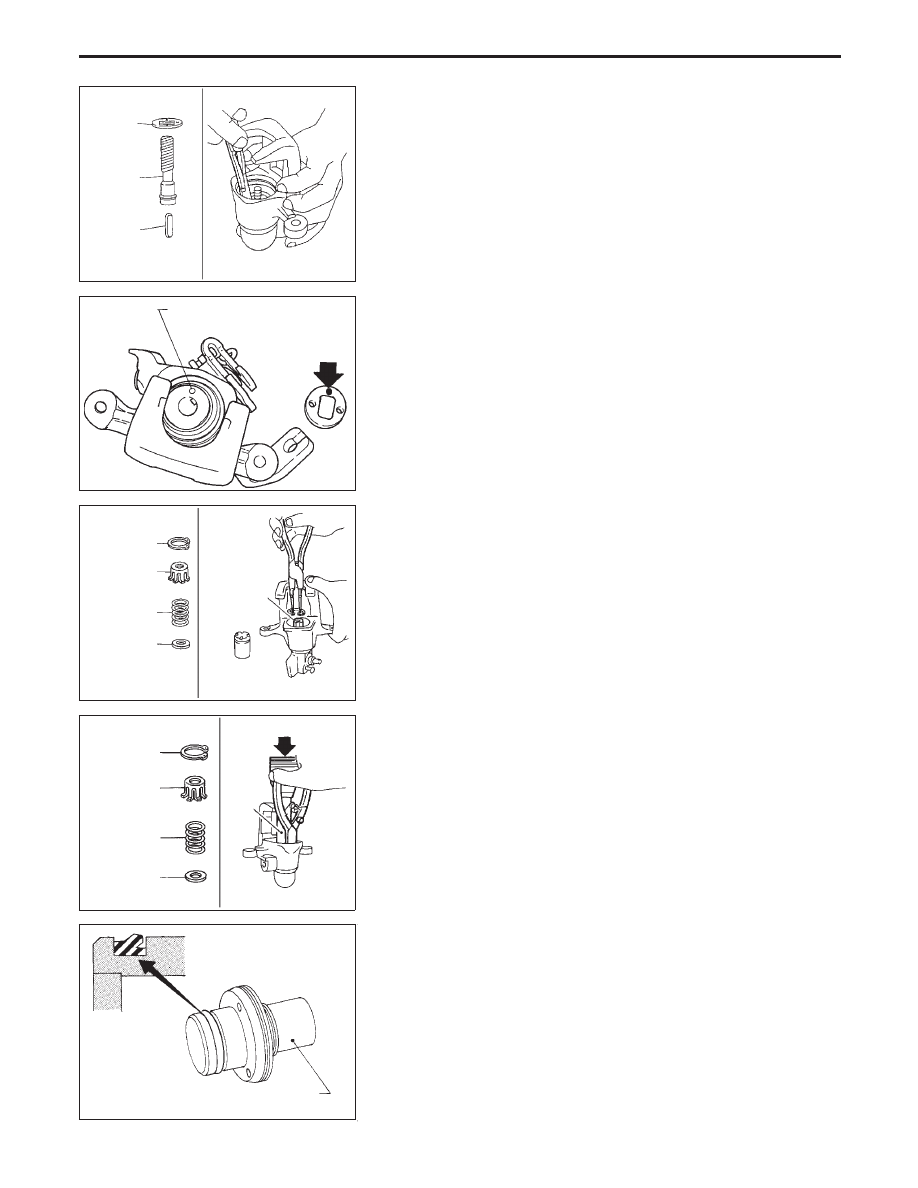

3. Install rod, push rod and key plate.

4. Fit push rod into square hole in key plate. Also match con-

vex portion of key plate with concave portion of cylinder.

5. Install retaining washer, spring, spring cover and snap ring B

with suitable press and drift.

6. Install cup in the specified direction.

SBR754E

Key plate

Push rod

Rod

SBR893

Concave portion

Convex portion

SBR869CB

Ring B

Spring cover

Spring

Retaining
washer

Commer-
cial service
tool

SBR879-B

Ring B

Spring cover

Spring

Retaining
washer

Push

Tool

SBR892

Adjusting nut

REAR DISC BRAKE TYPE 1

Assembly (Cont’d)

BR-38

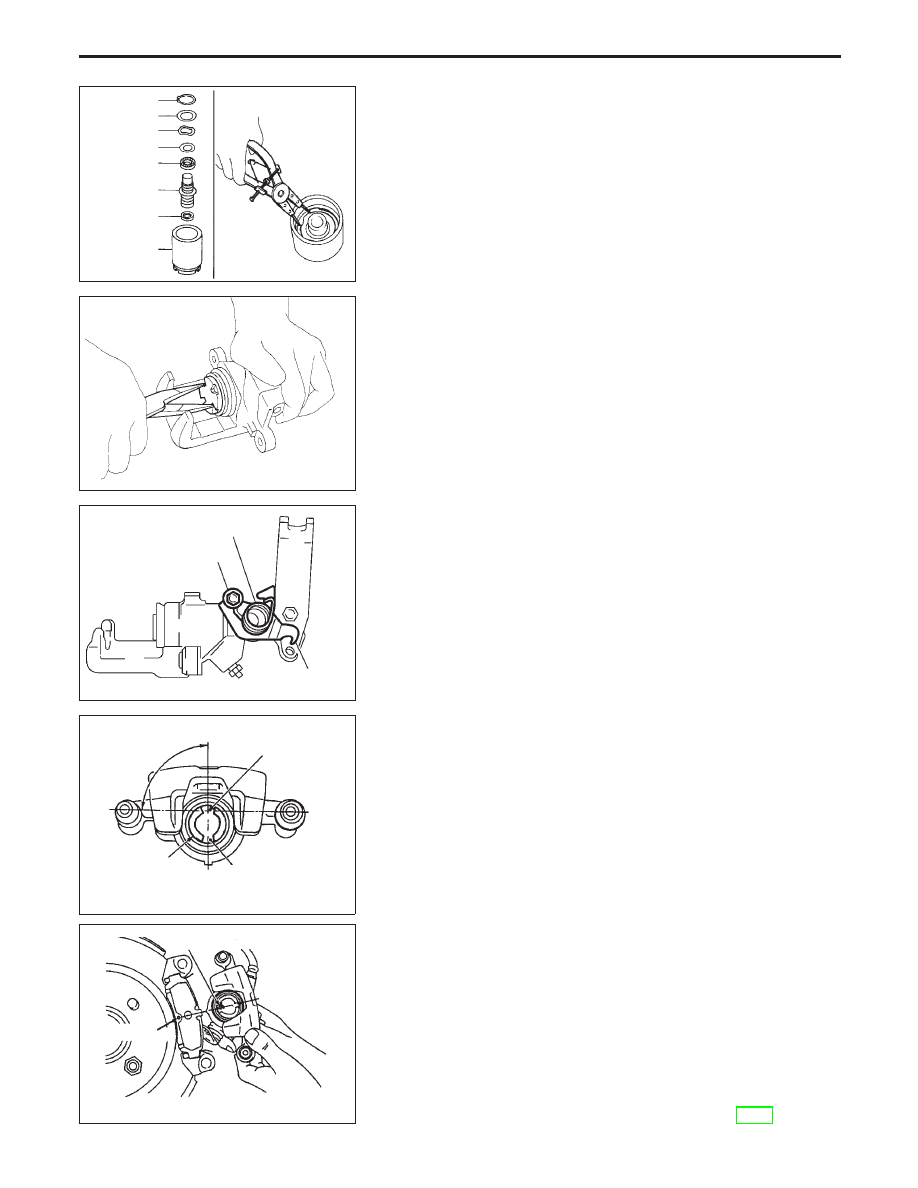

7. Install cup adjuster, bearing, washers and snap ring A with a

suitable tool.

8. Insert piston seal into groove on cylinder body.
9. With piston boot fitted to piston, insert piston boot into groove

on cylinder body and fit piston by turning it clockwise with
long nose pliers, or suitable tool.

10. Fit toggle lever, return spring and cable guide.

11. Adjust the piston to the right angle as shown in the figure.

Installation

CAUTION:

●

Refill with new brake fluid “DOT 4”.

●

Never reuse drained brake fluid.

1. Install caliper assembly.

●

As shown in the figure, align the piston’s concave to the
pad’s convex, then install the cylinder body to the torque
member.

2. Install brake hose to caliper securely.
3. Install all parts and secure all bolts.
4. Bleed air. Refer to “Bleeding Brake System”, BR-8

SBR755E

Ring A

Washer

Wave washer

Washer

Ball bearing

Adjuster

Cup

Piston

SBR646

SBR767E

Stopper bolt

Return spring

Lever

NBR374

Alignment position of
disc pad’s concave

Concave portion

Piston

Assembly
to the right
angle

NBR375

Concave portion

Convex portion

REAR DISC BRAKE TYPE 1

Assembly (Cont’d)

BR-39

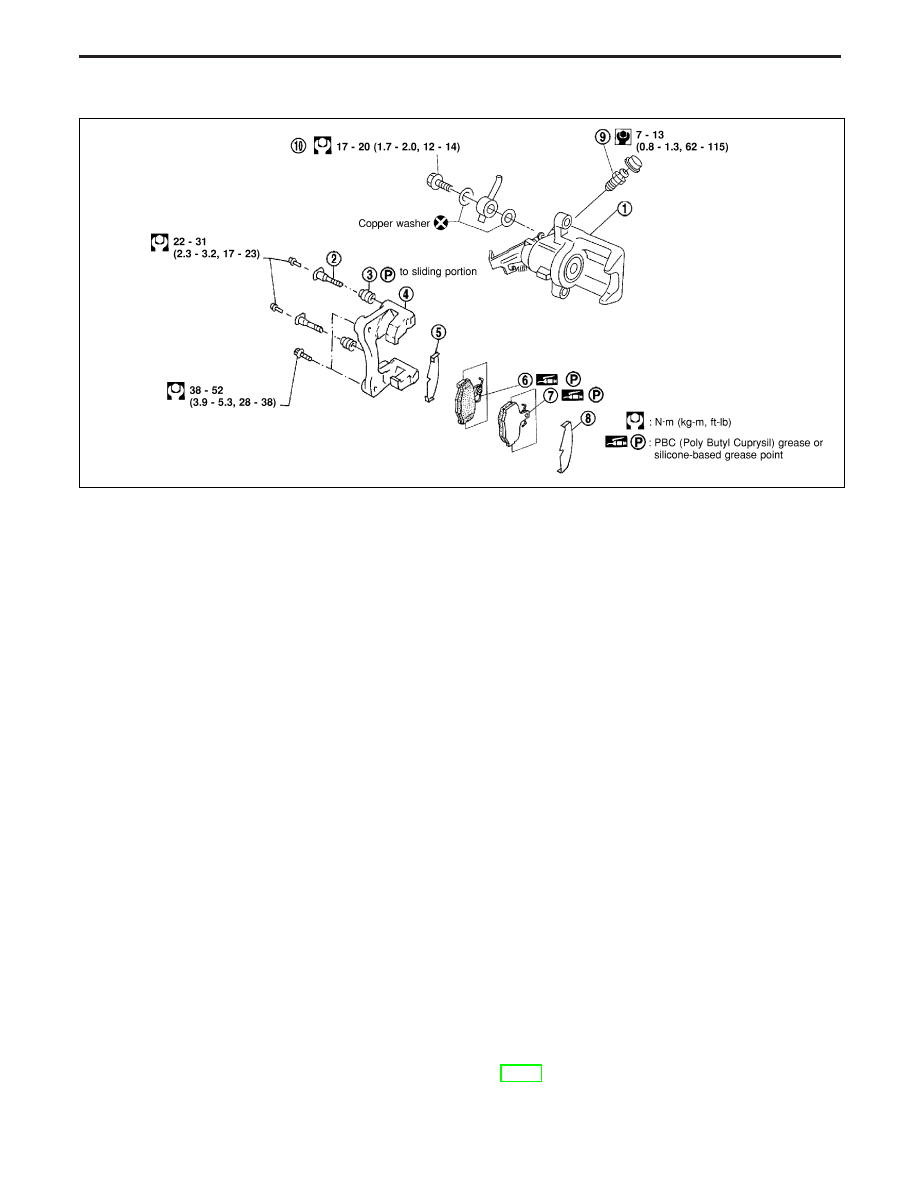

Component

Cylinder body

Pin boot

Torque member

Inner shim

Inner pad

OUter pad

Outer shim

Bleed valve

10. Connecting bolt

NOTE:
The cylinder body cannot be disassembled.

Pad Replacement

WARNING:
Clean brake pads with a vacuum dust collector to minimize
the hazard of airborne particles or other materials.
CAUTION:

●

When cylinder body is open, do not depress brake pedal
because piston will pop out.

●

Be careful not to damage piston boot or get oil on rotor.
Always replace shims in replacing pads.

●

If shims are rusted or show peeling of rubber coat,
replace them with new shims.

●

It is not necessary to remove connecting bolt except for
replacement of caliper assembly. In this case, suspend
cylinder body with wire so as not to stretch brake hose.

●

Burnish the brake contact surfaces after refinishing or
replacing rotors, after replacing pads, or if a soft pedal
occurs at very low mileage.
Refer to “Brake Burnishing Procedure”, “ON-VEHICLE
SERVICE”, BR-7.

NBR440

REAR DISC BRAKE TYPE 2

BR-40
