MA-22

ENGINE MAINTENANCE (KA24DE)

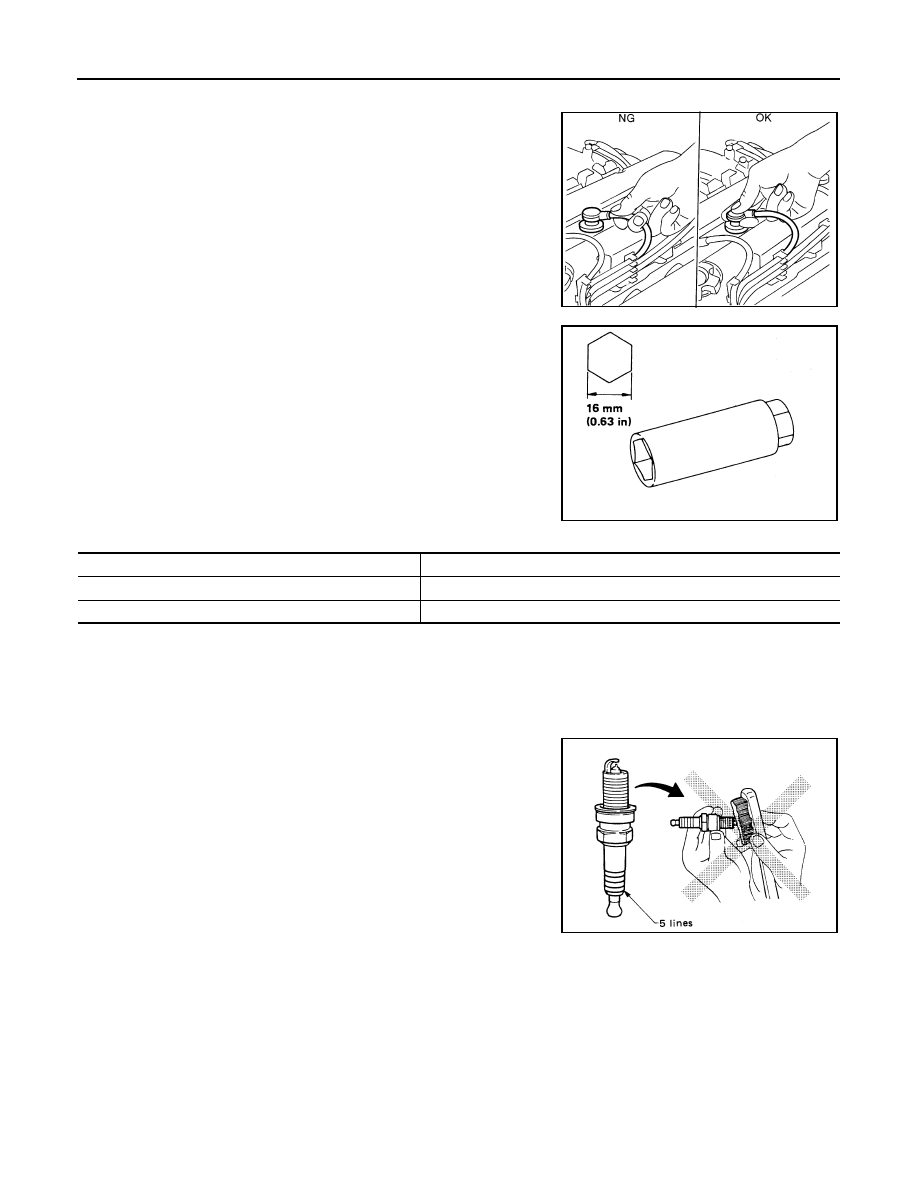

Changing Spark Plugs

ELS000XF

1.

Disconnect ignition wires from spark plugs at boot.

CAUTION:

Do not pull on the wire.

2.

Remove spark plugs with spark plug wrench.

Spark Plug

Use standard type spark plug under normal conditions.
The cold type spark plug is suitable when spark knock occurs with the standard type spark plug under
conditions such as:

●

extended highway driving

●

frequent high engine revolution

●

Do not use a wire brush for cleaning.

●

If plug tip is covered with carbon, spark plug cleaner may be
used.

SMA356CA

SMA581C

Make

NGK (double PLATINUM-TIPPED type)

Standard type

PFR5G-11

Cold type

PFR6G-11

Cleaner air pressure

: Less than 588 kPa (6 kg/cm

2

 ,

85 psi)

Cleaning time

: Less than 20 seconds

SMA673B

ENGINE MAINTENANCE (KA24DE)

MA-23

C

D

E

F

G

H

I

J

K

M

A

B

MA

●

Checking and adjusting plug gap is not required between
change intervals.

3.

Install spark plugs. Reconnect ignition wires according to num-
bers indicated on them.

Checking EVAP Vapor Lines

ELS000XG

1.

Visually inspect EVAP vapor lines for improper attachment and
for cracks, damage, loose connections, chafing and deteriora-
tion.

2.

Inspect fuel tank filler cap vacuum relief valve for clogging and
sticking. Refer to

EC-564, "EVAPORATIVE EMISSION SYS-

TEM"

 .

Changing Positive Crankcase Ventilation (PCV) Filter

ELS000XH

Remove air cleaner cover and take out PCV filter located inside air cleaner cover. Then install new PCV filter.

Spark plug gap (nominal)

:1.1 mm (0.043 in)

Spark plug

: 20 - 29 N·m (2.0 - 3.0 kg-m, 14 - 22 ft-lb)

SMA806C

AMA116

MA-24

ENGINE MAINTENANCE (VG33E AND VG33ER)

ENGINE MAINTENANCE (VG33E AND VG33ER)

PFP:10001

Checking Drive Belts

ELS000XI

VG33E

AMA152

ENGINE MAINTENANCE (VG33E AND VG33ER)

MA-25

C

D

E

F

G

H

I

J

K

M

A

B

MA

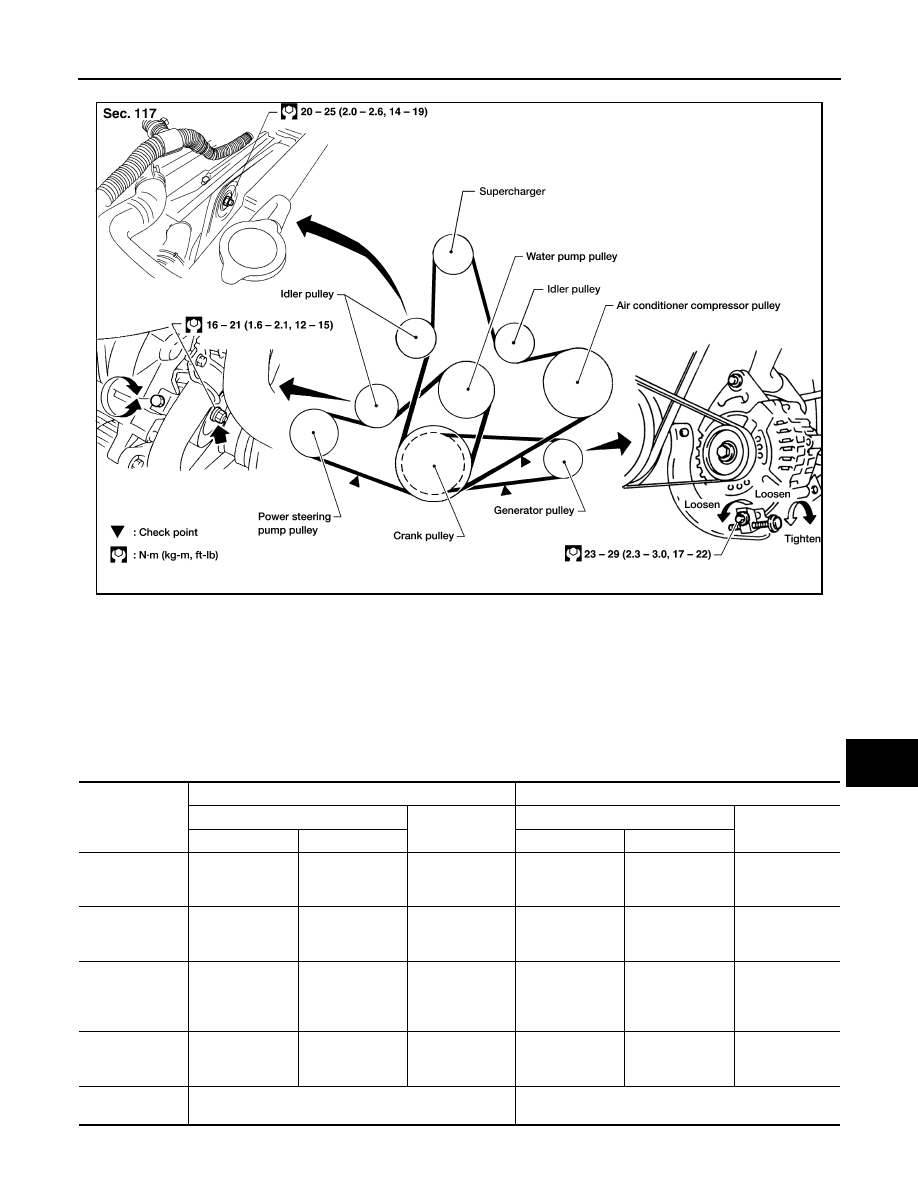

VG33ER

1.

Inspect belt for cracks, fraying, wear and oil. If necessary, replace.

2.

Inspect drive belt deflection or tension at a point on the belt midway between pulleys using Tool.

NOTE:

●

Inspect drive belt deflection or tension when engine is cold.

●

Adjust if belt deflections exceed the limit or if belt tension is not within specifications

●

Drive belt tension can be checked at other points on the belt.

DRIVE BELT DEFLECTION AND TENSION

*1: If belt tension gauge cannot be installed at check point shown, check belt tension at a different location on the belt.

WMA040

Tool number

: BT-3373-F

Deflection adjustment

Unit: mm (in)

Tension adjustment

*1 Unit: N (kg, lb)

Used belt

New belt

Used belt

New belt

Limit

After adjustment

Limit

After adjustment

Generator

11 (0.43)

7 - 8 (0.24 - 0.31)

6 - 7 (0.24 -

0.28)

226 (23, 51)

554.1 - 642.4

(56.5 - 65.5,

124.6 - 144.4)

671.8 - 760.0

(68.5 - 77.5,

151.0 - 170.9)

Air conditioner
compressor -
VG33E

18 (0.71)

12 - 13 (0.47 -

0.51)

10.5 - 11.5

(0.413 - 0.453)

196 (20, 44)

495.3 - 583.5

(50.5 - 59.5,

111.4 - 131.2)

603.1 - 691.4

(61.5 -70.5,

135.6 - 155.5)

Air conditioner
compressor and
supercharger -
VG33ER

16.5 (0.65)

9.5 - 10.5 (0.374

- 0.413)

8.5-9.5 (0.33 -

0.37)

294 (30, 66)

730 - 818 (75.5 -

83.5, 166.5 -

184.1)

838 - 926 (85.5 -

94.5, 188.5 -

208.4)

Power steering
oil pump

15 (0.59)

9.5 - 10.5 (0.374

- 0.413)

8 - 9 (0.31 -

0.35)

275 (28, 62)

554.1 - 642.4

(56.5 - 65.5,

124.6 - 144.4)

671.8 - 760.0

(68.5 - 77.5,

151.0 - 170.9)

Applied pushing
force

98 N (10 kg, 22 lb)

—
