ENGINE MAINTENANCE (KA24DE)

8.

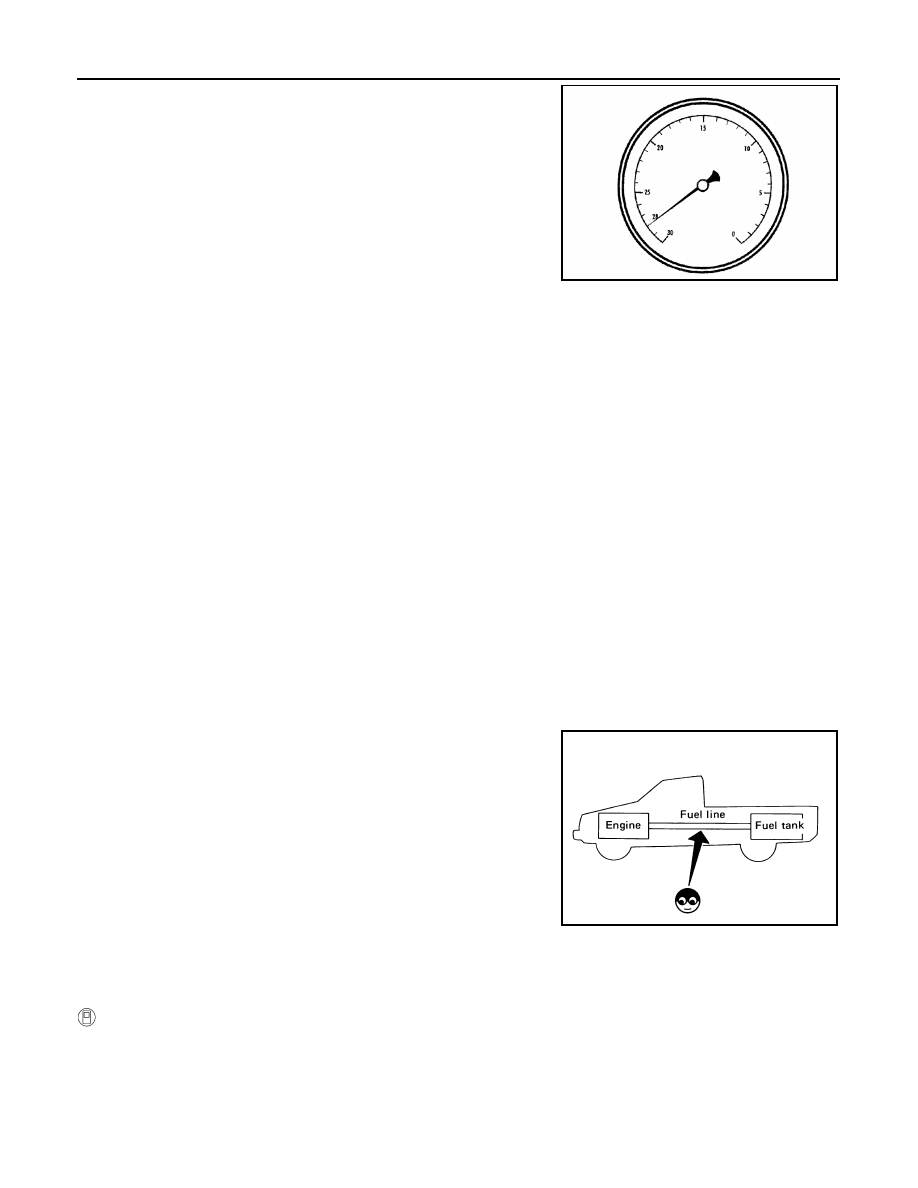

Continue to draw the vacuum until the gauge reaches 28 inches
of vacuum. The gauge may not reach 28 inches in high altitude
locations; refer to the vacuum specifications based on the alti-
tude above sea level.

9.

When the vacuum gauge has reached the specified amount, disconnect the air hose and wait 20 seconds
to see if the system loses any vacuum. If the vacuum level drops, perform any necessary repairs to the
system and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for any leaks.

10. Place the coolant container (with the refill hose inserted) at the same level as the top of the radiator. Then

open the ball valve on the refill hose so the coolant will be drawn up to fill the cooling system. The cooling
system is full when the vacuum gauge reads zero.

CAUTION:

Do not allow the coolant container to get too low when filling, to avoid air from being drawn into
the cooling system.

11. Remove the Tool from the radiator neck opening.

12. Fill the cooling system reservoir tank to the specified level. Run the engine to warm up the cooling system

and top up the system as necessary before installing the radiator cap.

FLUSHING COOLING SYSTEM

1.

Fill the radiator from the filler cap above the radiator upper hose and reservoir tank, with water and rein-
stall the filler cap above the radiator upper hose.

2.

Run the engine until it reaches normal operating temperature.

3.

Press the engine accelerator two or three times under no-load.

4.

Stop the engine and wait until it cools down.

5.

Drain the water.

6.

Repeat steps 1 through 5 until clear water begins to drain from the radiator.

Checking Fuel Lines

ELS000XA

Inspect fuel lines and tank for improper attachment, leaks, cracks,
damage, chafing and deterioration. If necessary, repair or replace.

Changing Fuel Filter

ELS000XB

WARNING:

Before removing fuel filter, release fuel pressure from fuel line.

 WITH CONSULT - II

1.

Start engine.

Altitude above sea level

Vacuum gauge reading

0 - 100 m (328 ft)

: 28 inches of vacuum

300 m (984 ft)

: 27 inches of vacuum

500 m (1,641 ft)

: 26 inches of vacuum

1,000 m (3,281 ft)

: 24 - 25 inches of vacuum

LLIA0057E

SMA215C

ENGINE MAINTENANCE (KA24DE)

MA-19

C

D

E

F

G

H

I

J

K

M

A

B

MA

2.

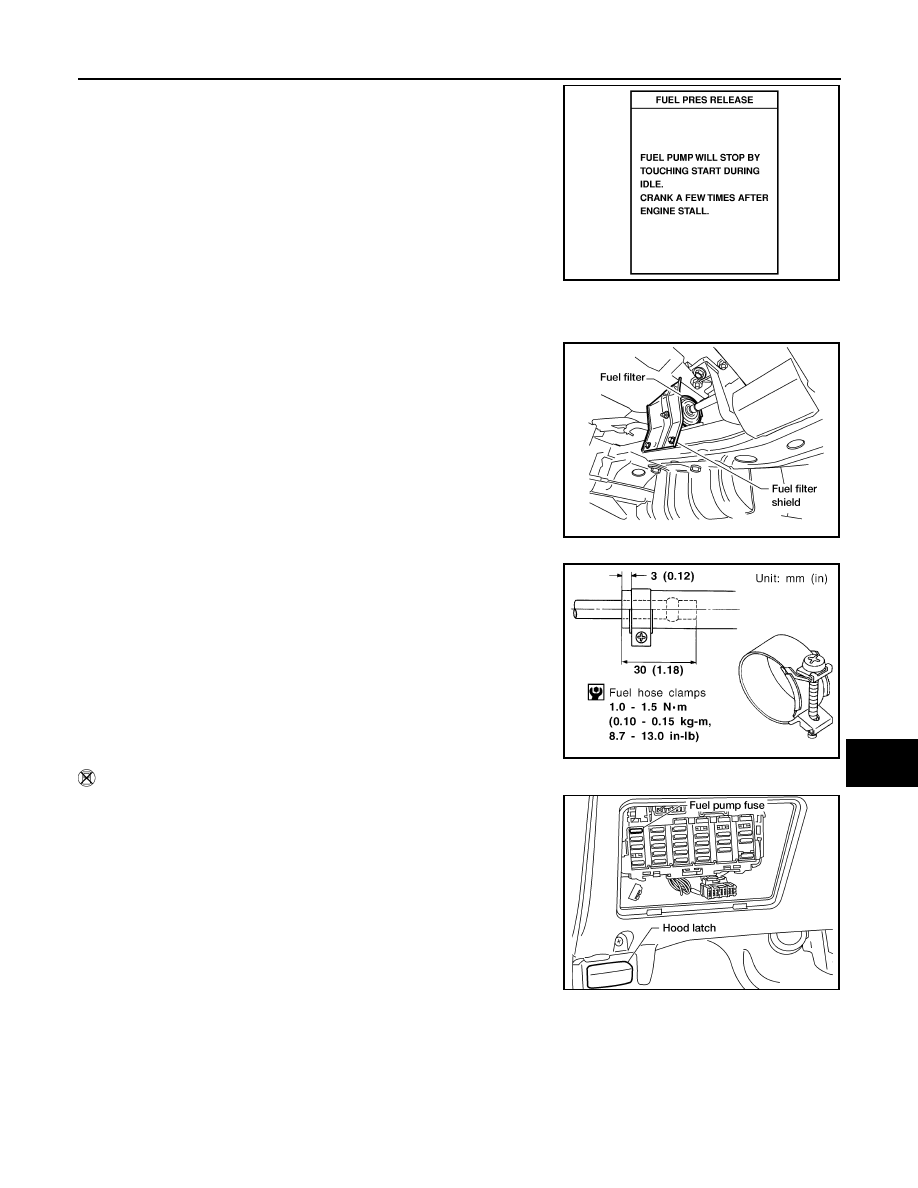

Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT”
mode to release fuel pressure to zero.

3.

After engine stalls, crank engine two or three times to make sure that fuel pressure is released.

4.

Turn ignition switch “OFF”.

5.

Remove the fuel filter shield.

6.

Loosen fuel hose clamps.

7.

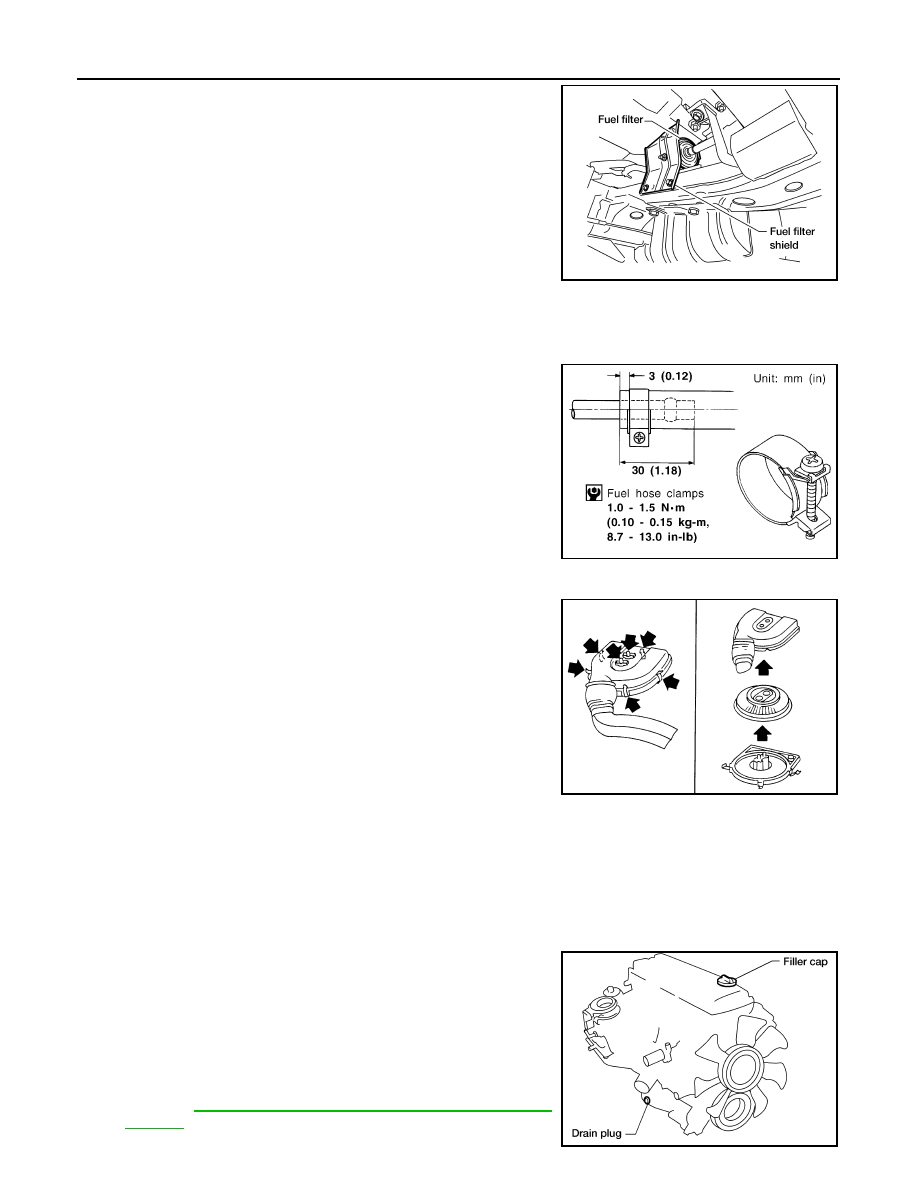

Replace fuel filter.

●

Use a high-pressure type fuel filter. Do not use a synthetic
resinous fuel filter.

8.

Tighten fuel hose clamps.

CAUTION:

Tighten high-pressure rubber hose clamp so that clamp
end is 3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber
hose clamps.
Ensure that the screw does not contact adjacent parts.

 WITHOUT CONSULT - II

1.

Remove fuel pump fuse.
For correct fuse location, refer to label on fuse block cover.

2.

Start engine.

3.

After engine stalls, crank engine two or three times to make sure
that fuel pressure is released.

4.

Turn ignition switch “OFF” and install fuel pump fuse.

PEF823K

AMA151

Fuel hose clamps

: 1.0 - 1.5 N·m (0.1 - 0.15 kg-m,
8.7 - 13.0 in-lb)

AMA123

AMA114

MA-20

ENGINE MAINTENANCE (KA24DE)

5.

Remove the fuel filter shield.

6.

Loosen fuel hose clamps.

7.

Replace fuel filter.

●

Use a high-pressure type fuel filter. Do not use a synthetic resinous fuel filter.

8.

Tighten fuel hose clamps.

CAUTION:

Tighten high-pressure rubber hose clamp so that clamp
end is 3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber
hose clamps.
Ensure that the screw does not contact adjacent parts.

Changing Air Cleaner Filter

ELS000XC

The viscous paper type filter does not need cleaning between
renewals.

Changing Engine Oil

ELS000XD

WARNING:

●

Be careful not to burn yourself, as the engine oil is hot.

●

Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

1.

Warm up engine, and check for oil leakage from engine components.

2.

Remove drain plug and oil filler cap.

3.

Drain oil and refill with new engine oil.
Oil Specification and Viscosity

●

API Certification Mark

●

API grade SG/SH, Energy Conserving I & II or API grade SJ
or SL, Energy Conserving.

●

ILSAC grade GF-I, GF-II & GF-III

●

Refer to

MA-12, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

AMA151

Fuel hose clamps

: 1.0 - 1.5 N·m (0.1 - 0.15 kg-m,
8.7 - 13.0 in-lb)

AMA123

SMA243C

AMA113

ENGINE MAINTENANCE (KA24DE)

MA-21

C

D

E

F

G

H

I

J

K

M

A

B

MA

Oil Capacity (Approximately)

Unit:

 (US qt, Imp qt)

CAUTION:

●

Be sure to clean drain plug and install with new washer.

●

The refill capacity depends on the oil temperature and drain time. Use these specifications for
reference only. Always use the dipstick to determine when the proper amount of oil is in the
engine.

4.

Check oil level.

5.

Start engine and check area around drain plug and oil filter for oil
leakage.

6.

Run engine for a few minutes, then turn it off. After several min-
utes, check oil level.

Changing Oil Filter

ELS000XE

1.

Remove oil filter using Tool.

WARNING:

Be careful not to burn yourself. Engine and engine oil are hot.
The filter is a full-flow cartridge type and is provided with a relief valve.

2.

Clean oil filter mounting surface on cylinder block. Coat rubber
seal of new oil filter with engine oil.

3.

Screw in the oil filter until a slight resistance is felt, then tighten
additionally more than 2/3 of a turn.

4.

Add engine oil. Refer to

MA-20, "Changing Engine Oil"

 .

●

Clean excess oil from engine.

Drain and refill

With oil filter change

3.5 (3 3/4, 3 1/8)

Without oil filter change

3.3 (3 1/2, 2 7/8)

Dry engine (engine overhaul)

4.1 (4 1/2, 3 3/4)

Drain plug

: 29.4 - 39.2 N·m (3.0 - 4.0 kg-m, 21.69 - 28.91 ft-lb)

SMA885B

Tool number

: KV10115801 (J-38956)

SMA010

SMA229B
