GI-16

HOW TO USE THIS MANUAL

DESCRIPTION

Number

Item

Description

1

Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).

2

Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.

3

Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to

PG-9, "POWER SUPPLY ROUTING"

 .

4

Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.

5

Current rating

This shows the current rating of the fusible link or fuse.

6

Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to "Reference Area".

7

Optional splice

The open circle shows that the splice is optional depending on vehicle application.

8

Splice

The shaded circle shows that the splice is always on the vehicle.

9

Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.

10

Common connector

The dotted lines between terminals show that these terminals are part of the same connector.

11

Option abbreviation

This shows that the circuit is optional depending on vehicle application.

12

Relay

This shows an internal representation of the relay. For details, refer to

PG-7, "STANDARD-

IZED RELAY"

 .

13

Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

14

Wire color

This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green

BR = Brown
OR = Orange
P = Pink
PU = Purple
GY = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe

15

Option description

This shows a description of the option abbreviation used on the page.

16

Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.

17

Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.

18

Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.

19

Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “

 ” shows that current can flow in either direction depending on circuit

operation.

20

System branch

This shows that the system branches to another system identified by cell code (section and
system).

21

Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.

22

Shielded line

The line enclosed by broken line circle shows shield wire.

HOW TO USE THIS MANUAL

GI-17

C

D

E

F

G

H

I

J

K

L

M

B

GI

Switch Positions

Switches are shown in wiring diagrams as if the vehicle is in the “nor-
mal” condition.
A vehicle is in the “normal” condition when:

Ignition switch is OFF.

Doors, hood and trunk lid/back door are closed.

Pedals are not depressed.

Parking brake is released.

23

Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.

24

Component name

This shows the name of a component.

25

Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to

PG-33, "HAR-

NESS LAYOUT"

 . A coordinate grid is included for complex harnesses to aid in locating con-

nectors.

26

Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.

27

Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to

PG-

17, "GROUND"

 .

28

Connector views

This area shows the connector faces of the components in the wiring diagram on the page.

29

Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.

30

Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.

31

Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of the
power supply routing. Refer to

PG-9, "POWER SUPPLY ROUTING"

 .

The open square shows current flow in, and the shaded square shows current flow out.

32

Reference area

This shows that more information on the SMJ (Super Multiple Junction), Electrical Units, etc.
exists on the at the end of the manual. Refer to "Reference Area" for details.

Number

Item

Description

SGI860

GI-18

HOW TO USE THIS MANUAL

Detectable Lines and Non-detectable Lines

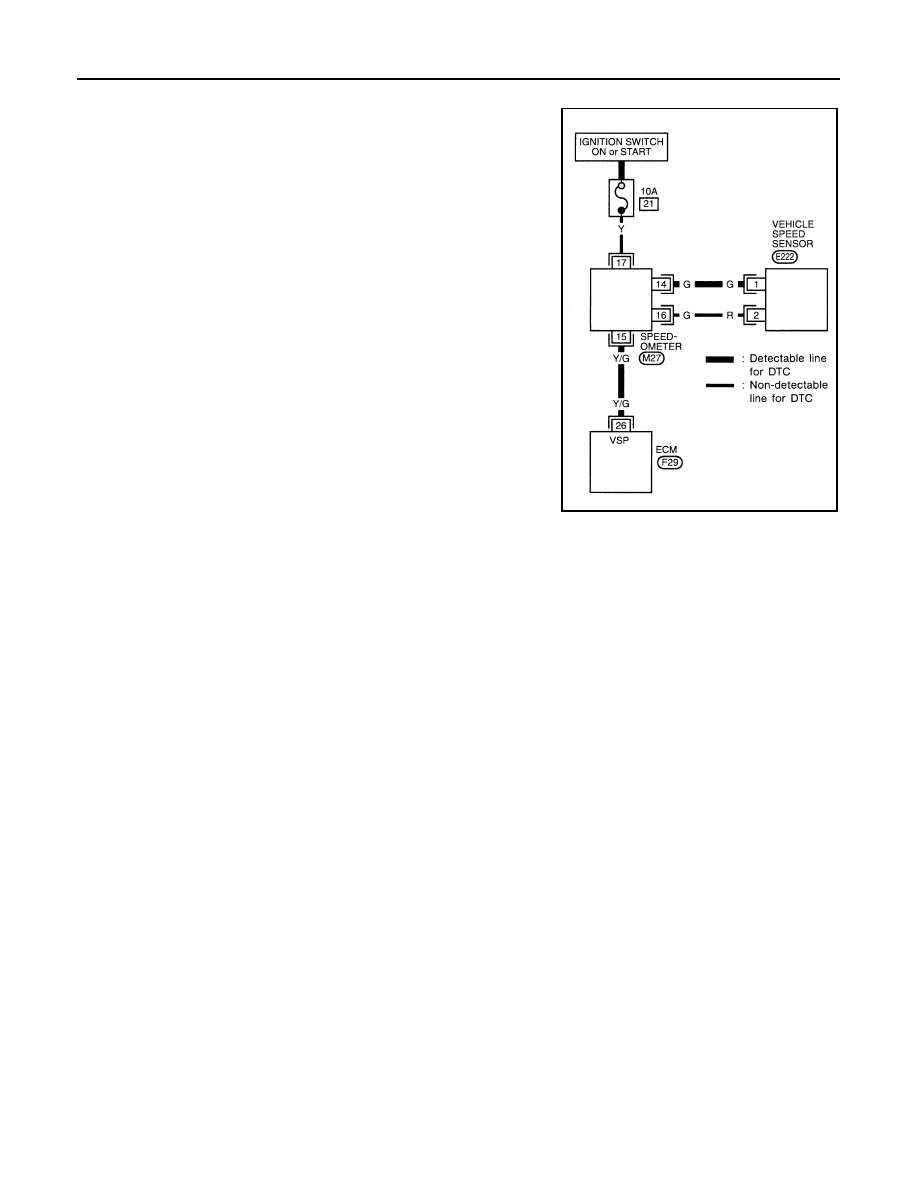

In some wiring diagrams, two kinds of lines, representing wires, with
different weight are used.

A line with regular weight (wider line) represents a “detectable
line for DTC (Diagnostic Trouble Code)”. A “detectable line for
DTC” is a circuit in which ECM can detect its malfunctions with
the on board diagnostic system.

A line with less weight (thinner line) represents a “non-detect-
able line for DTC”. A “non-detectable line for DTC” is a circuit in
which ECM cannot detect its malfunctions with the on board
diagnostic system.

AGI095

HOW TO USE THIS MANUAL

GI-19

C

D

E

F

G

H

I

J

K

L

M

B

GI

Multiple Switch

The continuity of multiple switch is described in two ways as shown below.

The switch chart is used in schematic diagrams.

The switch diagram is used in wiring diagrams.

SGI875
