TORSION BAR SPRING
FSU-19
C
D
F
G
H
I
J
K
L
M
A
B
FSU
If a new torsion bar spring or anchor arm is installed, adjust
anchor arm length to the dimension indicated in the figure at the
right.
5.
Tighten the adjusting nut so the torsion bar length corresponds
with dimension “L” previously measured during torsion bar
removal. Tighten the lock nut to specifications.
If a new torsion bar spring or anchor arm is installed, tighten the
adjusting nut to the dimension indicated in the figure at the right,
then tighten the lock nut to specifications.
6.
Bounce vehicle with tires on ground (Unladen) to eliminate friction of suspension.
7.
Measure vehicle posture “H”.
a.
Exercise the front suspension by bouncing the front of the vehi-
cle 4 or 5 times to ensure that the vehicle is in a neutral height
attitude.
b.
Measure vehicle posture, dimension “H”.
8.
If height of the vehicle is not within allowable limit, adjust vehicle
posture.
9.

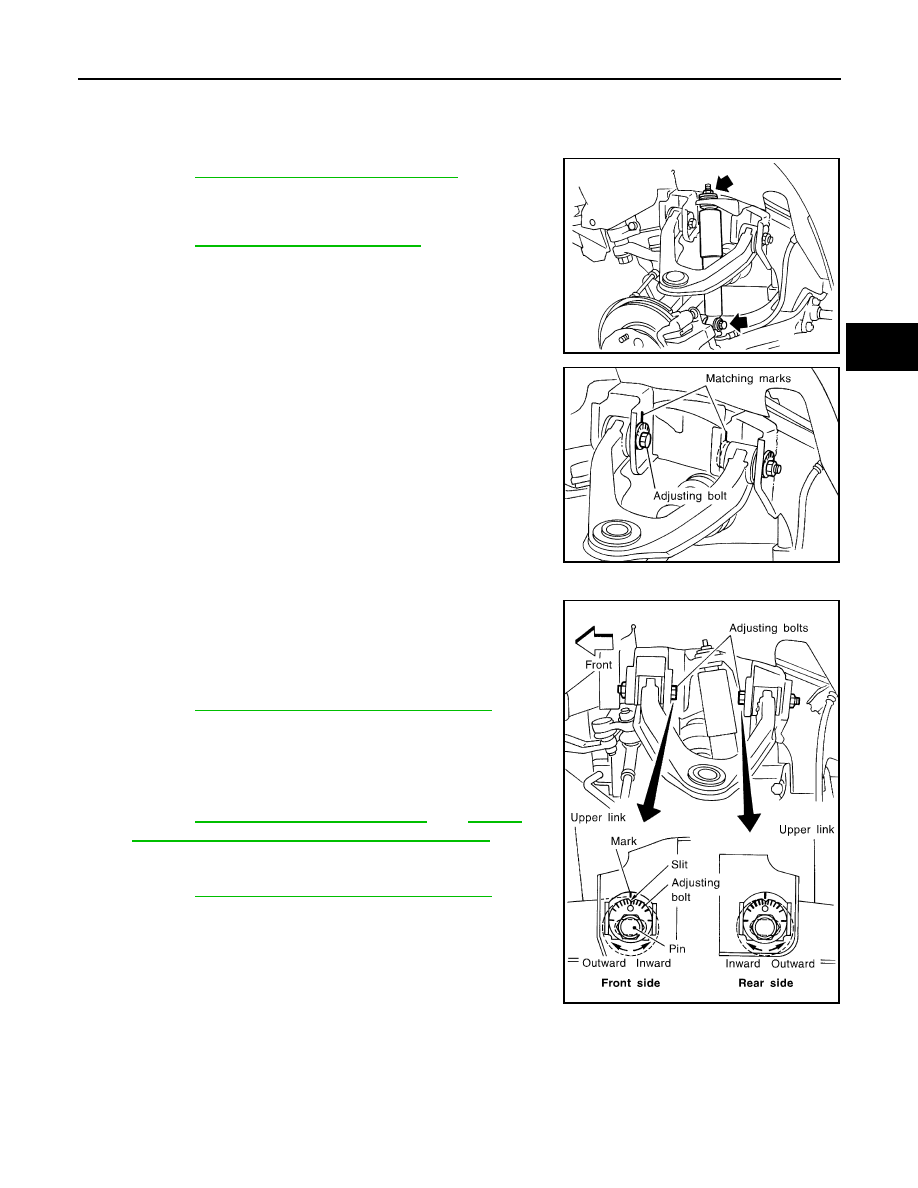

Check wheel alignment if necessary.

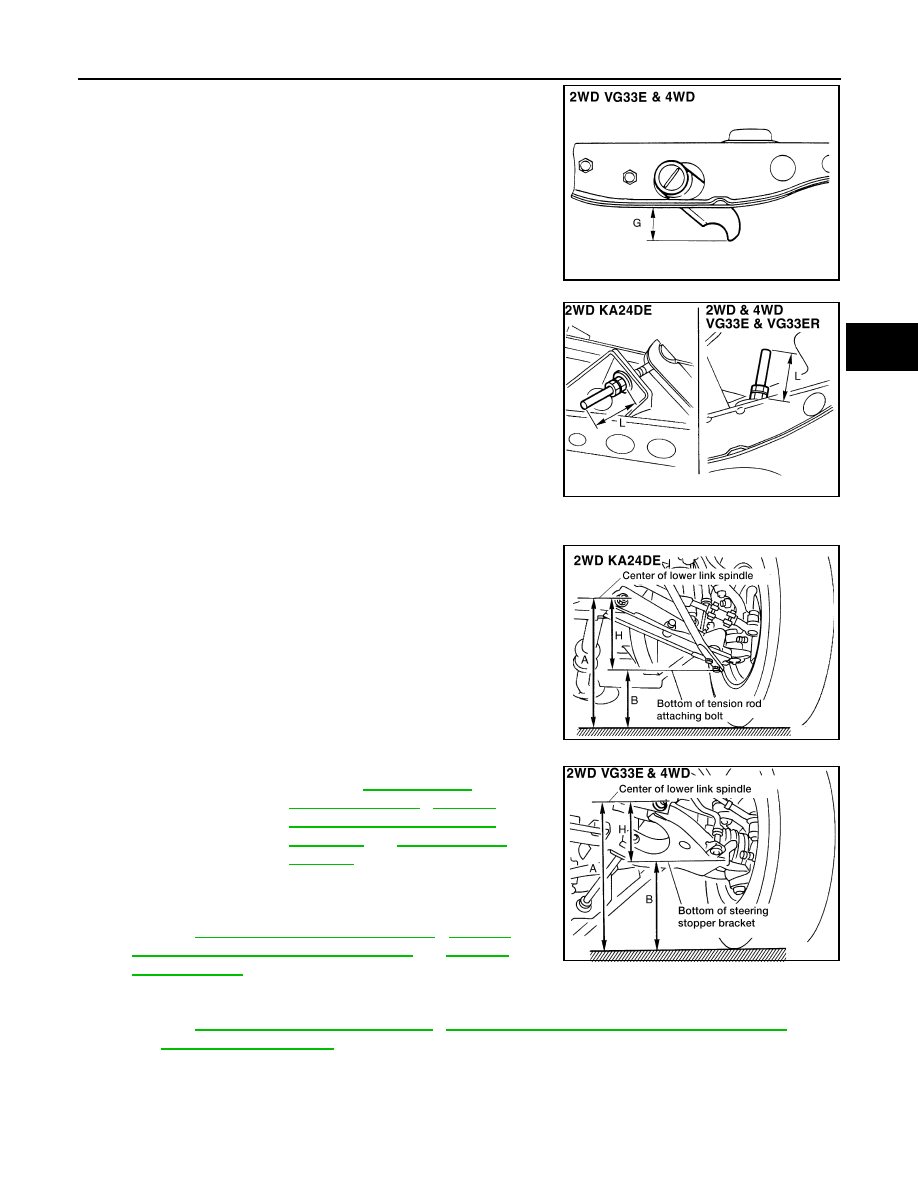

Standard length “G”:
2WD KA24DE model
: 6 - 18 mm (0.24 - 0.71 in)
2WD and 4WD VG33E
and VG33ER models
: 25 - 39 mm (0.98 - 1.54 in)
ASU052
Standard length "L": 68 mm (2.68 in)
WSU021
ASU041
H = A
− B mm (in)
“Unladen”
: Refer to
, or
Refer to
,
, or
Refer to
FSU-28, "2WD VG33E AND VG33ER MODELS"
, or
ASU042
