Nissan Frontier D22. Manual - part 677





OUTER COMPONENT PARTS

EM-15

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

WBIA0099E

EM-16

[KA24DE]

OIL PAN

OIL PAN

PFP:11110

Components

EBS00GS7

Removal

EBS00GS8

1.

Remove the engine under cover.

2.

Drain the engine oil. Refer to

MA-20, "Changing Engine Oil"

 .

3.

Remove the front suspension member. Refer to

FSU-10, "Front Suspension Parts"

 .

4.

Remove the oil pan bolts in the numerical order as shown.

5.

Remove the oil pan using Tool as shown.

a.

Insert Tool between the cylinder block and oil pan, and separate
the oil pan from the engine block by tapping (1) with a plastic
hammer as shown.

Be careful not to damage the aluminum mating surface.

Do not insert a screwdriver, which may damage the oil pan
flange.

b.

Slide the Tool by tapping on the side (2) of the Tool with a plastic
hammer as shown.

6.

Pull the oil pan out from the front side.

WBIA0174E

AEM497

PBIC0002E

OIL PAN

EM-17

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

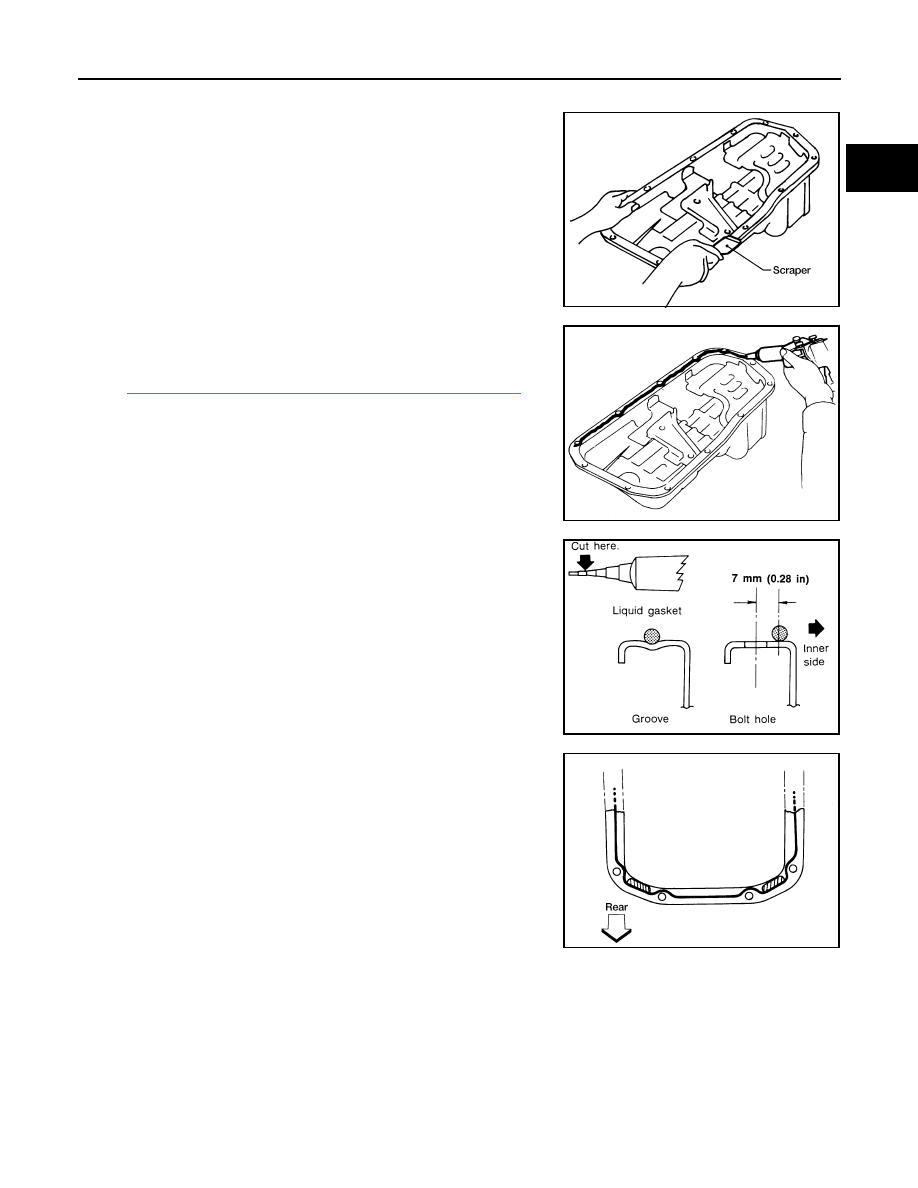

Installation

EBS00GS9

1.

Use a scraper to remove the old liquid gasket from the mating
surface of the oil pan.

Remove all traces of the liquid gasket from the mating surface
of the cylinder block.

2.

Apply a continuous bead of liquid gasket to the mating surface
of the oil pan.

Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to

MA-12, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

Apply the liquid gasket to the groove on the oil pan mating
surface.

Allow a 7 mm (0.28 in) clearance around the bolt holes.

Be sure the bead of liquid gasket has a diameter of 3.5 - 4.5
mm (0.138 - 0.177 in).

Installation must be done within 5 minutes after applying the
liquid gasket.

AEM299

AEM300

SEM015E

AEM301

EM-18

[KA24DE]

OIL PAN

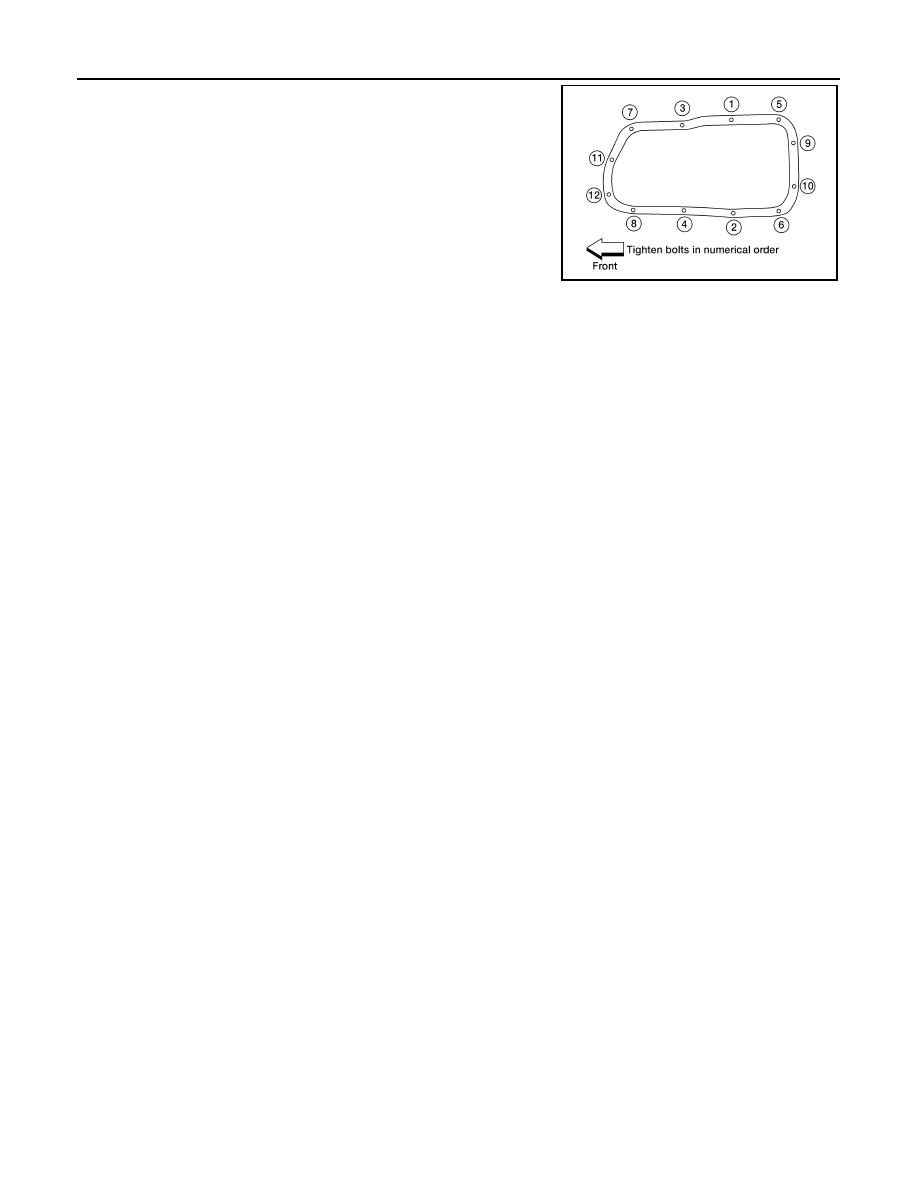

3.

Install the oil pan.

Wait at least 30 minutes before refilling the engine oil.

Tighten the oil pan bolts to specification in numerical order as
shown.

4.

Install the remaining parts in the reverse order of removal.

Oil pan bolts

: 6.4 - 7.5 N·m (0.65 - 0.76 kg-m,
56 - 66 in-lb)

AEM498
