PREPARATION

EM-7

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

KV10110300
(

—

)

Piston pin press stand assembly
1 KV10110310
(

—

)

Cap
2 KV10110330
(

—

)

Spacer
3 ST13030020
(

—

)

Press stand
4 ST13030030
(

—

)

Spring
5 KV10110340
(

—

)

Drift
6 KV10110320
(

—

)

Center shaft

Disassembling and assembling piston with
connecting rod

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

(J-36467)
Valve oil seal remover

Removing valve oil seal

ST16610001
(J-23907)
Pilot bushing puller

Removing crankshaft pilot bushing

KV10111100
(J-37228)
Seal cutter

Removing oil pan

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

Tool number
(Kent-Moore No.)
Tool name

Description

WEM150

NT044

NT034

NT045

NT046

NT052

EM-8

[KA24DE]

PREPARATION

Commercial Service Tools

EBS00GS4

KV101151S0
(J-38972)
Lifter stopper set
1

KV10115110

(J-38972-1)
Camshaft pliers
2

KV10115120

(J-38972-2)
Lifter stopper

Changing valve lifter shims

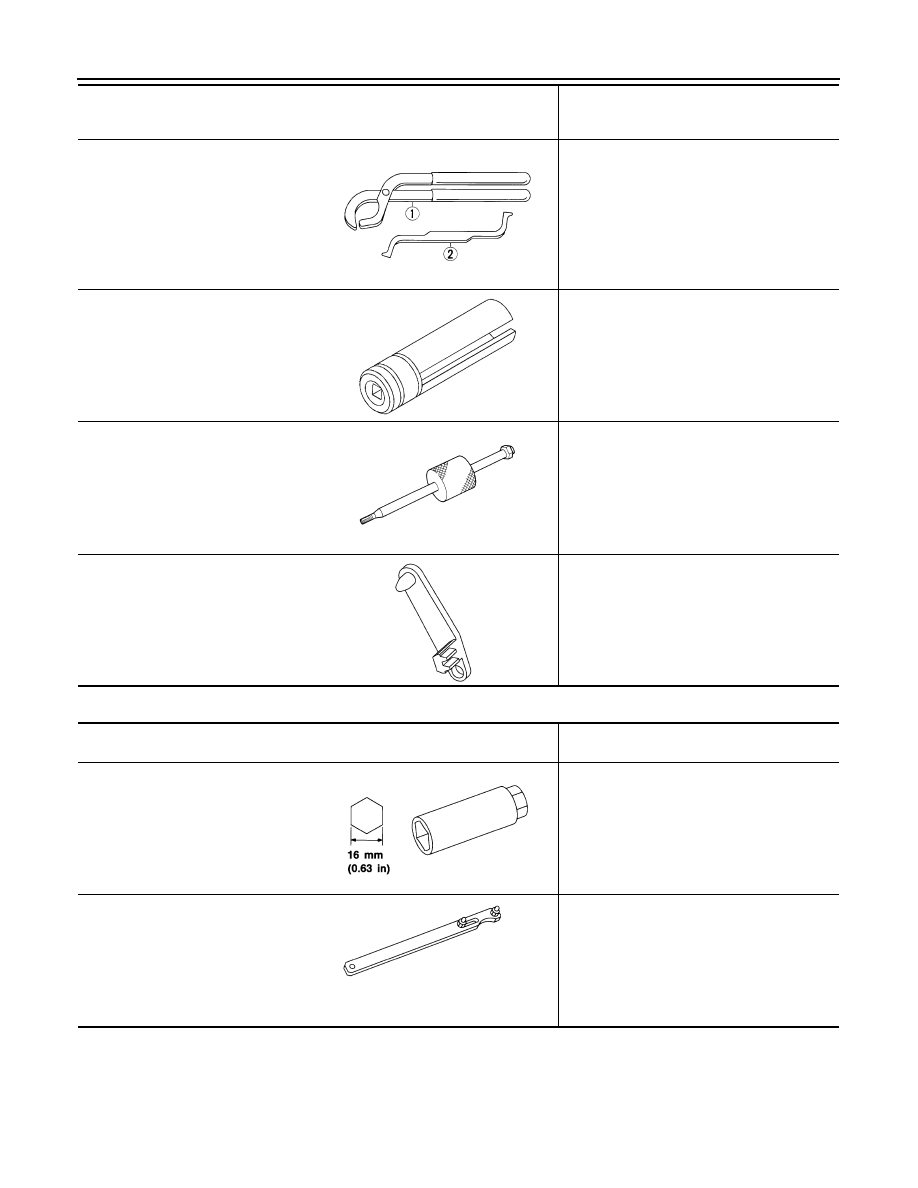

KV10117100
(J-36471-A)
Front heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor
For 22 mm (0.87 in) hexagon nut

KV10114700
(J-38139)
Main bearing cap remover

Removing crankshaft main bearing cap
For No. 3 and No. 5 bearings

—

(J-45499)
Ring gear stopper

Preventing crankshaft  rotation

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT041

NT379

ZZA0023D

LBIA0362E

Tool name
(Kent-Moore No.)

Description

Spark plug wrench

Removing and installing spark plug

Pulley holder

Holding camshaft pulley while tightening or
loosening camshaft bolt

NT047

NT035

PREPARATION

EM-9

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

Valve seat cutter set

Finishing valve seat dimensions

Piston ring expander

Removing and installing piston ring

Valve guide drift

Removing and installing valve guide
Intake & Exhaust:
a = 10.5 mm (0.413 in) dia.
b = 6.6 mm (0.260 in) dia.

Valve guide reamer

Reaming valve guide 1 or hole for oversize
valve guide 2
Intake:
d

1

  = 7.0 mm (0.276 in) dia.

d

2

  = 11.2 mm (0.441 in) dia.

Exhaust:
d

1

  = 8.0 mm (0.315 in) dia.

d

2

  = 12.2 mm (0.480 in) dia.

Front oil seal drift

Installing front oil seal
a: 52 mm (2.05 in) dia.
b: 44 mm (1.73 in) dia.

Rear oil seal drift

Installing rear oil seal
a: 46 mm (1.81 in)
b: 110 mm (4.33 in)
c: 84 mm (3.31 in)
d: 96 mm (3.78 in)

Thread repair tool for oxygen sensor
a: (J-43897-18)
b: (J-43897-12)

a: 18 mm (0.71 in)
b: 12 mm (0.47 in)

Tool name
(Kent-Moore No.)

Description

NT048

NT030

NT015

NT016

NT049

WEM152

AEM488

EM-10

[KA24DE]

PREPARATION

Anti-seize thread compound

For preventing corrosion, seizing, and galling
on high temperature applications.

Crankshaft pulley puller

Removing crankshaft pulley

Tool name
(Kent-Moore No.)

Description

AEM489

PBIC0887E
