Nissan Frontier D22. Manual - part 126

BAND SERVO PISTON ASSEMBLY

AT-473

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

3.

Install E-ring onto servo cushion spring retainer.

4.

Install D-rings onto band servo piston.

●

Apply ATF to D-rings.

5.

Install servo piston spring retainer, return spring C and piston
stem onto band servo piston.

6.

Place piston stem end on a wooden block. While pushing servo
piston spring retainer down, install E-ring.

SAT919A

SAT920A

SAT912A

SAT921A

AT-474

[RE4R01A]

BAND SERVO PISTON ASSEMBLY

7.

Install band servo piston assembly onto servo piston retainer by
pushing it inward.

8.

Install D-ring on O/D band servo piston.

●

Apply ATF to D-ring.

9.

Install O/D band servo piston onto servo piston retainer by push-
ing it inward.

SAT922A

SAT923A

SAT924A

PARKING PAWL COMPONENTS

AT-475

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

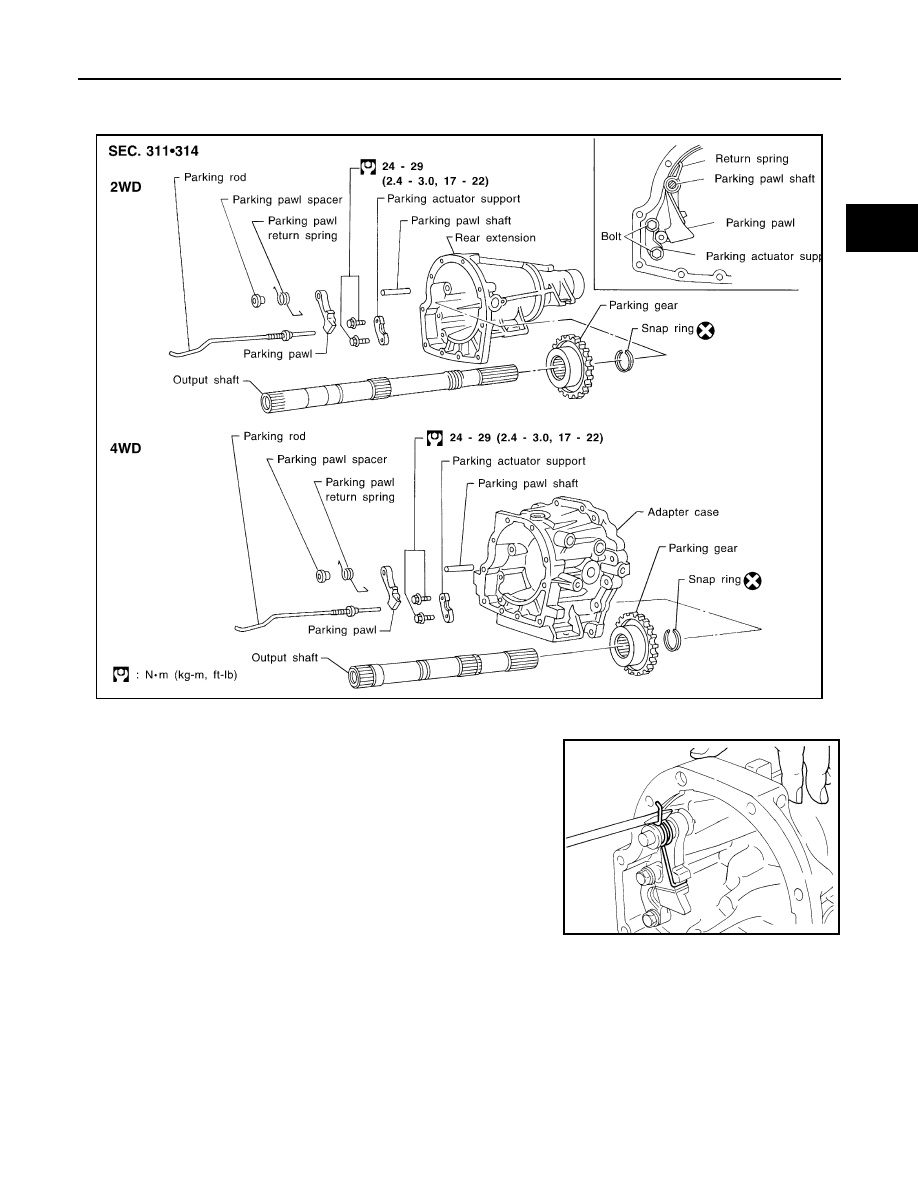

PARKING PAWL COMPONENTS

PFP:31991

Components

ECS007QG

Disassembly

ECS007QH

1.

Slide return spring to the front of adapter case flange.

2.

Remove return spring, pawl spacer and parking pawl from
adapter case.

3.

Remove parking pawl shaft from adapter case.

SAT379I

SAT226H

AT-476

[RE4R01A]

PARKING PAWL COMPONENTS

4.

Remove parking actuator support from adapter case.

SAT228H
