FORWARD CLUTCH DRUM ASSEMBLY

AT-465

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

●

Install low one-way clutch with flange facing rearward.

4.

Install side plate onto forward clutch drum.

5.

Install snap ring onto forward clutch drum.

SAT895A

SAT887A

AT-466

[RE4R01A]

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

PFP:31450

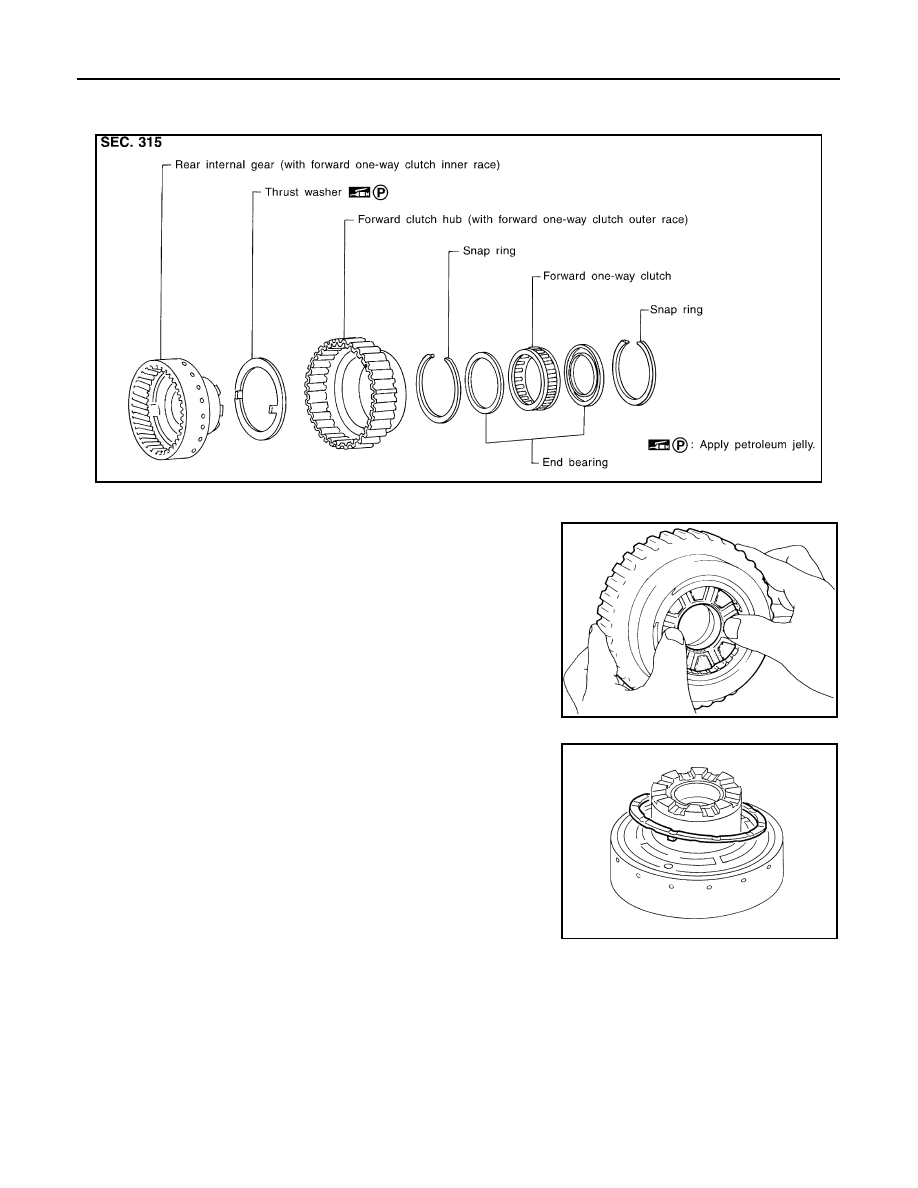

Components

ECS007Q8

Disassembly

ECS007Q9

1.

Remove rear internal gear by pushing forward clutch hub for-
ward.

2.

Remove thrust washer from rear internal gear.

SAT896AA

SAT897A

SAT898A

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

AT-467

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

3.

Remove snap ring from forward clutch hub.

4.

Remove end bearing.

5.

Remove forward one-way clutch and end bearing as a unit from
forward clutch hub.

6.

Remove snap ring from forward clutch hub.

SAT899A

SAT900A

SAT955A

SAT901A

AT-468

[RE4R01A]

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

Inspection

ECS007QA

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

●

Check gear for excessive wear, chips or cracks.

●

Check frictional surfaces of forward one-way clutch and thrust
washer for wear or damage.

●

Check spline for wear or damage.

SNAP RING AND END BEARING

●

Check for deformation or damage.

Assembly

ECS007QB

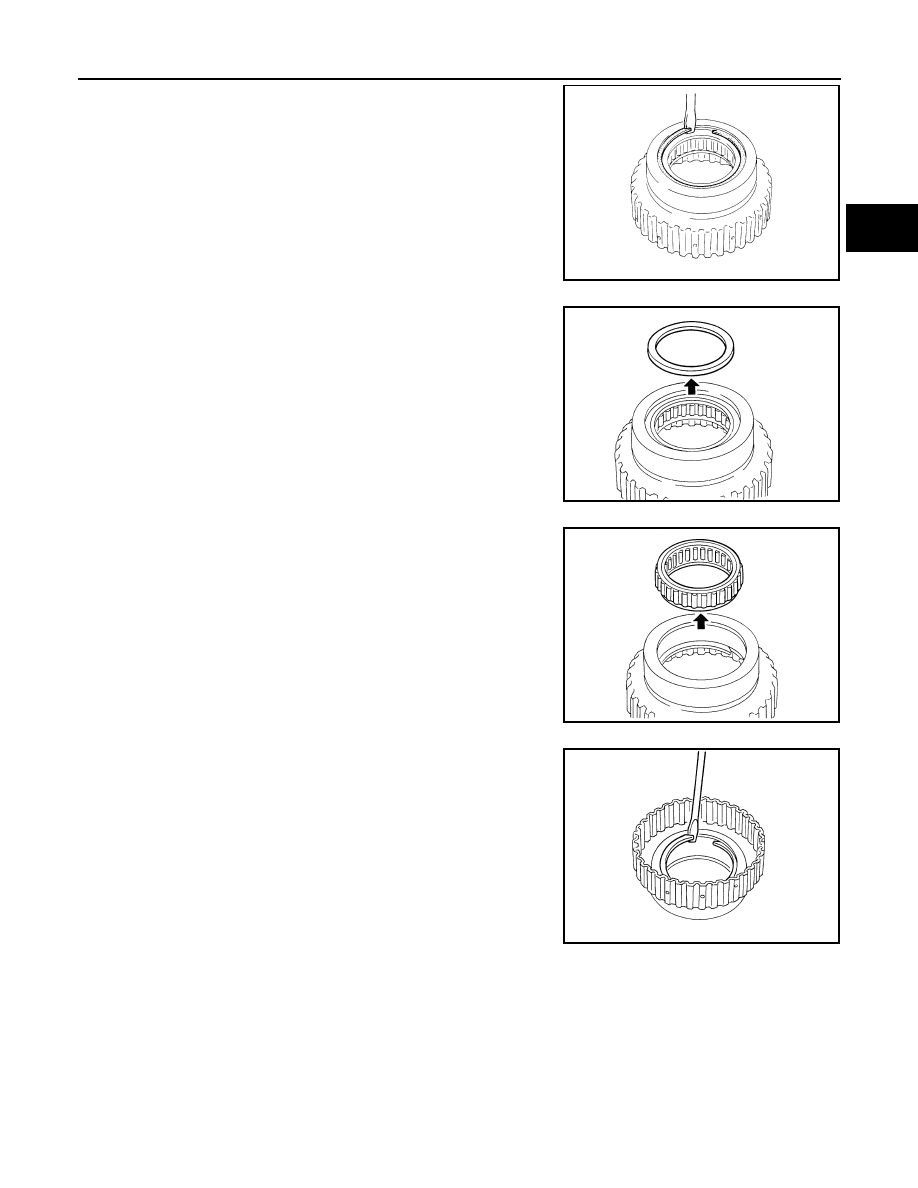

1.

Install snap ring onto forward clutch hub.

2.

Install end bearing.

3.

Install forward one-way clutch onto clutch hub.

●

Install forward one-way clutch with flange facing rearward.

4.

Install end bearing.

5.

Install snap ring onto forward clutch hub.

SAT902A

SAT903A

SAT901A

SAT904A
