Nissan Frontier D22. Manual - part 110
REMOVAL AND INSTALLATION
AT-409

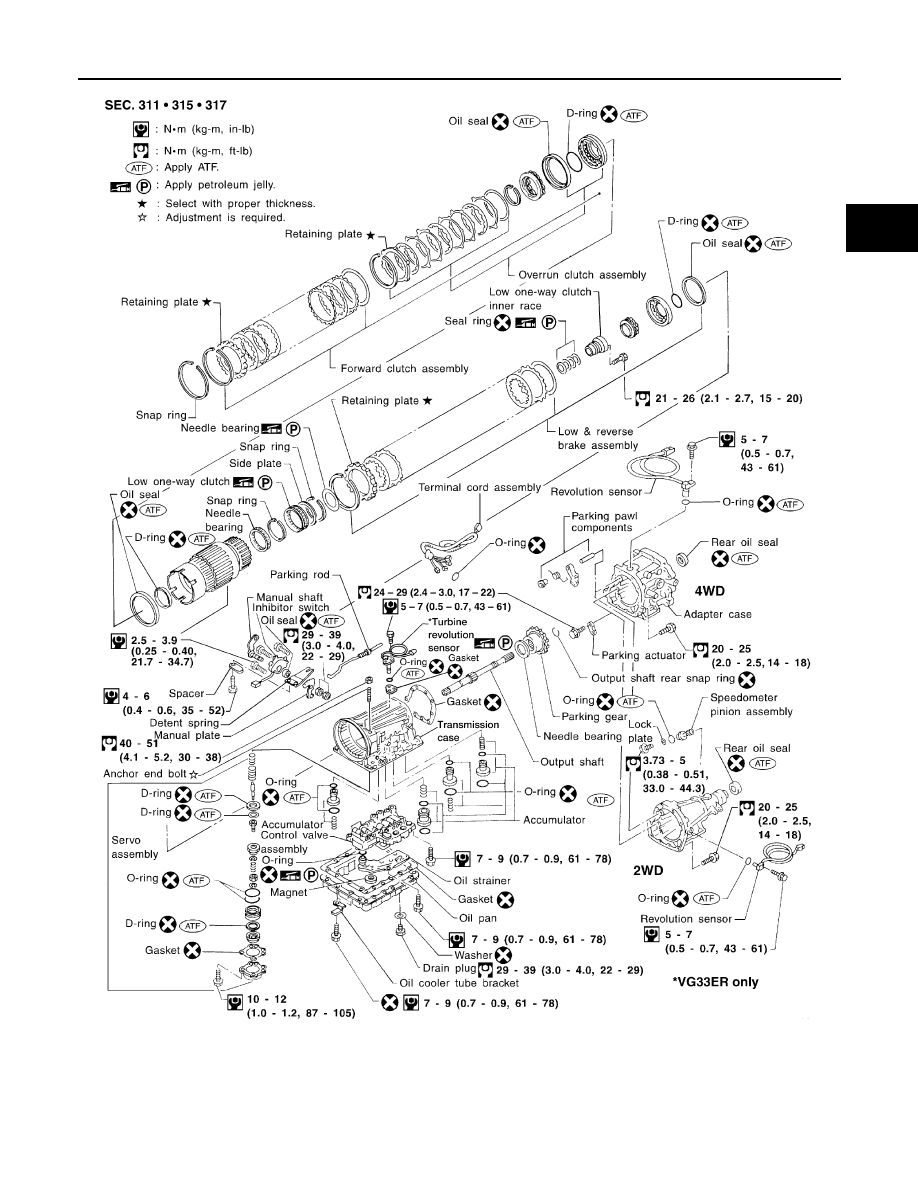

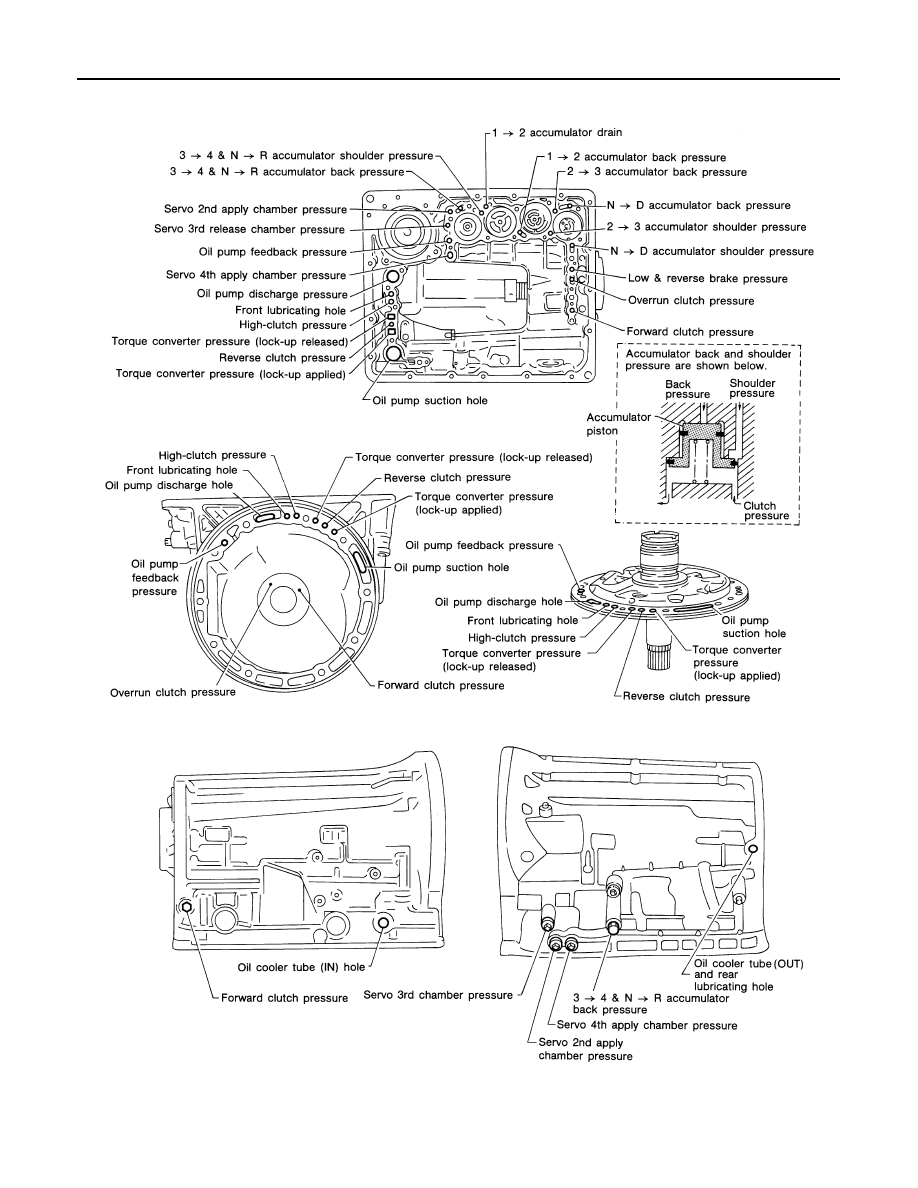

[RE4R01A]
D
E
F
G
H
I
J
K
L
M
A
B
AT
●
When connecting torque converter to transmission, measure
distance “A” to be certain that they are correctly assembled.
●
Install converter to drive plate.
●
After converter is installed to drive plate, rotate crankshaft
several turns and check to be sure that transmission
rotates freely without binding.
●
Tighten bolts securing transmission.
●
Reinstall any part removed.
●
Check fluid level in transmission.
●
Move selector lever through all positions to be sure that trans-
mission operates correctly.
With parking brake applied, rotate engine at idling. Move selec-
tor lever through N to D, to 2, to 1 and to R positions. A slight
shock should be felt by hand gripping selector each time trans-
mission is shifted.
●
Perform road test. Refer to “
Distance “A”
VG33E
: 26.0 mm (1.024 in) or more
VG33ER
: 25.0 mm (0.984 in) or more
SAT017B
SAT006G
Bolt No.
Tightening torque
N·m (kg-m, ft-lb)
Bolt length
“$$$Use Symbol
(litre)$$$”
mm (in)
1
39 - 49 (4.0 - 5.0, 29 - 36)
47.5 (1.870)
2
39 - 49 (4.0 - 5.0, 29 - 36)
58.0 (2.283)
3
29 - 39 (3.0 - 4.0, 22 - 29)
25.0 (0.984)
Gusset to engine
29 - 39 (3.0 - 4.0, 22 - 29)
20.0 (0.787)
SAT553H
SAT638A
