Nissan Frontier D22. Manual - part 108

KEY INTERLOCK CABLE

AT-401

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Installation

ECS007OY

1.

Set key interlock cable to steering lock assembly and install lock
plate.

2.

Clamp cable to steering column and fix to control cable with
band.

3.

Set selector lever to P position.

4.

Insert interlock rod into adjuster holder.

5.

Install casing cap to bracket.

6.

Move slider in order to fix adjuster holder to interlock rod.

SAT354I

SAT355I

SAT356I

AT-402

[RE4R01A]

ON-VEHICLE SERVICE

ON-VEHICLE SERVICE

PFP:00000

Control Valve Assembly and Accumulators

ECS007OZ

REMOVAL

1.

Drain ATF through drain plug.

2.

Remove exhaust front tube.

3.

Remove oil pan and gasket.

●

Always replace oil pan bolts as they are self-sealing
bolts.

4.

Remove A/T fluid temperature sensor if necessary.

5.

Remove oil strainer.

6.

Remove control valve assembly by removing fixing bolts and
disconnecting harness connector.

SAT359I

SAT073BA

SAT353B

ON-VEHICLE SERVICE

AT-403

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

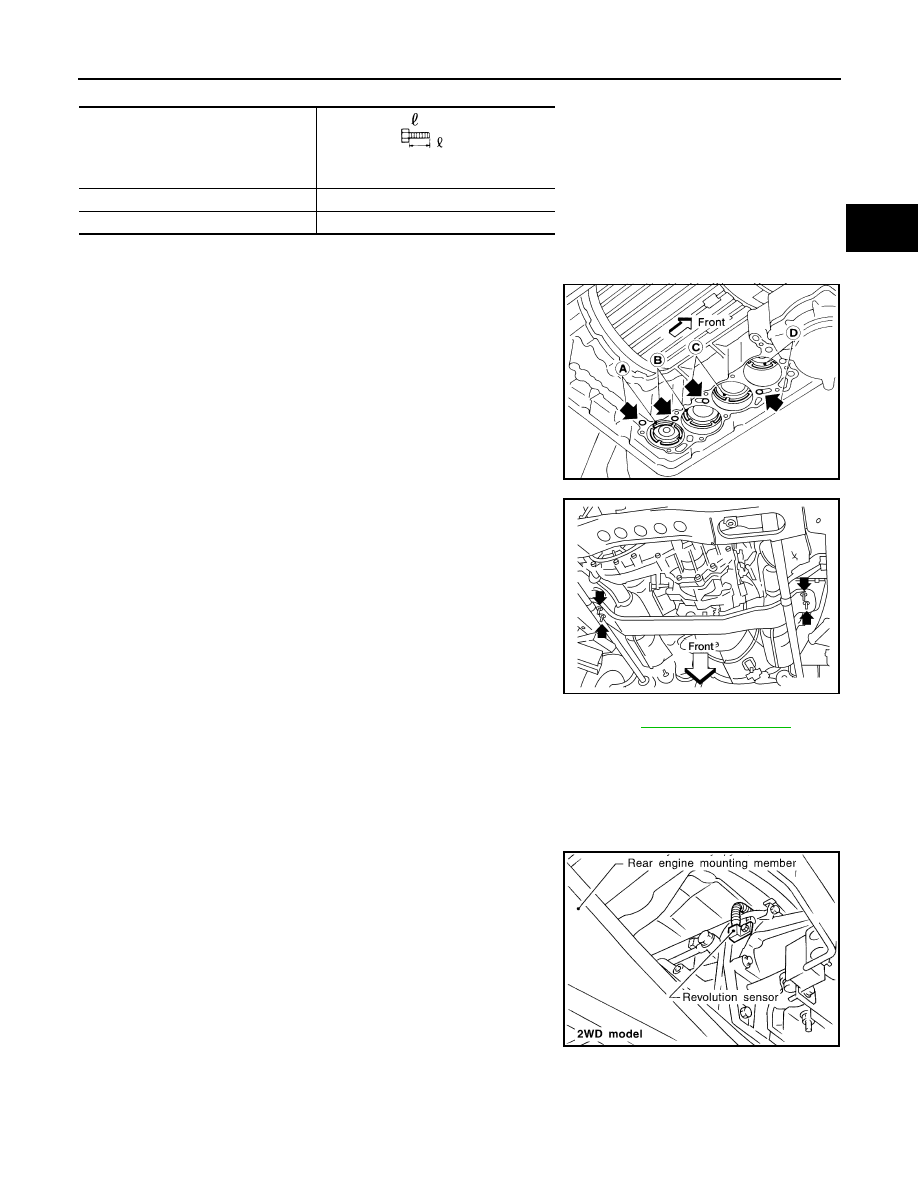

Bolt length and location

7.

Remove solenoids and valves from valve body if necessary.

8.

Remove terminal cord assembly if necessary.

9.

Remove accumulator A, B, C  and D  by applying compressed
air if necessary.

●

Hold each piston with rag.

10. Reinstall any part removed.

●

Always use new sealing parts.

●

Always replace oil pan bolts as they are self-sealing bolts.

Revolution Sensor Replacement

ECS007P0

—4WD MODEL—

1.

Remove rear engine mounting member from side member while supporting A/T with transfer case with
jack. Tighten rear engine mounting member to the specified torque. Refer to

EM-129, "REMOVAL"

 .

2.

Lower A/T with transfer case as much as possible.

3.

Remove revolution sensor from A/T.

4.

Reinstall any part removed.

●

Always use new sealing parts.

—2WD MODEL—

●

Remove revolution sensor from A/T.

●

Always use new sealing parts.

Bolt symbol

 mm (in)

A

33 (1.30)

B

45 (1.77)

SAT074BA

AAT565A

SAT661I

AT-404

[RE4R01A]

ON-VEHICLE SERVICE

Turbine Revolution Sensor Replacement (VG33ER only)

ECS007P1

1.

Remove A/T assembly. Refer to

AT-407, "Removal"

 .

2.

Remove turbine revolution sensor from A/T assembly upper
side.

3.

Reinstall any part removed.

●

Always use new sealing parts.

Rear Oil Seal Replacement

ECS007P2

—4WD MODEL—

1.

Remove transfer case from vehicle. Refer to

TF-11, "Removal"

 .

2.

Remove rear oil seal.

3.

Install rear oil seal.

●

Apply ATF before installing.

4.

Reinstall any part removed.

—2WD MODEL—

1.

Remove propeller shaft from vehicle. Refer to

PR-8, "Removal

and Installation"

 .

2.

Remove rear oil seal.

3.

Install rear oil seal.

–

Apply ATF before installing.

4.

Reinstall any part removed.

SAT136K

SAT035E

SAT662I
