OVERHAUL

AT-77

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

18. Remove output shaft and parking gear.

a.

Remove governor valve assembly.

b.

Remove rear snap ring from output shaft.

c.

Slowly push output shaft all the way forward.

Do not use excessive force.

d.

Remove snap ring from output shaft.

e.

Remove output shaft and parking gear as a unit from transmis-
sion case.

f.

Remove parking gear from output shaft.

SAT120C

SAT310I

SAT957A

SAT311I

AT-78

[RL4R01A]

OVERHAUL

g.

Remove needle bearing from transmission case.

19. Remove rear side clutch and gear components.

a.

Remove front internal gear.

b.

Remove bearing race from front internal gear.

c.

Remove needle bearing from rear internal gear.

d.

Remove rear internal gear, forward clutch hub and overrun
clutch hub as a set from transmission case.

SAT033B

SAT954A

SAT110B

SAT111B

SAT951A

OVERHAUL

AT-79

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

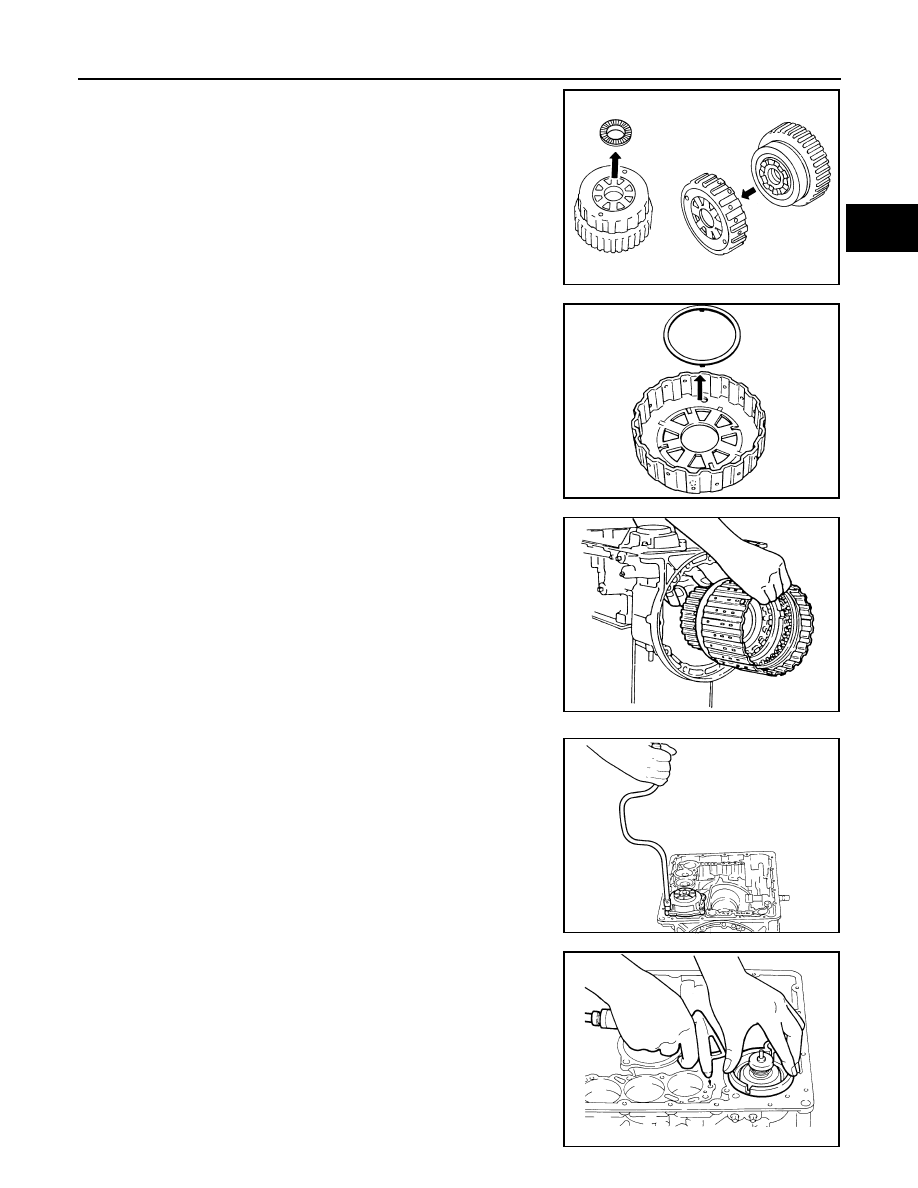

e.

Remove needle bearing from overrun clutch hub.

f.

Remove overrun clutch hub from rear internal gear and forward
clutch hub.

g.

Remove thrust washer from overrun clutch hub.

h.

Remove forward clutch assembly from transmission case.

20. Remove band servo and accumulator components.
a.

Remove band servo retainer from transmission case.

b.

Apply compressed air to oil hole until band servo piston comes
out of transmission case.

Hold piston with a rag and gradually direct air to oil hole.

c.

Remove return springs.

SAT682H

SAT036B

SAT037B

SAT038B

SAT039B

AT-80

[RL4R01A]

OVERHAUL

d.

Remove springs from accumulator pistons A , B , C  and D .

e.

Apply compressed air to each oil hole until piston comes out.

Hold piston with a rag and gradually direct air to oil hole.

f.

Remove O-ring from each piston.

21. Remove throttle wire components if necessary.

a.

Remove throttle wire from A/T assembly.

b.

Remove throttle lever shaft E-ring.

c.

Remove return spring.

d.

Remove throttle lever.

SAT040BA

Identification of accumulator pistons

A

B

C

D

Identification of oil holes

a

b

c

d

SAT618GA

SAT135C

SAT136C
