Nissan Frontier D22. Manual - part 26

OVERHAUL

AT-73

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

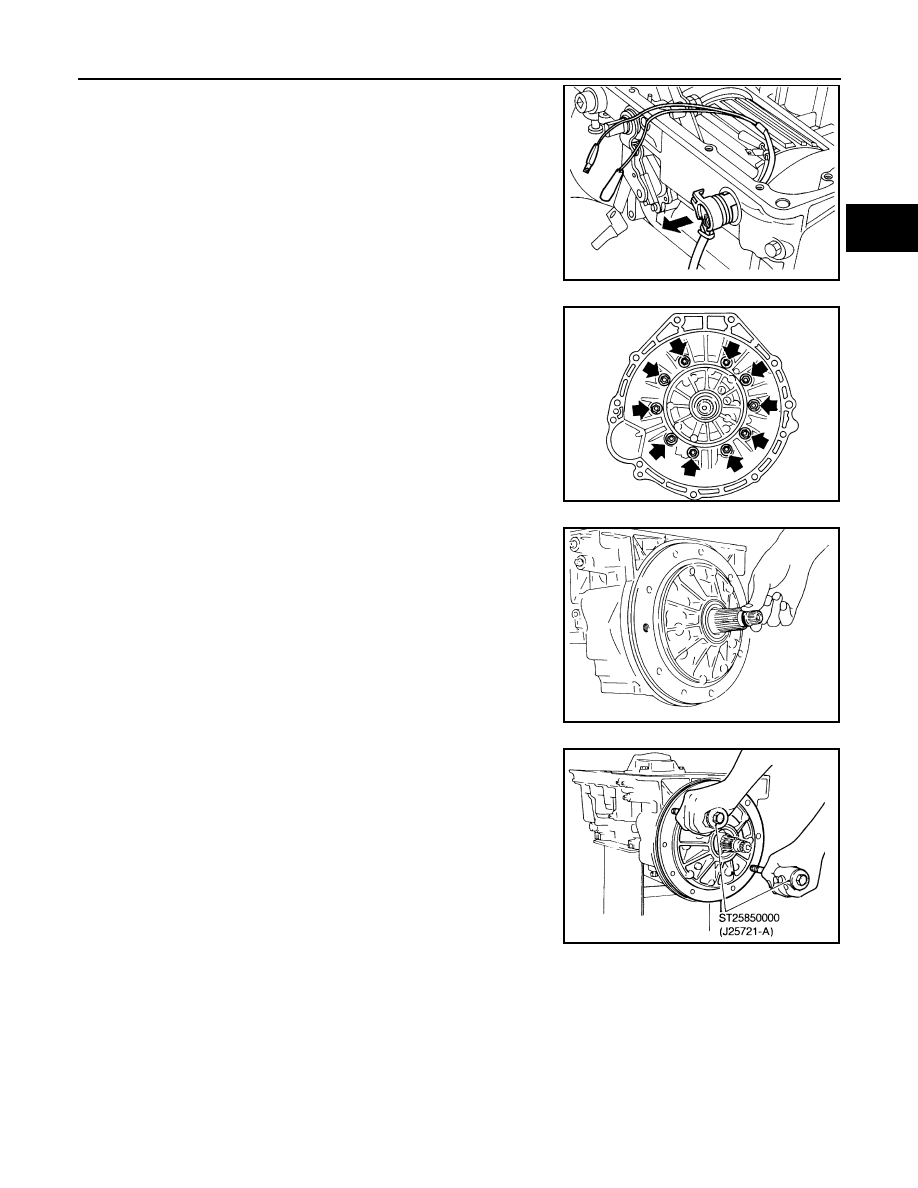

10. Remove terminal cord assembly from transmission case while

pushing on stopper.

●

Be careful not to damage cord.

●

Do not remove terminal cord assembly unless it is dam-
aged.

11. Remove converter housing.

a.

Remove converter housing bolts.

b.

Remove traces of sealant.

●

Be careful not to scratch converter housing.

12. Remove O-ring from input shaft.

13. Remove oil pump assembly.

a.

Attach Tool to oil pump assembly and extract it evenly from
transmission case.

SAT308I

SAT999A

SAT995A

SAT027B

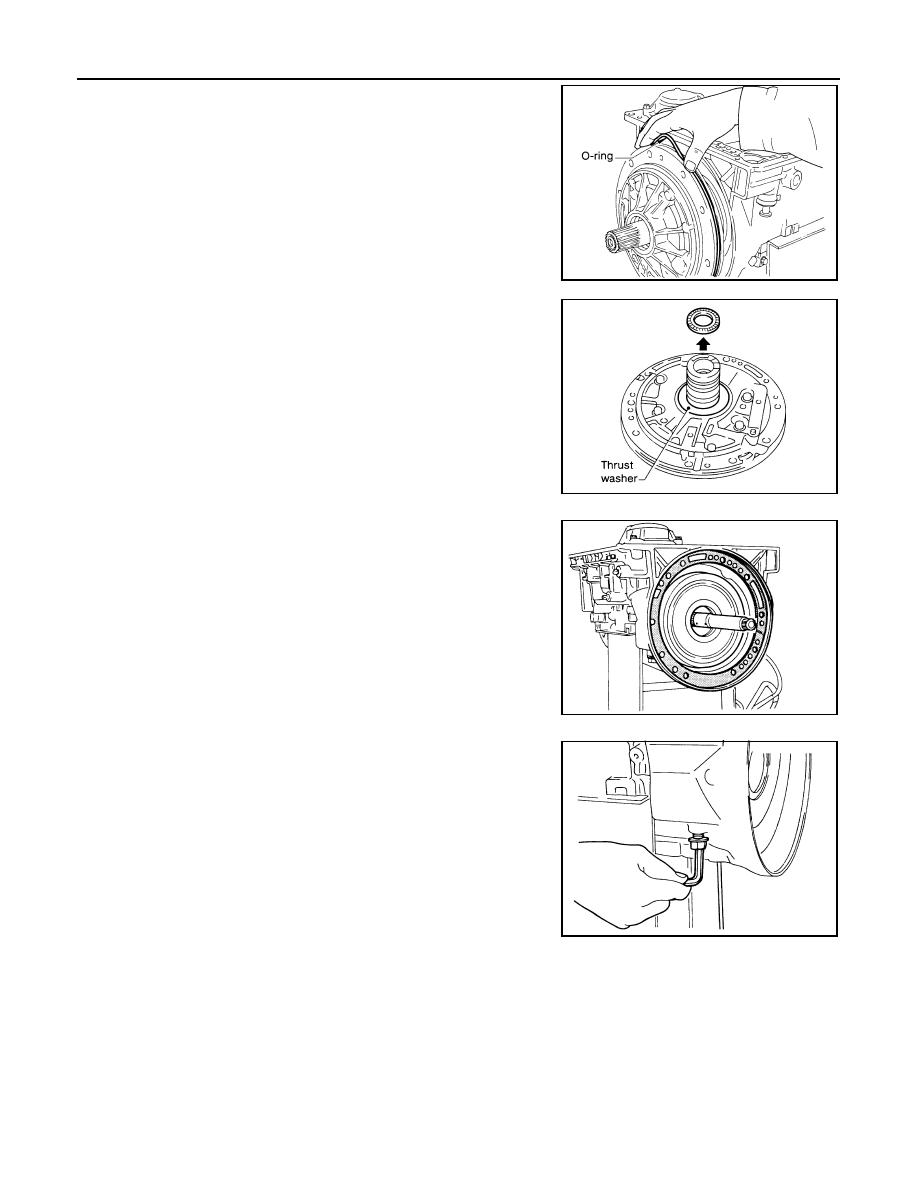

AT-74

[RL4R01A]

OVERHAUL

b.

Remove O-ring from oil pump assembly.

c.

Remove traces of sealant from oil pump housing.

●

Be careful not to scratch pump housing.

d.

Remove needle bearing and thrust washer from oil pump
assembly.

14. Remove input shaft and oil pump gasket.

15. Remove brake band and band strut.

a.

Loosen lock nut and remove band servo anchor end pin from
transmission case.

SAT028B

SAT108B

SAT988A

SAT029B

OVERHAUL

AT-75

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

b.

Remove brake band and band strut from transmission case.

●

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at left. Leave the clip in position after removing
the brake band.

c.

Check brake band facing for damage, cracks, wear and burns.

16. Remove front side clutch and gear components.
a.

Remove clutch pack (reverse clutch, high clutch and front sun
gear) from transmission case.

b.

Remove front bearing race from clutch pack.

c.

Remove rear bearing race from clutch pack.

SAT986A

SAT655

SAT030B

SAT374I

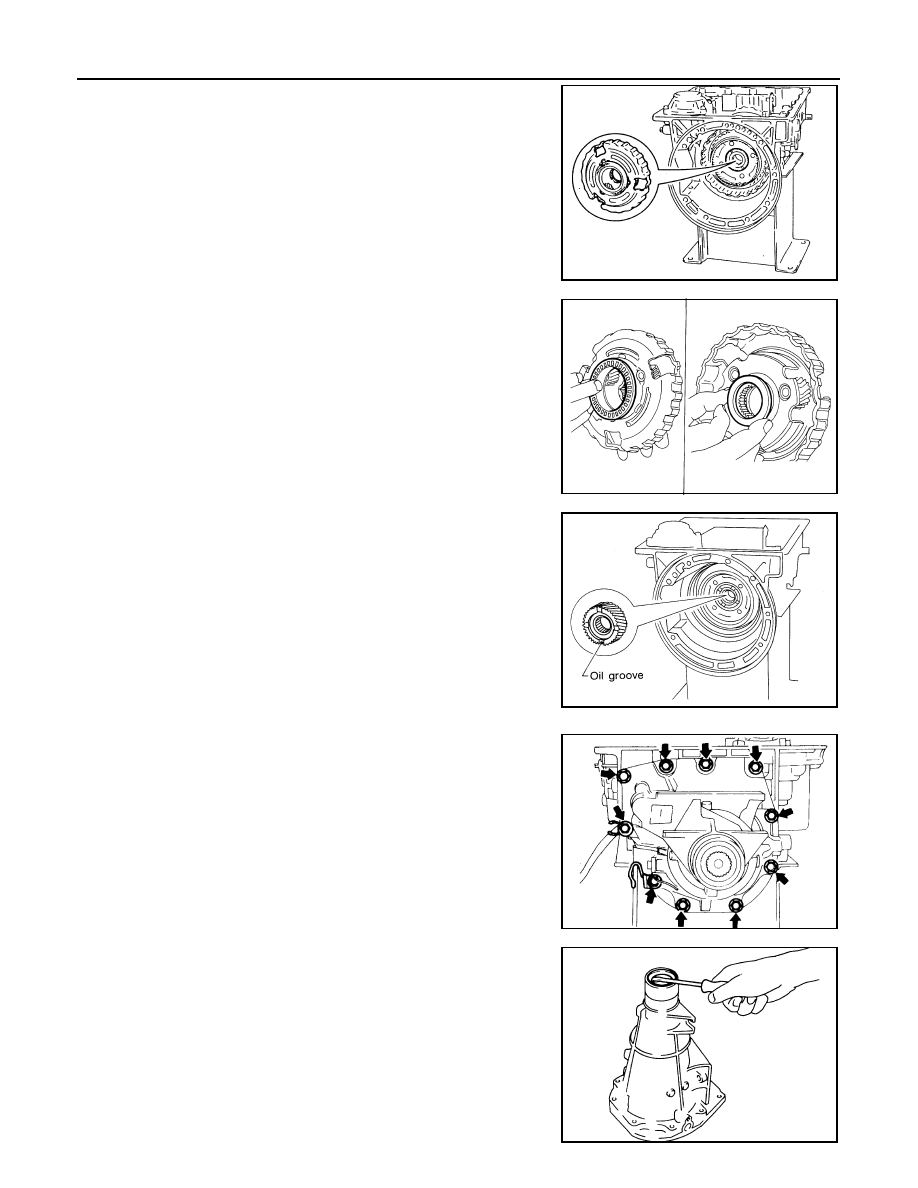

AT-76

[RL4R01A]

OVERHAUL

d.

Remove front planetary carrier from transmission case.

e.

Remove front needle bearing from front planetary carrier.

f.

Remove rear bearing from front planetary carrier.

g.

Remove rear sun gear from transmission case.

17. Remove rear extension case.
a.

Remove rear extension case from transmission case.

b.

Remove rear extension gasket from transmission case.

c.

Remove oil seal from rear extension case.

●

Do not remove oil seal unless it is to be replaced.

SAT031B

SAT968A

SAT974A

SAT309I

SAT190B
