Nissan Frontier D22. Manual - part 25

OVERHAUL

AT-69

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Locations of Needle Bearings, Thrust Washers and Snap Rings

ECS007JF

WAT378

AT-70

[RL4R01A]

OVERHAUL

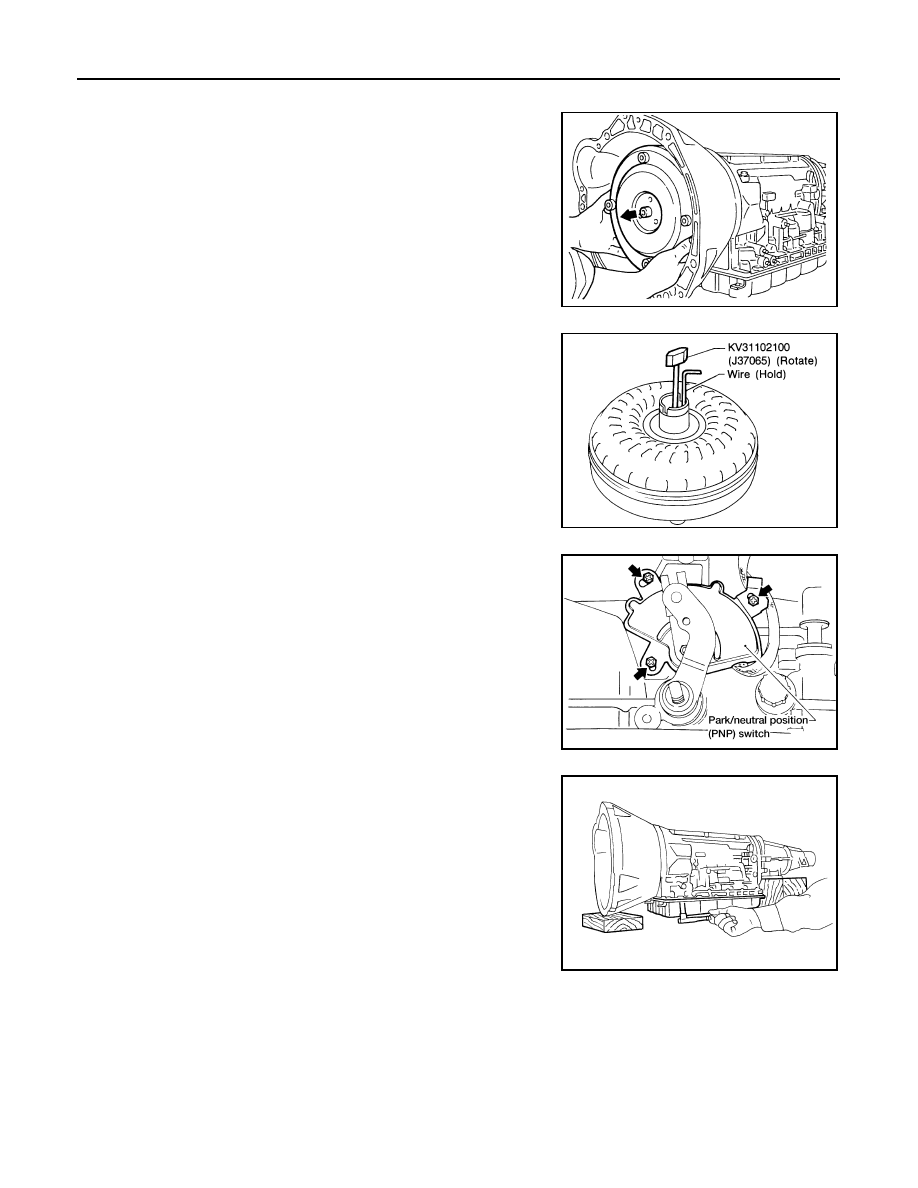

Disassembly

ECS007JG

1.

Removing torque converter by holding it firmly and turning while
pulling straight out.

2.

Check torque converter one-way clutch.

a.

Insert Tool into spline of one-way clutch inner race.

b.

Hook bearing support unitized with one-way clutch outer race
with suitable wire.

c.

Check that one-way clutch inner race rotates only clockwise with
Tool while holding bearing support with wire.

3.

Remove PNP switch from transmission case.

4.

Separate the oil pan and transmission case.

a.

Drain ATF from drain plug.

b.

Raise oil pan by placing wooden blocks under converter housing
and adapter case.

c.

Remove oil pan and gasket.

●

Always place oil pan straight down so that foreign parti-
cles inside will not move.

●

Always replace oil pan bolts as they are self-sealing
bolts.

SAT018B

SAT019BA

AAT528A

SAT186B

OVERHAUL

AT-71

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

5.

Check foreign materials in oil pan to help determine cause of
malfunction. If the fluid is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish buildup. Varnish can cause valves, servo, and clutches
to stick and may inhibit pump pressure.

●

If frictional material is detected, replace radiator after
repair of A/T. Refer to

CO-14, "RADIATOR"

 .

6.

Place transmission into Tool with the control valve facing up.

7.

Remove torque converter clutch solenoid valve and overdrive
cancel solenoid valve connectors.

8.

Remove oil strainer.

a.

Remove oil strainer from control valve assembly.
Then remove O-ring from oil strainer.

SAT171B

SAT522G

SAT132C

SAT306I

AT-72

[RL4R01A]

OVERHAUL

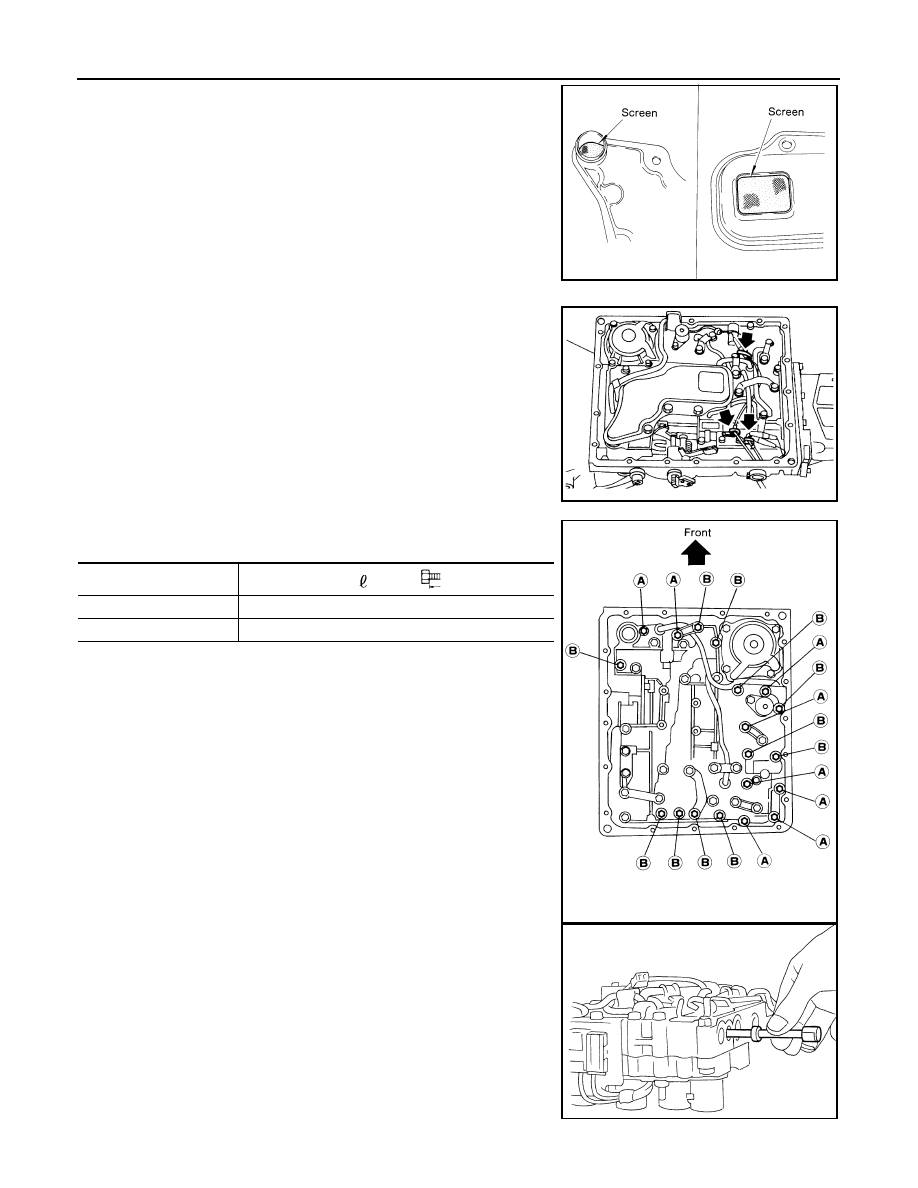

b.

Check oil strainer screen for damage.

9.

Remove control valve assembly.

a.

Straighten terminal clips to free terminal cords, then remove ter-
minal clips.

b.

Remove bolts A  and B , and remove control valve assembly
from transmission.

c.

Remove manual valve from control valve assembly.

SAT025B

SAT307I

Bolt

 mm (in)

A

33 (1.30)

B

45 (1.77)

SAT146HA

SAT127B
