BCM (BODY CONTROL MODULE)

WW-37

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

15

W

Tire pressure warning
check connector

Input

OFF

—

5V

18

BR

Remote keyless entry
receiver and optical
sensor (ground)

Output

OFF

—

0V

19

V

Remote keyless entry
receiver (power sup-
ply)

Output

OFF

Ignition switch OFF

20

G

Remote keyless entry
receiver (signal)

Input

OFF

Stand-by (keyfob buttons re-
leased)

When remote keyless entry
receiver receives signal from
keyfob (keyfob buttons
pressed)

21

GR

NATS antenna amp.

Input

OFF

→

ON

Ignition switch (OFF

→ ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

23

G

Security indicator
lamp

Output

OFF

Goes OFF

→ illuminates (Ev-

ery 2.4 seconds)

Battery voltage

→ 0V

25

BR

NATS antenna amp.

Input

OFF

→

ON

Ignition switch (OFF

→ ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

27

W

Compressor ON sig-
nal

Input

ON

A/C switch OFF

5V

A/C switch ON

0V

28

R

Front blower monitor

Input

ON

Front blower motor OFF

Battery voltage

Front blower motor ON

0V

29

G

Hazard switch

Input

OFF

ON

0V

OFF

5V

31

R

Off-road lamps switch

Input

ON

ON

0V

OFF

5V

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

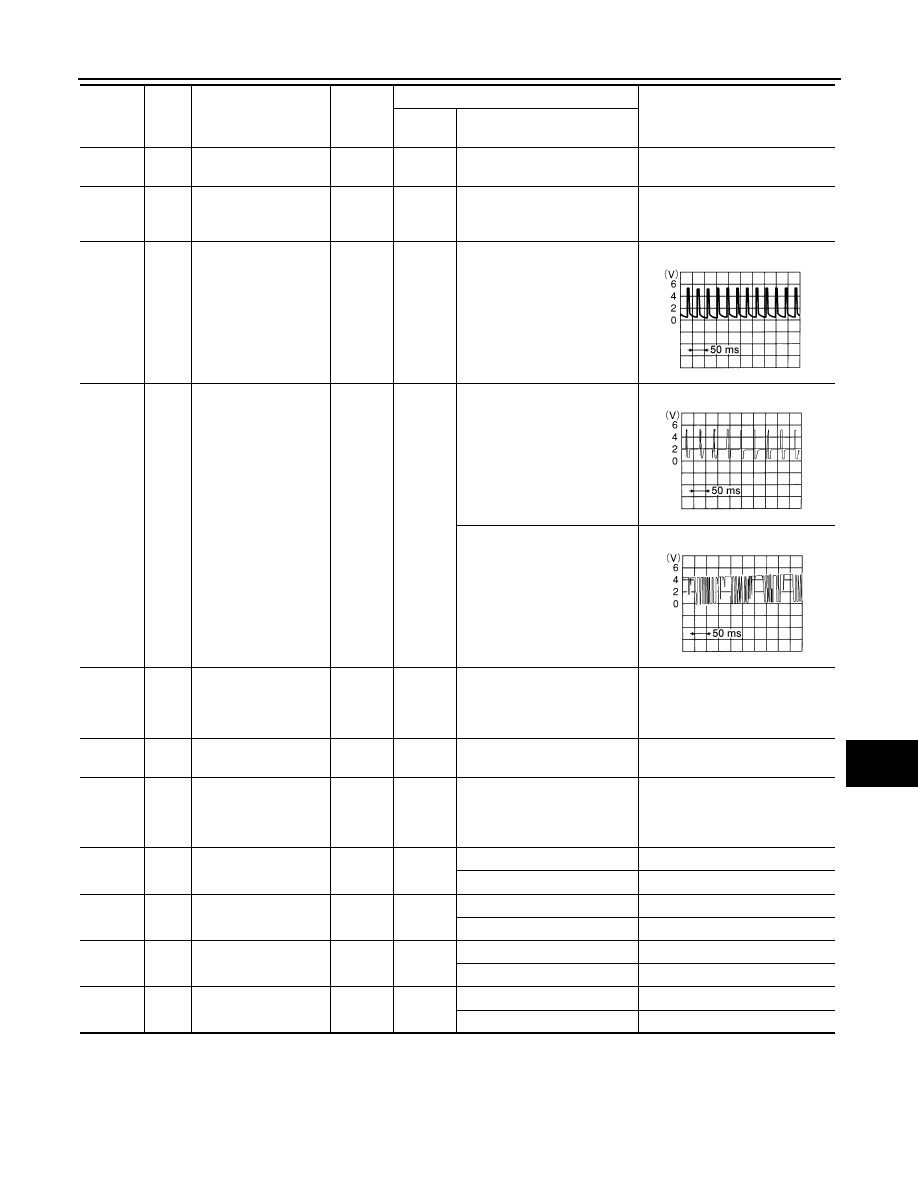

LIIA1893E

LIIA1894E

LIIA1895E

WW-38

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

32

BG

Combination switch
output 5

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

33

GR

Combination switch
output 4

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

34

G

Combination switch
output 3

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

35

BR

Combination switch
output 2

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

36

LG

Combination switch
output 1

37

B

Key switch and key
lock solenoid

Input

OFF

Key inserted

Battery voltage

Key removed

0V

38

W/R

Ignition switch (ON)

Input

ON

—

Battery voltage

39

L

CAN-H

—

—

—

—

40

P

CAN-L

—

—

—

—

41

Y

Rear window defogger
switch

Input

ON

Rear window defogger switch
ON

0V

Rear window defogger switch
OFF

5V

42

L

Off-road lamps

Output

ON

Off-road
lamps switch

ON 0V

OFF Battery

voltage

43

Y

Back door switch

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

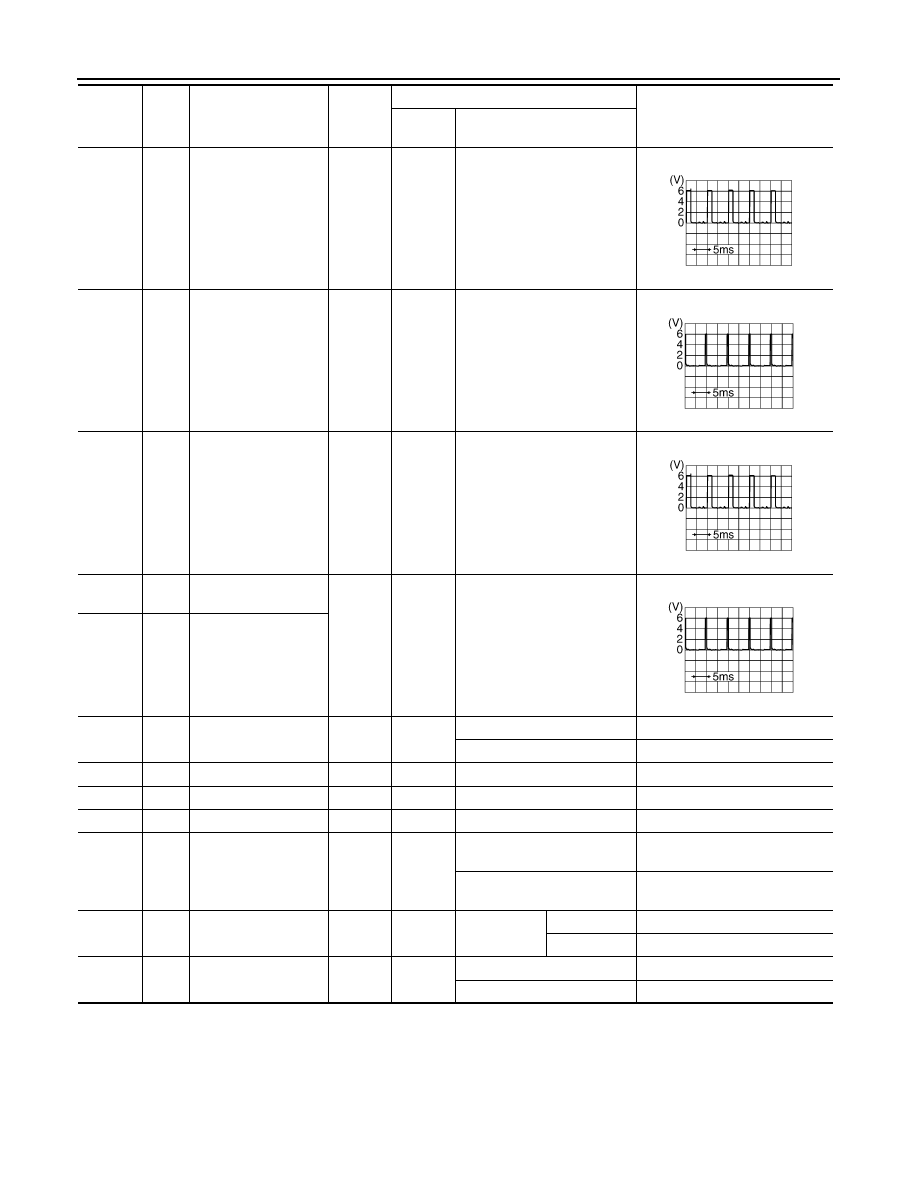

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

BCM (BODY CONTROL MODULE)

WW-39

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

44

BG

Rear wiper auto stop
switch

Input

ON

Rise up position (rear wiper
arm on stopper)

0V

A Position (full clockwise stop
position)

Battery voltage

Forward sweep (counterclock-
wise direction)

Fluctuating

B Position (full counterclock-
wise stop position)

0V

Reverse sweep (clockwise di-
rection)

Fluctuating

45

V

Lock switch

Input

OFF

ON (lock)

0V

OFF

Battery voltage

46

LG

Unlock switch

Input

OFF

ON (unlock)

0V

OFF

Battery voltage

47

GR

Front door switch LH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

48

P

Rear door switch LH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

49

L

Cargo lamp

Output

OFF

Any door open (ON)

0V

All doors closed (OFF)

Battery voltage

50

W

Off-road lamps relay

Output

ON

Off-road
lamps switch

ON 0V

OFF

Battery voltage

51

BG

Trailer turn signal
(right)

Output

ON

Turn right ON

52

LG

Trailer turn signal (left)

Output

ON

Turn left ON

55

W

Rear wiper output cir-
cuit 1

Output

ON

OFF

0

ON

Battery voltage

56

R/Y

Battery saver output

Output

OFF

10 minutes after ignition
switch is turned OFF

0V

ON

—

Battery voltage

57

R/Y

Battery power supply

Input

OFF

—

Battery voltage

58

W

Optical sensor

Input

ON

When optical sensor is illumi-
nated

3.1V or more

When optical sensor is not illu-
minated

0.6V or less

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

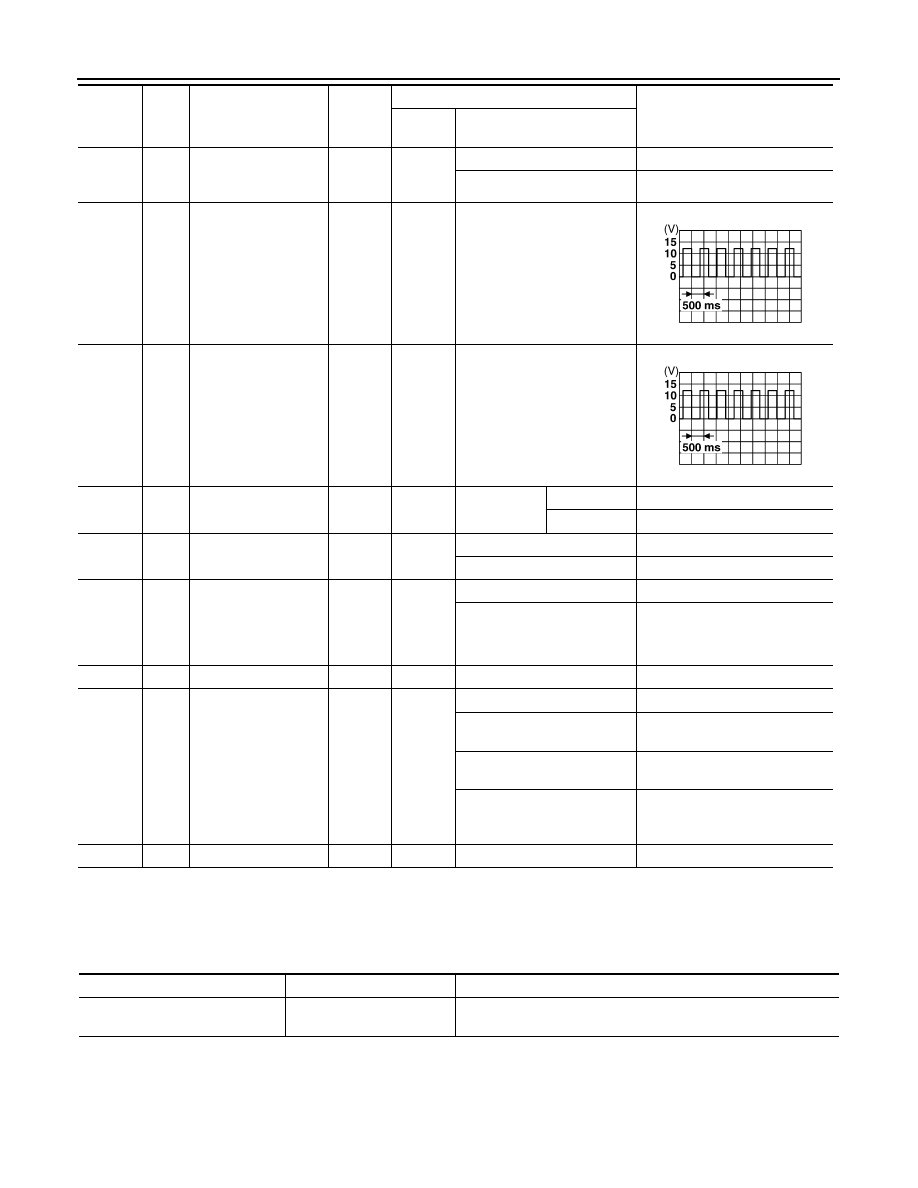

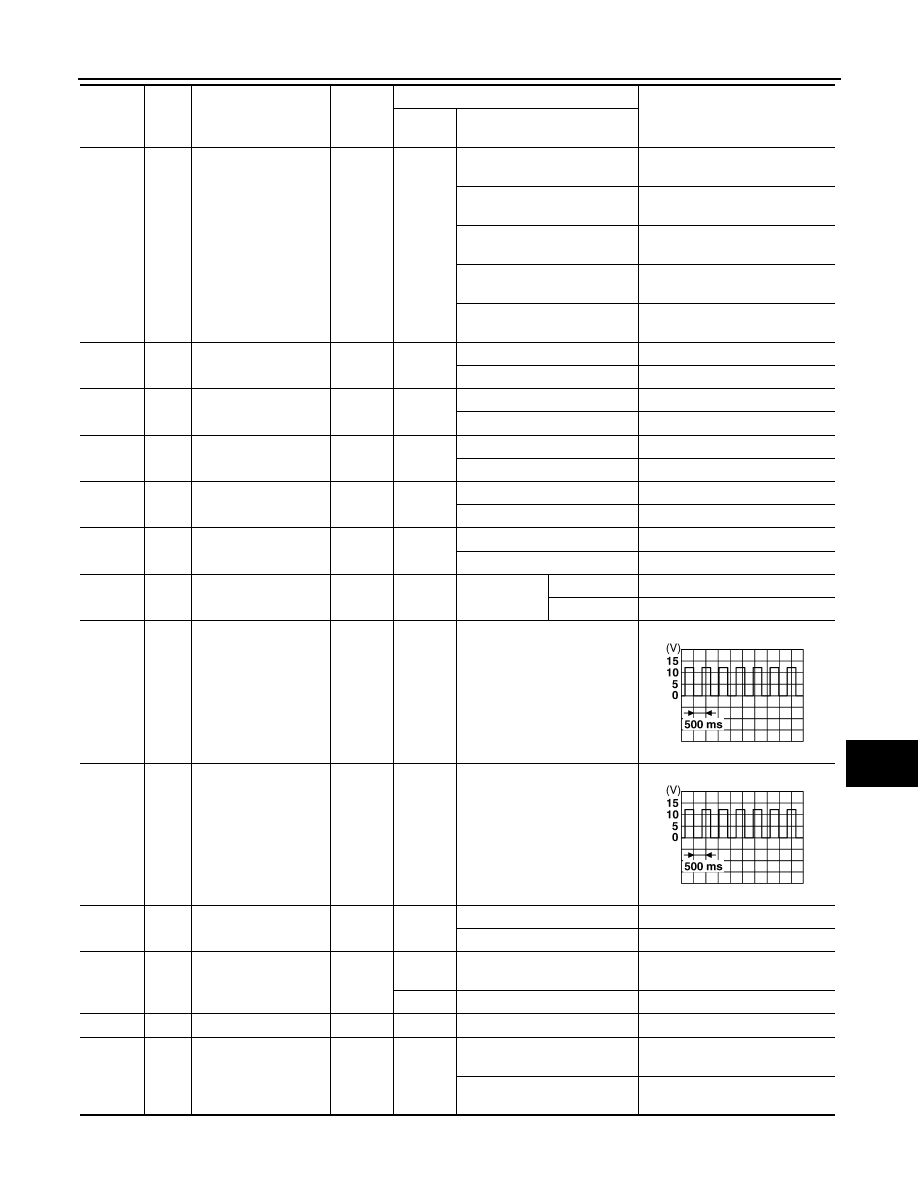

SKIA3009J

SKIA3009J

WW-40

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000010247992

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

DTC Inspection Priority Chart

INFOID:0000000010247993

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

59

GR

Front door lock as-
sembly LH actuator
(unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

60

LG

Turn signal (left)

Output

ON

Turn left ON

61

G

Turn signal (right)

Output

ON

Turn right ON

63

BR

Interior room/map
lamp

Output

OFF

Any door
switch

ON (open)

0V

OFF (closed)

Battery voltage

65

V

All door lock actuators
(lock)

Output

OFF

OFF (neutral)

0V

ON (lock)

Battery voltage

66

L

Front door lock actua-
tor RH, rear door lock
actuators LH/RH and
back door lock actua-
tor (unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

67

B

Ground

Input

ON

—

0V

68

SB

Power window power
supply (RAP)

Output

—

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after ig-
nition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

70

W

Battery power supply

Input

OFF

—

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA3009J

SKIA3009J

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.
