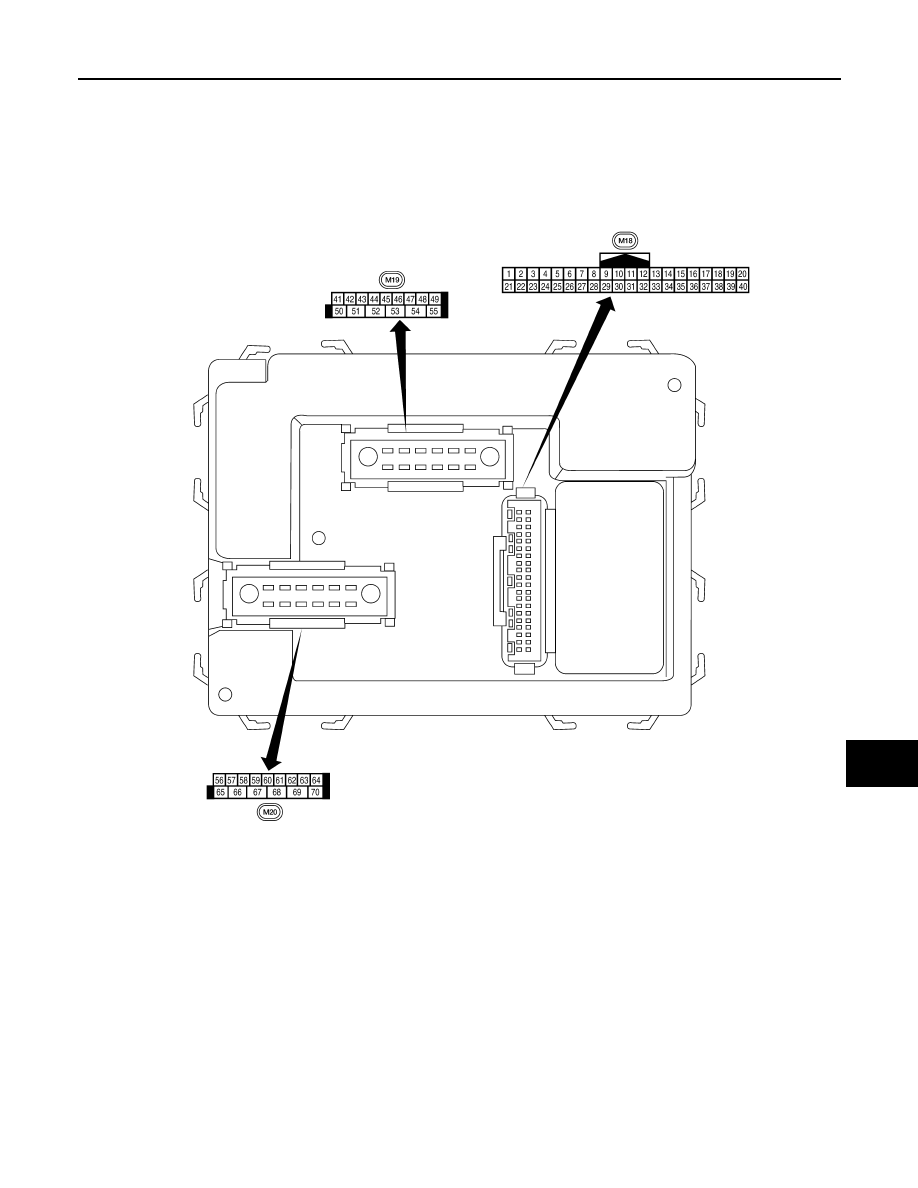

BCM (BODY CONTROL MODULE)
WW-33
< ECU DIAGNOSIS INFORMATION >
C
D
E
F
G
H
I
J
K
M
A
B
WW
N
O
P
ENGINE RUN
Engine stopped
Off
Engine running
On
FAN ON SIG
Blower motor fan switch OFF
Off
Blower motor fan switch ON
On
FR FOG SW
Front fog lamp switch OFF
Off
Front fog lamp switch ON
On
FR WASHER SW
Front washer switch OFF
Off
Front washer switch ON
On
FR WIPER LOW
Front wiper switch OFF
Off
Front wiper switch LO
On
FR WIPER HI
Front wiper switch OFF
Off
Front wiper switch HI
On
FR WIPER INT
Front wiper switch OFF
Off
Front wiper switch INT
On
FR WIPER STOP
Any position other than front wiper stop position
Off
Front wiper stop position
On
HAZARD SW
When hazard switch is not pressed
Off
When hazard switch is pressed
On
HEAD LAMP SW 1
Headlamp switch OFF
Off
Headlamp switch 1st
On
HEAD LAMP SW 2
Headlamp switch OFF
Off
Headlamp switch 1st
On
HI BEAM SW
High beam switch OFF
Off
High beam switch HI
On
ID REGST FL1
ID registration of front left tire incomplete
YET
ID registration of front left tire complete
DONE
ID REGST FR1
ID registration of front right tire incomplete
YET
ID registration of front right tire complete
DONE
ID REGST RL1
ID registration of rear left tire incomplete
YET
ID registration of rear left tire complete
DONE
ID REGST RR1
ID registration of rear right tire incomplete
YET
ID registration of rear right tire complete
DONE
IGN ON SW
Ignition switch OFF or ACC
Off
Ignition switch ON
On
IGN SW CAN
Ignition switch OFF or ACC
Off
Ignition switch ON
On
INT VOLUME
Wiper intermittent dial is in a dial position 1 - 7
1 - 7
KEY CYL LK-SW
Door key cylinder LOCK position
Off
Door key cylinder other than LOCK position
On
KEY CYL UN-SW
Door key cylinder UNLOCK position
Off
Door key cylinder other than UNLOCK position
On
KEY ON SW
Mechanical key is removed from key cylinder
Off
Mechanical key is inserted to key cylinder
On
Monitor Item
Condition
Value/Status
