REAR WIPER MOTOR CIRCUIT

WW-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

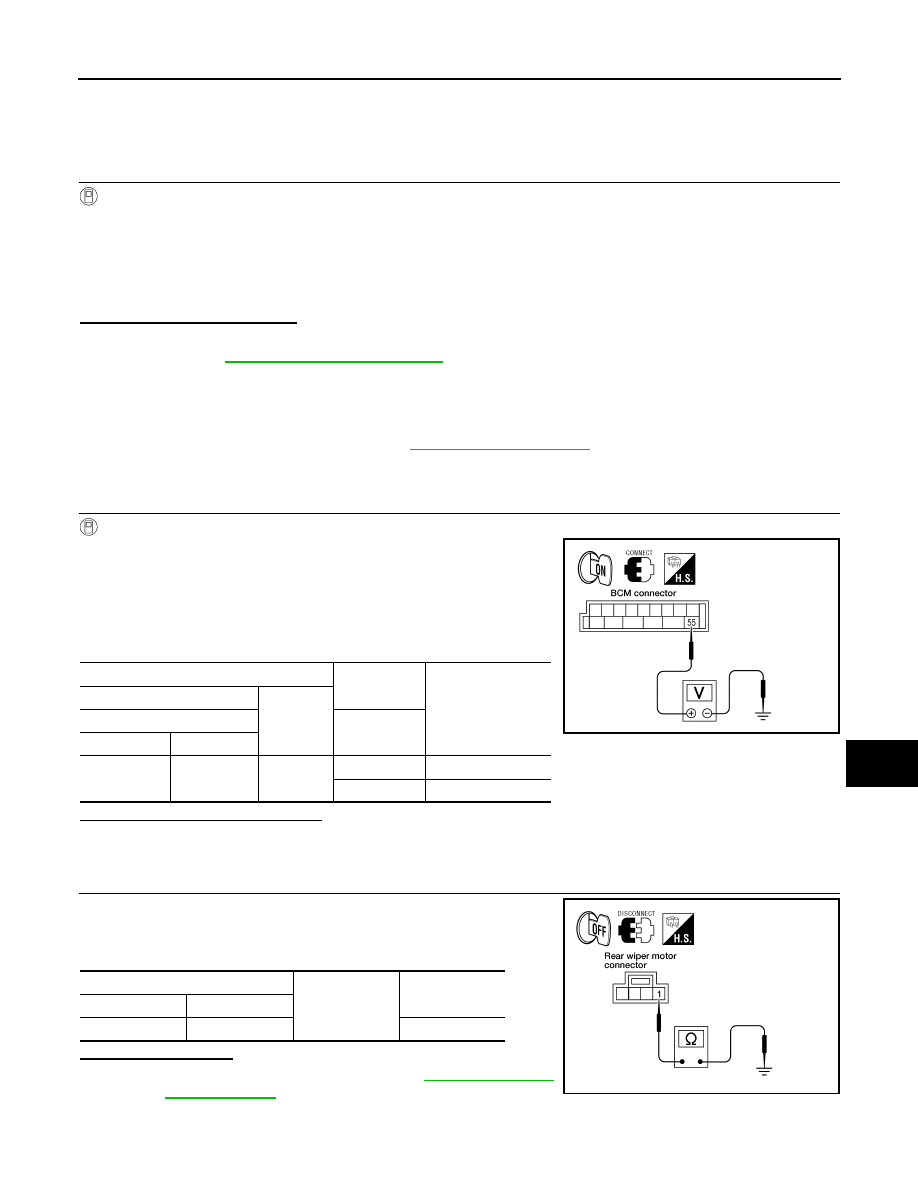

REAR WIPER MOTOR CIRCUIT

Component Function Check

INFOID:0000000009484705

1.

 CHECK REAR WIPER ON OPERATION

CONSULT ACTIVE TEST

1. Select "RR WIPER" of BCM active test item.

2. While operating the test item, check rear wiper ON operation and OFF.

Is rear wiper operation normal?

YES

>> Rear wiper motor circuit is normal.

NO

>> Refer to

WW-29, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009484706

Regarding Wiring Diagram information, refer to

WW-55, "Wiring Diagram"

.

1.

 CHECK REAR WIPER MOTOR OUTPUT VOLTAGE

CONSULT ACTIVE TEST

1. Turn the ignition switch OFF.

2. Disconnect rear wiper motor.

3. Turn the ignition switch ON.

4. Select "RR WIPER" of BCM active test item.

5. While operating the test item, check voltage between BCM har-

ness connector and ground.

Is the measurement value normal?

YES

>> GO TO 2

NO

>> GO TO 3

2.

 CHECK REAR WIPER MOTOR GROUND CIRCUIT

1. Turn the ignition switch OFF.

2. Check continuity between rear wiper motor harness connector

and ground.

Does continuity exist?

YES

>> Replace rear wiper motor. Refer to

WW-73, "Removal

and Installation"

.

NO

>> Repair or replace harness.

ON

: Rear wiper ON operation

OFF

: Stop the rear wiper.

Terminals

Test item

Voltage

(Approx.)

(+)

(

−)

BCM

REAR WIPER

Connector

Terminal

M19

55

Ground

ON

Battery voltage

OFF

0V

LKIA0551E

Rear wiper motor

Ground

Continuity

Connector

Terminal

D509

1

Yes

LKIA0550E

WW-30

< DTC/CIRCUIT DIAGNOSIS >

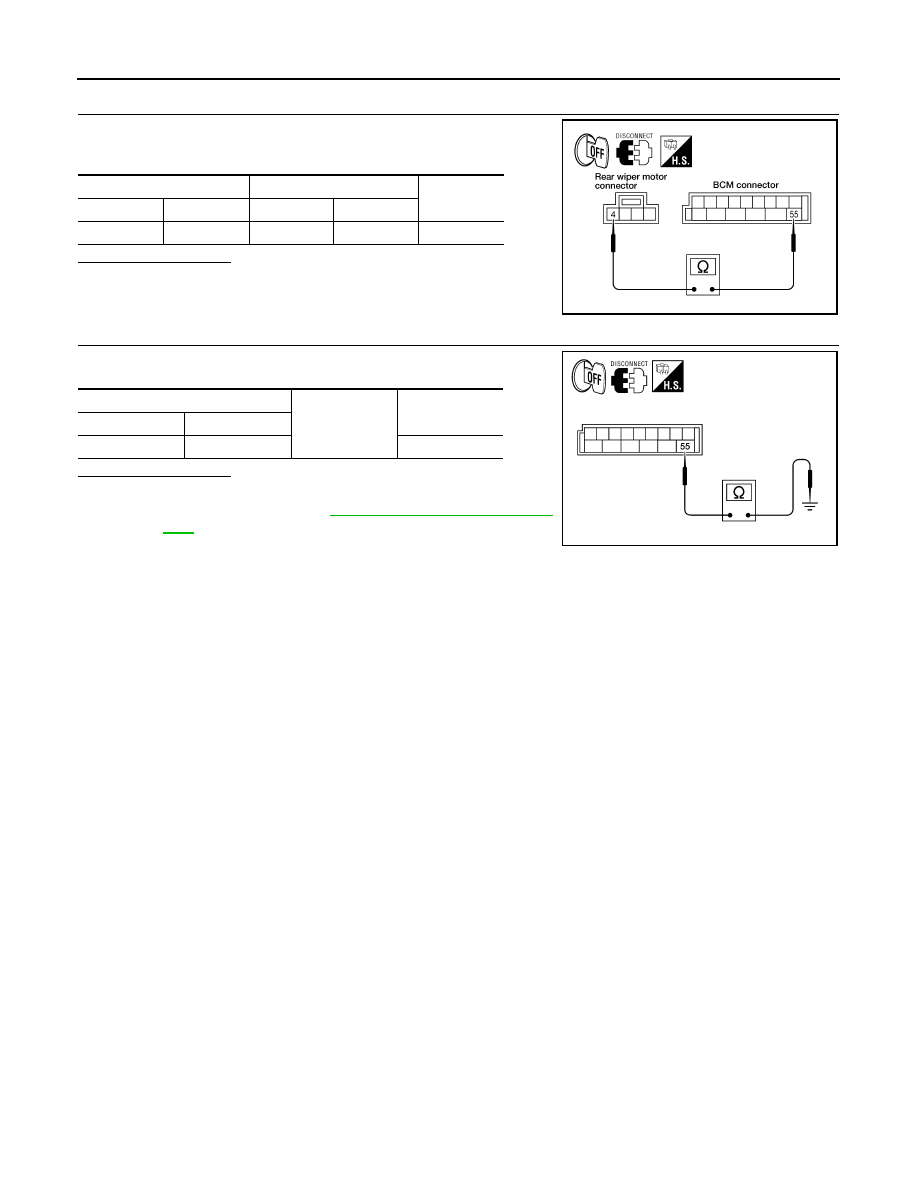

REAR WIPER MOTOR CIRCUIT

3.

 CHECK REAR WIPER MOTOR OPEN CIRCUIT

1. Check continuity between BCM harness connector and rear

wiper motor harness connector.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK REAR WIPER MOTOR SHORT CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> Replace BCM. Refer to

BCS-50, "Removal and Installa-

tion"

.

BCM

Rear wiper motor

Continuity

Connector

Terminal

Connector

Terminal

M19

55

D509

4

Yes

LKIA0548E

BCM

Ground

Continuity

Connector

Terminal

M19

55

No

ALLIA0650ZZ

REAR WIPER AUTO STOP SIGNAL CIRCUIT

WW-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

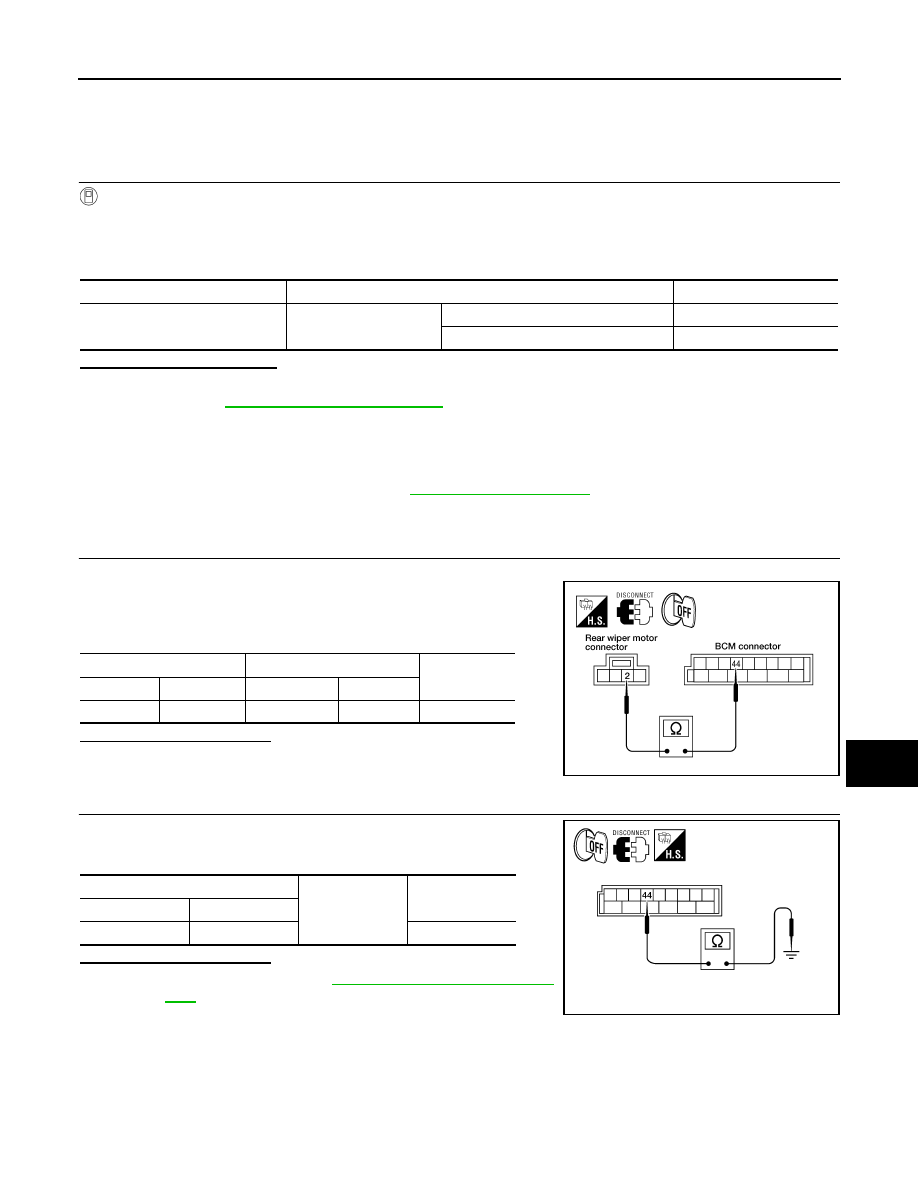

REAR WIPER AUTO STOP SIGNAL CIRCUIT

Component Function Check

INFOID:0000000009484707

1.

 CHECK REAR WIPER (AUTO STOP) OPERATION

CONSULT DATA MONITOR

1. Select "WIPER" of BCM data monitor item.

2. Operate the rear wiper.

3. Check that "RR WIPER STOP" changes to "ON" and "OFF" linked with the wiper operation.

Is the status of item normal?

YES

>> Rear wiper auto stop signal circuit is normal.

NO

>> Refer to

WW-31, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009484708

Regarding Wiring Diagram information, refer to

WW-55, "Wiring Diagram"

.

1.

 CHECK REAR WIPER MOTOR AUTO STOP CIRCUITS FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM and rear wiper motor.

3. Check continuity between BCM harness connector terminals

and rear wiper motor harness connector terminals.

Is inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK AUTO STOP CIRCUITS FOR SHORT TO GROUND

Check continuity between BCM harness connector terminals and

ground.

Is inspection result normal?

YES

>> Replace BCM. Refer to

BCS-50, "Removal and Installa-

tion"

.

NO

>> Repair or replace harness.

Monitor item

Condition

Monitor status

RR WIPER STOP

Rear wiper motor

Stop position

ON

Except stop position

OFF

BCM

Rear wiper motor

Continuity

Connector

Terminal

Connector

Terminal

M19

44

D509

2

Yes

LKIA0552E

BCM

Ground

Continuity

Connector

Terminal

M19

44

No

ALLIA0651ZZ

WW-32

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000010247988

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BACK DOOR SW

Back door closed

Off

Back door opened

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CARGO LAMP SW

Cargo lamp switch OFF

Off

Cargo lamp switch ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On
