REAR WIPER AND WASHER SYSTEM

WW-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

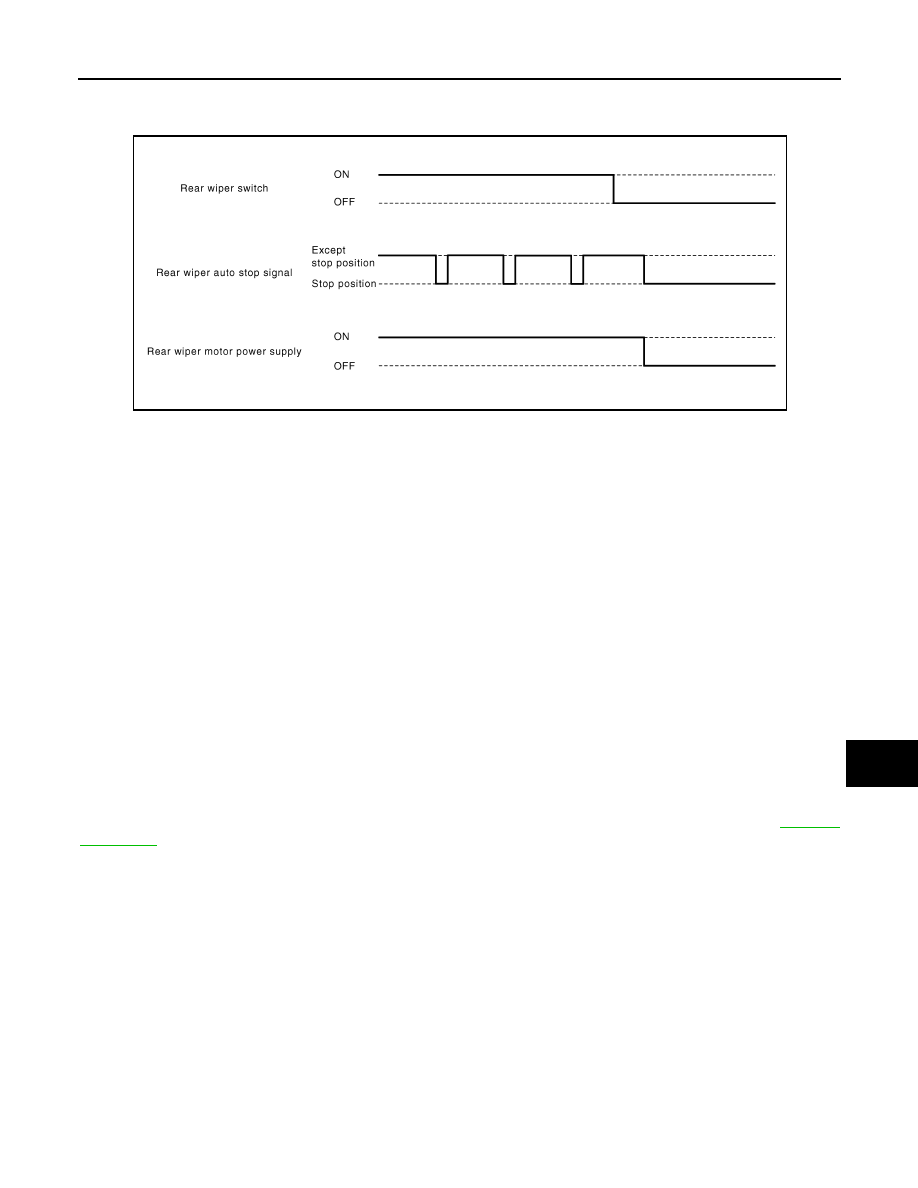

• BCM reads an auto stop signal from the rear wiper motor to detect a rear wiper motor position.

• When the rear wiper motor is at other than the stopping position, BCM continues to supply power to the rear

wiper motor until it returns to the stopping position.

NOTE:

BCM stops supplying power to the rear wiper motor when the ignition switch is turned OFF.

REAR WIPER OPERATION LINKED WITH WASHER

• BCM supplies power to the rear wiper motor according to the washer linked operating condition of rear

wiper. When the rear washer switch is turned OFF, BCM controls rear wiper to operate approximately three

times.

Washer linked operating condition of rear wiper

- Ignition switch ON

- Rear washer switch ON (0.4 second or more)

• Front and rear washer motor becomes grounded through the combination switch (wiper and washer switch)

when the rear washer switch is turned ON.

REAR WIPER DROP WIPE OPERATION

• BCM controls the rear wiper to operate once according to the rear wiper drop wipe operating condition.

Rear wiper drop wipe operating condition

- Ignition switch ON

- Rear wiper switch OFF

- Rear washer switch OFF

• BCM controls the rear wiper so that it operates once time approximately three seconds later after the washer

interlocking operation of the rear wiper.

REAR WIPER FAIL

−SAFE OPERATION

BCM performs the fail-safe function when the rear wiper auto stop circuit is malfunctioning. Refer to

BCS-41,

"Fail Safe"

.

JPLIA0166GB

WW-10

< SYSTEM DESCRIPTION >

REAR WIPER AND WASHER SYSTEM

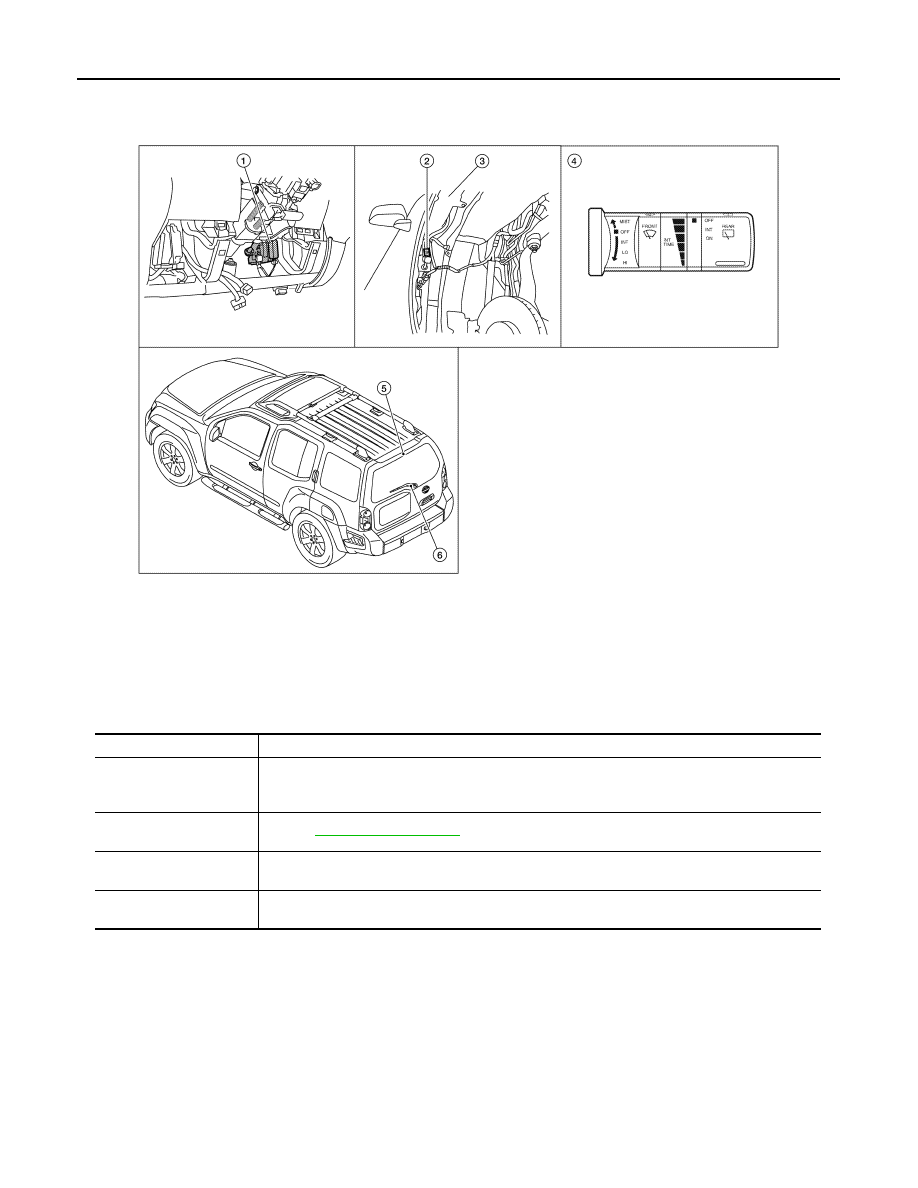

Component Parts Location

INFOID:0000000009484687

Component Description

INFOID:0000000009484688

1.

BCM M18, M19, M20 (view with lower in-
strument panel LH removed)

2.

Front and rear washer motor
E105

3.

Washer fluid reservoir

4.

Combination switch (wiper and washer
switch) M28

5.

Rear washer nozzle

6.

Rear wiper motor D509

ALLIA0829ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.

Combination switch
(Wiper and washer switch)

Refer to

WW-8, "System Diagram"

.

Rear wiper motor

• BCM controls rear wiper operation.
• Sends wiper stop signal to BCM.

Front and rear washer mo-
tor

Pumps washer fluid to front or rear in wash mode.

DIAGNOSIS SYSTEM (BCM)

WW-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010247332

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

WIPER

Direct Diagnostic Mode

Description

ECU Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

C

U Ide

nt

ifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

WW-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

WIPER : CONSULT Function (BCM - WIPER)

INFOID:0000000010247334

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

* : Initial setting

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

IGN SW CAN [On/Off]

Indicates ignition switch ON signal received from IPDM E/R on CAN communication line.

FR WIPER HI [On/Off]

Indicates condition of front wiper operation of combination switch.

FR WIPER LOW [On/Off]

FR WIPER INT [On/Off]

FR WASHER SW [On/Off]

INT VOLUME [1 - 7]

FR WIPER STOP [On/Off]

Indicates front wiper motor auto stop signal received from IPDM E/R on CAN communica-
tion line.

VEHICLE SPEED [km/h/mph]

Indicates vehicle speed signal received from combination meter on CAN communication
line.

RR WIPER ON [On/Off]

Indicates condition of rear wiper operation of combination switch.

RR WIPER INT [On/Off]

RR WASHER SW [On/Off]

RR WIPER STOP [On/Off]

Indicates rear wiper motor auto stop input from rear wiper motor.

Test Item

Description

FR WIPER

This test is able to check front wiper operation [Off/INT/Lo/Hi].

RR WIPER

This test is able to check rear wiper operation [Off/On].

Support Item

Setting

Description

WIPER SPEED SETTING

Off*

Front wiper intermittent time linked with wiper dial position.

On

Front wiper intermittent time linked with vehicle speed and wiper dial position.
