CONTENTS

WIPER & WASHER

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

SYSTEM DESCRIPTION  ..............................

4

FRONT WIPER AND WASHER SYSTEM  ..........

4

System Diagram ........................................................

4

System Description  ...................................................

4

Component Parts Location ........................................

7

Component Description ............................................

7

REAR WIPER AND WASHER SYSTEM  ............

8

System Diagram ........................................................

8

System Description  ...................................................

8

Component Parts Location ......................................

10

Component Description ..........................................

10

DIAGNOSIS SYSTEM (BCM)  ............................

11

COMMON ITEM .........................................................

11

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

11

WIPER .......................................................................

11

WIPER : CONSULT Function (BCM - WIPER)  .......

12

DIAGNOSIS SYSTEM (IPDM E/R) .....................

13

Diagnosis Description  .............................................

13

CONSULT Function (IPDM E/R) .............................

15

DTC/CIRCUIT DIAGNOSIS  .........................

17

WIPER AND WASHER FUSE ............................

17

Description ..............................................................

17

Diagnosis Procedure ...............................................

17

FRONT WIPER MOTOR LO CIRCUIT ...............

18

Component Function Check ....................................

18

Diagnosis Procedure ...............................................

18

FRONT WIPER MOTOR HI CIRCUIT  ................

20

Component Function Check  ....................................

20

Diagnosis Procedure  ...............................................

20

FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ..................................................................

22

Component Function Check  ....................................

22

Diagnosis Procedure  ...............................................

22

FRONT WIPER MOTOR GROUND CIRCUIT ...

24

Diagnosis Procedure  ...............................................

24

WASHER SWITCH ............................................

25

Description ...............................................................

25

Component Inspection .............................................

25

WASHER MOTOR CIRCUIT .............................

27

Diagnosis Procedure  ...............................................

27

REAR WIPER MOTOR CIRCUIT ......................

29

Component Function Check  ....................................

29

Diagnosis Procedure  ...............................................

29

REAR WIPER AUTO STOP SIGNAL CIRCUIT

...

31

Component Function Check  ....................................

31

Diagnosis Procedure  ...............................................

31

ECU DIAGNOSIS INFORMATION ..............

32

BCM (BODY CONTROL MODULE)  .................

32

Reference Value ......................................................

32

Terminal Layout .......................................................

35

Physical Values  .......................................................

35

Fail Safe ..................................................................

40

DTC Inspection Priority Chart ...............................

40

DTC Index ...............................................................

41

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

43

Reference Value ......................................................

43

Terminal Layout .......................................................

44

Physical Values  .......................................................

44

WW-2

Fail Safe .................................................................

48

DTC Index ..............................................................

49

WIRING DIAGRAM  .....................................

50

FRONT WIPER AND WASHER SYSTEM .........

50

Wiring Diagram  .......................................................

50

REAR WIPER AND WASHER SYSTEM ...........

55

Wiring Diagram  .......................................................

55

SYMPTOM DIAGNOSIS  .............................

60

WIPER AND WASHER SYSTEM SYMPTOMS

...

60

Symptom Table  ......................................................

60

NORMAL OPERATING CONDITION  ................

63

Description ..............................................................

63

FRONT WIPER DOES NOT OPERATE  ............

64

Description ..............................................................

64

Diagnosis Procedure  ..............................................

64

PRECAUTION .............................................

66

PRECAUTION ....................................................

66

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ................................................................
.

66

Precaution for Procedure without Cowl Top Cover ...

66

REMOVAL AND INSTALLATION ...............

67

FRONT WIPER ARM  .........................................

67

Removal and Installation  ........................................

67

FRONT WIPER DRIVE ASSEMBLY  .................

68

Removal and Installation  ........................................

68

FRONT WASHER TUBE  ...................................

69

Washer Tube Layout ...............................................

69

FRONT WASHER NOZZLE  ..............................

70

Removal and Installation .........................................

70

Washer Nozzle Adjustment .....................................

70

REAR WIPER ARM  ...........................................

71

Removal and Installation .........................................

71

REAR WIPER MOTOR ......................................

73

Removal and Installation .........................................

73

REAR WASHER TUBE  .....................................

75

Removal and Installation .........................................

75

REAR WASHER NOZZLE .................................

76

Removal and Installation .........................................

76

Rear Washer Nozzle Adjustment ............................

76

WASHER TANK  ................................................

77

Removal and Installation .........................................

77

WASHER PUMP ................................................

78

Removal and Installation .........................................

78

WIPER & WASHER SWITCH ............................

79

Removal and Installation .........................................

79

WASHER LEVEL SWITCH  ...............................

80

Removal and Installation .........................................

80

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

81

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

81

Specifications ..........................................................

81

DIAGNOSIS AND REPAIR WORKFLOW

WW-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009484680

DETAILED FLOW

1.

 LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. Get detailed information about the conditions and environment when the symp-

tom occurs.

>> GO TO 2

2.

 VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

WW-63, "Description"

>> GO TO 3

3.

 GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis. Refer to

WW-60, "Symptom Table"

.

>> GO TO 4

4.

 REPAIR OR REPLACE

Repair or replace the specific parts.

>> GO TO 5

5.

 FINAL CHECK

Final check.
Is inspection result normal?

YES

>> Inspection End

NO

>> Refer to

GI-40, "Intermittent Incident"

.

WW-4

< SYSTEM DESCRIPTION >

FRONT WIPER AND WASHER SYSTEM

SYSTEM DESCRIPTION

FRONT WIPER AND WASHER SYSTEM

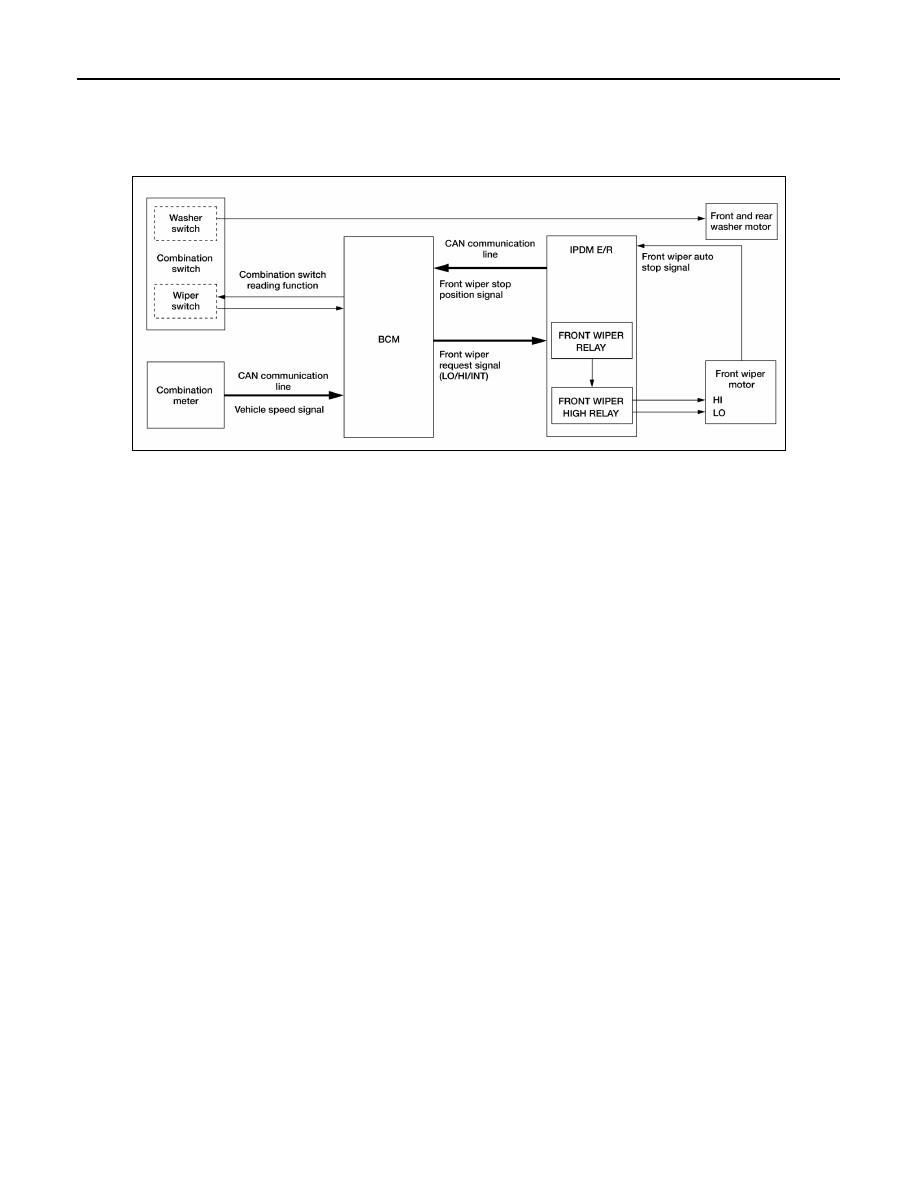

System Diagram

INFOID:0000000009484681

System Description

INFOID:0000000009484682

OUTLINE

The front wiper is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function

• Front wiper control function

Control by IPDM E/R

• Front wiper control function

• Relay control function

FRONT WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.

• BCM transmits the front wiper request signal to IPDM E/R with CAN communication depending on each

operating condition of the front wiper.

• IPDM E/R turns ON/OFF the integrated front wiper relay and the front wiper high relay according to the front

wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.

FRONT WIPER LO OPERATION

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

front wiper LO operating condition.

Front wiper LO operating condition

- Ignition switch ON

- Front wiper switch LO or front wiper switch MIST (while pressing)

• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).

FRONT WIPER HI OPERATION

• BCM transmits the front wiper request signal (HI) to IPDM E/R with CAN communication according to the

front wiper HI operating condition.

Front wiper HI operating condition

- Ignition switch ON

- Front wiper switch HI

• IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper

request signal (HI).

FRONT WIPER INT OPERATION (LINKED WITH VEHICLE SPEED)

ABLIA2789GB
