HEATER & COOLING UNIT ASSEMBLY

VTL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

1. Discharge the refrigerant from the A/C system. Refer to

XX-XX, "*****"

.

2. Drain the coolant from the engine cooling system. Refer to

CO-11, "Changing Engine Coolant"

.

3. Disconnect the battery negative and positive terminals. Refer to

PG-73, "Battery"

.

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

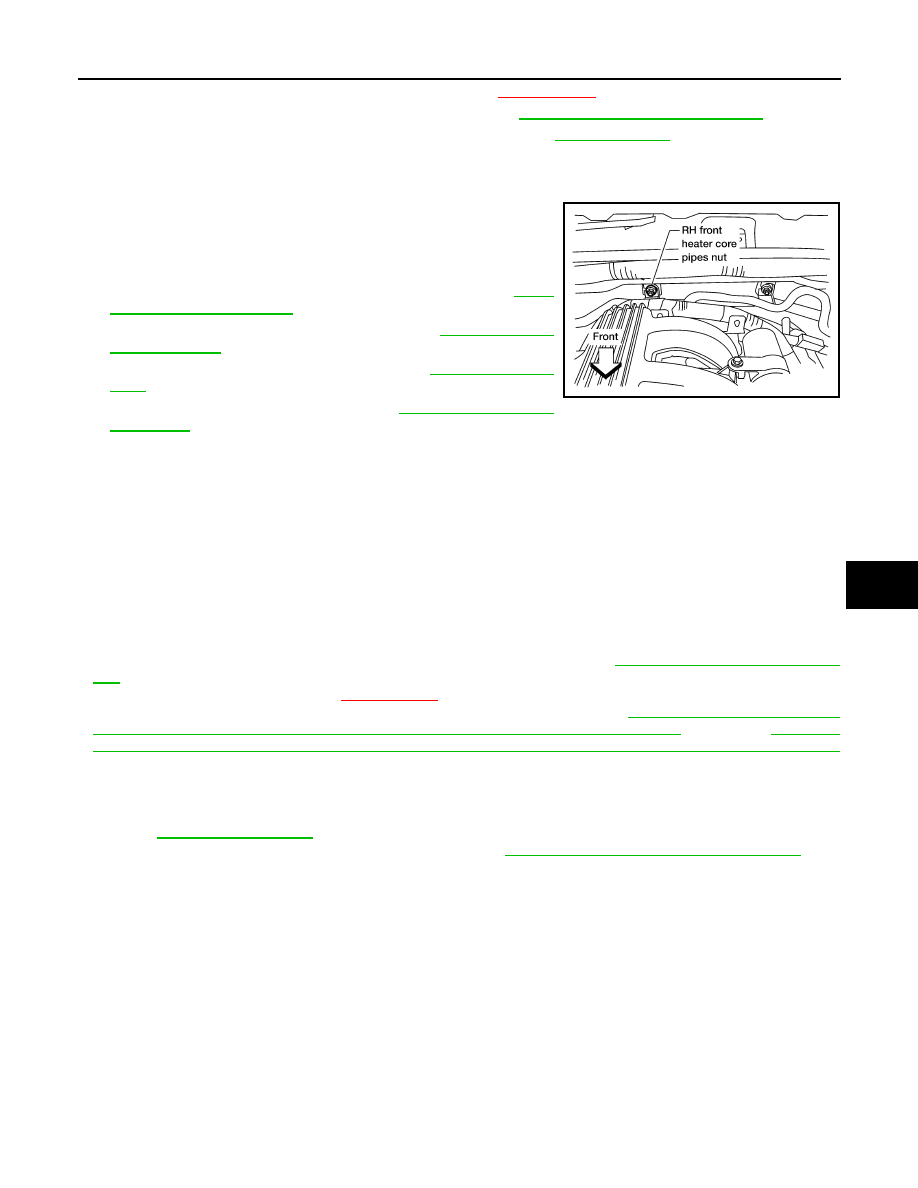

4. Remove the heater core pipes RH nut.
5. Disconnect the heater core hoses from the heater core.
6. Disconnect the high and low-pressure A/C pipes from the front

expansion valve.

7. Remove the instrument panel assembly. Refer to

IP-11,

"Removal and Installation"

.

8. Remove the center console assembly. Refer to

IP-21, "Removal

and Installation"

.

9. Remove the two front floor ducts. Refer to

VTL-21, "Compo-

nent"

.

10. Remove the steering column. Refer to

ST-12, "Removal and

Installation"

.

11. Disconnect the instrument panel wire harness at the RH and LH in-line connector brackets, and the fuse

block (SMJ) harness connectors.

12. Remove the covers then remove the three steering member bolts from each side to disconnect the steer-

ing member from the vehicle body.

13. Remove the heater and cooling unit assembly attached to the steering member from the vehicle.

CAUTION:

Use care not to damage the seats and interior trim panels when removing the heater and cooling

unit assembly with it attached to the steering member.

14. Remove the front heater and cooling unit assembly from the steering member.

Installation

Installation is in the reverse order of removal.

• Fill the engine cooling system with the specified coolant mixture. Refer to

CO-11, "Changing Engine Cool-

ant"

.

• Recharge the A/C system. Refer to

XX-XX, "*****"

.

• After installation, perform steering (angle) sensor adjustment. Refer to

BRC-12, "ADJUSTMENT OF

STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

 (TYPE1) or

BRC-122,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

(TYPE 2).

CAUTION:

• Do not reuse O-rings.

• Apply A/C oil to the O-ring of the low-pressure A/C pipe and high-pressure A/C pipe for installation.

Refer to

HA-25, "Component"

.

• After charging the refrigerant, check for leaks. Refer to

HA-20, "Checking of Refrigerant Leaks"

.

LJIA0165E

VTL-14

< REMOVAL AND INSTALLATION >

EVAPORATOR

EVAPORATOR

Removal and Installation

INFOID:0000000009484337

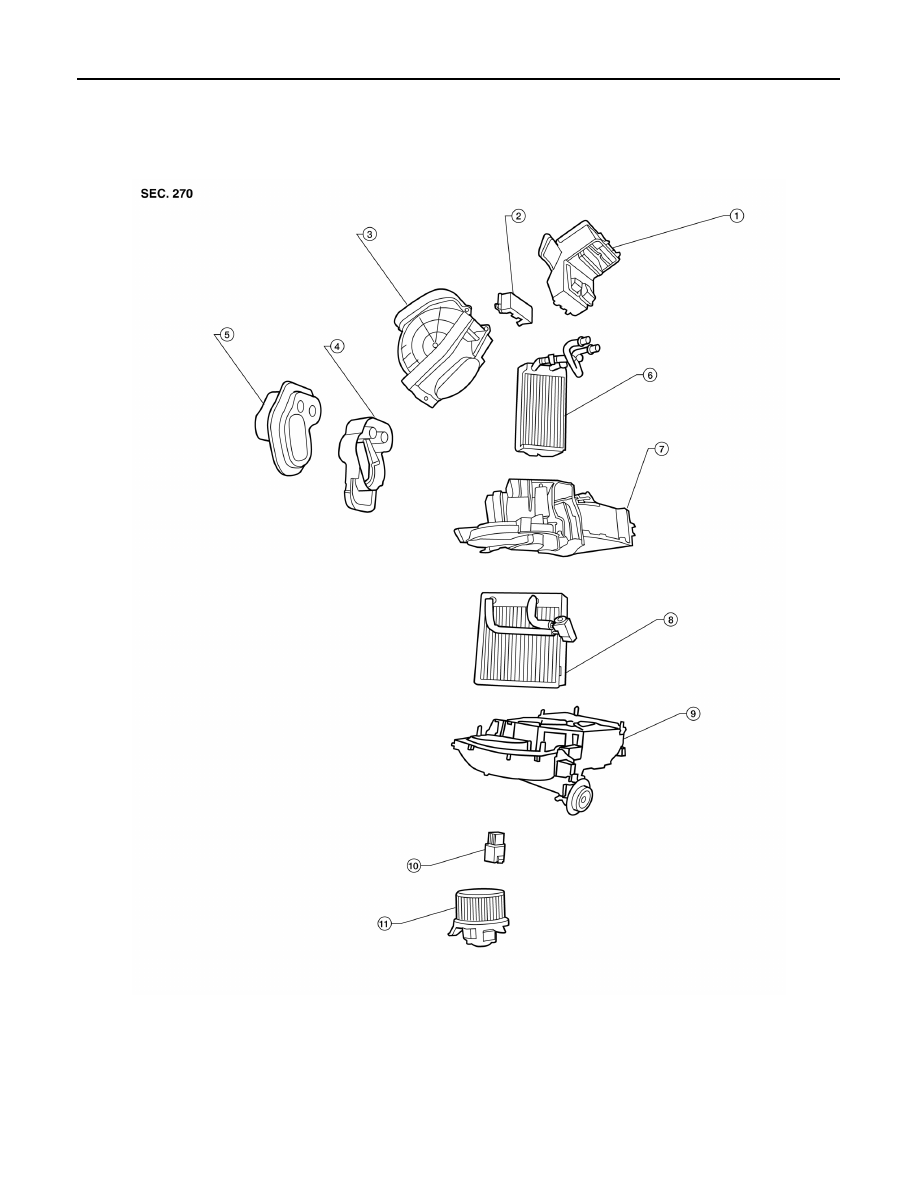

Heater and Cooling Unit Assembly

AWIIA1533ZZ

1.

Center ventilator connector duct

2.

Heater core cover

3. Intake air case

4.

Heater core and evaporator pipes bracket 5.

Heater core and evaporator pipes
grommet

6. Heater core

7.

Upper heater and cooling unit case

8.

Evaporator and expansion valve
assembly

9. Lower heater and cooling unit case

10. Variable blower control/Blower motor re-

sistor

11. Blower motor

EVAPORATOR

VTL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL

1. Remove the heater core. Refer to

VTL-17, "Removal and Installation"

.

2. Separate the heater and cooling unit case.
3. Remove the evaporator and expansion valve assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Apply A/C oil to the O-rings on the A/C low-pressure flexible A/C hose and the high-pressure A/C

pipe for installation.

VTL-16

< REMOVAL AND INSTALLATION >

EXPANSION VALVE

EXPANSION VALVE

Removal and Installation

INFOID:0000000009484338

REMOVAL AND INSTALLATION

For removal and installation of the expansion valve, refer to

HA-37, "Removal and Installation"

.
