SYSTEM DESCRIPTION

IN-CABIN MICROFILTER

Description

INFOID:0000000009484327

FUNCTION

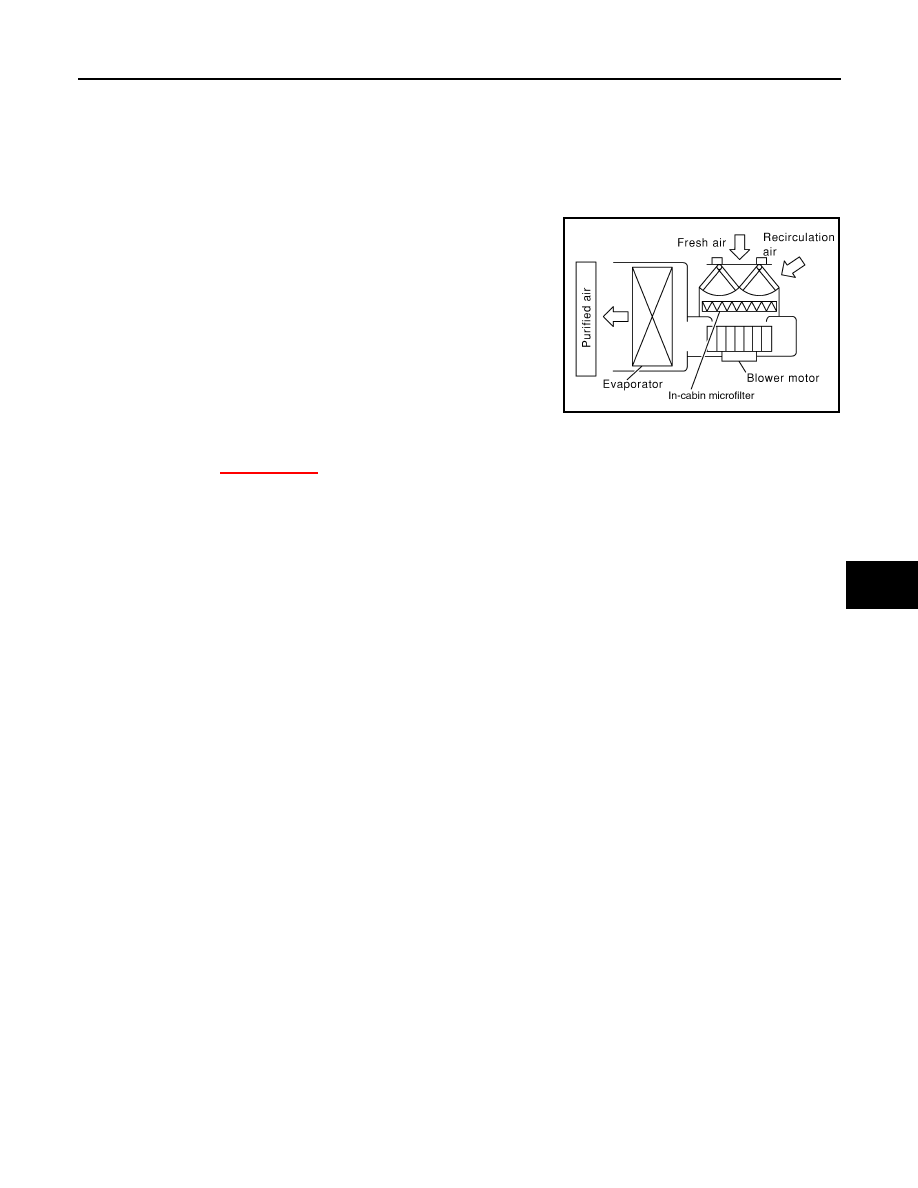

The air inside the passenger compartment is filtered by the in-cabin

microfilters when the heater or A/C controls are set on either the

recirculation or fresh mode. The two in-cabin microfilters are located

in the front heater and cooling unit assembly.

REPLACEMENT TIMING

Replacement of the two in-cabin microfilters is recommended on a regular interval depending on the driving

conditions. Refer to

XX-XX, "*****"

. It may also be necessary to replace the two in-cabin microfilters as part of

a component replacement if the in-cabin microfilters are damaged.

LJIA0012E

VTL-6

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

Removal and Installation

INFOID:0000000009484328

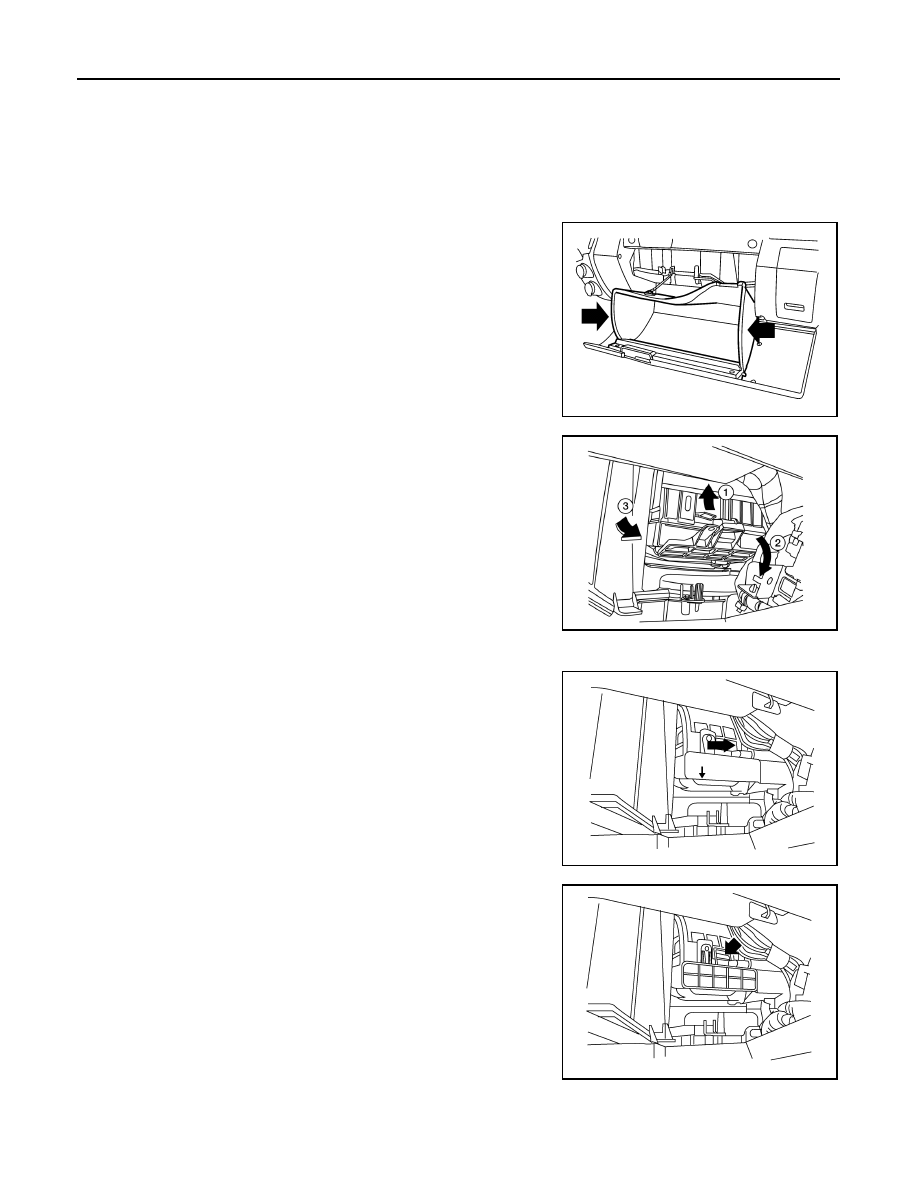

REPLACEMENT PROCEDURE

1. Open the lower glove box and press in on the sides so that it will

open completely allowing it to hang by the cord.

2. Gently lift up on the tab (1), then pull the in-cabin microfilter

cover down (2) to remove the cover (3).

CAUTION:

Use care when depressing the tab to avoid damaging it.

3. Remove the in-cabin microfilters from the front heater and cooling unit housing.
4. Insert the first new in-cabin microfilter into the front heater and

cooling unit housing and slide it over to the right. Insert the sec-

ond new in-cabin microfilter into the front heater and cooling unit

housing.

NOTE:

The in-cabin microfilters are marked with air flow arrows. The

end of the microfilter with the arrow should face the rear of the

vehicle. The arrows should point downward.

5. Install the in-cabin microfilter cover, make sure the tab is locked

in place as shown.

6. Close the lower glove box completely.

WLIA0023E

AWIIA1431ZZ

ALIIA0360ZZ

ALIIA0359ZZ

CONTROL UNIT

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL AND INSTALLATION

CONTROL UNIT

Removal and Installation

INFOID:0000000009484329

FRONT AIR CONTROL

Removal

1. Remove cluster lid C. Refer to

IP-15, "Removal and Installation"

.

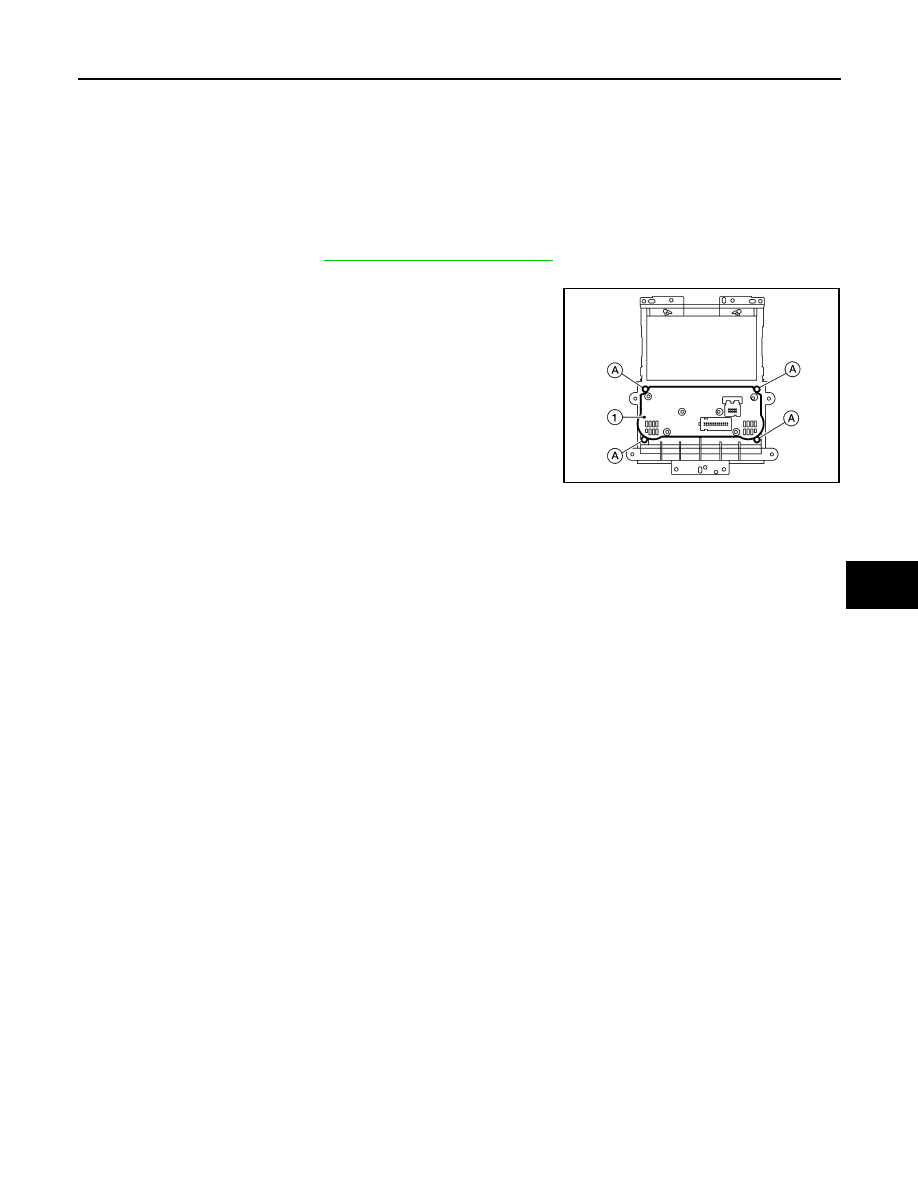

2. Remove the front air control from cluster lid C.

• Remove the four screws (A) that retain the front air control (1)

to cluster lid C.

Installation

Installation is in the reverse order of removal.

ALIIA0361ZZ

VTL-8

< REMOVAL AND INSTALLATION >

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000009484330

REMOVAL

1. Remove the front kick plate. Refer to

INT-18, "Removal and Installation"

.

2. Remove the front pillar upper finisher. Refer to

INT-18, "Removal and Installation"

.

3. Remove the upper glove box. Refer to

IP-18, "Removal and Installation"

.

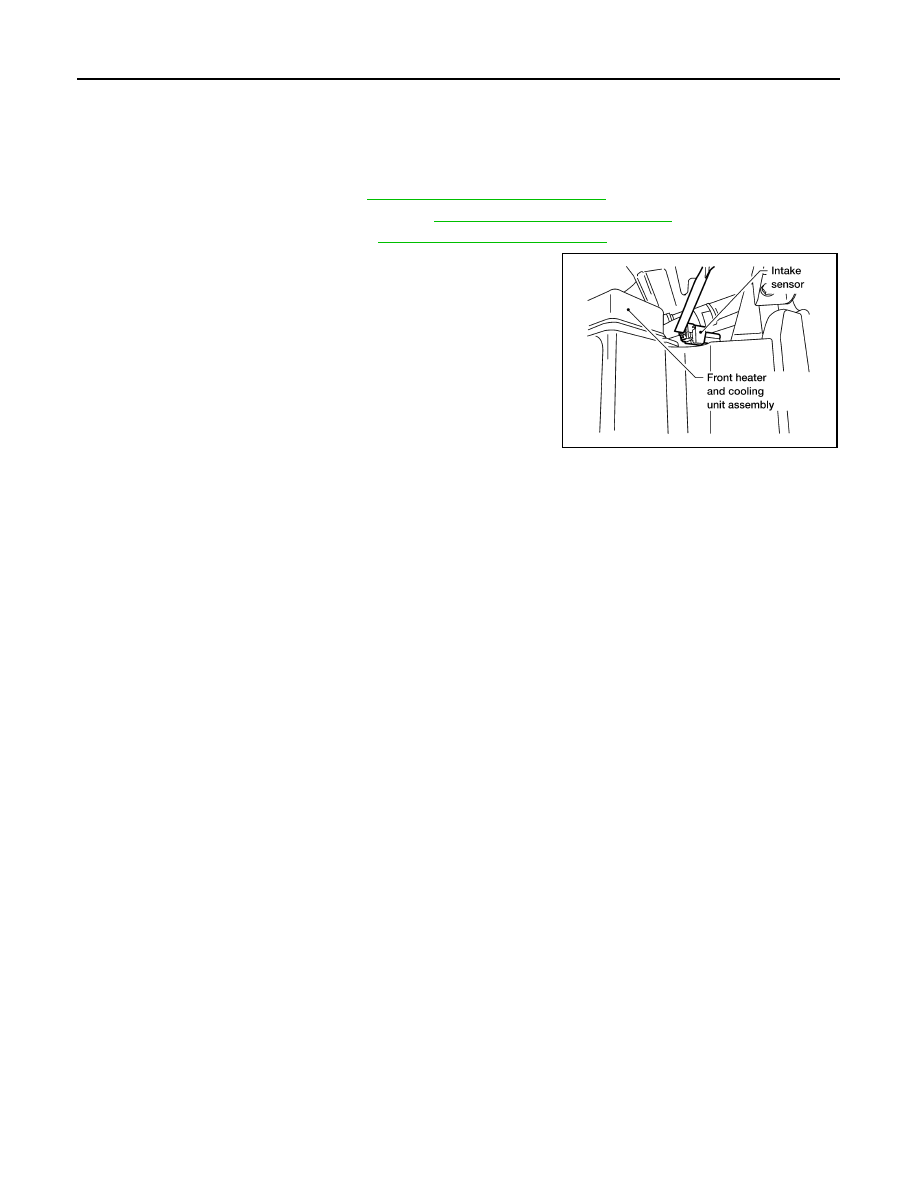

4. Disconnect the harness connector from the intake sensor.

NOTE:

The intake sensor is located on the top of the front heater and

cooling unit assembly next to the A/C evaporator cover.

5. Twist the intake sensor to remove the intake sensor from the

front heater and cooling unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

LJIA0133E
