Nissan Xterra. Manual - part 706





BLOWER MOTOR

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

BLOWER MOTOR

Component

INFOID:0000000009484331

Blower Motor

Removal and Installation

INFOID:0000000009484332

FRONT BLOWER MOTOR

Removal

1. Remove the instrument lower panel RH and lower glove box assembly. Refer to

IP-19, "Removal and

Installation"

.

2. Disconnect the harness connector from the blower motor.
3. Remove the three blower motor screws and the front blower motor.

Installation

Installation is in the reverse order of removal.

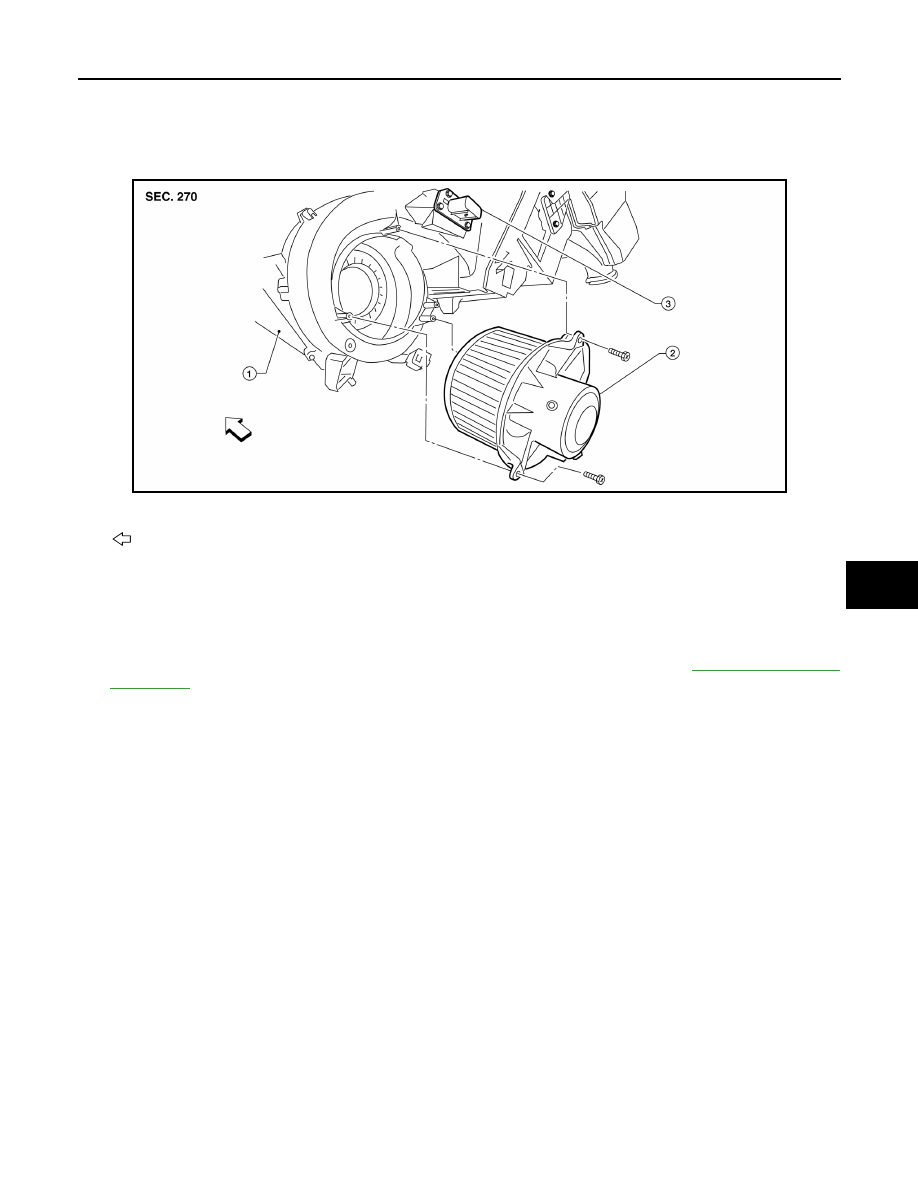

AWIIA1540ZZ

1.

Heater and cooling unit assembly

2. Blower motor

3.

Variable blower control/Blower motor resistor

Front

VTL-10

< REMOVAL AND INSTALLATION >

VARIABLE BLOWER CONTROL

VARIABLE BLOWER CONTROL

Removal and Installation

INFOID:0000000009484333

Variable Blower Control

REMOVAL

1. Disconnect the harness connector from the variable blower control.
2. Remove the two variable blower control screws and the variable blower control.

INSTALLATION

Installation is in the reverse order of removal.

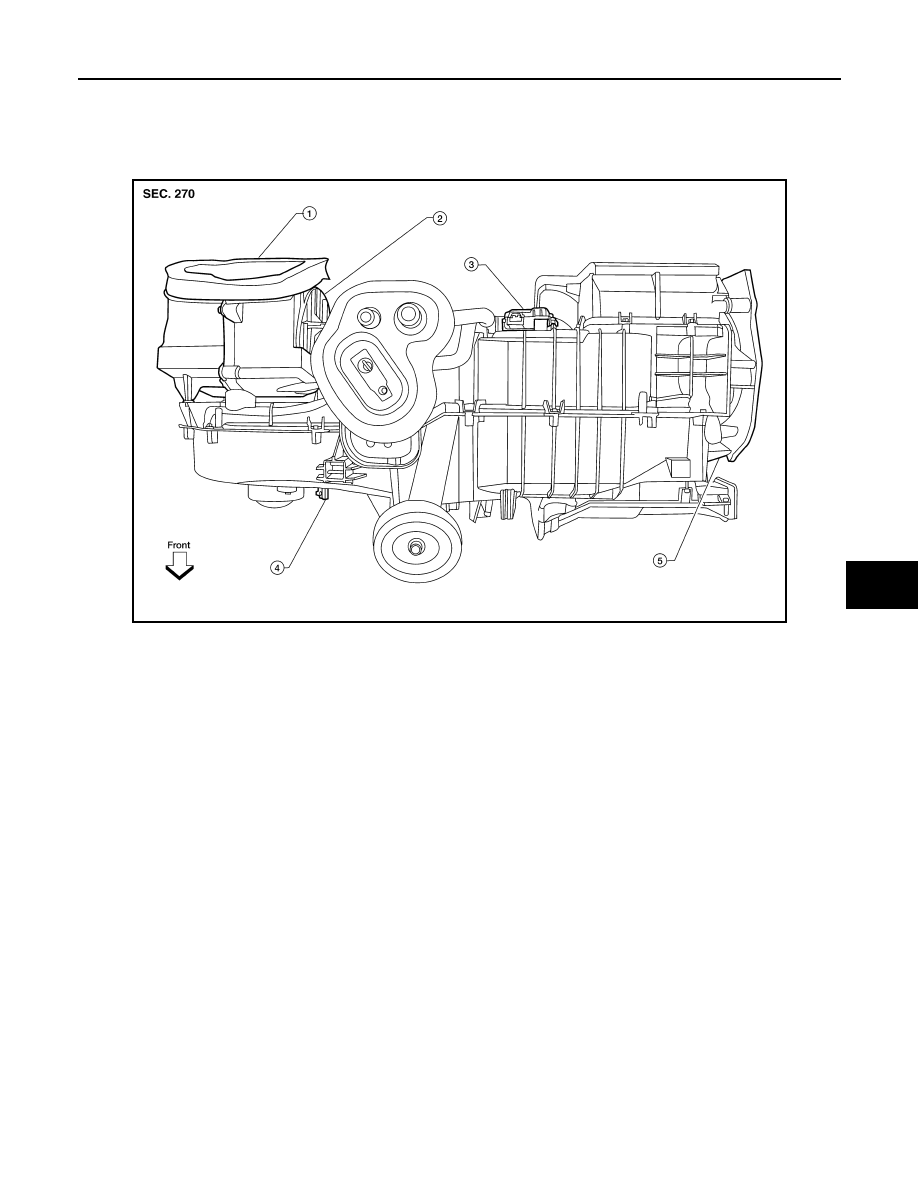

WJIA1480E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor

4.

Variable blower control

5.

Mode door motor

FRONT BLOWER MOTOR RESISTOR

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

FRONT BLOWER MOTOR RESISTOR

Removal and Installation

INFOID:0000000009484334

Blower Motor Resistor

REMOVAL

1. Disconnect the harness connector from the blower motor resistor.
2. Remove the two blower motor resistor screws and the blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

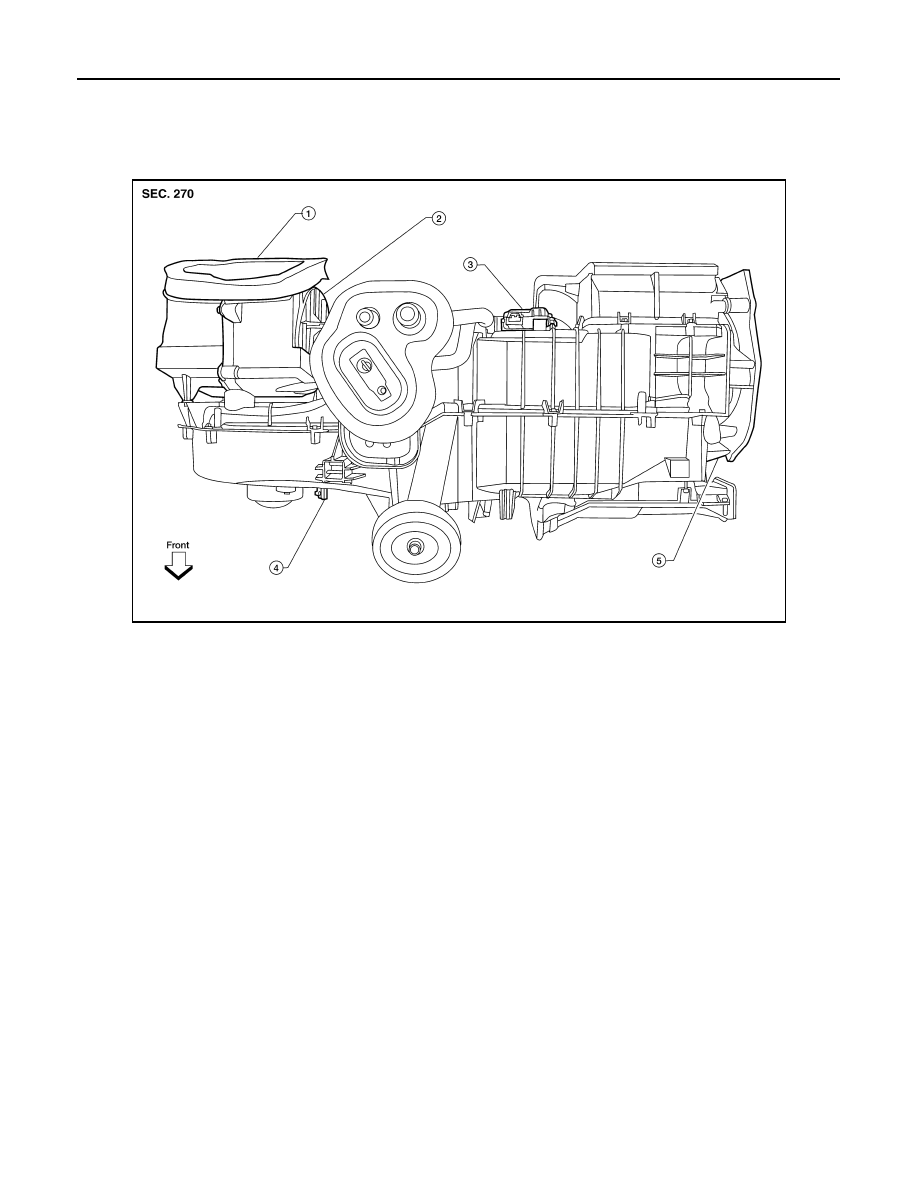

WJIA1480E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor

4.

Blower motor resistor

5.

Mode door motor

VTL-12

< REMOVAL AND INSTALLATION >

HEATER & COOLING UNIT ASSEMBLY

HEATER & COOLING UNIT ASSEMBLY

Component

INFOID:0000000009484335

Heater and Cooling Unit Assembly

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

Removal and Installation

INFOID:0000000009484336

HEATER AND COOLING UNIT ASSEMBLY

Removal

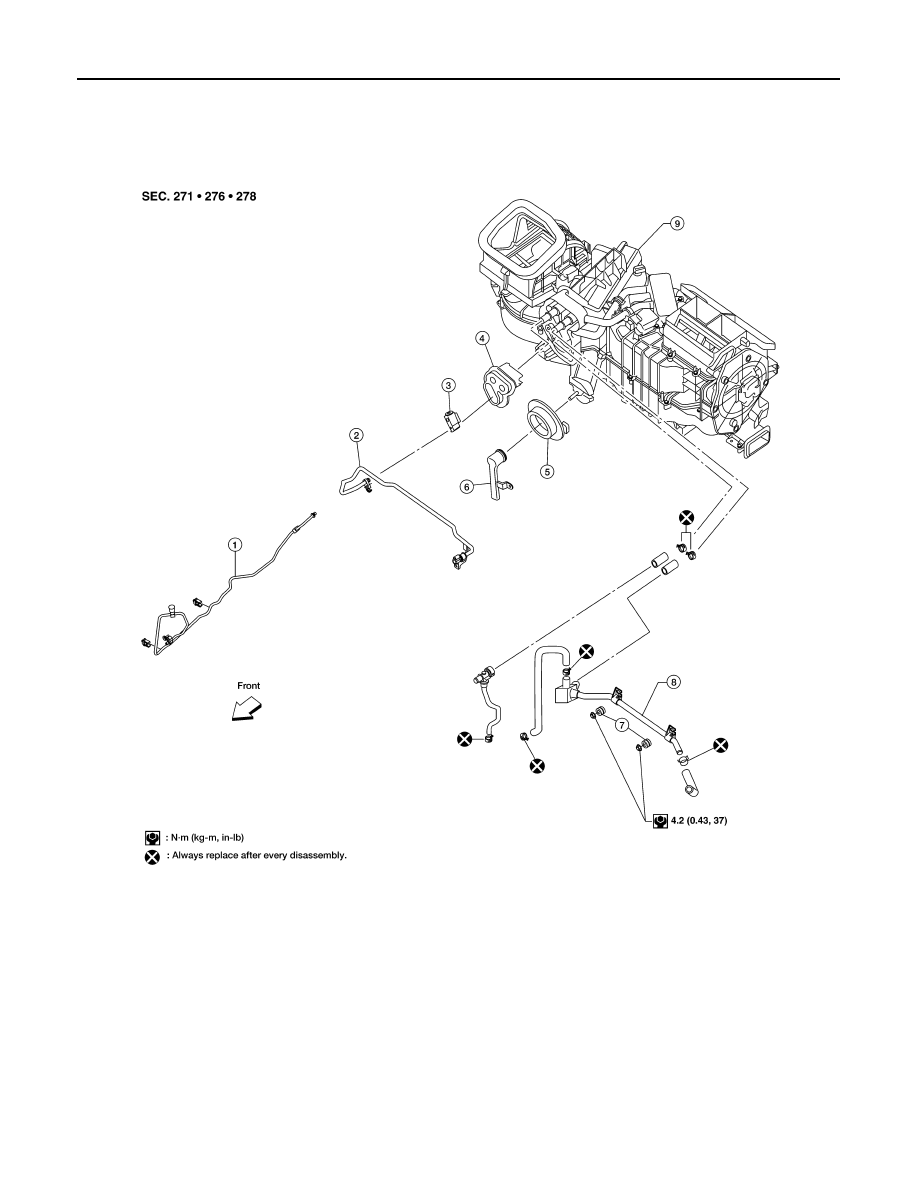

WJIA1621E

1.

High-pressure A/C pipe

2.

Low-pressure A/C pipe

3.

Expansion valve

4.

Heater core and evaporator pipes
grommet

5.

A/C drain hose grommet

6.

A/C drain hose

7.

Heater core pipe mounts

8.

Heater core pipes

9.

Heater and cooling unit assembly
