KEY INTERLOCK CABLE

TM-245

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

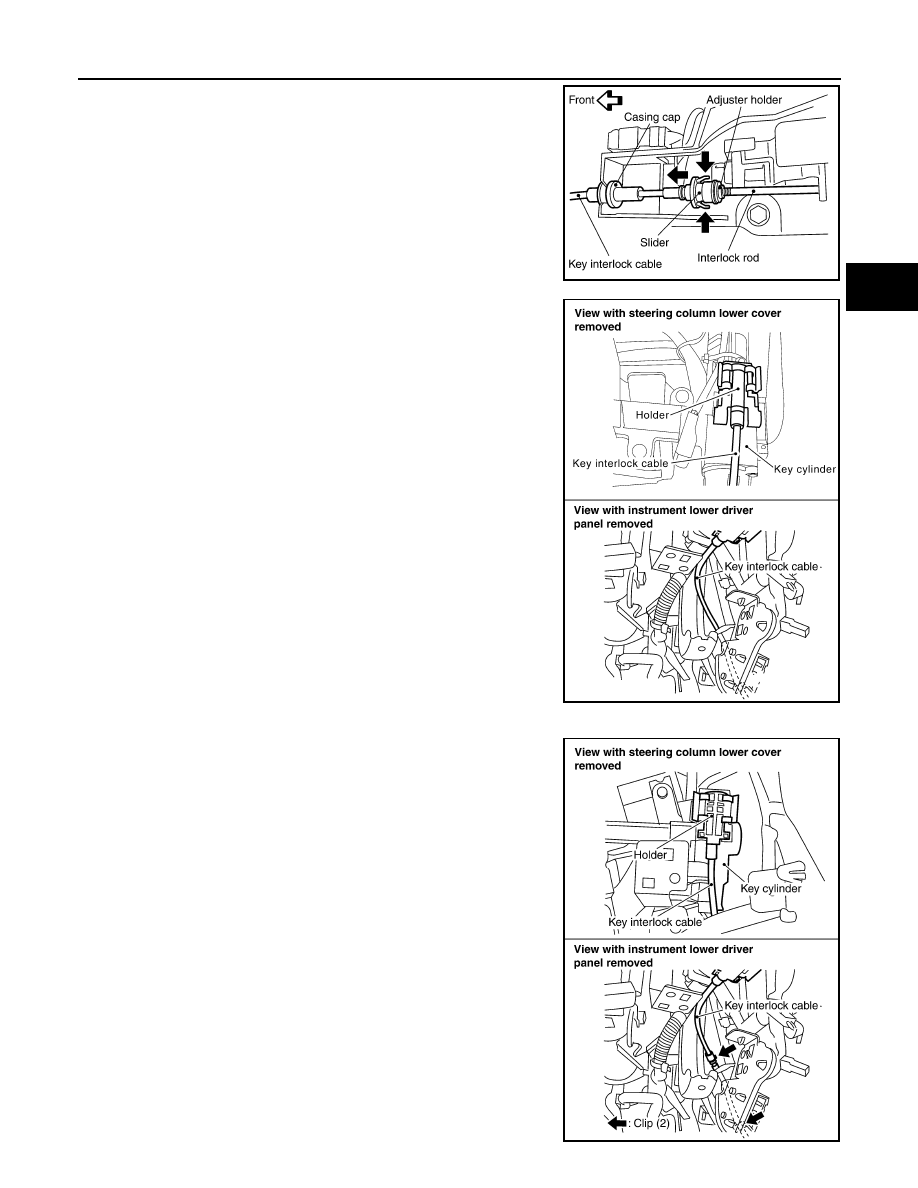

3. Unlock slider from adjuster holder by squeezing lock tabs.
4. Remove casing cap from bracket of shift selector assembly and

remove interlock rod from adjuster holder.

5. Remove holder from key cylinder and remove key interlock

cable.

INSTALLATION

1. Set key interlock cable to key cylinder and install holder.
2. Set shift selector handle to “P” position.
3. Turn ignition key to "LOCK" position.

SCIA1230E

LCIA0375E

SCIA2258E

TM-246

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

KEY INTERLOCK CABLE

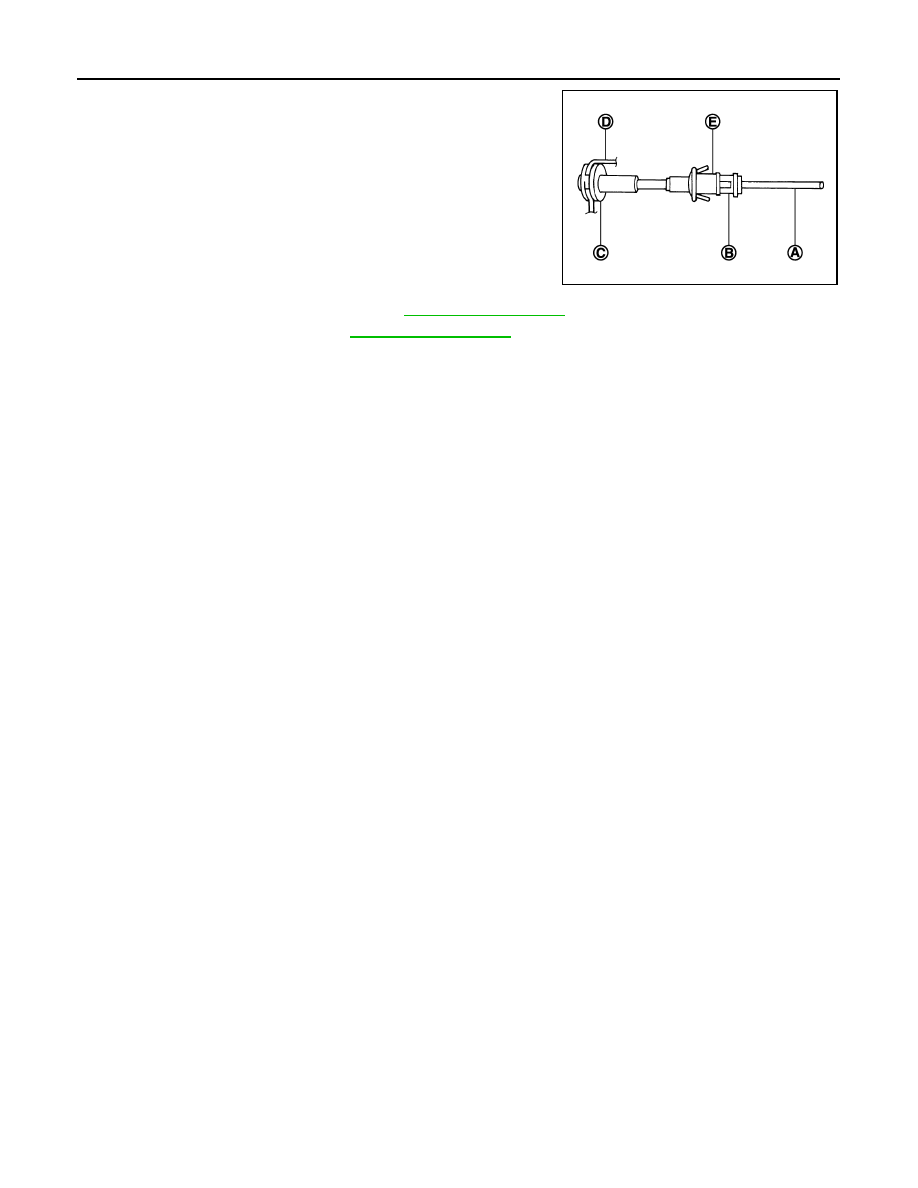

4. Insert key interlock rod (A) into adjuster holder (B).
5. Install casing cap (C) to bracket (D).
6. Move slider (E) toward key interlock rod (A) to secure adjuster

holder (B) to key interlock rod (A).

7. Install instrument lower panel LH. Refer to

IP-10, "Exploded View"

.

8. Install the center console. Refer to

IP-10, "Exploded View"

.

JSDIA0698ZZ

AIR BREATHER HOSE

TM-247

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000009485610

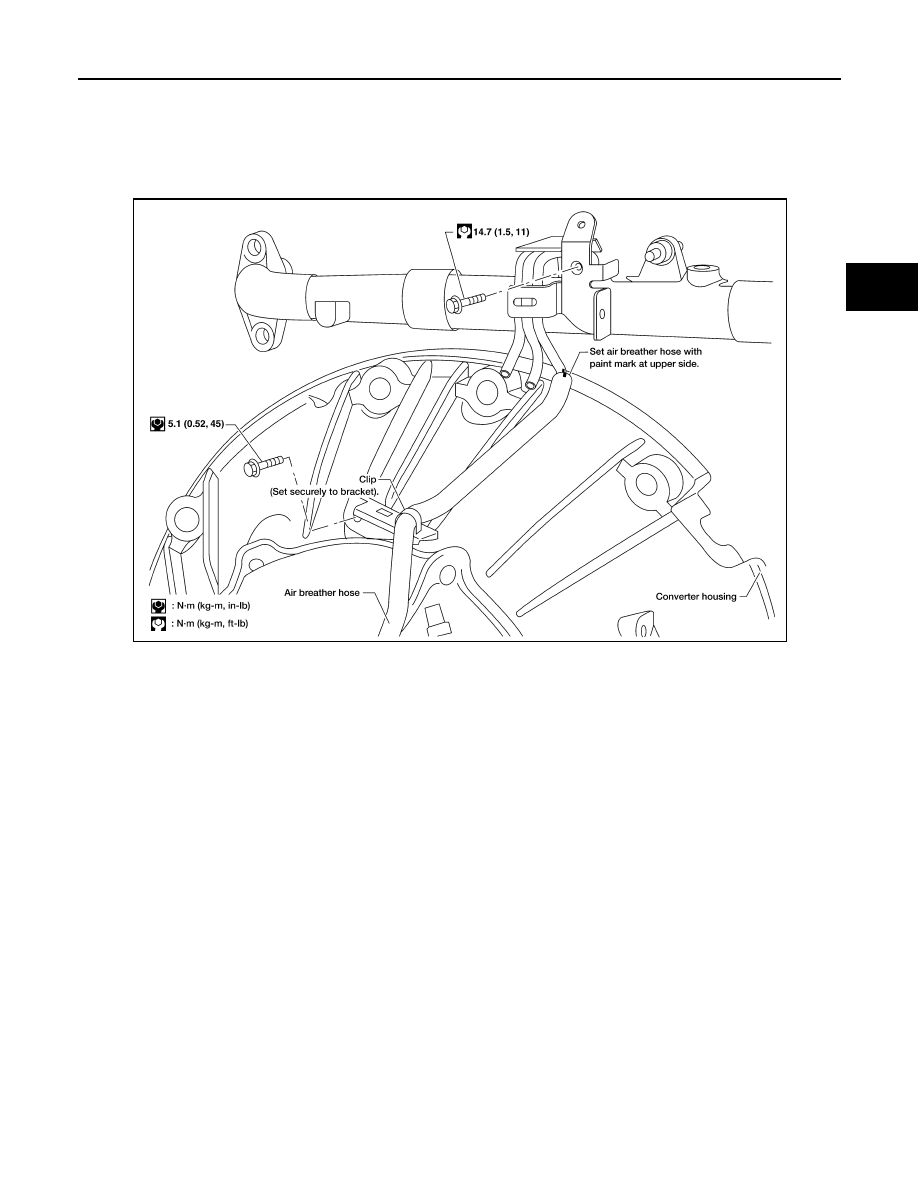

COMPONENTS (2WD MODELS)

REMOVAL (2WD MODELS)

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION (2WD MODELS)

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

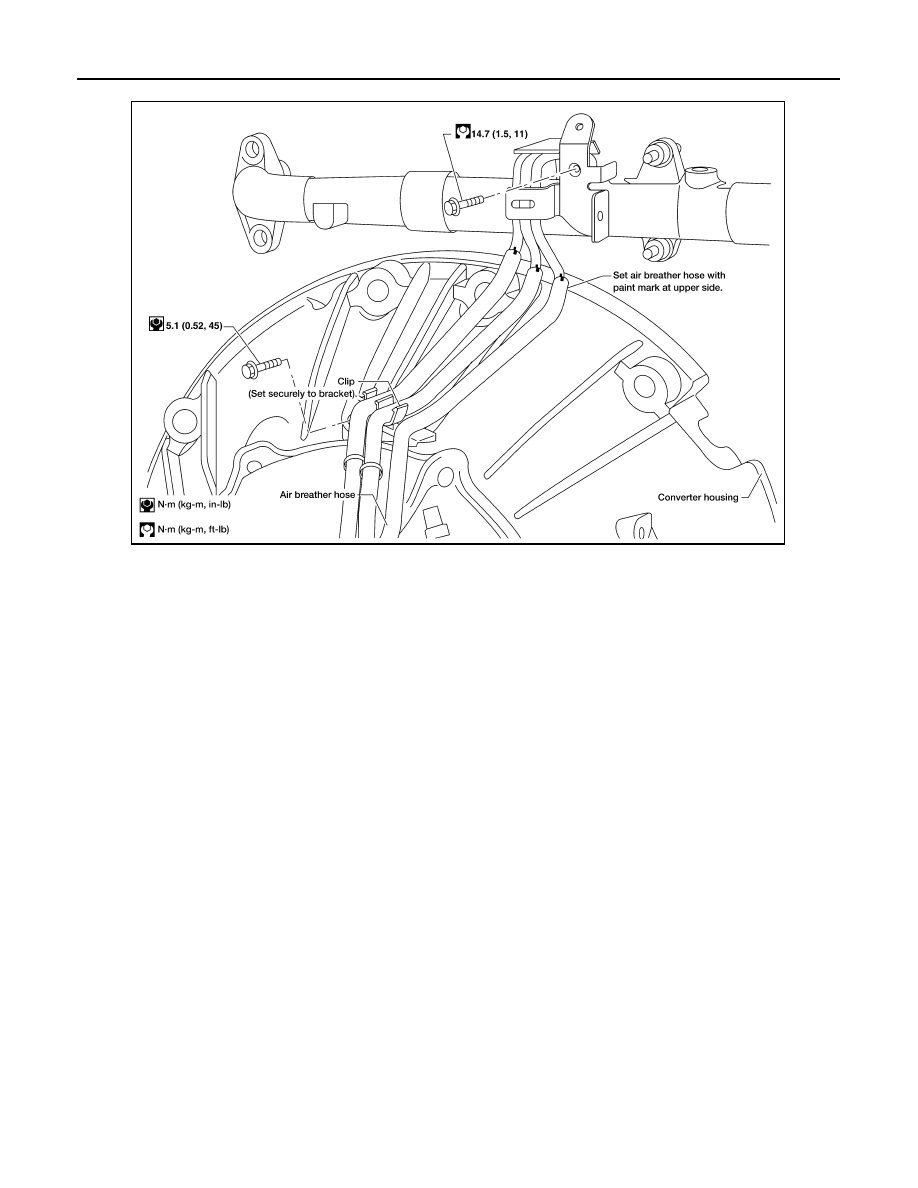

COMPONENTS (4WD MODELS)

LCIA0389E

TM-248

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

AIR BREATHER HOSE

REMOVAL (4WD MODELS)

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION (4WD MODELS)

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

LCIA0390E
