PREPARATION

TM-13

< PREPARATION >

[6MT: FS6R31A]

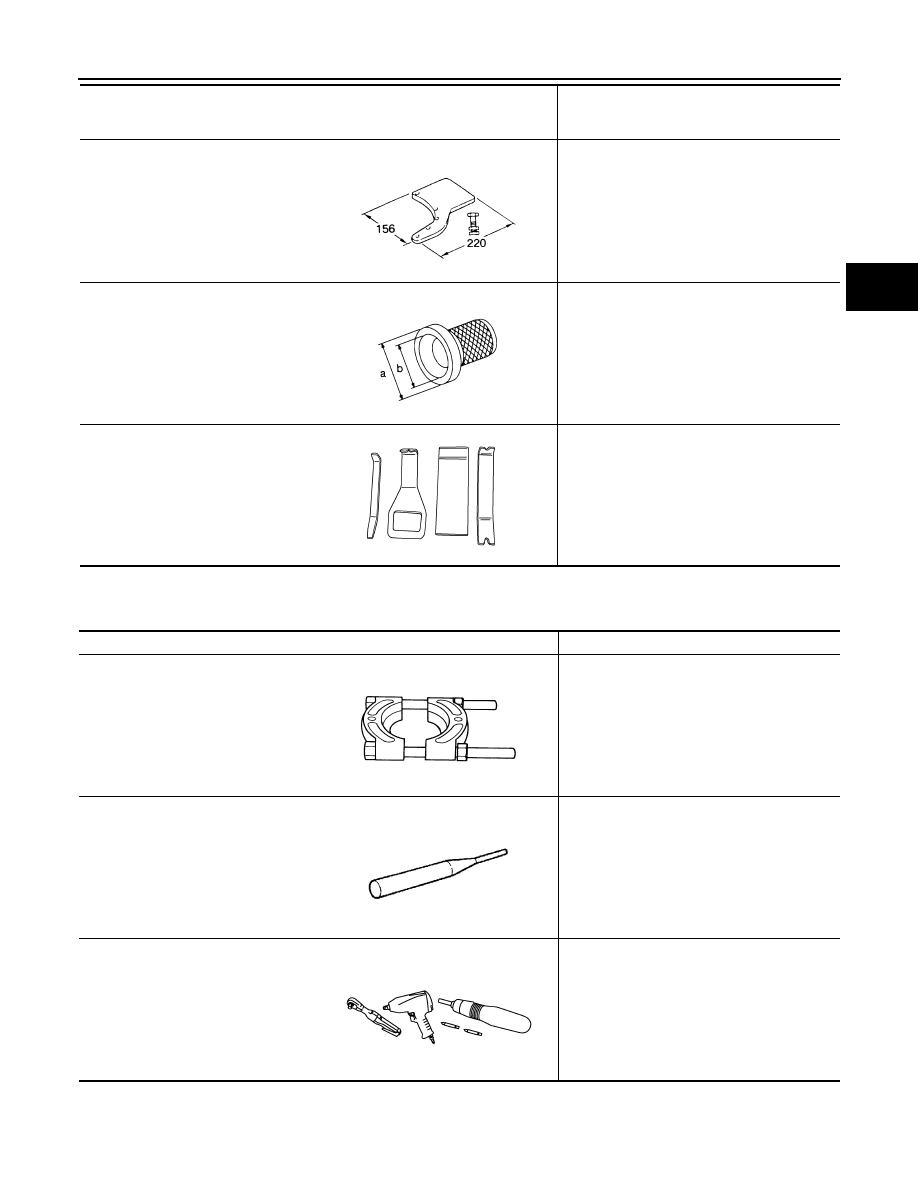

Commercial Service Tool

INFOID:0000000009485367

ST22490000
(

—

)

Adapter setting plate

Holding a adapter plate

ST33400001
(J-26082)
Drift

Installing oil seal
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

—

(J-46534)
Trim Tool Set

Removing trim components

Tool number
(TechMate No.)
Tool name

Description

ZZC0465D

NT086

AWJIA0483ZZ

Tool name

Description

Puller

Removing each bearing, gear and bushing

Pin punch

Removing and installing each retaining pin
Tip diameter: 6.0 mm (0.236 in) dia.

Power tool

Loosening nuts, screws and bolts

ZZB0823D

ZZA0815D

PIIB1407E

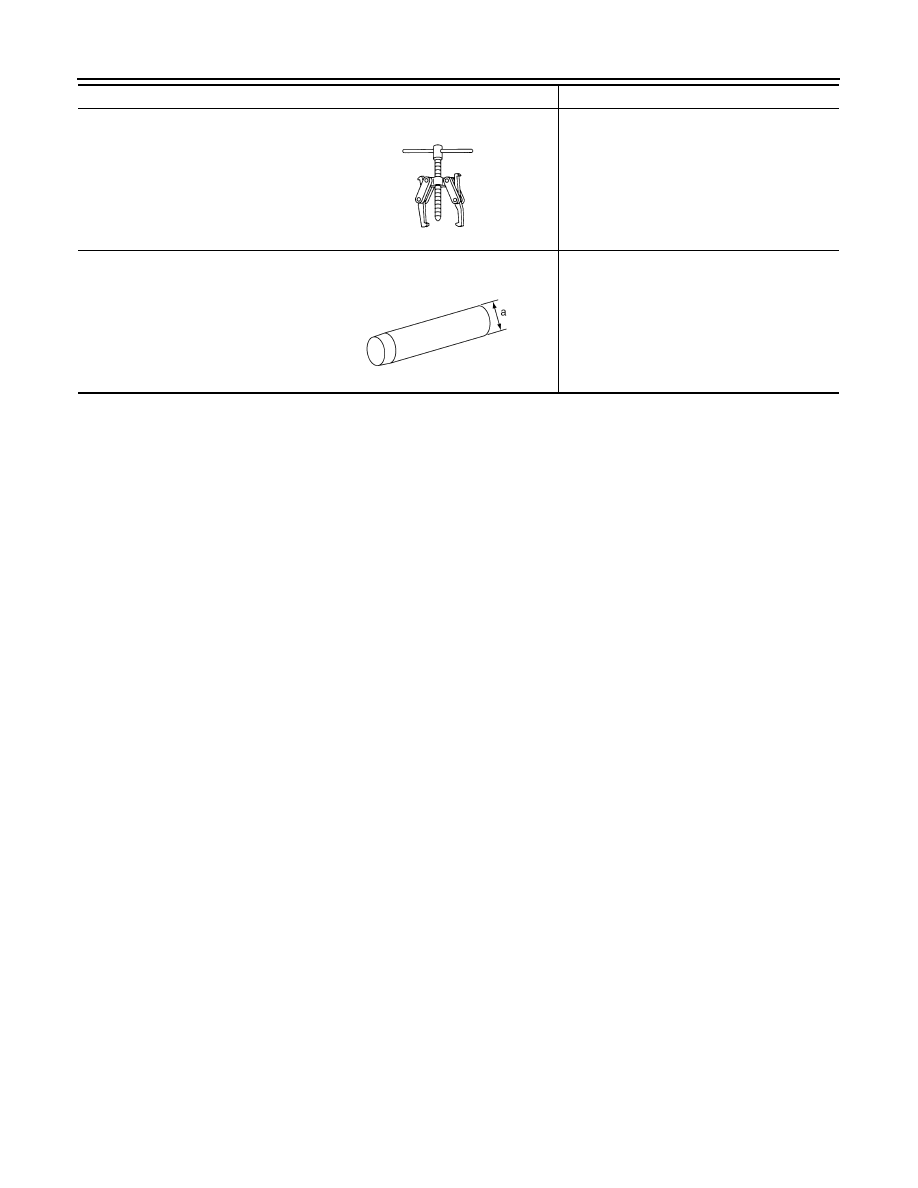

TM-14

< PREPARATION >

[6MT: FS6R31A]

PREPARATION

Puller

• Removing reverse synchronizer hub as-

sembly

• Removing reverse counter gear
• Removing reverse main gear

Drift

Removing counter end bearing
a: 32 mm (1.26 in) dia.

Tool name

Description

NT077

LCIA0362E

M/T OIL

TM-15

< PERIODIC MAINTENANCE >

[6MT: FS6R31A]

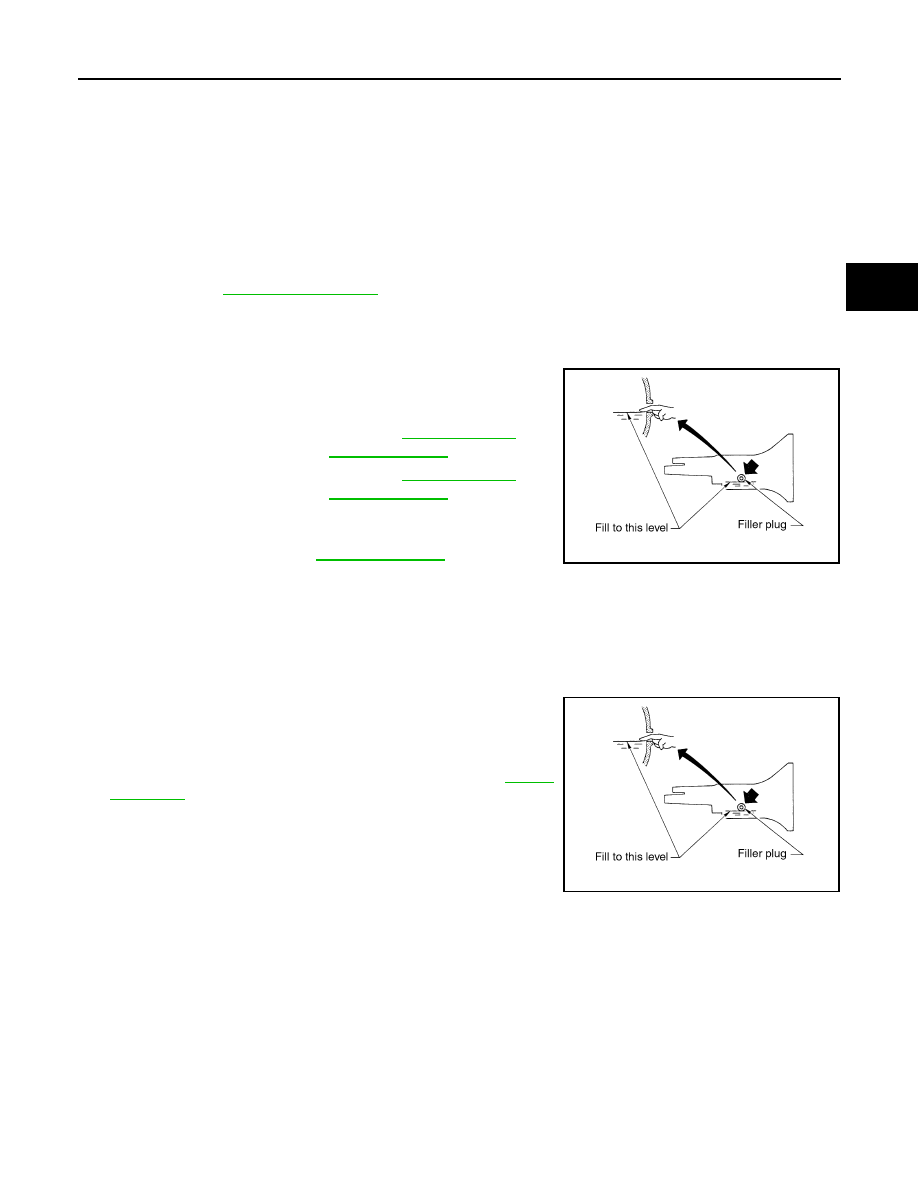

PERIODIC MAINTENANCE

M/T OIL

Changing

INFOID:0000000009485368

DRAINING

1. Start the engine and let it run to warm up the transmission.
2. Stop the engine. Remove the transmission drain plug and drain the oil.
3. Set a gasket on the drain plug and install it to the transmission. Tighten the drain plug to the specified

torque. Refer to

TM-30, "Disassembly"

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug. Fill with new oil until oil level reaches the

specified limit near the filler plug hole as shown.

2. After refilling the oil, check oil level. Set a gasket to the filler

plug, then install it to the transmission. Tighten the filler plug to

the specified torque. Refer to

TM-24, "Overhaul"

CAUTION:

Do not reuse gasket.

Checking

INFOID:0000000009485369

OIL LEAKAGE AND OIL LEVEL

1. Make sure that oil is not leaking from the transmission or around it.
2. Check oil level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking oil level.

3. Set a gasket on the filler plug and install it to the transmission.

Tighten the filler plug to the specified torque. Refer to

TM-24,

"Overhaul"

CAUTION:

Do not reuse gasket.

Oil grade and viscosity

: Refer to

MA-12, "Fluids

and Lubricants"

Oil capacity

: Refer to

MA-12, "Fluids

and Lubricants"

PCIB0268E

TM-16

< REMOVAL AND INSTALLATION >

[6MT: FS6R31A]

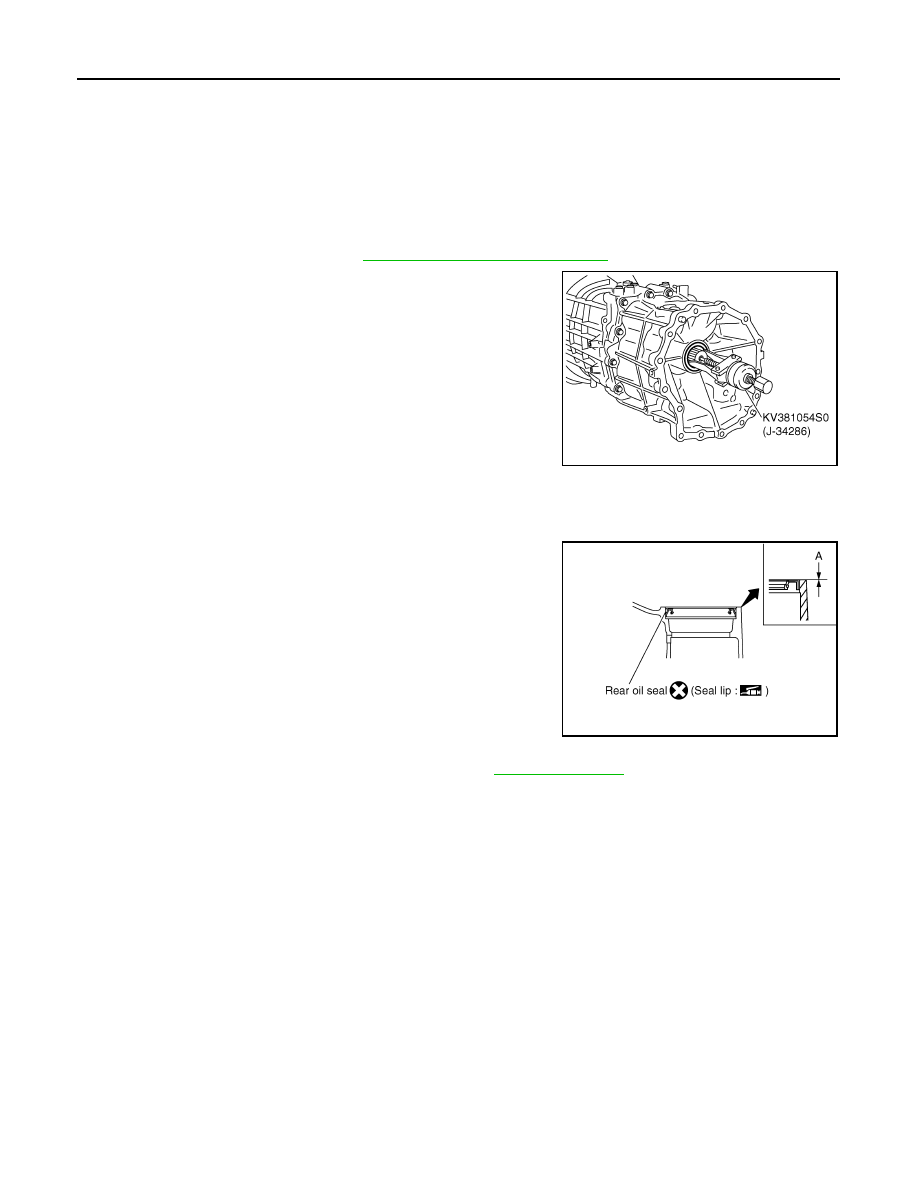

REAR OIL SEAL

REMOVAL AND INSTALLATION

REAR OIL SEAL

Removal and Installation

INFOID:0000000009485370

REMOVAL

1. Remove transfer assembly. Refer to

DLN-99, "Removal and Installation"

2. Remove rear oil seal using Tool.

CAUTION:

Do not damage OD gear case.

INSTALLATION

Installation is in the reverse order of removal.

• Drive the rear oil seal using Tool.

CAUTION:

Do not incline the rear oil seal during installation.

• Check the transmission oil level after installation. Refer to

TM-15, "Checking"

Tool number

: KV381054S0 (J-34286)

PCIB1218E

Tool number

: ST33200000 (J-26082)

Dimension (A)

: -0.5 - 0.5 mm (-0.020 - 0.020 in)

PCIB1632E
