POSITION SWITCH

TM-17

< REMOVAL AND INSTALLATION >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

POSITION SWITCH

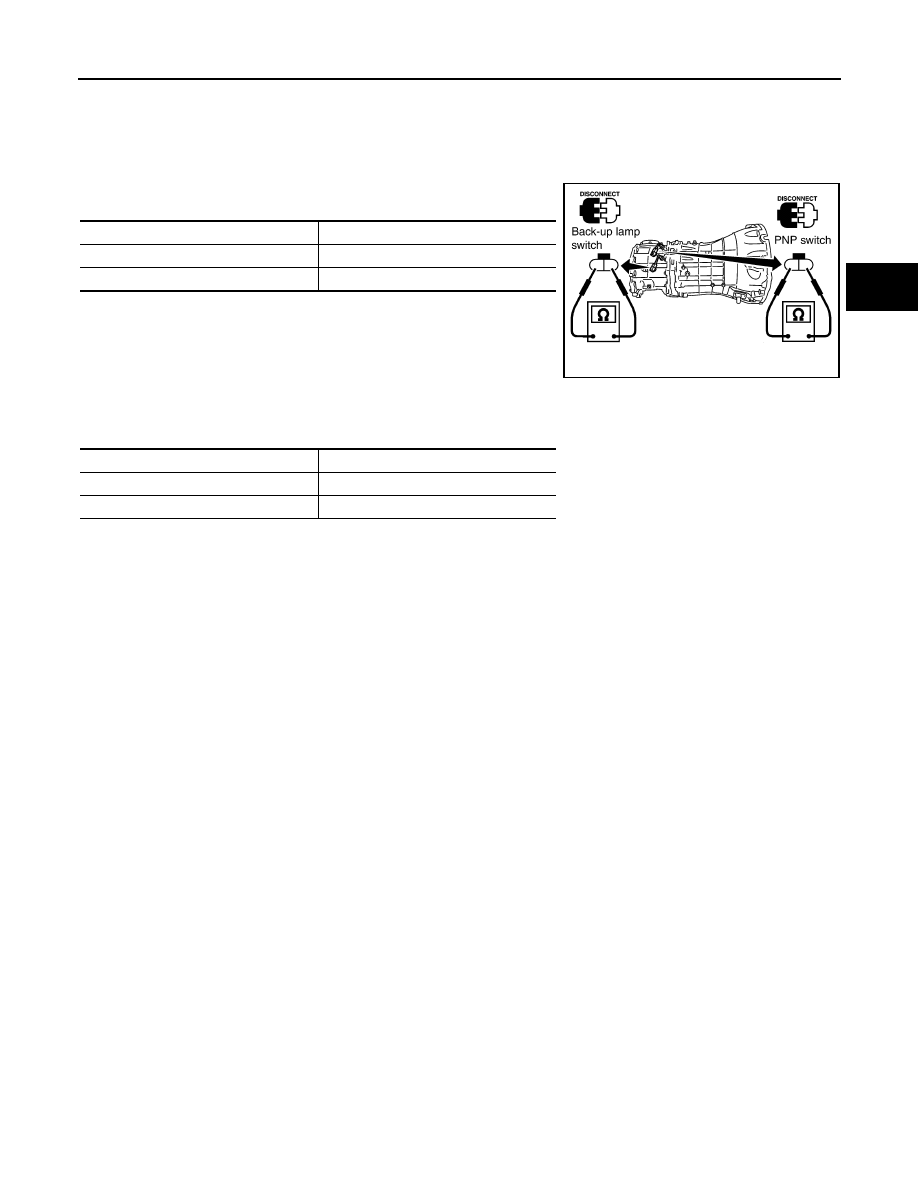

Checking

INFOID:0000000009485371

BACK-UP LAMP SWITCH

• Check continuity.

PARK/NEUTRAL POSITION SWITCH

• Check continuity.

Gear position

Continuity

Reverse

Yes

Except reverse

No

PCIB1633E

Gear position

Continuity

Neutral

Yes

Except neutral

No

TM-18

< REMOVAL AND INSTALLATION >

[6MT: FS6R31A]

SHIFT CONTROL

SHIFT CONTROL

Removal and Installation

INFOID:0000000009485372

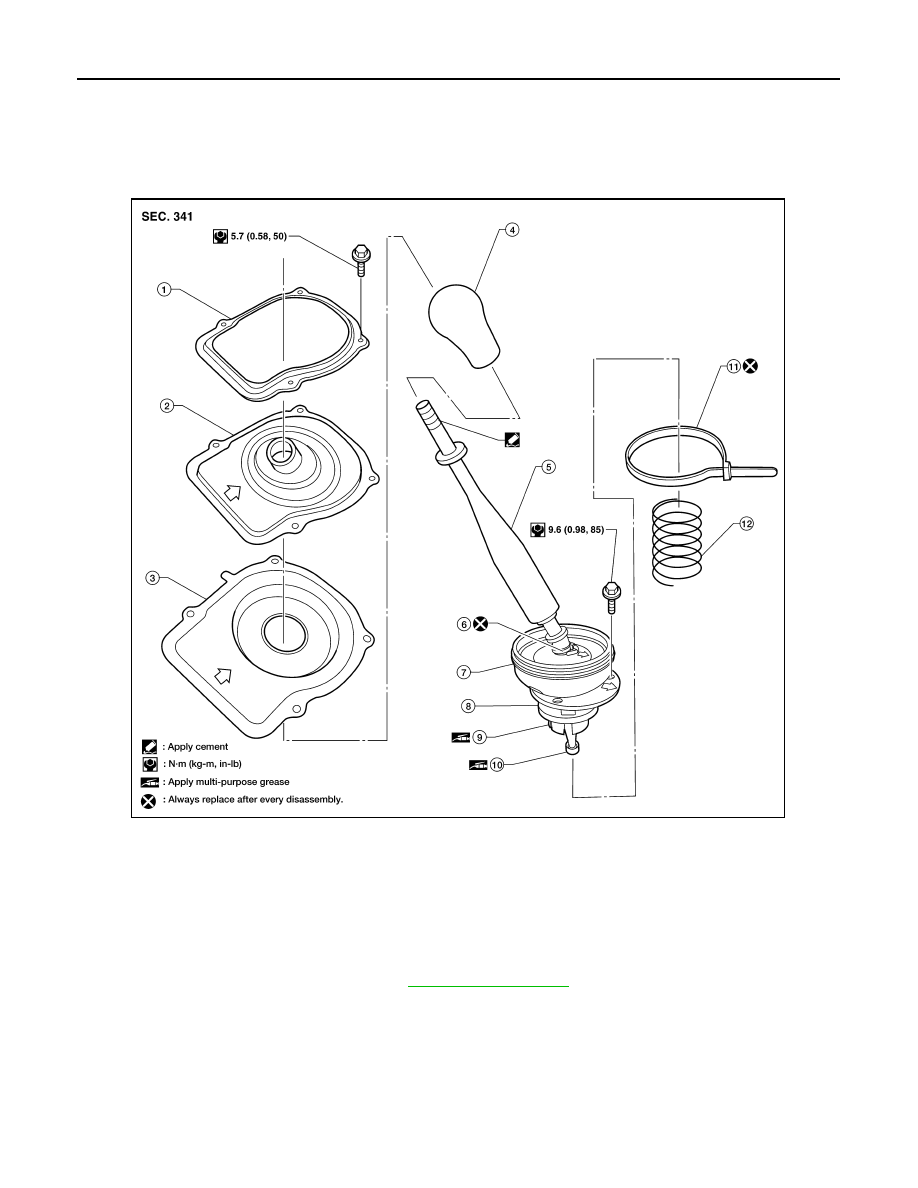

COMPONENTS

REMOVAL

1. Remove the shift selector handle
2. Remove the shift selector finisher. Refer to

IP-24, "Exploded View"

.

3. Remove the retaining plate and dust boot covers.
4. Remove the clip B and then separate the boot from the control housing.
5. Remove the guide plate bolts and then separate the guide plate.
6. Remove the shift selector assembly and spring from the transmission.

INSTALLATION

Installation is the reverse order of removal.

• Install shift selector handle according to the following.

1.

Retaining plate

2.

Dust boot cover (upper)

3.

Dust boot cover (lower)

4.

Shift selector handle

5.

Shift selector assembly

6.

Clip A

7.

Boot

8.

Guide plate

9.

Socket

10. Bushing

11. Clip B

12. Spring

WCIA0508E

SHIFT CONTROL

TM-19

< REMOVAL AND INSTALLATION >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

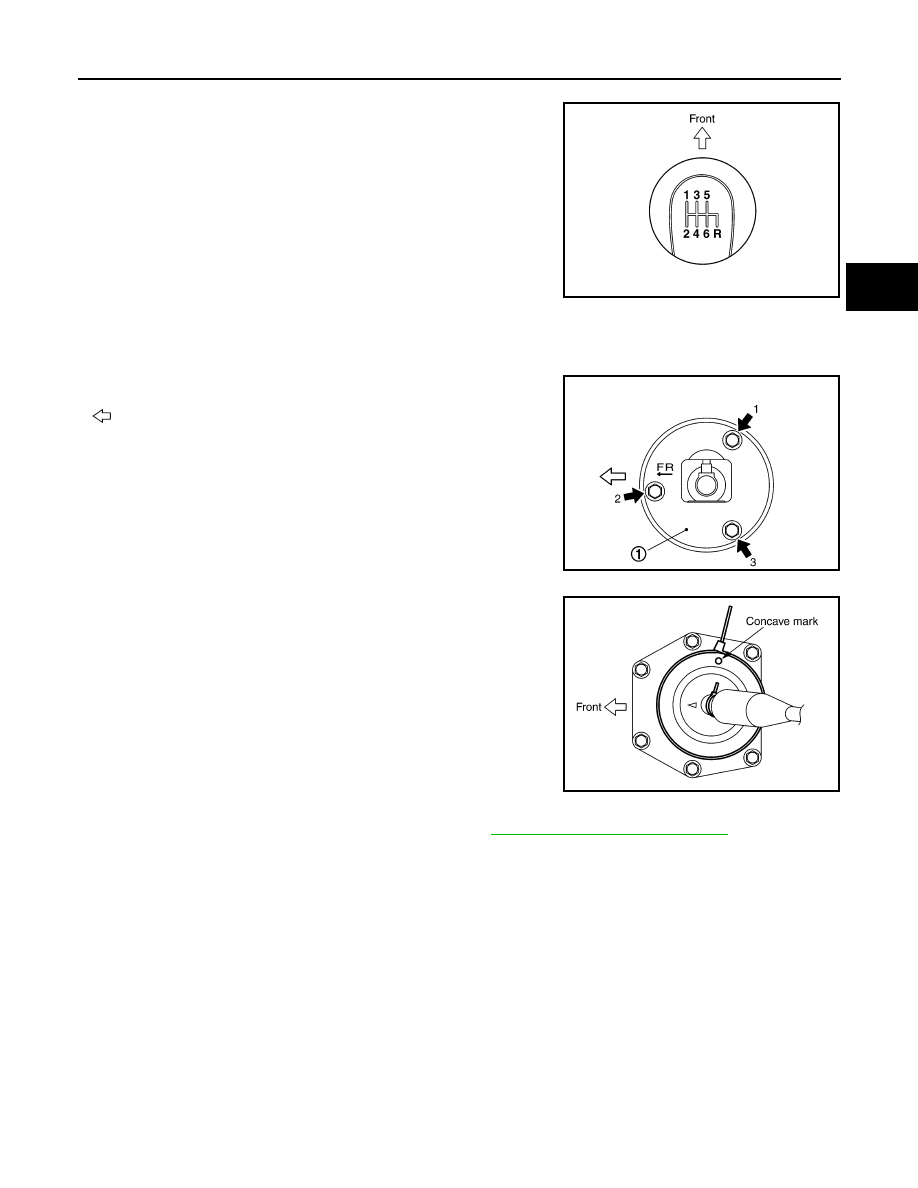

- Apply cement to threads of shift selector assembly.

- Tighten shift selector handle until increased tension is felt. Then

align shift selector handle to the position as shown within one turn.

CAUTION:

Do not adjust shift selector handle by loosening it.

CAUTION:

• Apply multi-purpose grease to socket and bushing.

• Insert bushing of shift selector assembly as far as it will go into the hole of striking arm.

• Tighten guide plate (1) bolts to the specified torque in order as

shown.

•

:  Front

• Do not reuse clip.

• Position clip as shown.

• Be careful with the orientation of shift selector boot and insu-

lator.

INSPECTION AFTER INSTALLATION

• Tighten guide plate bolts to the specified torque. Refer to

TM-18, "Removal and Installation"

.

• When shift selector assembly is moved to each position, make sure there is no binding or disconnection in

either boot.

• When moved to each position, make sure there is no noise, bending, and backlash. Especially when shift

selector assembly is moved to 5th, 6th without pressing downward, check for bending.

• When shift selector assembly is moved to 1st, 2nd side and 5th, 6th side, confirm shift selector assembly

returns to neutral position smoothly.

• In any position other than reverse, confirm that shift selector assembly can be pressed downward.

• With shift selector assembly pressed downward, confirm that it can be moved to reverse.

• When moved from reverse to neutral position, confirm shift selector assembly returns to neutral position

smoothly with spring power.

• Without shift selector assembly pressed downward, confirm that it cannot be moved to reverse.

PCIB1435E

PCIB1668E

PCIB1434E

TM-20

< REMOVAL AND INSTALLATION >

[6MT: FS6R31A]

AIR BREATHER HOSE

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000009485373

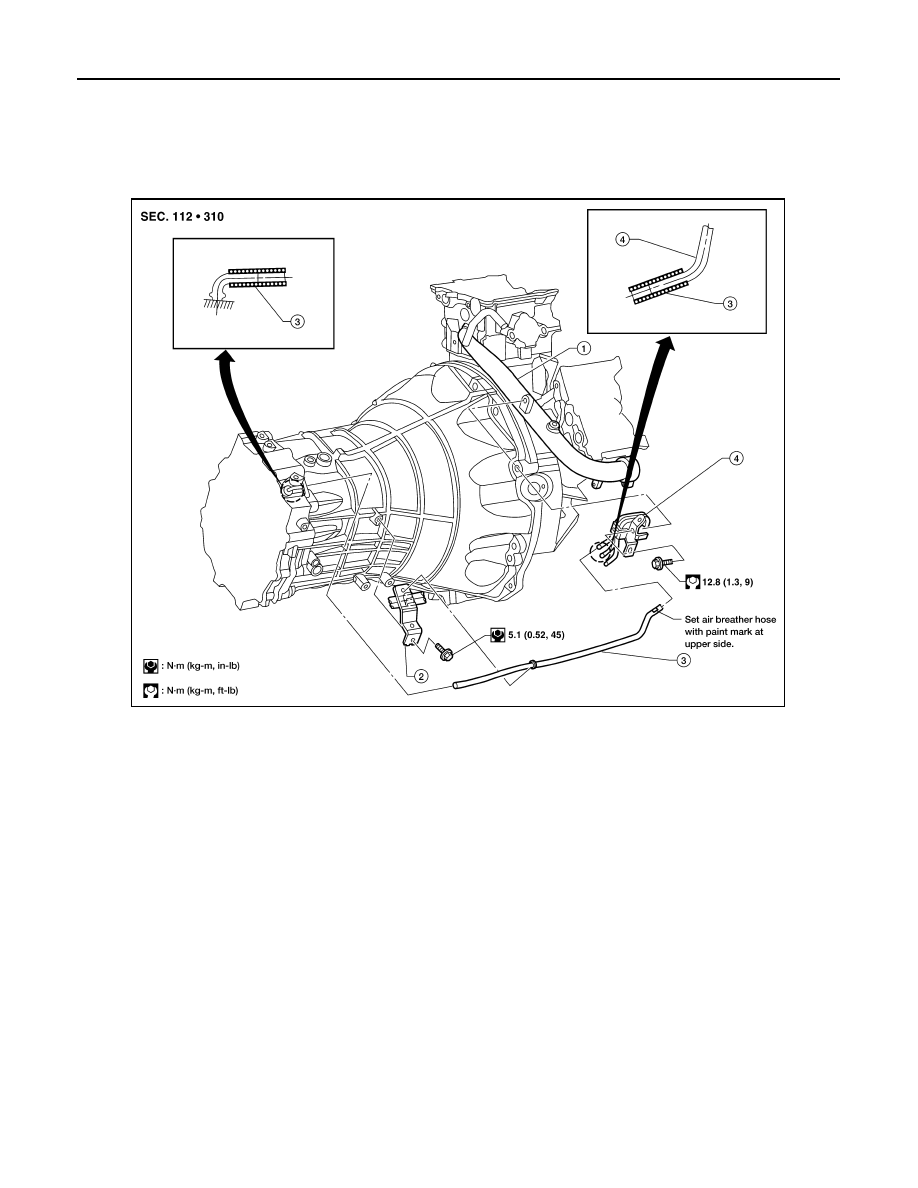

COMPONENTS

REMOVAL

1. Disconnect air breather hose from breather tube and transmission connector.
2. Disconnect air breather hose from the bracket.
3. Remove the bracket bolt and remove the bracket from the transmission housing, if necessary.
4. Remove the breather tube bolt and the breather tube.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Make sure there are no pinched or blocked areas on the air breather hose after installation.

• When inserting the air breather hose, be sure to insert it fully until its end reaches the end of the tube

radius.

• Install the air breather hose with the paint mark side up.

1.

Water outlet

2.

Bracket

3.

Air breather hose

4.

Breather tube

LCIA0392E
