TM-6

< SYMPTOM DIAGNOSIS >

[6MT: FS6R31A]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009485361

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-

tion. If necessary, repair or replace these parts.

Reference page

TM-15

TM-15

TM-18

TM-43

TM-54

SUSPECTED PARTS
(Possible cause)

OIL

 (Oil

lev

el

 is

 lo

w

.)

OIL (W

rong oil.

)

OIL

 (Oil

lev

el

 is

 h

igh

.)

GASKET

 (Damaged)

OIL SEAL (W

orn or

damaged)

SHIFT CONTROL LINKAGE

(W

orn)

CHECK PLUG RETURN SPRING

 AND CHECK BALL

(W

orn or damaged)

SHIF

T FORK (W

orn)

G

EAR (W

o

rn o

r da

ma

ge

d)

BEARI

N

G (W

orn or

damaged)

BAUL

K

 RING

 (W

orn

 o

r da

ma

ge

d)

INSE

R

T SP

RING

 (Dam

ag

ed

)

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

Hard to shift or will not shift

1

1

2

2

2

Jumps  out  of  gear

1

1

2

2

DESCRIPTION

TM-7

< SYMPTOM DIAGNOSIS >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DESCRIPTION

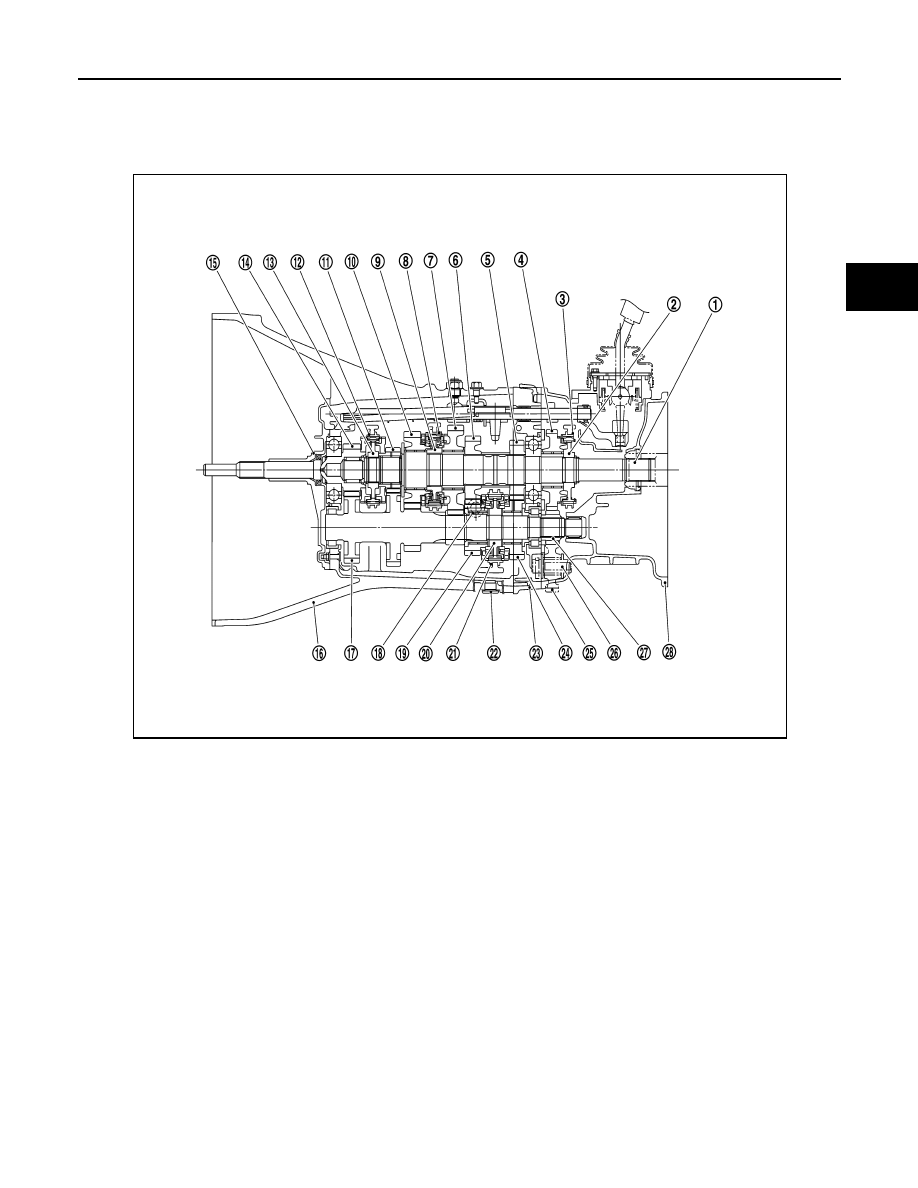

Cross-Sectional View

INFOID:0000000009485362

DOUBLE-CONE SYNCHRONIZER

The 1st, 3rd and 4th gears are equipped with a double-cone synchronizer to reduce the operating force of the

shift selector.

TRIPLE-CONE SYNCHRONIZER

1.

Mainshaft

2.

Reverse synchronizer hub

3.

Reverse coupling sleeve

4.

Reverse main gear

5.

4th main gear

6.

3rd main gear

7.

1st main gear

8.

1st-2nd coupling sleeve

9.

1st-2nd synchronizer hub

10. 2nd main gear

11. 6th main gear

12. 5th-6th coupling sleeve

13. 5th-6th synchronizer hub

14. Main drive gear

15. Front cover

16. Transmission case

17. Counter gear

18. Filler plug

19. 3rd counter gear

20. 3rd-4th synchronizer hub

21. 3rd-4th coupling sleeve

22. Drain plug

23. Adapter plate

24. 4th counter gear

25. Reverse idler gear

26. Reverse idler shaft

27. Reverse counter gear

28. OD gear case

TM-8

< SYMPTOM DIAGNOSIS >

[6MT: FS6R31A]

DESCRIPTION

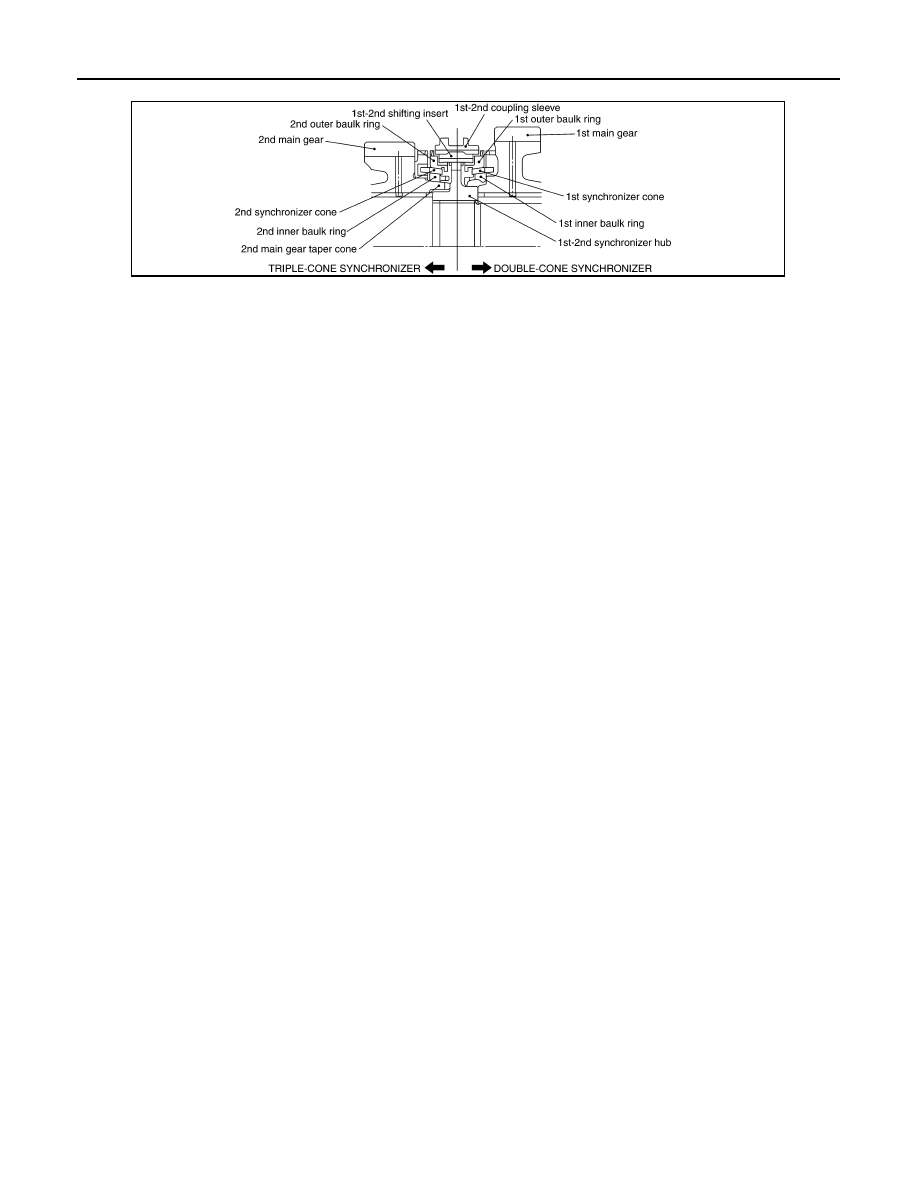

The 2nd gear is equipped with a triple-cone synchronizer to reduce the operating force of the shift selector.

PCIB0594E
