STR-30

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

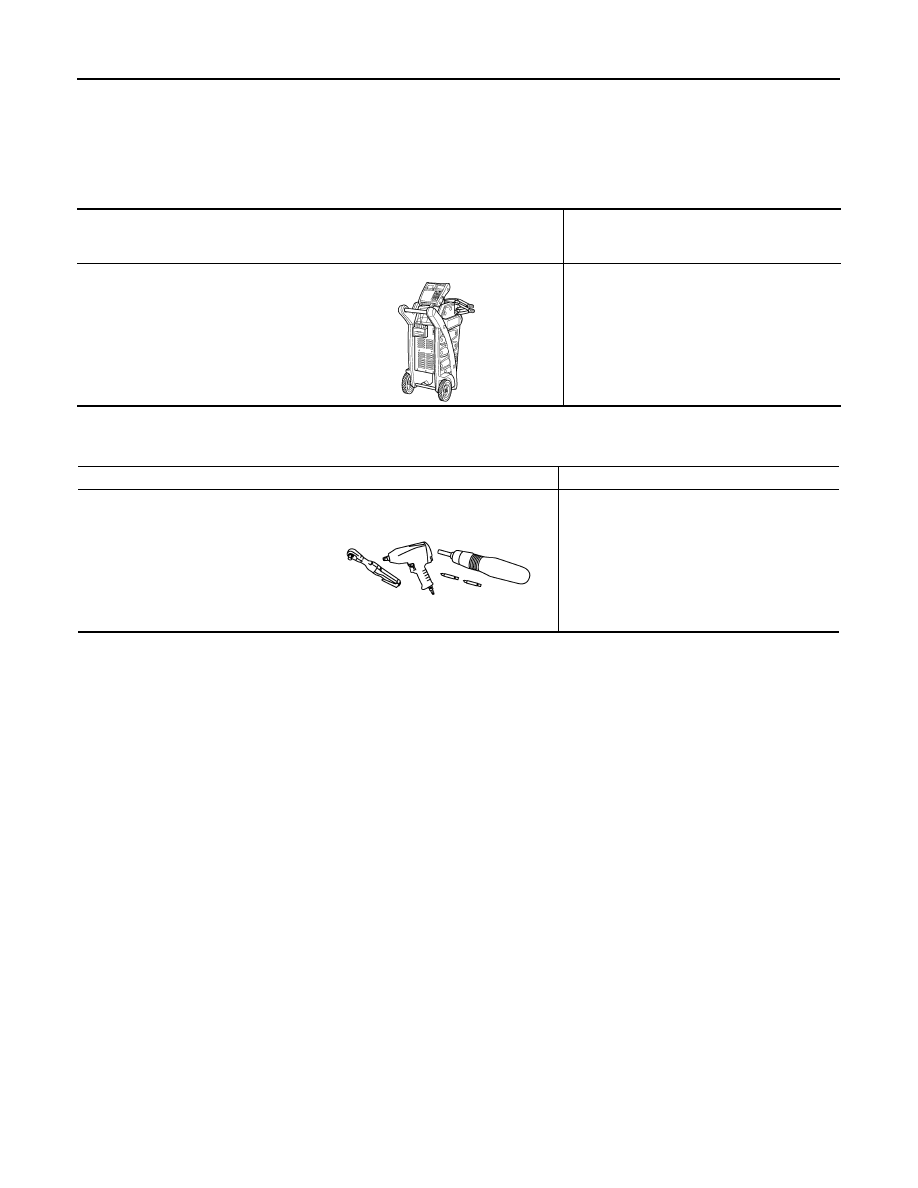

Special Service Tool

INFOID:0000000009485125

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009485126

Tool number
(TechMate No.)
Tool name

Description

—

(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries
For operating instructions, refer to diagnostic
station instruction manual

AWIIA1239ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

STARTER MOTOR

STR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

REMOVAL AND INSTALLATION

STARTER MOTOR

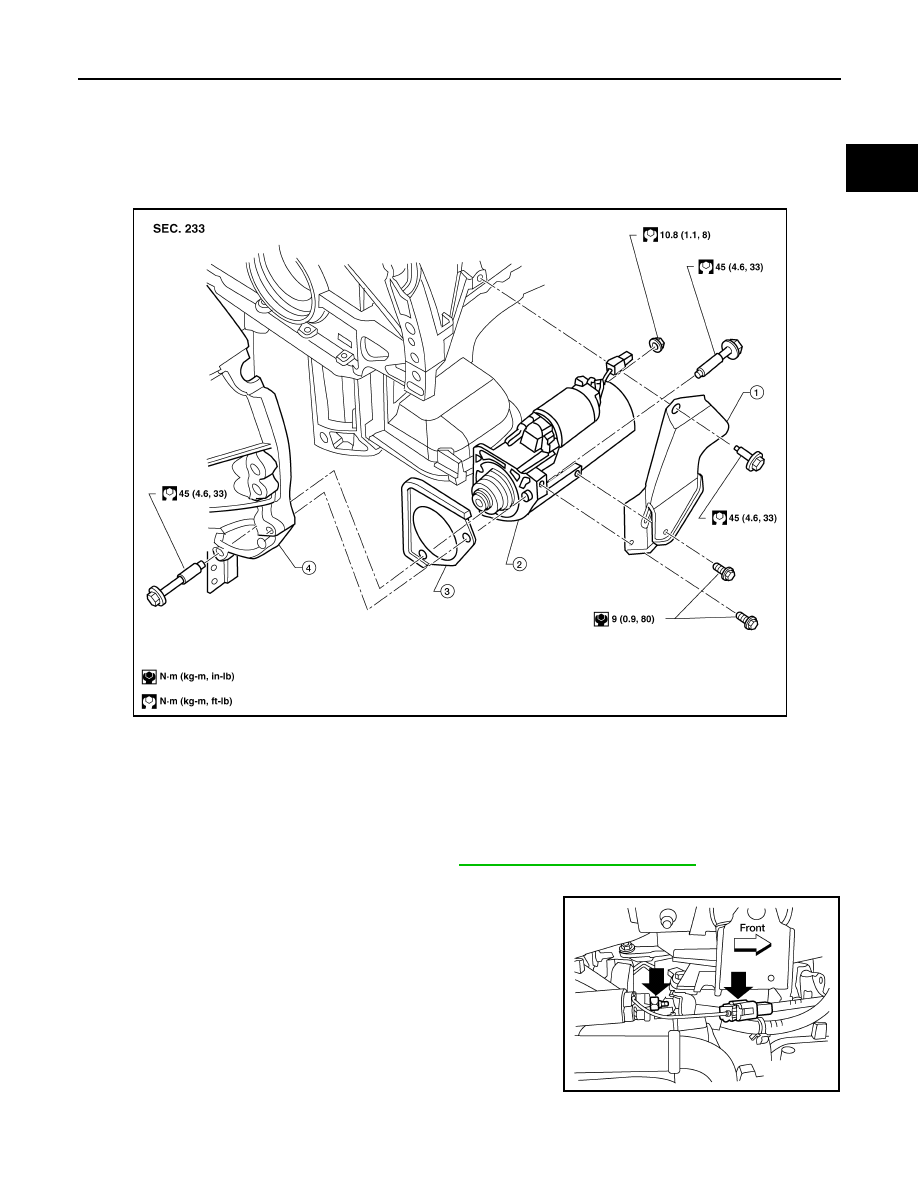

Exploded View

INFOID:0000000009485127

Removal and Installation

INFOID:0000000009485128

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-72, "Removal and Installation"

.

2. Remove starter cover bolts and starter cover.
3. Disconnect terminal "S" harness connector and remove terminal

"B" nut.

4. Remove the two starter bolts using power tools.
5. Remove the starter motor.

INSTALLATION

Installation is in the reverse order of removal.

1.

Starter cover

2.

Starter motor assembly

3.

Starter cover plate (rear)

4.

Transmission housing

WKIA3190E

WKIA3189E

STR-32

< REMOVAL AND INSTALLATION >

STARTER MOTOR

CAUTION:

Tighten terminal "B" nut carefully.

STARTER MOTOR

STR-33

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

STARTER MOTOR

Starter

INFOID:0000000009485129

*: Always check with the Parts Department for the latest parts information.

Application

All Models

Type*

Mitsubishi

M001TA0072

Reduction gear type

System voltage

12V

No-load

Terminal voltage

11V

Current

Less than 120A

Revolution

More than 3,100 rpm
