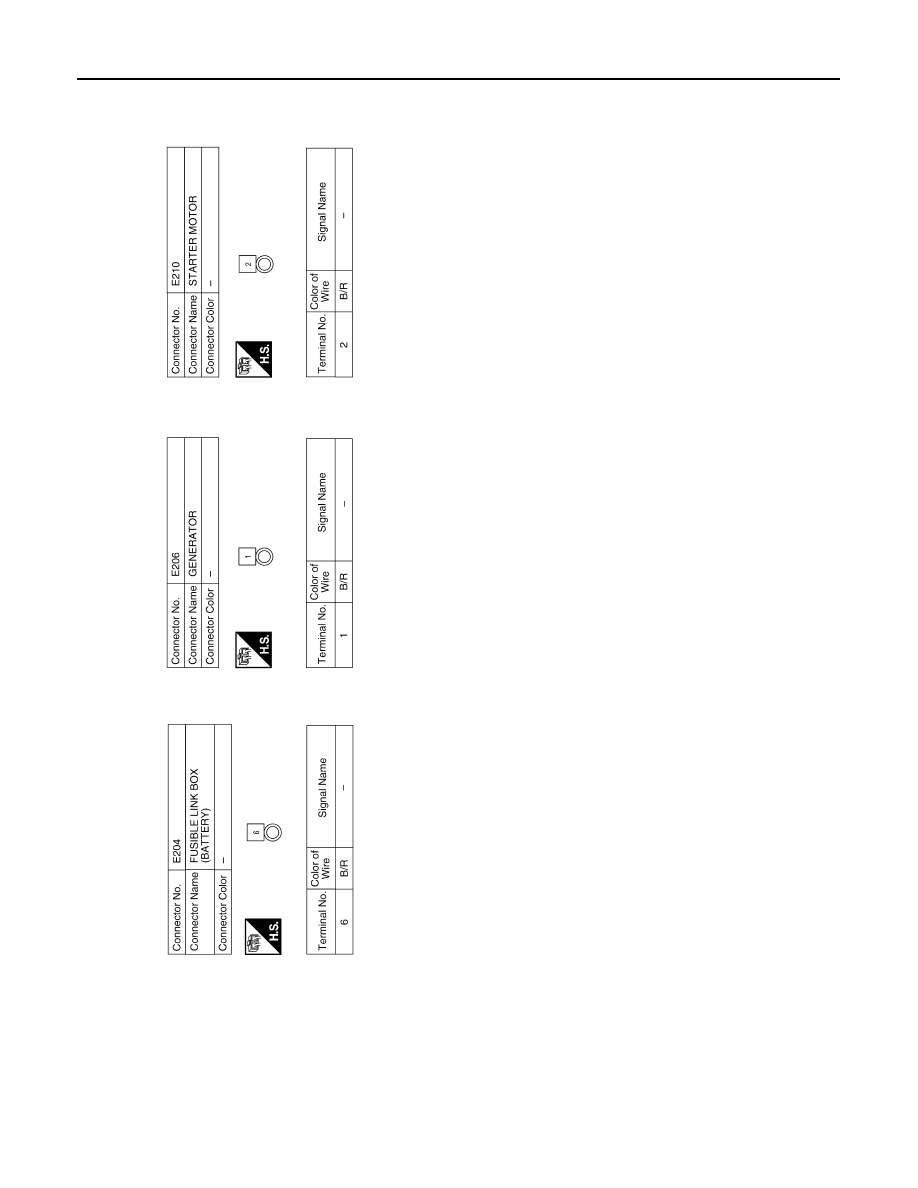

POWER SUPPLY ROUTING CIRCUIT

ABMIA4414GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-17

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Wiring Diagram—Accessory Power Supply

INFOID:0000000009484615

ABMWA2372GB

PG-18

< DTC/CIRCUIT DIAGNOSIS >

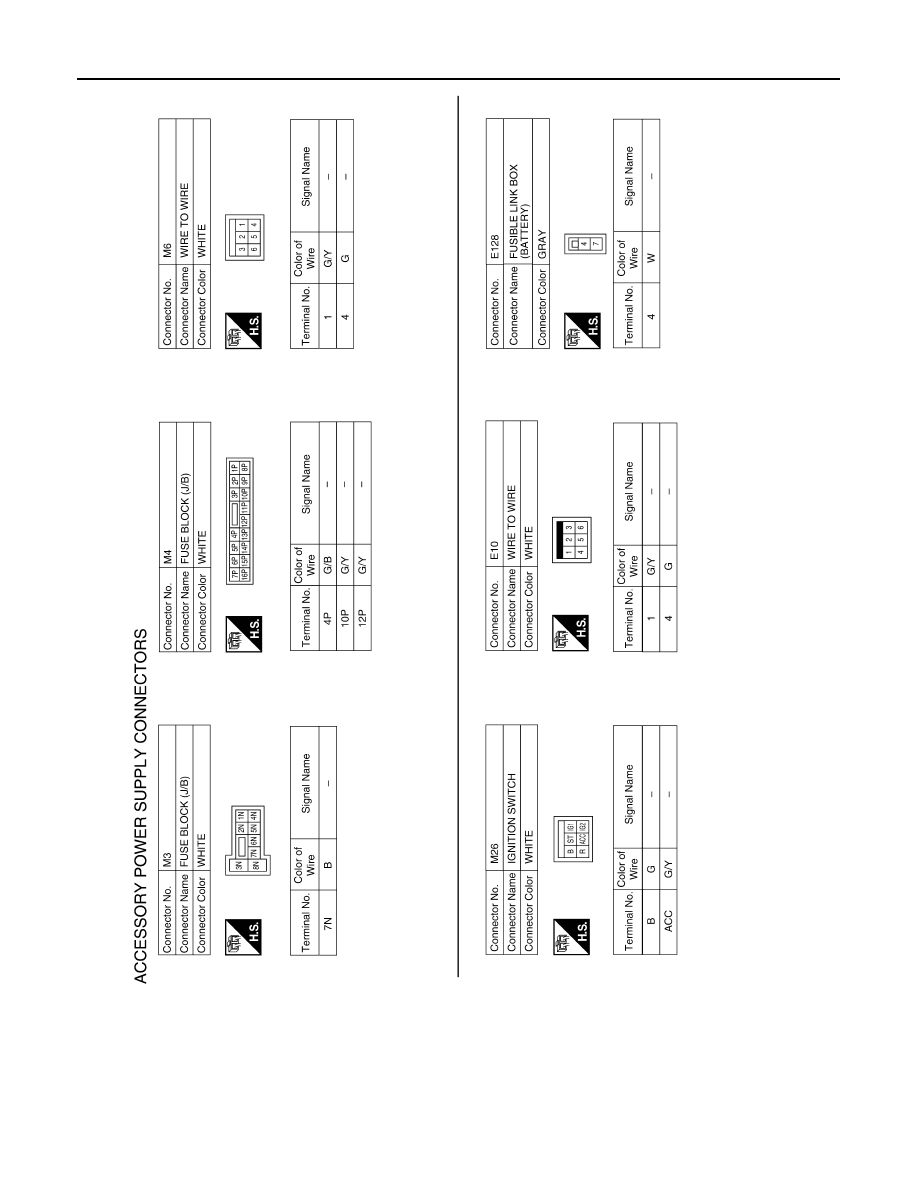

POWER SUPPLY ROUTING CIRCUIT

ABMIA0432GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

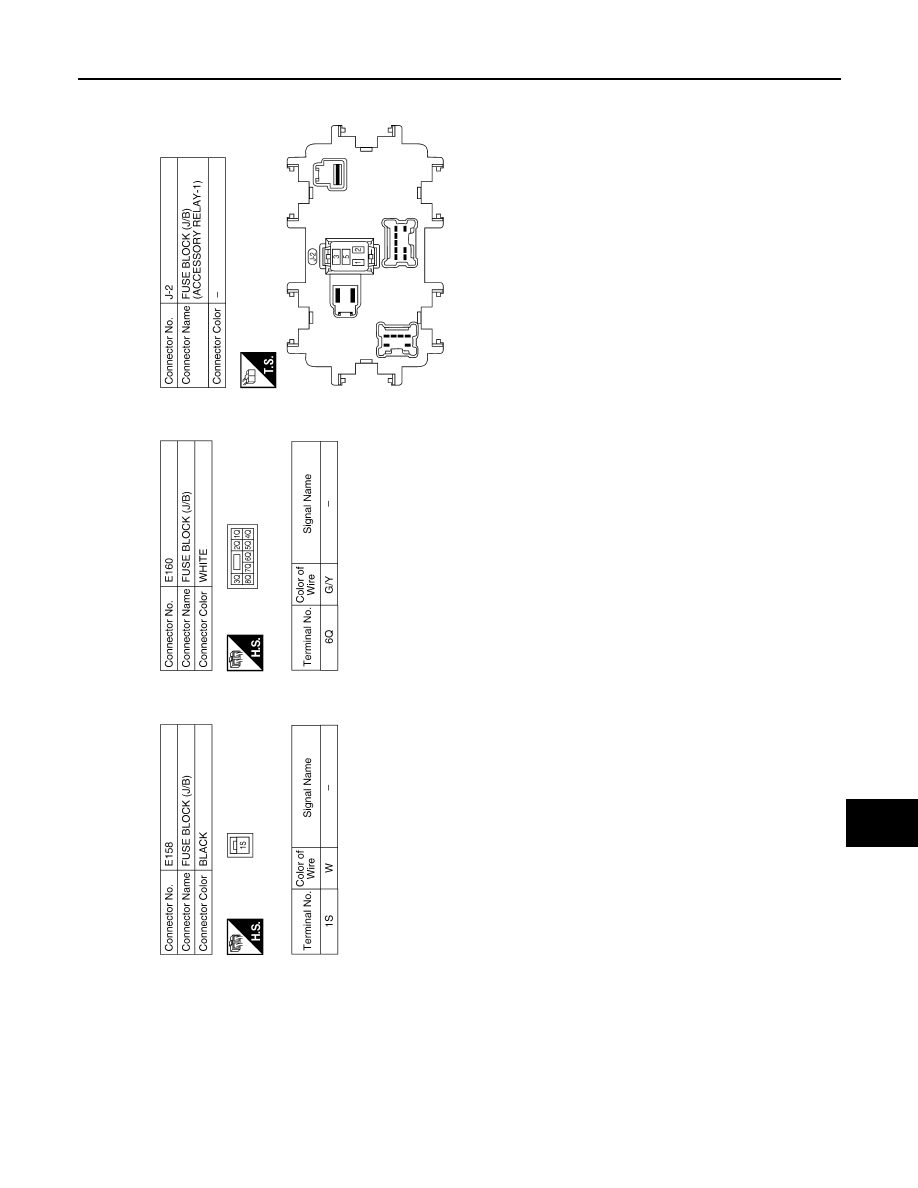

ABMIA4415GB
