Nissan Xterra. Manual - part 536

PG-20

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

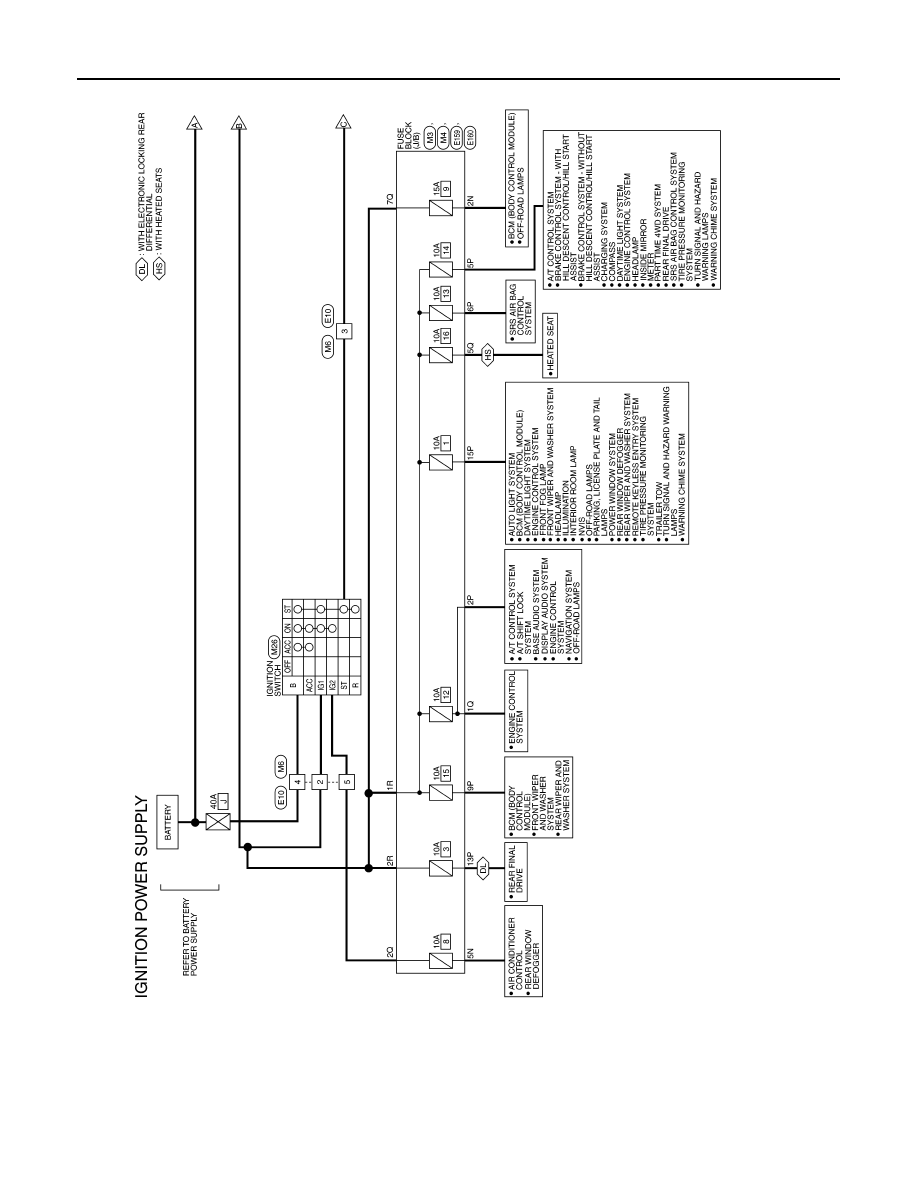

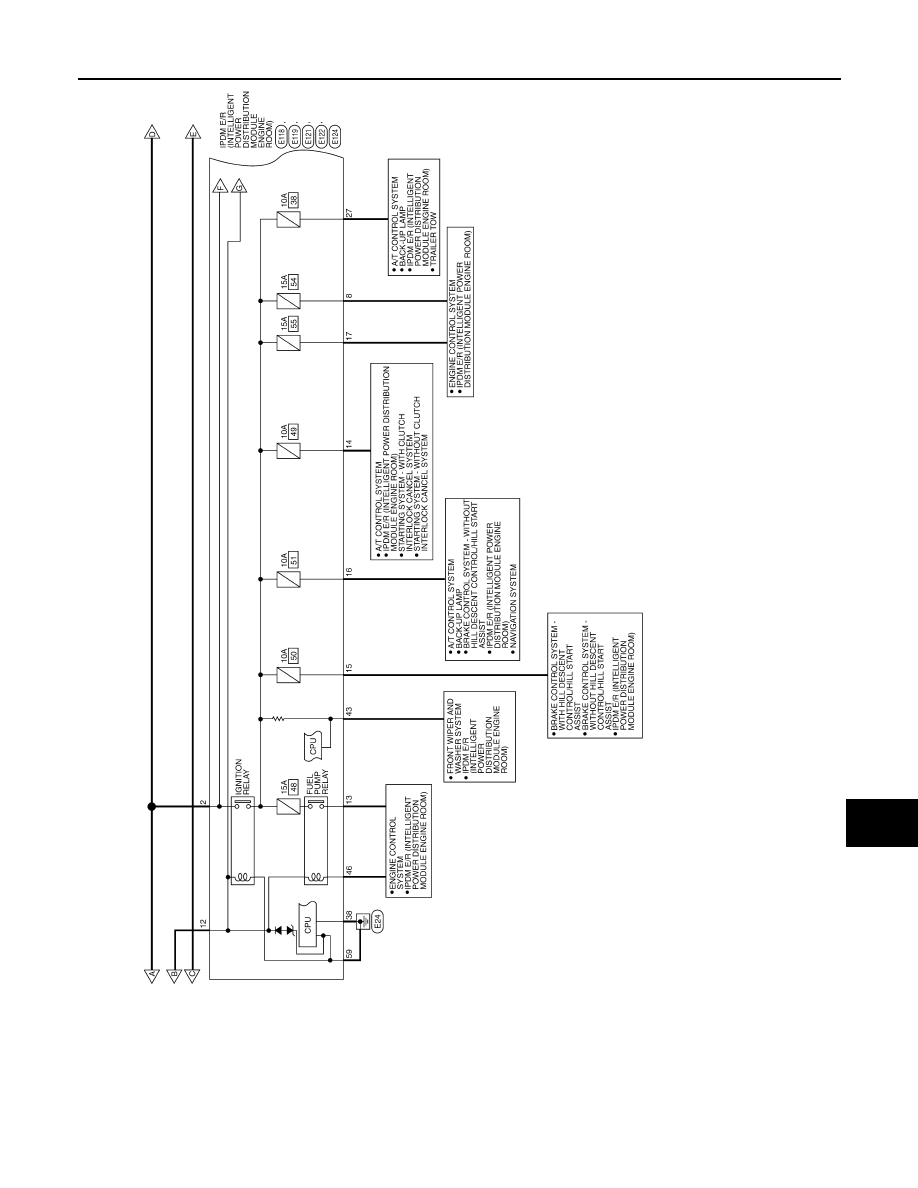

Wiring Diagram—Ignition Power Supply

INFOID:0000000009484616

ABMWA2373GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA1889GB

PG-22

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

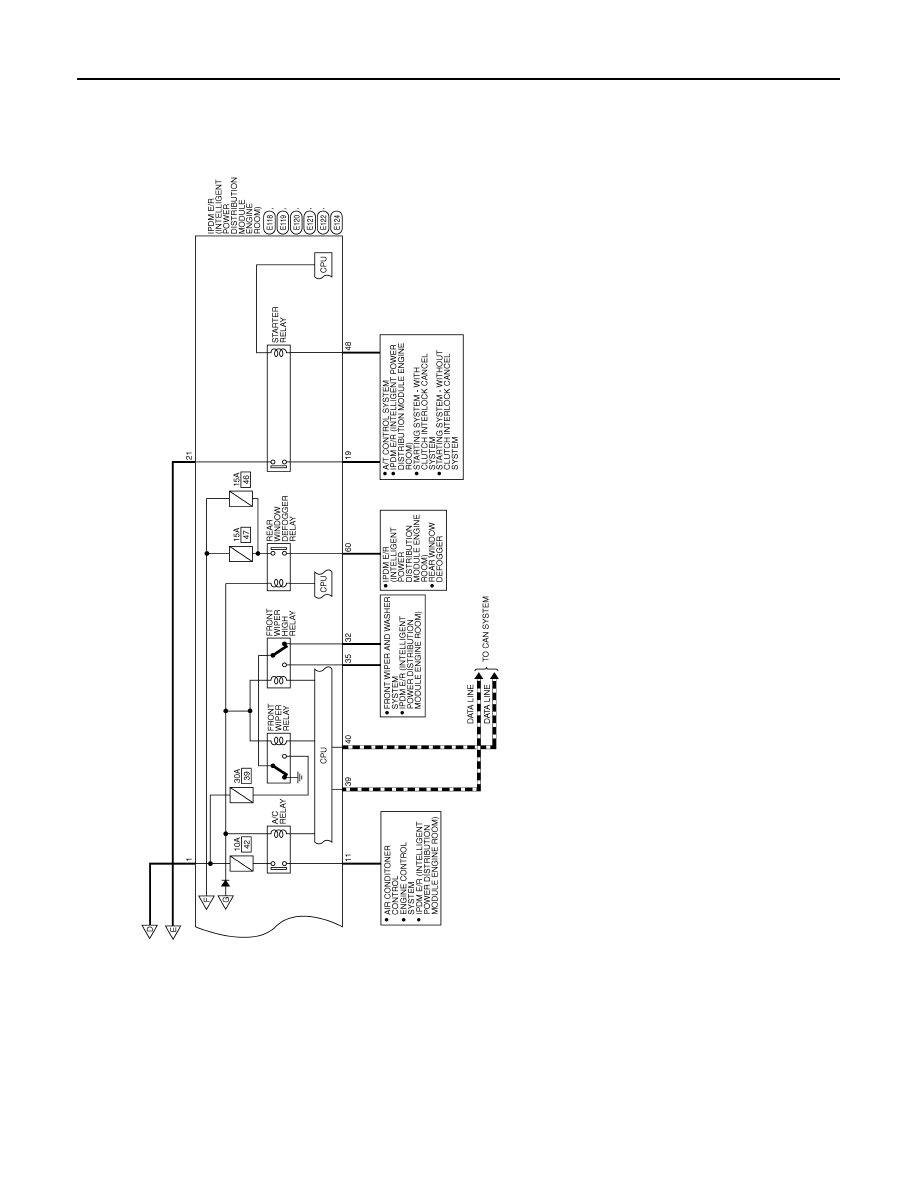

ABMWA2374GB

PG

POWER SUPPLY ROUTING CIRCUIT

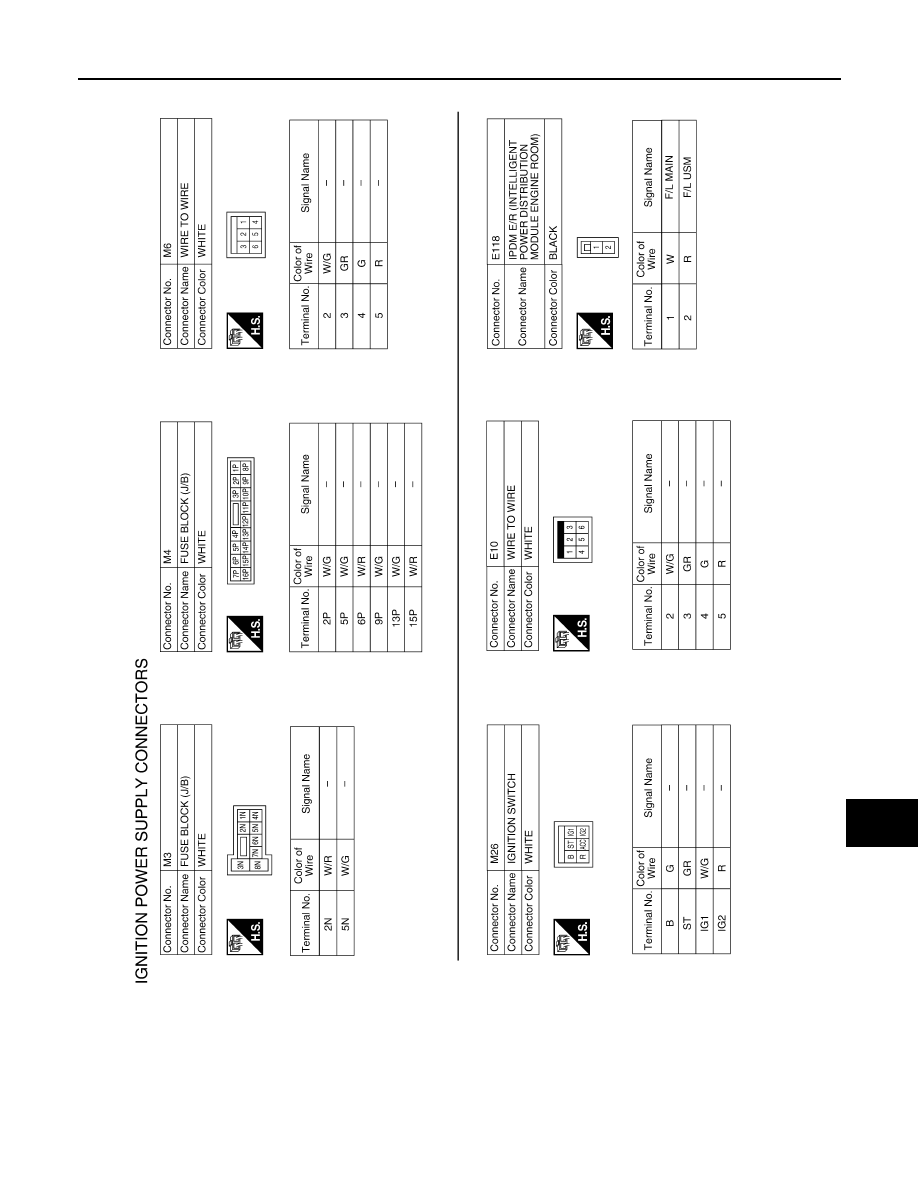

PG-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA3543GB
